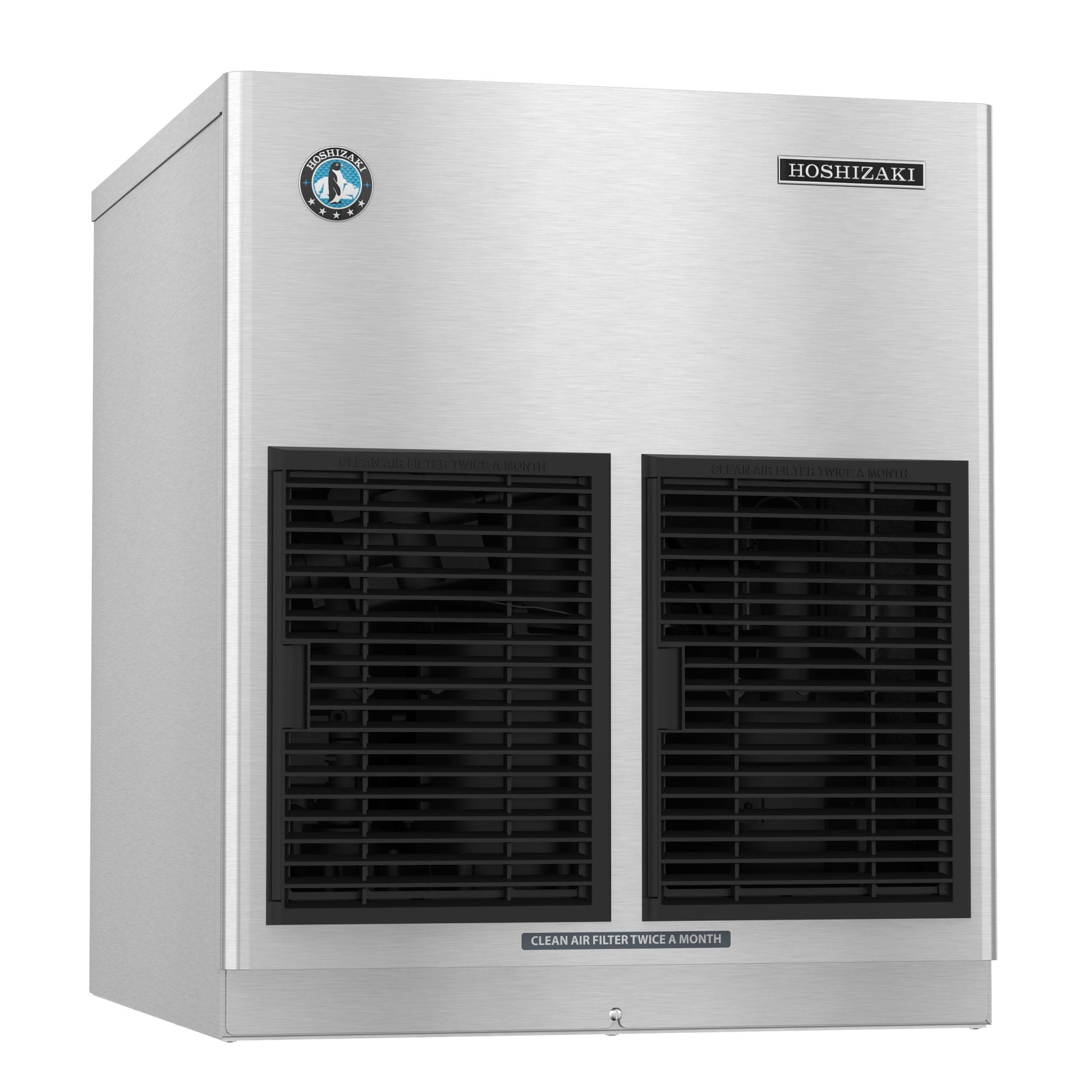

Hoshizaki | 22" Wide Air-Cooled Cubelet Ice Maker (Dispenser Sold Separately) - FD-650MAJ-C
The FD-650MAJ-C is capable of producing approximately 634 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Dispenser icemaker stores up to lbs of ice. It features an Advanced CleanCycle24 design plus a greaseless bearing auger construction making it simple to maintain. The FD-650MAJ-C requires a Single
phase, 115v/60/1, 3 wire, including ground electrical connection. Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 24″ D x 26″ H
- Up to 634 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production
- Produces small cubelet nugget-style ice
- Durable stainless steel exterior
- Compatible bins & dispensers, sold separately: B-250, BD-300, B-500, B-700, B-800, B-900
- 2 second rinse every hour to remove sediment
- Advanced CleanCycle24™ design
- Protected by H-GUARD Plus Antimicrobial Agent
- R-404A refrigerant (12.3 oz. oz. / 349 g g )
- Heat Rejection:6800 BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.2 amps (20 Amp Max fuse)
- 5.35 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground
- Clean ice and easy maintenance lead to longer unit life span
- Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
What Our Experts Think
Produces up to 634 lbs. of cubelet ice daily, perfect for high-volume beverage service.
22" slim design saves space while delivering powerful ice production.
Air-cooled system reduces water consumption and operating costs.
Cubelet (nugget-style) ice is soft, chewable, and popular in healthcare and restaurants.
A great choice for fast-food chains, bars, cafeterias, and hospitals.
Q&A
Q: Does it include a dispenser?
A: No, the ice dispenser is sold separately to match your service needs.
Q: What type of ice does it make?
A: It produces cubelet (nugget-style) ice, ideal for fountain drinks and blended beverages.
Q: Is it energy and water efficient?
A: Yes, the air-cooled design helps reduce both energy and water usage.
Maintenance Tips
Clean and sanitize the ice maker every 6 months to ensure safe operation.
Replace water filters regularly for consistent ice quality.
Keep the condenser unit dust-free for efficient cooling.
Inspect for scale buildup and clean with manufacturer-approved solutions.
Arrange annual professional maintenance for maximum reliability.
