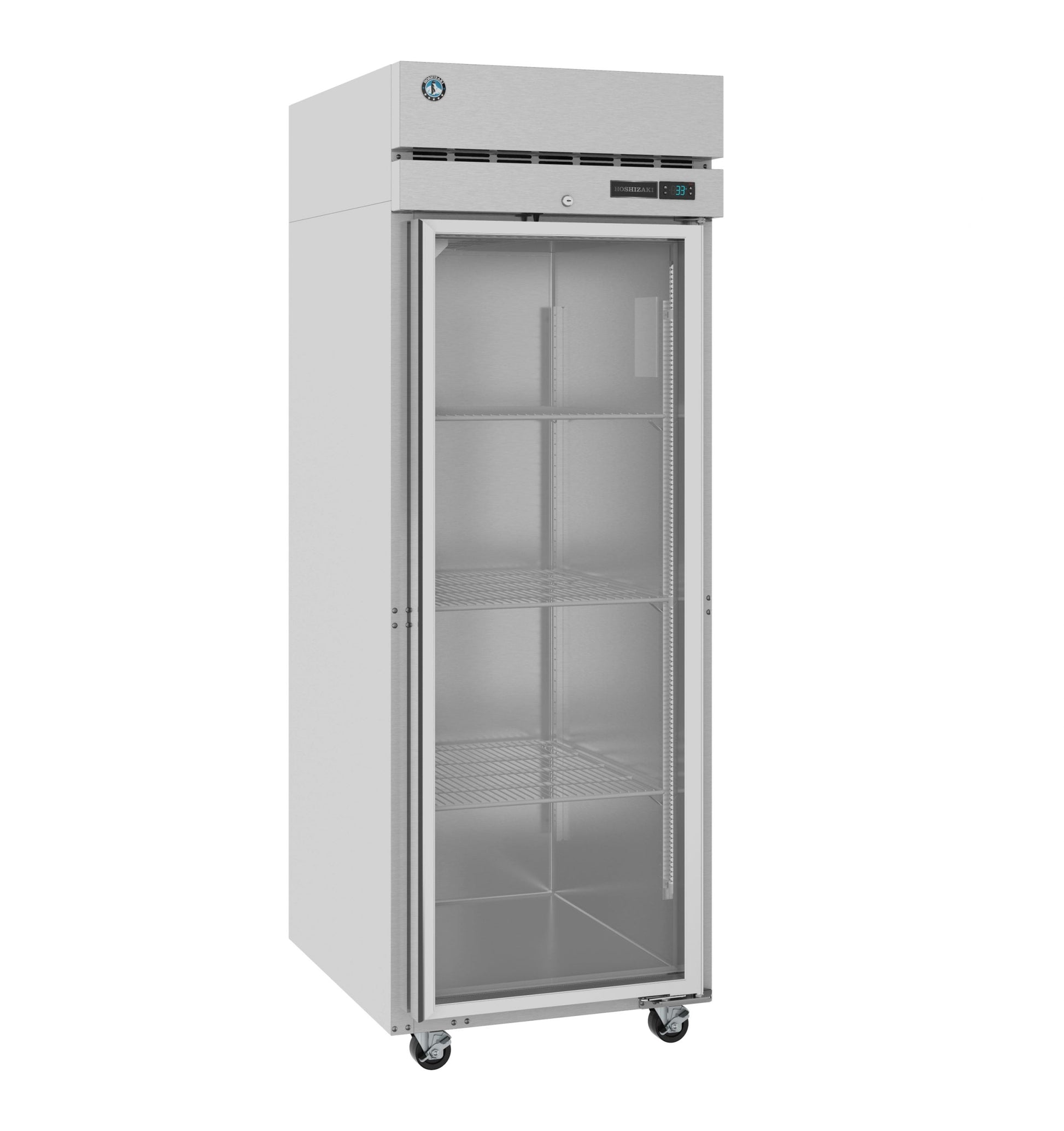

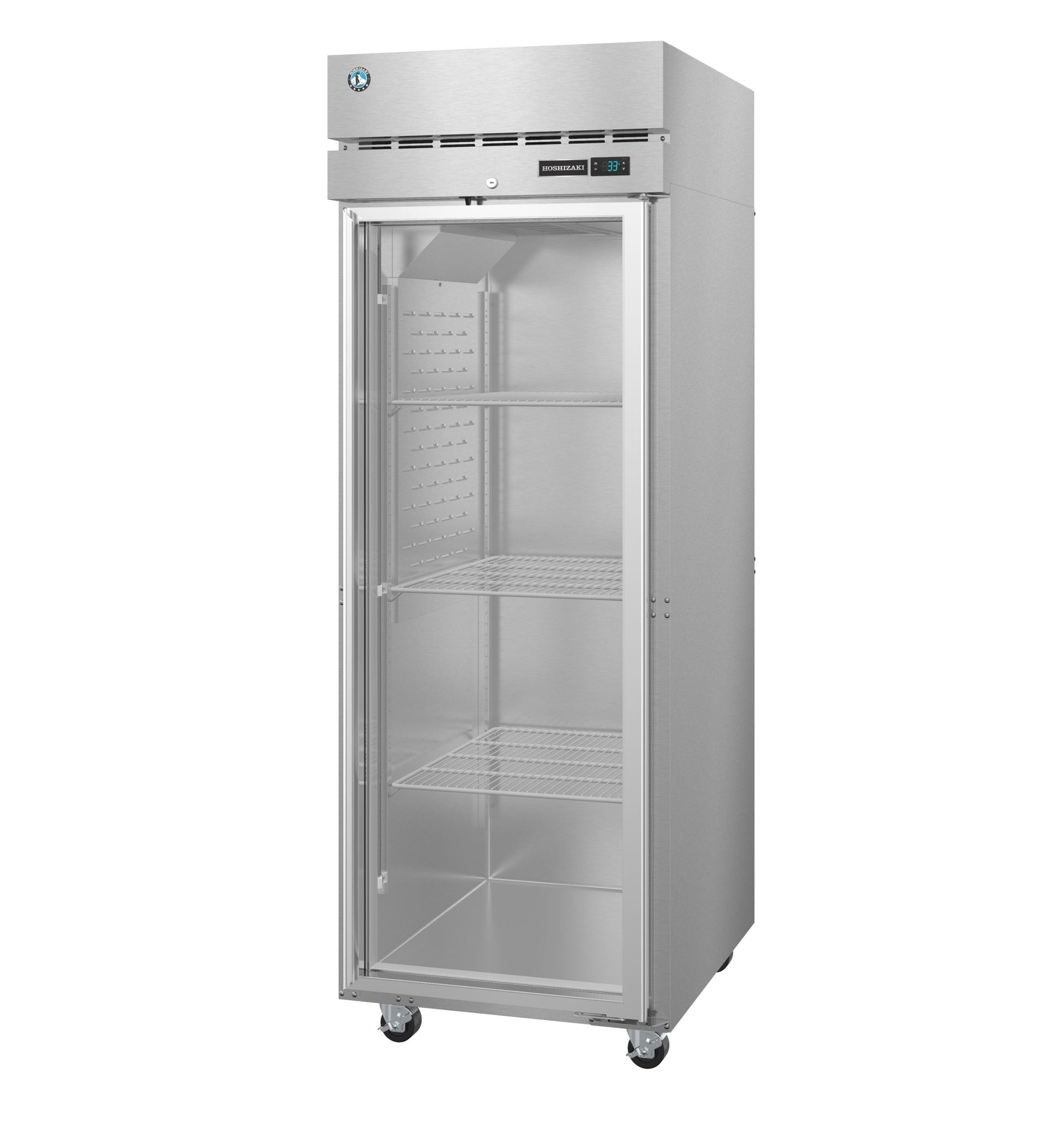

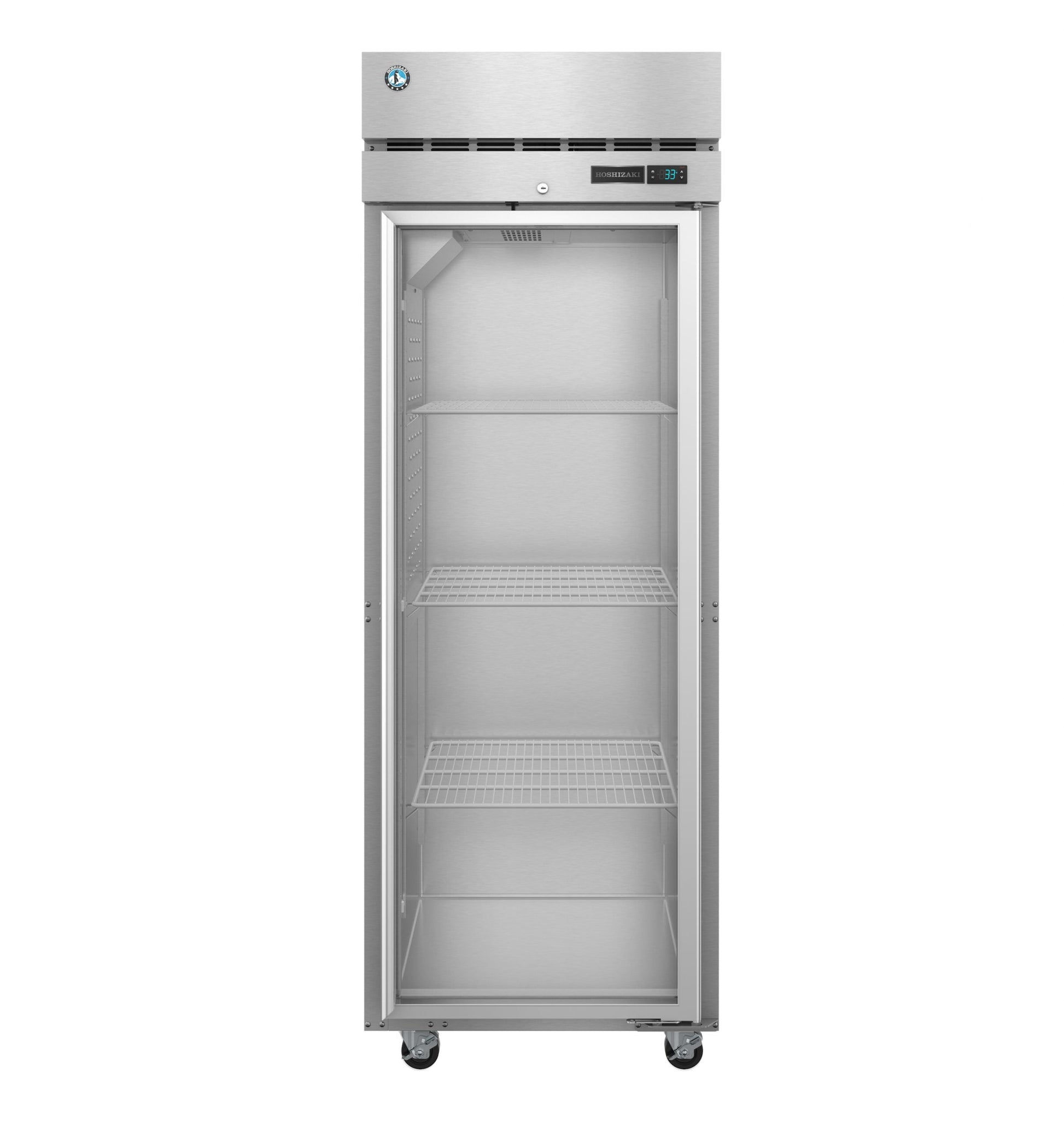

Hoshizaki R1A-FG | 28" Wide 1 Glass Door Top Mount Reach-In Refrigerator - R1A-FG
The R1A-FG Steelheart Series Upright single section refrigerator with a full glass door is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 23.1 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R1A-FG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R1A-FG also includes Interior LED light bars are vertically mounted on each wall, (4) 4″ stem casters (2 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 2.47 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 27.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 23.1 cubic feet

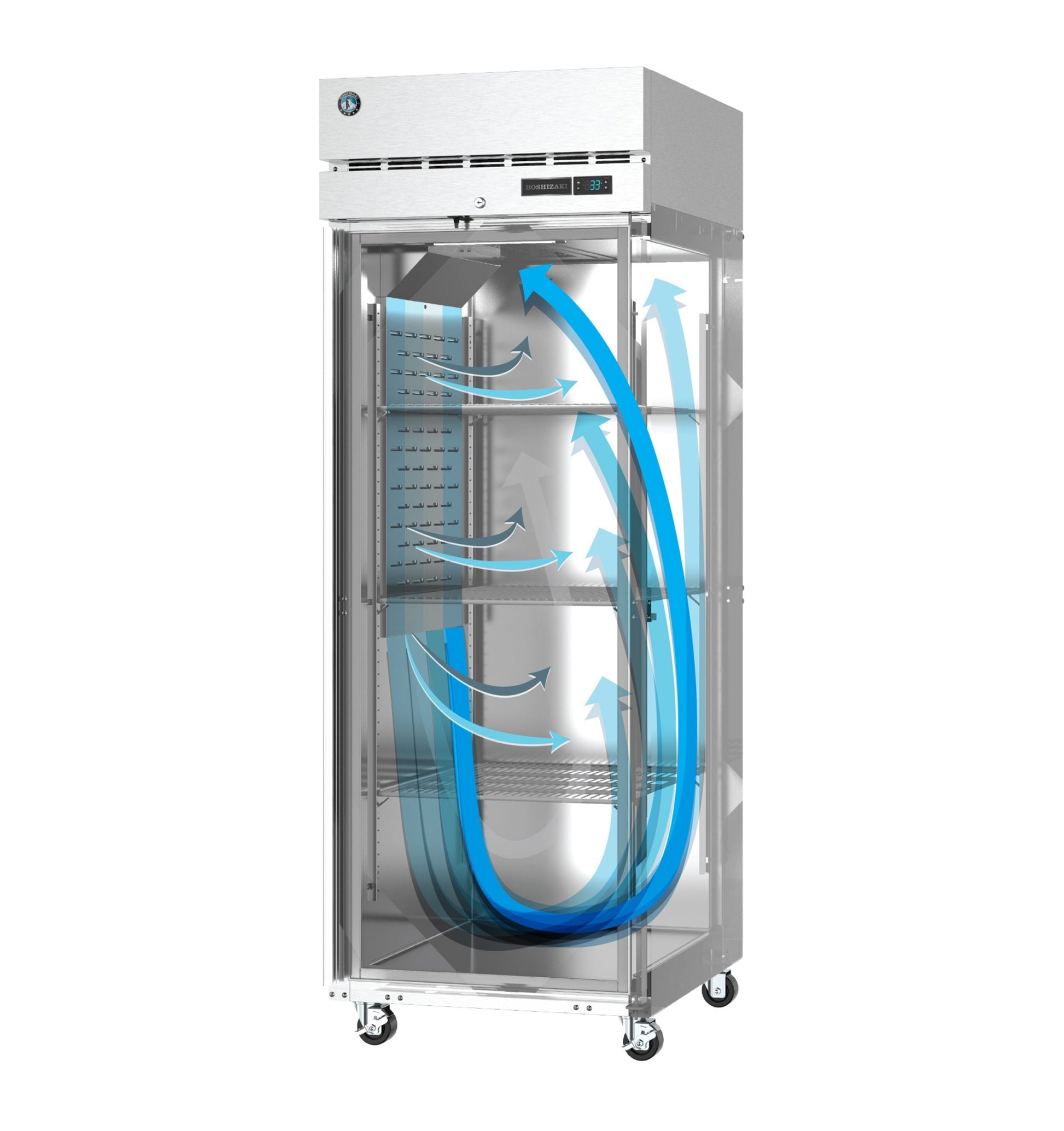

- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Full Glass Door
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks

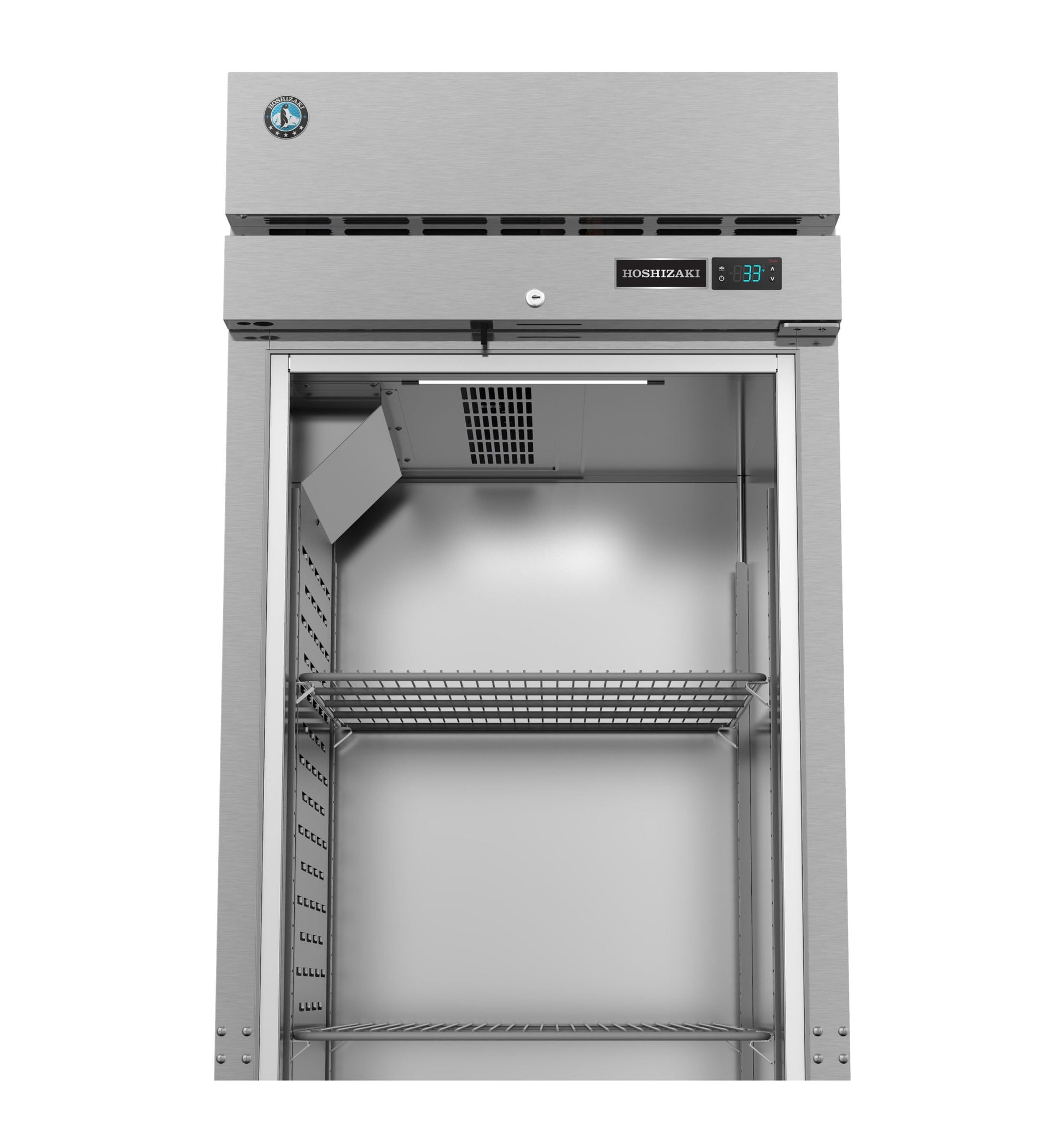

- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard

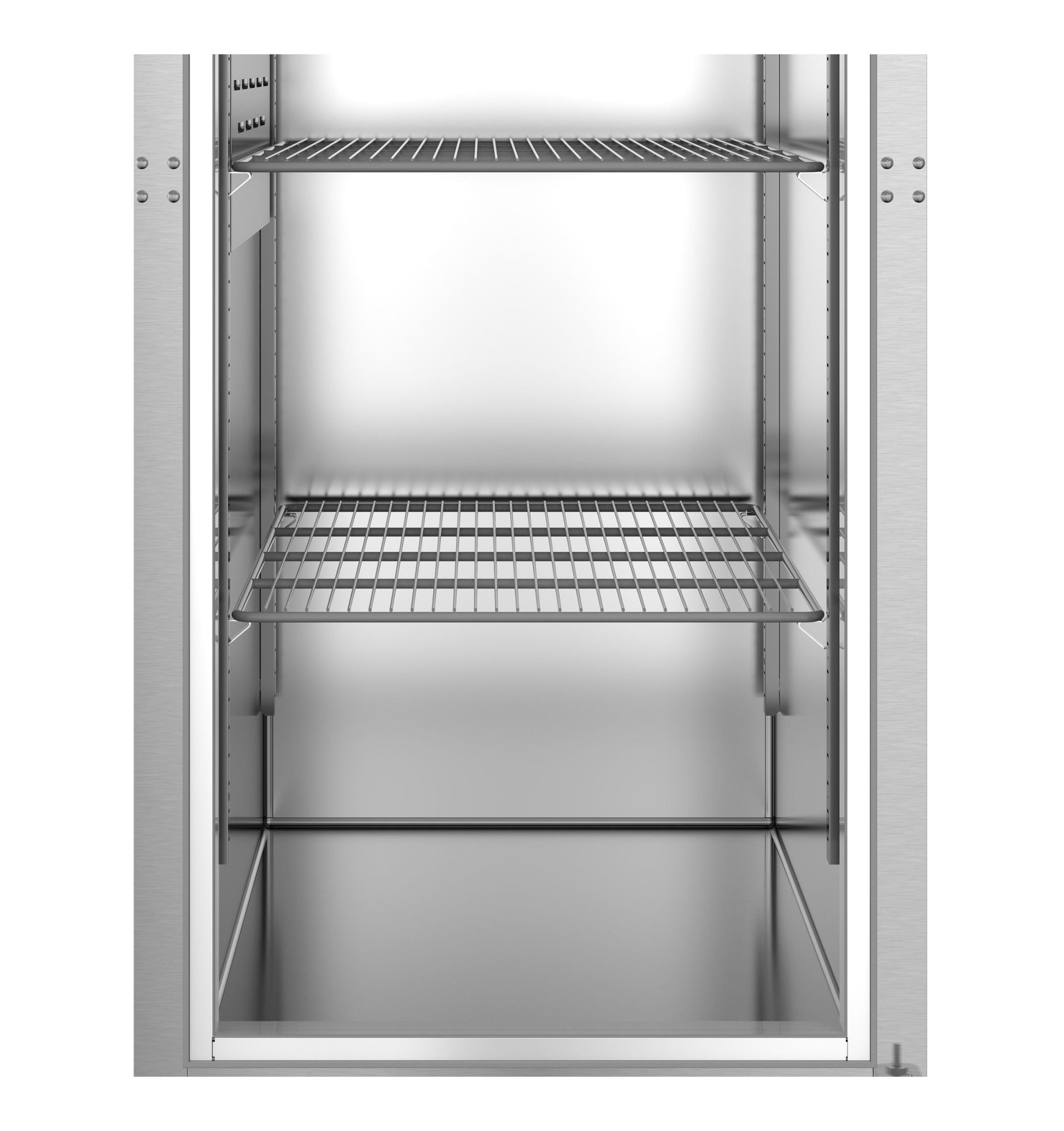

- Includes 3 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 36″ L x 31.5″ D x 81″ H at 350 lbs
- Top mounted energy efficient non-electric evaporation system
Specifications
| Brand |
Hoshizaki |
| Model Number |
R1A-FG |
| Weight |
350 lbs |
| Width |
27.5" |
| Depth |
34.75" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Reach-In |
| Size |
1 section |
| Door Quantity |
1 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
1/4 HP |
| Compressor Location |
top mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
23 |
| Hinge Location |
reversible |
| Door Style |
swing / full |
What our Experts Think
-
Compact & Efficient: 28" wide single glass door provides visibility and easy access for small spaces.
-
Top-Mount Refrigeration: Keeps the compressor away from floor debris, ensuring consistent cooling.
-
Durable Construction: Stainless steel interior and exterior built for commercial use.
-
Energy Efficient: Maintains safe temperatures while reducing operating costs.
-
Ideal for Small Operations: Perfect for cafes, bars, and small restaurants needing reliable refrigerated storage.
Q&A
Q: What is the Hoshizaki R1A-FG Reach-In Refrigerator?
A: A 28-inch wide, single glass-door, top-mount commercial refrigerator designed for reliable food storage and product visibility.
Q: What makes it unique?
A: Its full glass door allows easy viewing of contents, while the top-mounted refrigeration system provides efficiency and maximizes storage.
Q: Where can it be used?
A: Ideal for restaurants, cafés, hotels, catering services, and foodservice operations that need both storage and display.
Q: What style of work does it suit?
A: Food storage, kitchen prep support, and front-of-house product visibility.
Q: What materials is it made from?
A: Durable stainless steel interior and exterior, with an energy-efficient insulated glass door.
Maintenance Tips
-
Clean interior and glass door regularly with mild soap and warm water; avoid abrasive cleaners.
-
Wipe down stainless steel exterior frequently to maintain appearance.
-
Inspect and clean condenser coils monthly for efficient cooling.
-
Check and clean door gaskets often to ensure a tight seal.
-
Keep airflow around the refrigerator clear for consistent performance.
-
Schedule professional maintenance annually to ensure long-term reliability.
