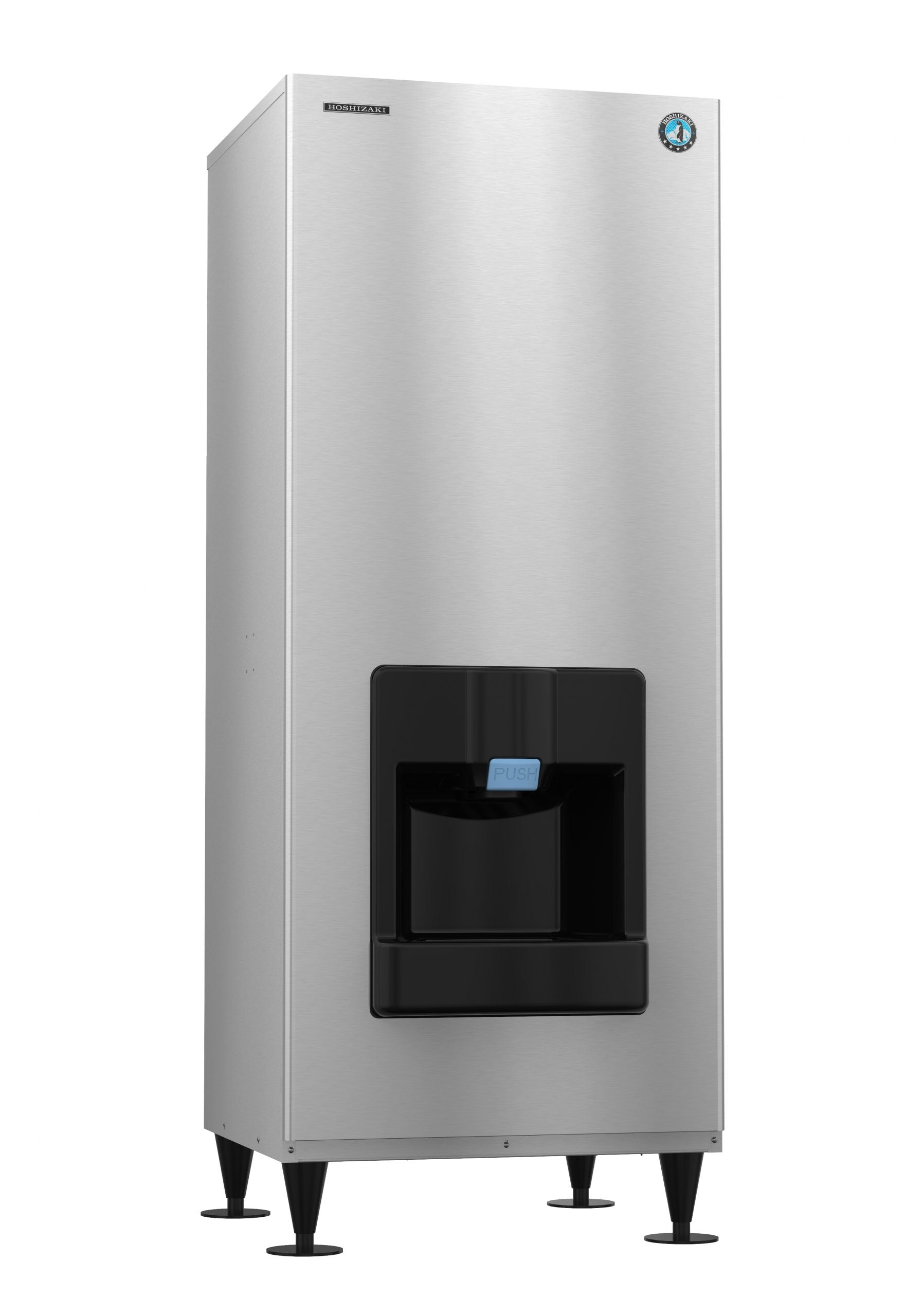

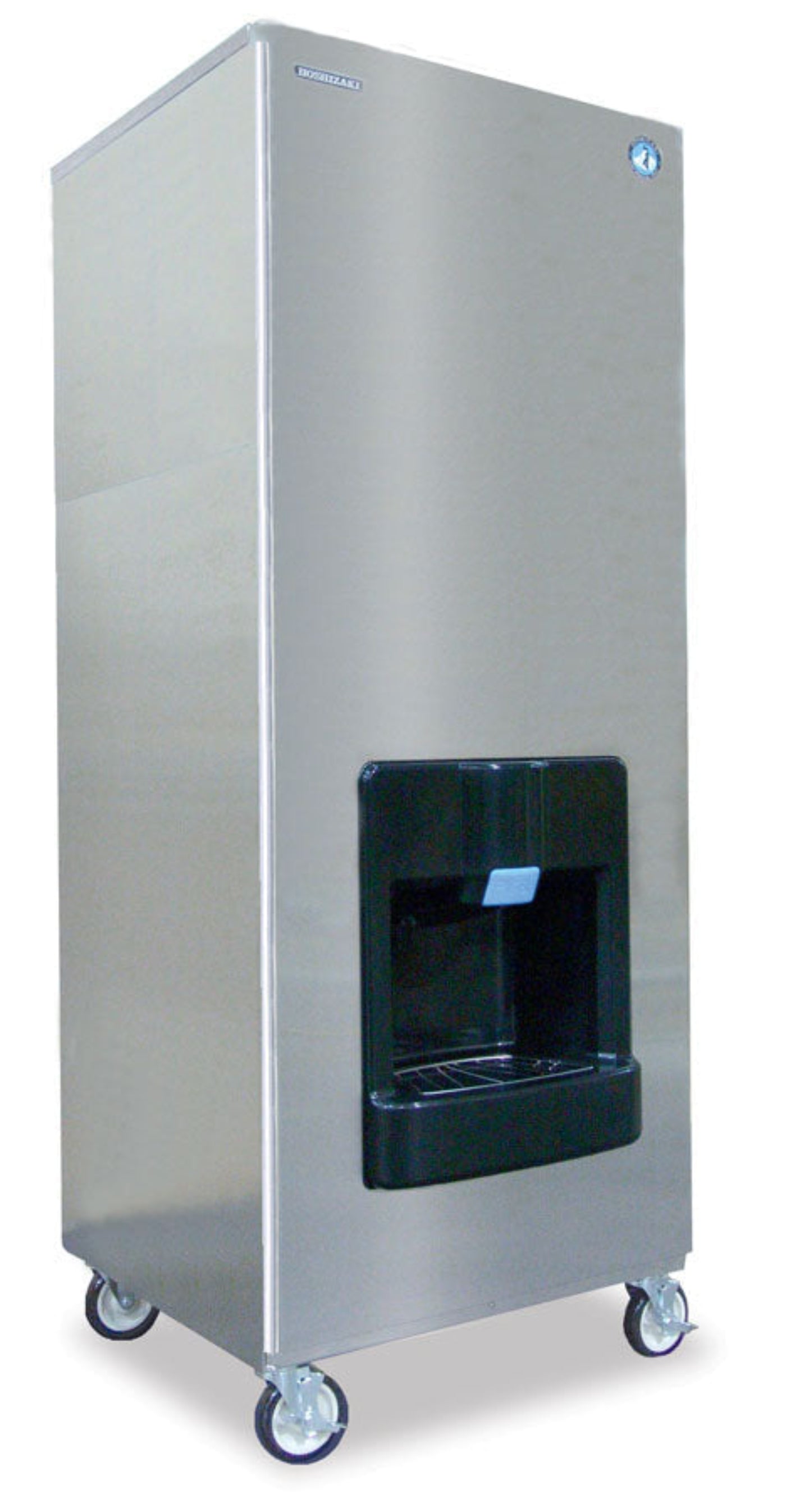

Hoshizaki DKM-500BWJ | 30" Wide Water-Cooled Crescent Cuber Ice Maker w/ Built-In Storage Bin - DKM-500BWJ

Hoshizaki DKM-500BWJ | 30" Wide Water-Cooled Crescent Cuber Ice Maker w/ Built-In Storage Bin - DKM-500BWJ

The DKM-500BWJ is capable of producing approximately 540 lbs of Crescent Cube style ice cubes per day, and the built-in dispensing system holds up to 140 lbs in insulated storage* to ensure you always have enough ice on hand! This commercial Water-cooled icemaker is the only one-piece dispenser design on the market! This makes it easy to install and service, and a quiet operating system makes it ideal for use in hotels and similar applications. Ice dispensing height is ADA compliant and is Protected by H-GUARD Plus Antimicrobial Agent. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button. This model features CycleSaver™ design and is Clean ice and easy maintenance lead to longer unit life span. The DKM-500BWJ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. electrical connection and comes with a cord and plug. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Features

• Dimensions: 30″ W x 28″ D x 77″ H
• Up to 540 lbs of ice produced per 24 hours
• Up to 140 lbs of built-in storage capacity (6.7ft3)
• Push button operated, 13 lbs of crescent cube icemin
• Durable, attractive one piece stainless steel exterior
• Push button operated, 13 lbs of icemin
• Ice dispensing height is ADA compliant
• CycleSaver™ design
• Protected by H-GUARD Plus Antimicrobial Agent
• R-404A refrigerant (1 lbs. 2 oz. / 510 g)
• Heat Rejection: BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 12 amps (20 Amp Max fuse)
• 4.79 kwh/100 lbs.@ 90/70
• Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
• Clean ice and easy maintenance lead to longer unit life span


Specifications

What our Experts Think

• High Ice Production: Produces up to 540 lbs of crescent cube ice daily with a built-in 140 lb storage bin for continuous supply.

• Water-Cooled Efficiency: Ideal for spaces where air-cooled units are less practical, ensuring reliable, consistent cooling.

• Easy Dispensing: Push-button system delivers 13 lbs of ice per minute at an ADA-compliant height for accessibility.

• Durable Build: One-piece stainless steel exterior offers long-lasting durability and simple cleaning.

• Energy Saving: Features CycleSaver™ design to reduce energy use and maintenance.

• Warranty Coverage: Includes a 3-year parts and labor warranty plus 5 years on the hermetic compressor.

Q&A

Q: What is the Hoshizaki DKM-500BWJ?
A: A 30" wide water-cooled crescent cuber ice maker with a built-in storage bin, producing up to 505 lbs of clear, hard crescent-shaped ice daily.

Q: What type of ice does it produce?
A: Produces clear, hard crescent-shaped ice ideal for drinks and food service.

Q: Does it include ice storage?
A: Yes, it features a built-in storage bin for convenient ice access.

Q: What cooling system does it use?
A: Water-cooled system reduces ambient heat and noise in your workspace.

Q: Is it suitable for heavy-duty use?
A: Yes, perfect for bars, restaurants, and hotels requiring reliable, high-volume ice production.

Q: Is it energy and water efficient?
A: Yes, designed to meet industry standards for efficient water and energy use.

Maintenance Tips

• Regularly clean and descale the ice-making components to prevent mineral buildup.

• Sanitize the built-in storage bin frequently for ice safety.

• Flush water lines periodically to maintain ice quality.

• Inspect water filters and replace as needed.

• Schedule professional servicing to ensure optimal performance and longevity.
