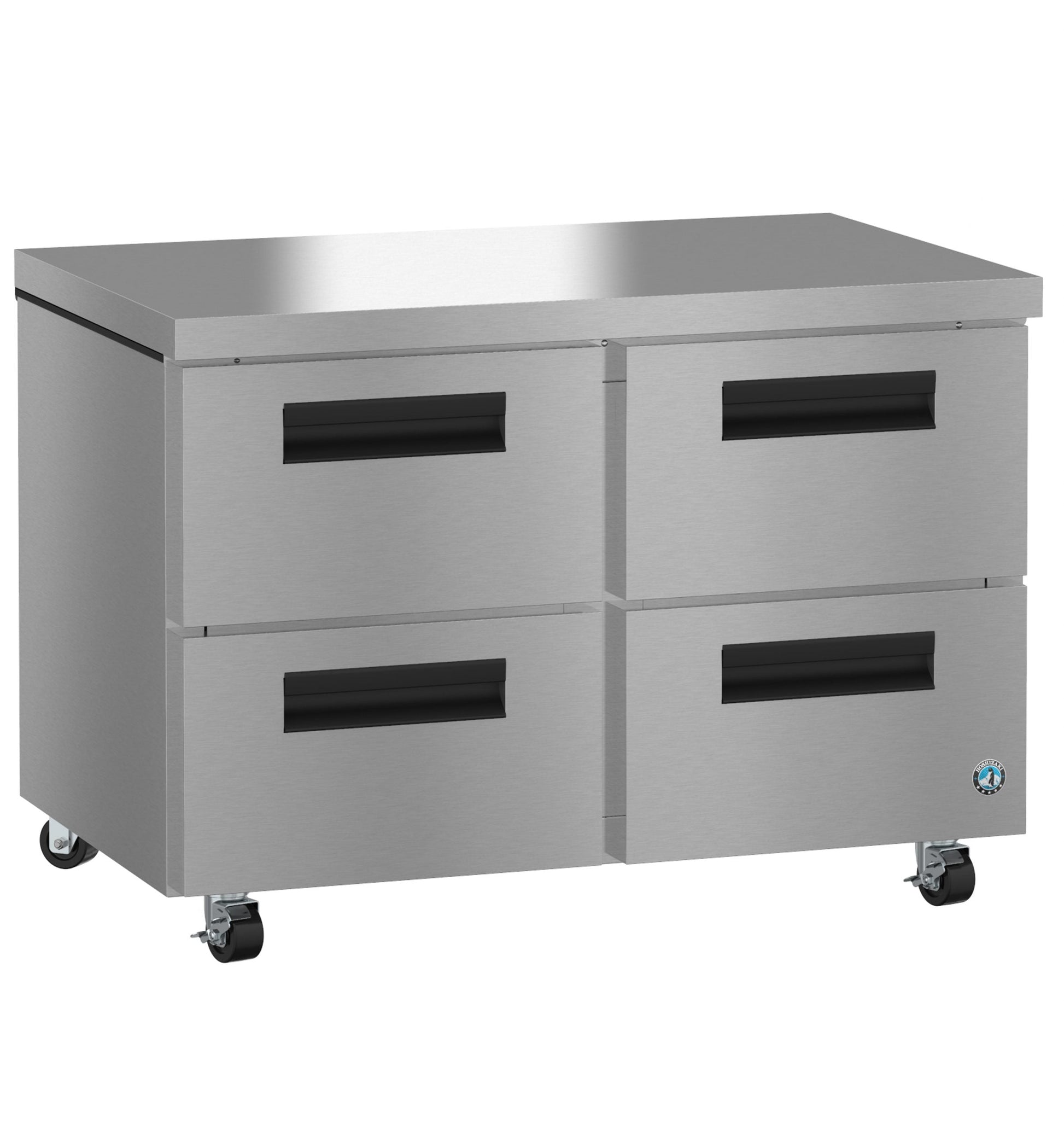

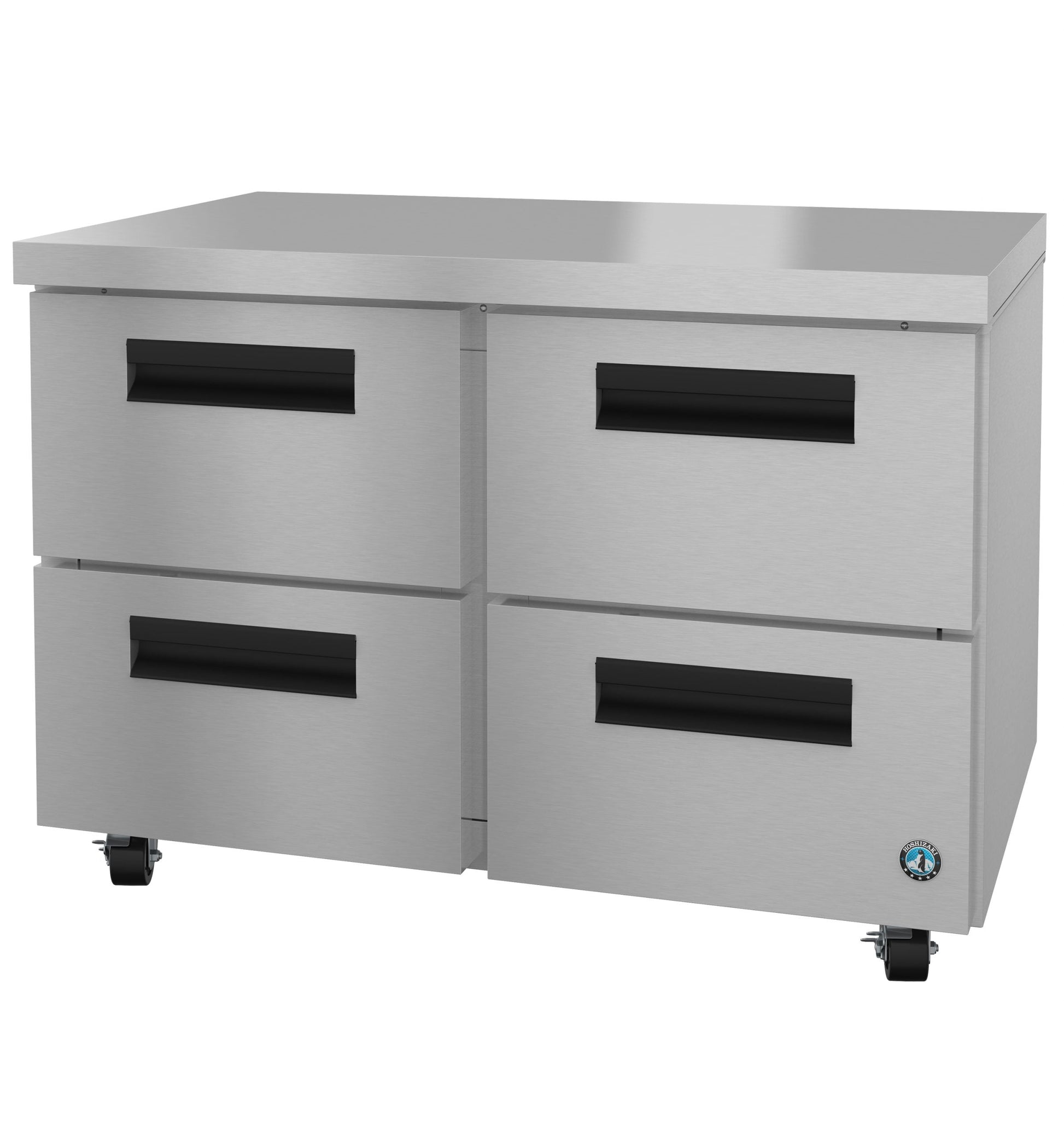

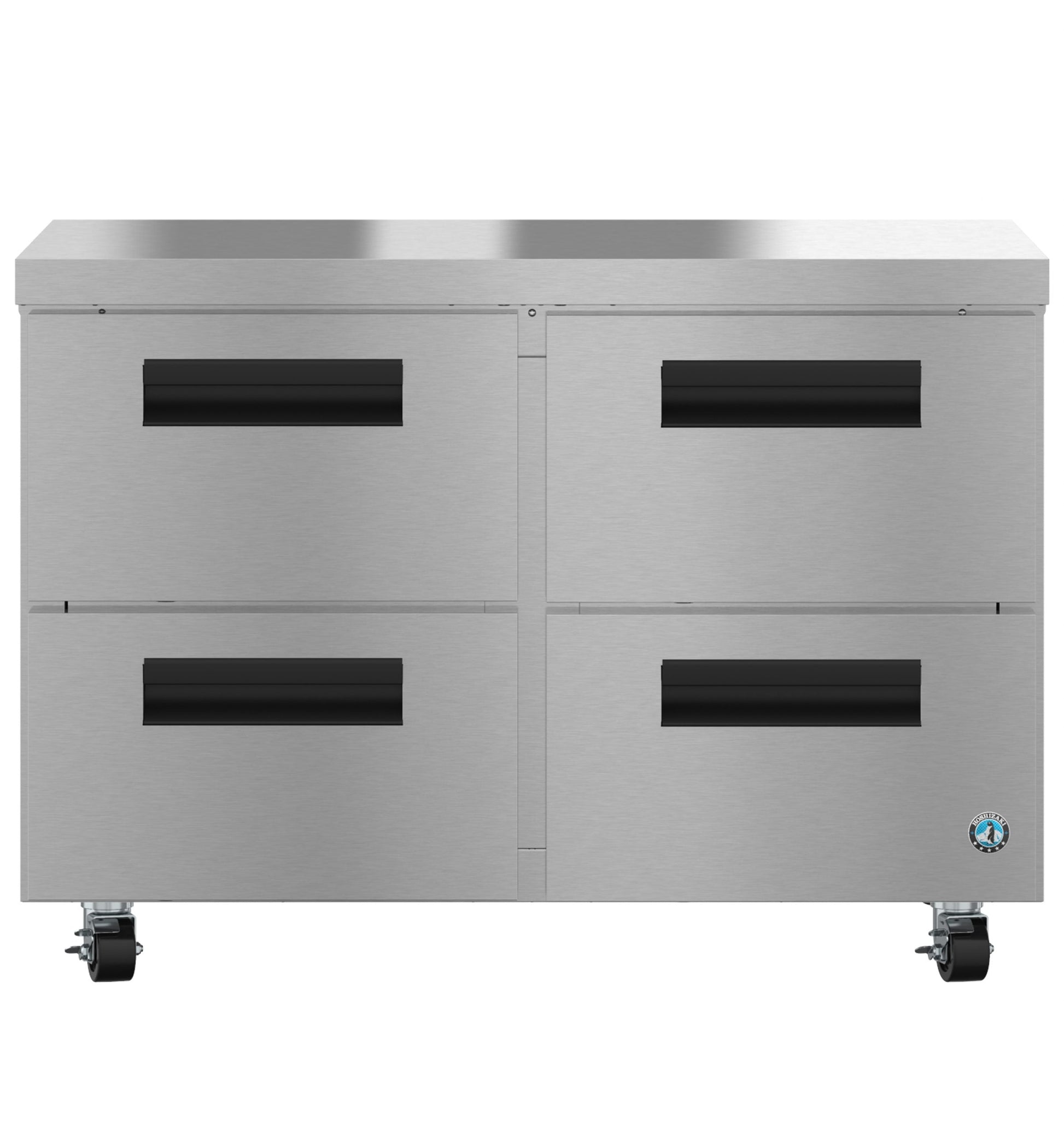

Hoshizaki UF48B-D4 | 48" Wide 4 Drawer Undercounter Freezer - UF48B-D4
The UF48B-D4 Steelheart Series Undercounter two section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF48B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF48B-D4 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 4″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 3.6 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Overshelves, Stainless steel back, Drawer divider bars. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 48″ W x 30″ D x 33.75″ H
- Net capacity of 12 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Enamel coated evaporator coil for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
- Extruded aluminum flush mount drawer handle
- (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- Insulated with 2″ CFC free, foamed in place polyurethane
- Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
-
- Optional kits: 2.25″ or 6″ casters, Overshelves, Stainless steel back, Drawer divider bars
- Nominal Compres. of 1426 BTU/hr at 1/3 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 52.5″ L x 34″ D x 36.5″ H at 331 lbs
- Automatic time-initiated heated defrost
Specifications
| Brand |
Hoshizaki |
| Model Number |
UF48B-D4 |
| Weight |
331 lbs |
| Width |
48" |
| Depth |
31" |
| Height |
33.75" |
| Certifications |
cETLus, ETL-Sanitation |
| Size |
2 section |
| Door Type |
solid |
| Refrigeration |
self-contained, rear mounted |
| Capacity (cu. ft.) |
14 |
| Installation Type |
freestanding |
| Handle Type |
recessed |
| Compressor Style |
front breathing |
| Drawer Quantity |
4 |
| Exterior Finish |
stainless steel |
| Access Type |
drawers |
| Compressor HP |
1/3 HP |
What our Experts Think
-
Optimized Storage: Four spacious drawers offer organized, easy access to frozen items, minimizing door openings and temperature loss.
-
Compact & Efficient: At 48" wide, fits perfectly under counters to save valuable kitchen space without sacrificing capacity.
-
Durable Build: Stainless steel exterior and interior designed for heavy-duty commercial use and easy cleaning.
-
Advanced Refrigeration: Uses efficient R290 refrigerant for consistent, energy-saving freezing performance.
-
User-Friendly Design: Smooth-glide drawers with durable handles improve workflow and accessibility.
Q&A
Q: What is the size and capacity of the Hoshizaki UF48B-D4?
A: It is 48" wide and offers 14.4 cu. ft. of freezer storage in four spacious drawers.
Q: How many drawers does this freezer have?
A: It features four insulated drawers for organized, easy access to frozen items.
Q: Is this model designed for undercounter installation?
A: Yes, it fits perfectly under counters, saving valuable kitchen space.
Q: What temperature range does it maintain?
A: Maintains a consistent temperature of -10°F to 0°F for safe frozen storage.
Q: What kind of refrigeration system does it use?
A: Equipped with a side-mounted, front-breathing refrigeration system for efficient cooling.
Q: Is the UF48B-D4 ENERGY STAR® certified?
A: Yes, it meets ENERGY STAR® standards for energy efficiency.
Q: What materials are used for durability and cleanliness?
A: Stainless steel exterior with an aluminum interior for easy cleaning and durability.
Maintenance Tips
-
Clean Condenser Coils Monthly: Remove dust to maintain cooling efficiency and prevent overheating.
-
Defrost Regularly: Manually defrost if frost builds up to ensure optimal performance.
-
Check Drawer Seals: Inspect gaskets for cracks or damage; replace to maintain airtight closure and temperature.
-
Wipe Interior & Exterior Weekly: Use mild detergent and soft cloth; avoid abrasive cleaners on stainless steel.
-
Monitor Temperature: Keep freezer between -10°F to 0°F for safe food storage and energy efficiency.
