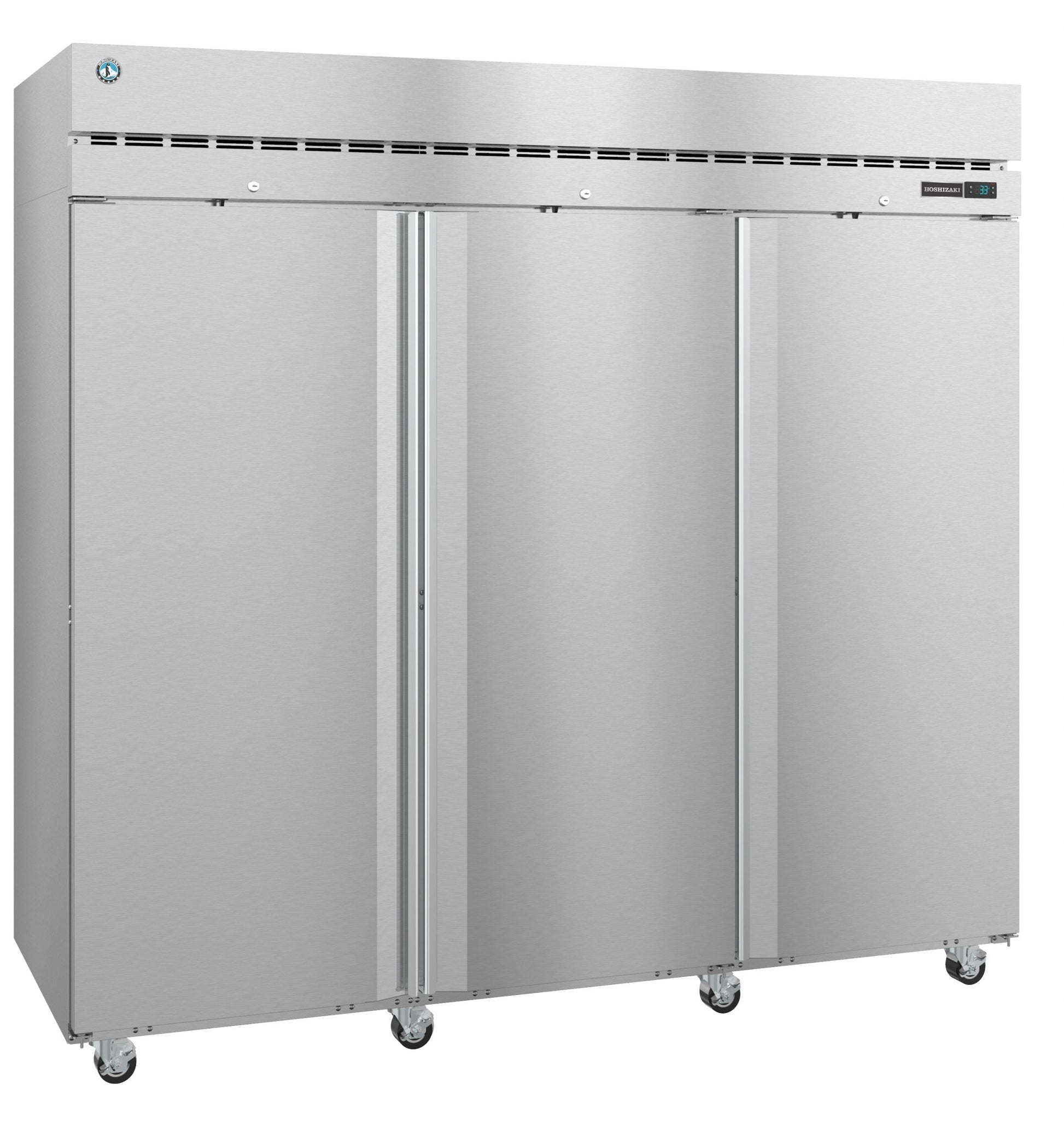

Hoshizaki | 83" Wide 3 Door Top Mount Reach-In Refrigerator - R3A-FS
The R3A-FS Steelheart Series Upright three section refrigerator with full stainless doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-FS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-FS also includes Interior LED light bar is mounted horizontally on the ceiling, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 4.39 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 82.5″ W x 33.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, extruded aluminum flush mount door handle
- Lockable Full Stainless Doors
- Insulated with 2 3/8″ CFC free, foamed in place polyurethane
- Interior LED light bar is mounted horizontally on the ceiling
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 895 lbs
- Top mounted energy efficient non-electric evaporation system
- Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty
What Our Experts Think
-
83" wide, 3-door design offers massive cold storage for bulk ingredients.
-
Top-mount refrigeration system stays cleaner and runs more efficiently.
-
Durable stainless steel interior and exterior built for heavy commercial use.
-
Hoshizaki engineering ensures consistent temperature and long-term reliability.
-
Ideal for restaurants, hotels, and catering kitchens requiring high-capacity storage.
Q&A
Q: How many doors does it have?
A: This unit comes with three full-length solid doors for maximum storage access.
Q: Why is top-mount refrigeration beneficial?
A: It keeps the compressor away from floor dust and heat, improving efficiency and lifespan.
Q: Is it NSF and Energy Star certified?
A: Yes, it meets strict food safety and energy efficiency standards.
Maintenance Tips
-
Clean condenser coils monthly to maintain cooling efficiency.
-
Check and clean door gaskets to ensure a tight seal.
-
Avoid overloading shelves to keep air circulation unobstructed.
-
Wipe down interior and exterior surfaces regularly with mild detergent.
-
Schedule annual professional maintenance for long-lasting performance.
