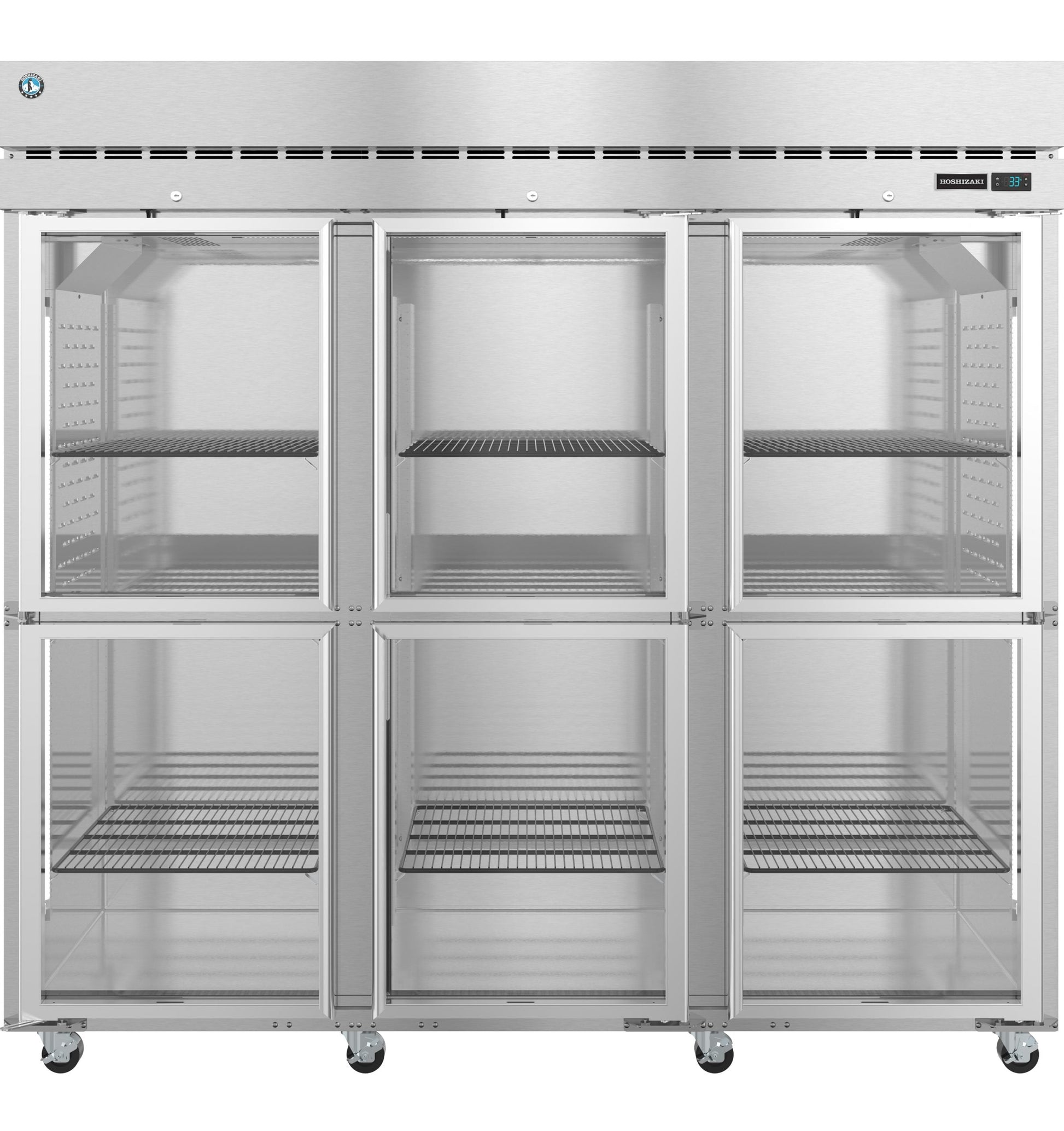

Hoshizaki R3A-HG | 83" Wide 6 Glass Door Top Mount Reach-In Refrigerator - R3A-HG
The R3A-HG Steelheart Series Upright three section refrigerator with half glass doors is a space saving workhorse. Solid state control system with temperature alarms and LED display (°F or °C). With a net capacity of 79.03 cubic feet this efficient upright refrigerator and front air flow design is perfect for hot/tight kitchens. The R3A-HG is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The R3A-HG also includes Interior LED light bars are vertically mounted on each wall, (8) 4″ stem casters (4 with brakes) are standard, plus a field reversible, spring assisted self closing door with stay open feature (no kit req’d). Electrical consumption of 6.5 kWh/day at 9.5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation, ENERGY STAR Qualified and includes a six years parts warranty, five years labor , and seven years compressor .
Features
- Dimensions: 82.5″ W x 34.5″ D x 79.5″ H
- Net capacity of 79.03 cubic feet
- Unique “ducted” air distribution system
- Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
- Glass door front, stainless steel exterior (sides, top) and a stainless steel interior
- Field reversible, spring assisted self closing door with stay open feature (no kit req’d)
- One piece, full door length, chrome door handle
- Lockable Half Glass Doors
- Glass doors are energy efficient triple pane, argon filled with low-e non reflective coating and locks
- Interior LED light bars are vertically mounted on each wall
- Solid state control system with temperature alarms and LED display (°F or °C)
- R290 refrigerant
- (8) 4″ Stem Casters (4 with brakes) are standard
- Includes 9 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
- Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
- Nominal Compres. of 770 BTU/hr at 1/4 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 86″ L x 37.875″ D x 81″ H at 840 lbs
- ENERGY STAR® Qualified
Specifications
| Brand |
Hoshizaki |
| Model Number |
R3A-HG |
| Weight |
840 lbs |
| Width |
82.5" |
| Depth |
34.5" |
| Height |
79.5" |
| Door Type |
glass |
| Refrigerator Type |
Reach-In |
| Size |
3 section |
| Door Quantity |
6 |
| Exterior Finish |
stainless steel front & sides |
| Compressor HP |
(2) 1/4 HP |
| Energy Efficiency |
ENERGY STAR® |
| Compressor Location |
bottom mounted |
| Interior Finish |
all stainless steel interior |
| Supports |
casters |
| Capacity (Cu. Ft.) |
79 |
| Hinge Location |
left / right |
| Door Style |
swing / half |
What our Experts Think
-
Maximum Visibility: 83" wide with 6 glass doors for easy product display and quick access.
-
Top-Mount Cooling: Keeps the refrigeration system away from floor debris, improving efficiency and longevity.
-
Commercial-Grade Durability: Stainless steel interior and exterior built to handle heavy daily use.
-
Consistent Refrigeration: Maintains safe, precise temperatures for fresh food storage.
-
Ideal for High-Volume Operations: Perfect for restaurants, grocery stores, and hospitality businesses requiring large-capacity refrigerated display.
Q&A
Q: What is the Hoshizaki R3A-HG Reach-In Refrigerator?
A: An 83-inch wide, 6 glass-door, top-mount commercial refrigerator designed for high-capacity cold storage with product visibility.
Q: What makes it unique?
A: Its full glass doors allow easy viewing of contents while the top-mounted refrigeration system ensures efficient cooling and storage.
Q: Where can it be used?
A: Perfect for restaurants, grocery stores, hotels, and commercial kitchens needing both high-volume storage and display.
Q: What style of work does it suit?
A: Bulk food storage, front-of-house product display, and prep support in high-demand operations.
Q: What materials is it made from?
A: Heavy-duty stainless steel interior and exterior with insulated glass doors for durability and energy efficiency.
Maintenance Tips
-
Clean interior and glass doors regularly with mild soap and warm water; avoid harsh chemicals.
-
Wipe stainless steel surfaces frequently to maintain appearance and hygiene.
-
Inspect and clean condenser coils monthly for efficient cooling.
-
Check and clean door gaskets often to ensure a tight seal and energy efficiency.
-
Keep airflow around the unit clear for consistent performance.
-
Schedule annual professional servicing to maximize reliability and lifespan
