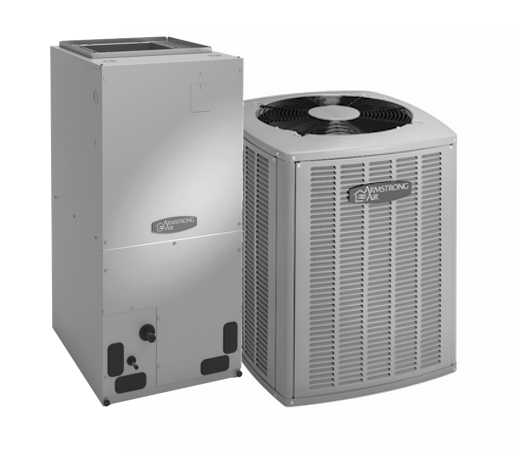

ARMSTRONG AIR 4SHP14LB130P-50A - 2.5 Ton 14-15 SEER Heat Pump (4SHP14LB130P-50A)
- 2.5 Ton 14-15 SEER Heat Pump
- 29.38 Inches Width x 31.25 Inches Depth
- 3/8LL 3/4SL
- 25A MOCP
- 200 Lbs
ARMSTRONG AIR BCE5C30MA1P-50 - 2.5 Ton Vertical/Horizontal PSC Air Handling Unit W/Out TXV (BCE5C30MA1P-50)
TXV Valve not included
Application
- For 3 ton systems
- Sequenced for demand management
- External access to heater circuit breakers
Installation
- 1 piece design
- Smaller profile for tight application areas
- Multiposition - Factory ready for upflow, downflow, and horizontal left/right applications
- Approved for installation in manufactured housing and mobile homes
Cabinet
- Foil faced insulation for enhanced indoor air quality
- Double hemmed technology for increased structural rigidity
- Improved gasketing on doors to prevent air leaks
- Filter rack with thumb screws for easy access and removal
- Polymer plugs on drain locations for easy installation
- Baked polyester paint finished over galvanized steel for maximum
- durability
- High-strength, UV and heat resistant polymer drain pan designed for
- corrosion resistance
- Antimicrobial polymer drain pan built to resist mold and mildew
- growth
- 2% or less air leakage
Coils
- Omniguard™ total corrosion protection technology designed coil
- Enhanced tube-and-fin coil design featuring MHT™ Technology
- Lanced fins for maximum heat transfer
- Factory leak tested and pre-charged with nitrogen holding charge
Components
- Efficient PSC blower motor
- Standard transformer and blower relay
- Blower time delay for increased efficiency
- Sleeves on distributor tubing to protect tubes
Warranty
-
10 year limited warranty on all parts
Warren WBC1002B - 10 KW Elect Heat (WBC1002B)
- 10 KW Elect Heat
- X13 CT/PSC Air Handling Unit
- Single Point W/ Circuit Breaker
- 7 Lbs
