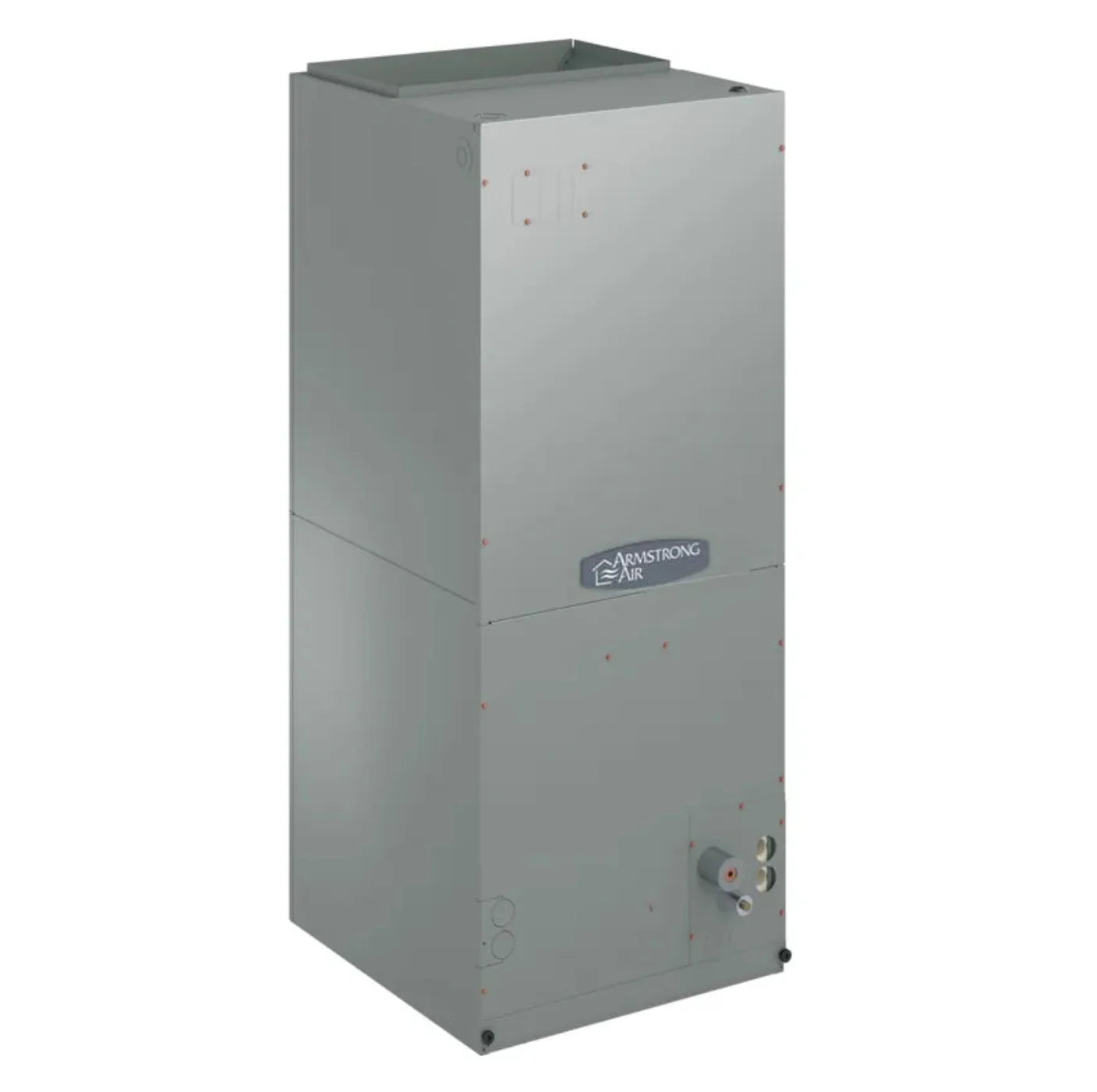

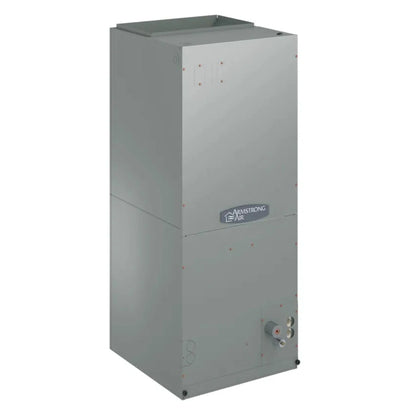

Armstrong Air BCE7S36MA4X-50 Air Handling Unit 3.0 Ton Vertical/Horizontal - BCE7S36MA4X-50
The Armstrong Air BCE7S36MA4X-50 is a three-ton air handling unit designed for vertical and horizontal applications. It features a variable speed operation for efficient air distribution. The unit measures twenty-one and one-quarter inches in width, fifty-one inches in height, and twenty-two and five-eighths inches in depth. Weighing one hundred fifty-nine pounds, it is suitable for residential HVAC systems.
This air handling unit is crafted for efficiency and versatility. It is ideal for both new installations and replacements in residential settings.
- Model Number: BCE7S36MA4X-50
- Power: Three Tons
- Dimensions: 21.25 inches x 51 inches x 22.625 inches
Specifications
| BTUH |
36,000 |
| Volts |
208–230/1/60 |
| Weight |
159 lbs |
| Minimum Sell Package |
1 |
What our Experts Think
-
Precise airflow control: Variable-speed ECM motor adjusts to demand, providing smoother temperature transitions, quieter operation, and better humidity management.
-
Flexible installation: Multi-position design supports upflow, downflow, and horizontal orientations to fit diverse duct layouts.
-
System-optimized: Integrates seamlessly with Armstrong Pro Series units and smart thermostats for enhanced control and diagnostics.
-
Clean, reliable operation: Antimicrobial-treated drain pan resists mold and bacteria, improving indoor air quality.
-
Durable, efficient cabinet: Thick foil-faced insulation and tightly sealed doors reduce air leakage and thermal loss.
-
Trusted performance: Backed by a 10-year limited parts warranty for long-term reliability
Q&A
Q: What is the Armstrong Air BCE7S36MA4X‑50?
A: A 3-ton, variable-speed, multi-position air handling unit from Armstrong’s 7 Series Pro line, designed for efficient airflow and comfort control.
Q: What motor does it use?
A: Variable-speed ECM blower motor for precise airflow, improved humidity management, and quieter operation.
Q: What installation orientations are supported?
A: Upflow, downflow, and horizontal (left or right) installation configurations.
Q: What refrigerant and metering device does it use?
A: R‑410A refrigerant with a factory-installed thermostatic expansion valve (TXV).
Q: What indoor air quality features does it have?
A: Anti-microbial polymer drain pan to inhibit mold and bacteria growth.
Q: How does it integrate with smart thermostats or control systems?
A: Compatible with Armstrong Pro Series systems and communicating thermostats like Comfort Sync for advanced control and diagnostics.
Maintenance Tips
-
Clean or replace filters monthly: Ensures optimal airflow, efficiency, and indoor air quality.
-
Inspect and clean coils: Keep evaporator and condenser coils free of dirt and debris to maintain cooling and heating performance.
-
Check blower and motor operation: Ensure smooth operation; lubricate moving parts if needed.
-
Monitor refrigerant levels: Prevent low refrigerant from reducing efficiency or stressing the compressor.
-
Clear condensate drains and pans: Avoid clogs that can cause water damage and microbial growth.
-
Inspect ductwork and seals: Check for leaks or blockages to maintain proper airflow and energy efficiency.
-
Schedule annual professional maintenance: Ensures long-term performance and extends the lifespan of variable-speed components.
