Armstrong Air 3 Tons Heat Pump Split System - 14 SEER - 4SHP14LB136P-50A / BCE5C36MA1P-50 / WBC1002B

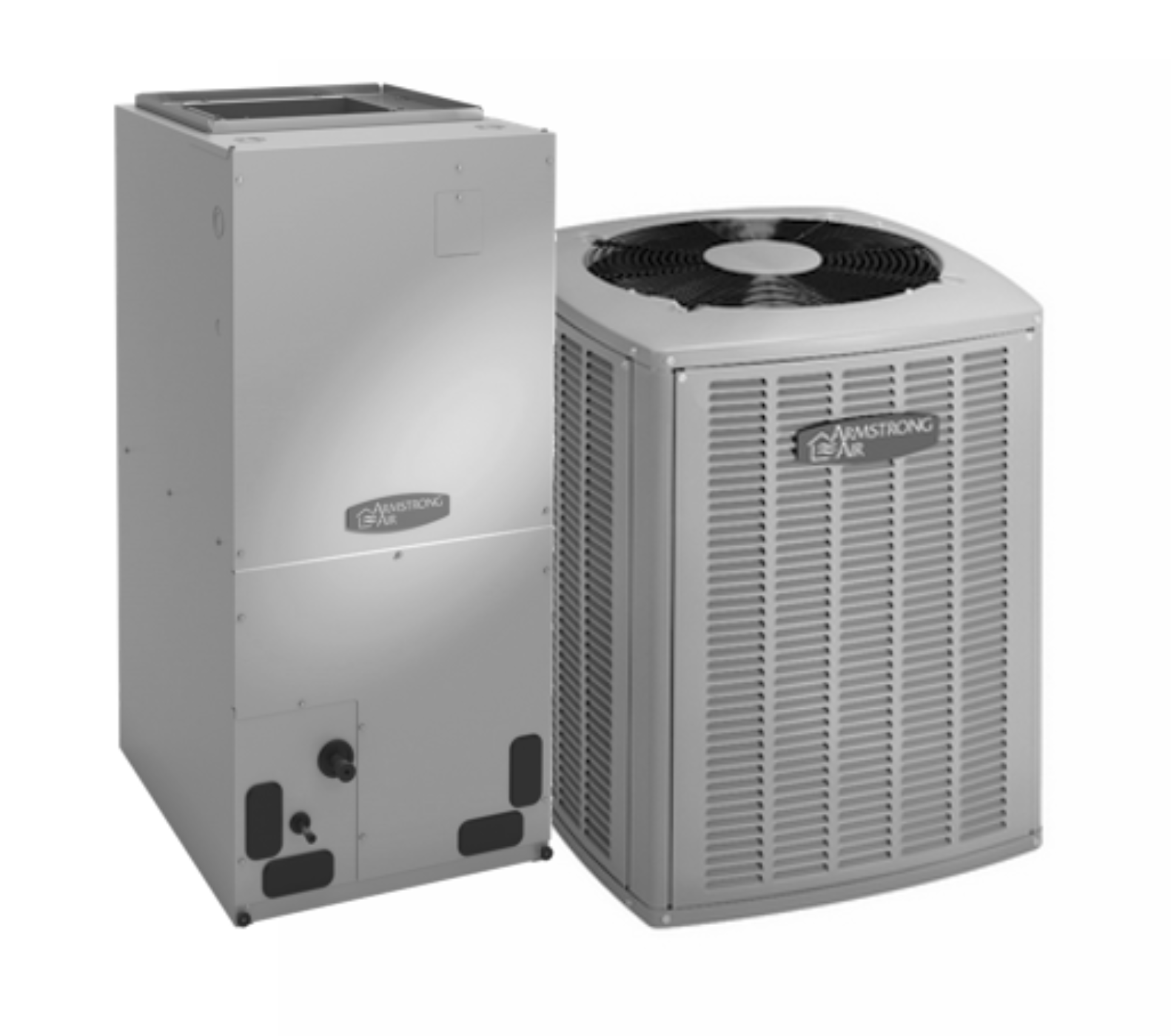

ARMSTRONG AIR 4SHP14LB136P-50A - 3.0 Ton 14-15 SEER Heat Pump (4SHP14LB136P-50A)Armstrong Air 3.0 Ton Vertical/Horizontal PSC Air Handling Unit
Features
- 3.0 Ton 14-15 SEER Heat Pump
- 29.25 Inches Width x 31.25 Inches Depth
- 3/8LL 7/8SL
- 30A MOCP
- 219 Lbs
 included
- For 3 ton systems
- Sequenced for demand management
- External access to heater circuit breakers
- 1 piece design
- Smaller profile for tight application areas
- Multiposition - Factory ready for upflow, downflow, and horizontal left/right applications
- Approved for installation in manufactured housing and mobile homes
- Foil faced insulation for enhanced indoor air quality
- Double hemmed technology for increased structural rigidity
- Improved gasketing on doors to prevent air leaks
- Filter rack with thumb screws for easy access and removal
- Polymer plugs on drain locations for easy installation
- Baked polyester paint finished over galvanized steel for maximum
- durability
- High-strength, UV and heat resistant polymer drain pan designed for
- corrosion resistance
- Antimicrobial polymer drain pan built to resist mold and mildew
- growth
- 2% or less air leakage
- Omniguardâ„¢ total corrosion protection technology designed coil
- Enhanced tube-and-fin coil design featuring MHTâ„¢ Technology
- Lanced fins for maximum heat transfer
- Factory leak tested and pre-charged with nitrogen holding charge
Components
- Efficient PSC blower motor
- Standard transformer and blower relay
- Blower time delay for increased efficiency
- Sleeves on distributor tubing to protect tubes
What our Experts Think
-
Efficient performance: 14 SEER rating balances energy savings with cost-effectiveness.
-
Reliable compressor: Outdoor unit 4SHP14LB136P uses a scroll compressor for dependable, single-stage operation.
-
Durable air handler: BCE5C36MA1P‑50 is a 3‑ton, multi-position air handler with a PSC motor for consistent airflow.
-
Indoor air quality: Anti-microbial treated drain pan helps reduce mold and bacteria buildup.
-
Flexible installation: Multi-position cabinet supports upflow, downflow, or horizontal setups.
-
Adequate airflow: Provides up to ~1,560 CFM to efficiently handle 3-ton loads.
-
Sturdy construction: Galvanized-steel cabinet and MHTâ„¢ coil technology ensure efficient heat transfer and long service life.
-
Supplemental heating: Compatible with WBC1002B electric heat kit for additional heating support in cold weather.
Q&A
Q: What does this system include?
A: A 3-ton outdoor heat pump (4SHP14LB136P‑50A), a 3-ton multi-position air handler (BCE5C36MA1P‑50), and a 10 kW electric heat strip (WBC1002B).
Q: What is the system’s efficiency?
A: Rated at 14 SEER.
Q: What type of compressor does the outdoor unit use?
A: Scroll compressor for reliable heat pump performance.
Q: What refrigerant does the system use?
A: R‑410A.
Q: What type of motor is in the air handler?
A: PSC (Permanent Split Capacitor) motor for consistent airflow.
Q: What is the airflow / CFM of the air handler?
A: Approximately 1,560 CFM.
Q: What filter size is required?
A: 18″ × 20″ × 1″.
Q: What refrigerant line sizes are used?
A: Suction line: 7/8″; Liquid line: 3/8″.
Q: What supplemental heating does it include?
A: 10 kW WBC1002B electric heat strip for backup or auxiliary heat.
Q: What indoor air quality or durability features does it have?
A: Anti-microbial drain pan and tightly sealed cabinet to reduce air leakage.
Maintenance Tips
-
Turn off power before performing any maintenance.
-
Replace or clean the air filter every 1–3 months to maintain airflow and efficiency.
-
Keep the outdoor unit area clear of debris and maintain at least 2 ft of clearance.
-
Clean the outdoor condenser coil and indoor evaporator coil annually to optimize heat transfer.
-
Flush the condensate drain line regularly to prevent clogs and water damage.
-
Check all electrical connections for tightness, wear, or corrosion.
-
Monitor refrigerant levels; call a technician if performance drops or leaks are suspected.
-
Test the defrost cycle during colder months to ensure proper operation.
-
Schedule professional maintenance twice a year (spring and fall) to inspect coils, blower, refrigerant, and safety controls.
-
Keep a maintenance log of filter changes, inspections, and service visits to track system health and maintain warranty coverage.
