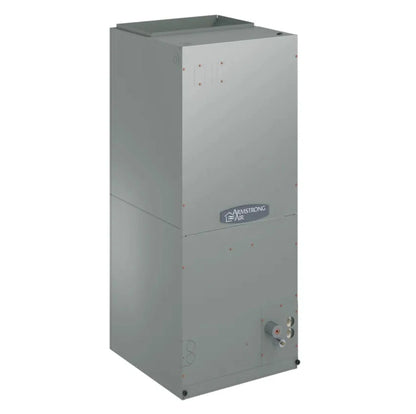

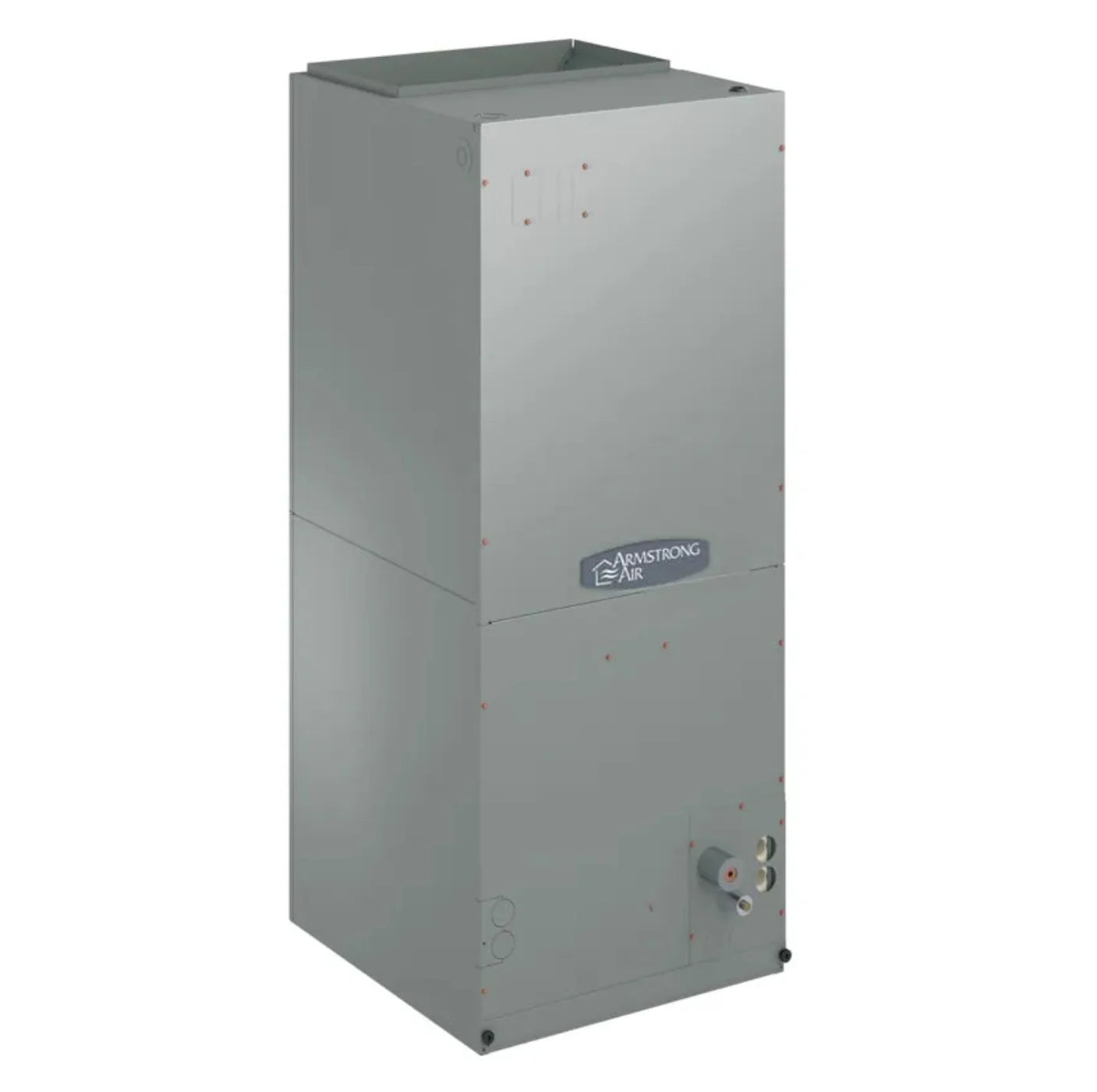

Armstrong Air BCE7S48MA4X-50 4.0 Ton Vertical/Horizontal Variable Speed Air Handling Unit - BCE7S48MA4X-50
The Armstrong Air BCE7S48MA4X-50 is a four-ton vertical and horizontal variable speed air handling unit. This air handler is designed for residential applications, providing flexibility in installation and efficient operation.
This air handling unit is suitable for various installations and ensures reliable airflow for indoor environments. It is ideal for both new builds and replacements of old systems.
- Dimensions: Width 21 1/4 inches, Height 58 1/2 inches, Depth 24 5/8 inches
- Weight: 189 pounds
- Voltage: 208-230/1/60
Specifications
| Cooling Capacity |
48,000 BTUH |
| Model Number (MPN) |
BCE7S48MA4X-50 |
| Minimum Selling Package |
1 |
What our Experts Think
-
Precise airflow control: Variable-speed ECM blower adapts for smoother temperature transitions, improved humidity management, and quieter operation.
-
Versatile installation: Multi-position design (upflow, downflow, horizontal) fits varied duct layouts.
-
System-optimized: Works seamlessly with Armstrong Pro Series outdoor units and smart thermostats for enhanced control and diagnostics.
-
Clean, durable design: Antimicrobial drain pan resists mold and bacteria, supporting better indoor air quality.
-
Efficient cabinet construction: Foil-faced insulation and tightly sealed doors minimize air leakage and maintain thermal performance.
-
Reliable performance: Backed by a 10-year limited parts warranty for long-term peace of mind.
Q&A
Q: What is the Armstrong Air BCE7S48MA4X‑50?
A: A 4.0‑ton, multi-position air handling unit with a variable-speed ECM blower motor and communicating control for efficient airflow.
Q: What installation configurations are supported?
A: Upflow, downflow, or horizontal installation for flexible residential or light-commercial applications.
Q: What makes it energy-efficient?
A: The variable-speed fan motor dynamically adjusts airflow for improved humidity control, quieter operation, and reduced energy use.
Q: Is it compatible with smart thermostats?
A: Yes, it works with Armstrong’s Pro Series systems and Comfort Sync® communicating thermostats.
Q: What indoor air quality features are included?
A: Anti-microbial polymer drain pan prevents mold and bacteria buildup.
Q: How is the unit built for reliability?
A: Thick foil-faced insulation, tight gasketing between sections, and a two-piece design reduce air leakage and improve structural strength.
Maintenance Tips
-
Replace or clean filters monthly: Maintains airflow, efficiency, and indoor air quality.
-
Inspect and clean coils: Keep evaporator and condenser coils free of dust and debris for optimal cooling and heating performance.
-
Check blower and motor operation: Ensure smooth, quiet operation; lubricate moving parts if applicable.
-
Verify refrigerant levels: Proper refrigerant prevents strain on the compressor and maintains efficiency.
-
Clear condensate drains and pans: Prevent clogs to avoid water damage and microbial growth.
-
Inspect ductwork and seals: Check for leaks or blockages to maintain airflow and system efficiency.
-
Schedule annual professional maintenance: Ensures variable-speed components function properly and extends unit lifespan.
