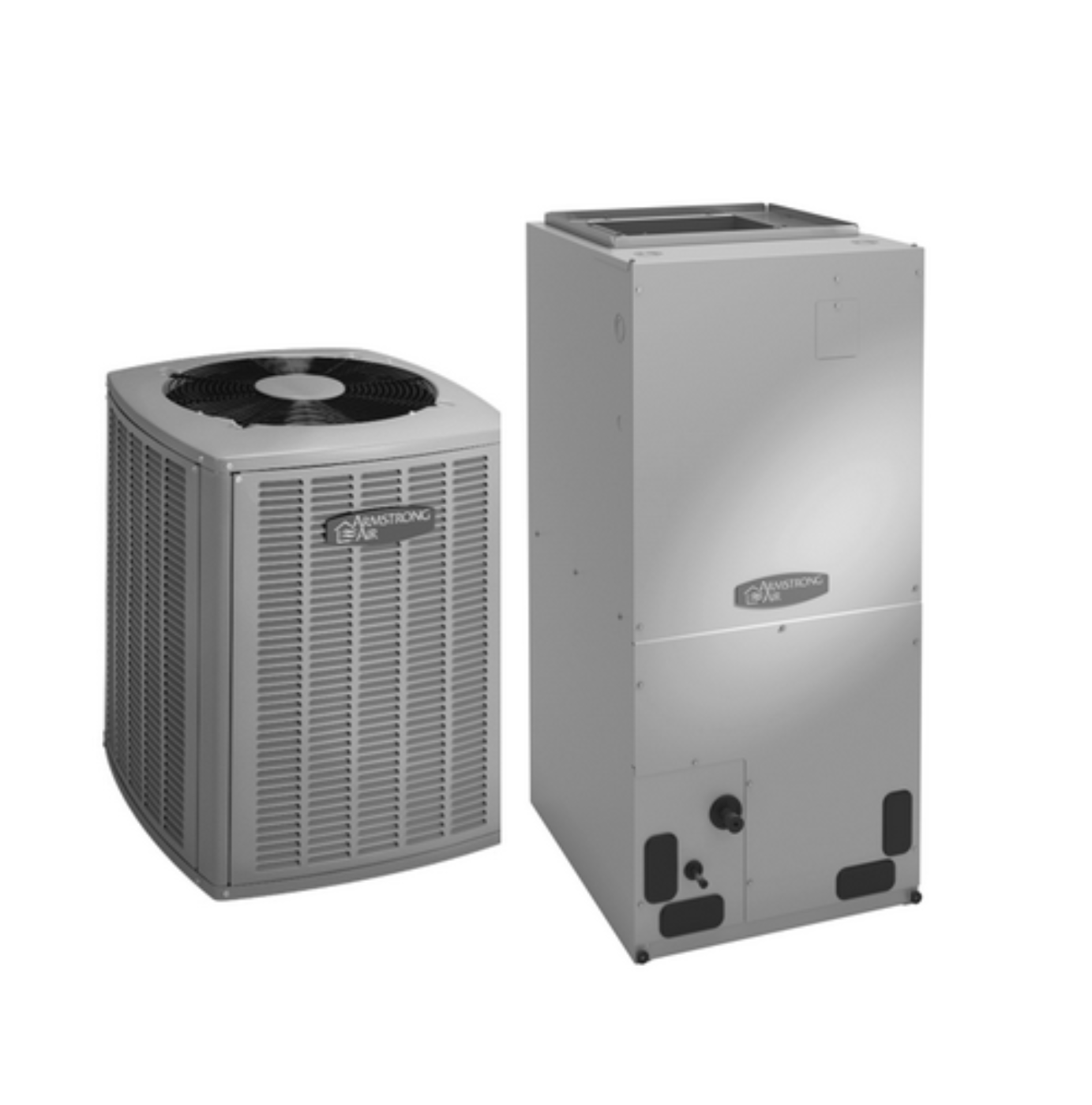

Armstrong Air 4 Tons Heat Pump Split System - 15.5 SEER - 4SHP14LB148P-50A / BCE5E60MA4X-50 / WBC1502SV
ARMSTRONG AIR 4SHP14LB148P-50A - 4.0 Ton 14-15 SEER Heat Pump (4SHP14LB148P-50A)ARMSTRONG AIR BCE5E60MA4X-50 - 5.0 Ton Vertical/Horizontal ECM Constant Torque X13 Air Handling Unit W/ TXV (BCE5E60MA4X-50)Warren WBC1502SV - 15 Kw Electric Heat Kit With Circuit Breaker (WBC1502SV)
Features
- 4.0 Ton 14-15 SEER Heat Pump
- 35.75 Inches Width x 37.75 Inches Depth
- 3/8LL 7/8SL
- 50A MOCP
- 287 Lbs
- 5.0 Ton Vertical/Horizontal ECM Constant Torque X13 Air Handling Unit W/ TXV
- 21 1/2 Inches Width x 59 3/4 Inches Height x 22 Inches Depth
- 186 Lbs
- 15 Kw Electric Heat Kit With Circuit Breaker
- Fits BCE5 Models
- Single Point Power Source
- 11 Lbs
What our Experts Think
-
Balanced efficiency: The 4SHP14LB‑148P condenser delivers up to 15.5 SEER, reducing energy costs without sacrificing comfort.
-
Quiet, stable operation: High-efficiency scroll compressor and durable louvered cabinet minimize noise during operation.
-
Durable coil design: OmniGuardâ„¢ corrosion-resistant coil with MHTâ„¢ tube-and-fin technology ensures long-lasting performance.
-
Flexible airflow: BCE5E60MA4X‑50 multi-position air handler with constant-torque motor maintains consistent airflow.
-
Reliable backup heat: Includes a 15 kW electric heater kit with built-in circuit protection for colder conditions.
-
Service-friendly design: Components are easily accessible, simplifying maintenance and repairs.
-
Cost-effective over time: Matched system design reduces breakdowns, improves efficiency, and lowers long-term operating costs.
Q&A
Q: What is this Armstrong system?
A: A 4‑ton split‑system heat pump with a 14‑SEER rating, paired with a multi‑position air handler and a 15 kW electric heat kit for supplemental heating.
Q: What does the outdoor unit (4SHP14LB148P‑50A) provide?
A: Single-stage scroll heat pump using R‑410A refrigerant, designed for efficient and reliable heating and cooling.
Q: What is the WBC1502SV heat kit?
A: 15 kW, 230 V electric heat kit with built-in circuit breaker, providing auxiliary or backup heat for the air handler.
Q: What installation considerations are important?
A: Ensure proper refrigerant line sizing, compatible ductwork for 4-ton capacity, correct electrical supply for the heat kit, and professional installation by a qualified HVAC technician.
Maintenance Tips
-
Clean or replace air filters monthly: Maintains airflow, efficiency, and indoor air quality.
-
Inspect and clean coils: Keep evaporator and condenser coils free of dirt and debris to optimize heating and cooling performance.
-
Check refrigerant levels: Low refrigerant can reduce efficiency and strain the compressor.
-
Clear condensate drains and pans: Prevent clogs to avoid water damage and microbial growth.
-
Inspect electrical connections: Tighten loose wires and check for wear to prevent system failure.
-
Examine ductwork and seals: Ensure no leaks or blockages to maintain proper airflow and energy efficiency.
-
Schedule annual professional maintenance: Ensures peak performance, prolongs system life, and maintains 15.5 SEER efficiency.
