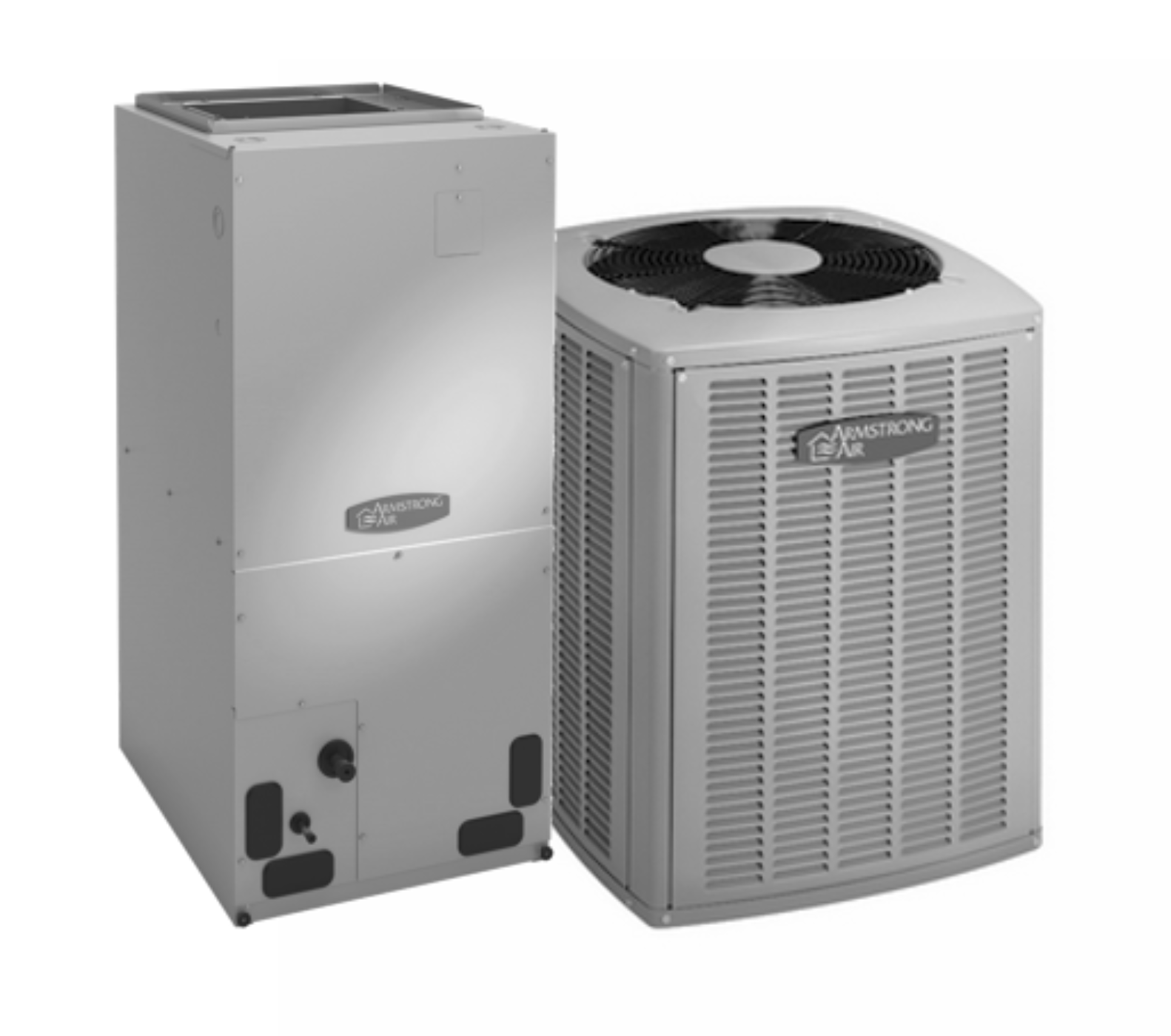

Armstrong Air 5 Tons Heat Pump Split System - 14 SEER - 4SHP14LB160P-50A / BCE5C60MA1P-50 / WBC1502SV
ARMSTRONG AIR 4SHP14LB160P-50A - 5.0 Ton 14-15 SEER Heat Pump (4SHP14LB160P-50A)ARMSTRONG AIR BCE5C60MA1P-50 - 5.0 Ton Vertical/Horizontal PSC Air Handling Unit W/Out TXV (BCE5C60MA1P-50)Warren WBC1502SV - 15 Kw Electric Heat Kit With Circuit Breaker (WBC1502SV)
Features
- 5.0 Ton 14-15 SEER Heat Pump
- 35.75 Inches Width x 37.75 Inches Depth
- 3/8LL 7/8SL
- 50A MOCP
- 331 Lbs
- 5.0 Ton Vertical/Horizontal PSC Air Handling Unit W/Out TXV
- 21 1/2 Inches Width x 59 3/4 Inches Height x 22 Inches Depth
- 186 Lbs
- 15 Kw Electric Heat Kit With Circuit Breaker
- Fits BCE5 Models
- Single Point Power Source
- 11 Lbs
What our Experts Think
-
Reliable compressor: The 4SHP14LB160P‑50A outdoor unit features a scroll compressor for steady, dependable operation.
-
Solid efficiency: 14 SEER rating delivers energy savings while keeping costs reasonable.
-
Resilient heating: Heating capacity around 60,000 BTU/hr, performing efficiently even in cooler weather.
-
Matched air handler: BCE5C60MA1P‑50 supports 5‑ton capacity with a multi-position design suitable for vertical or horizontal installation.
-
Indoor air quality: Anti-microbial-treated drain pan reduces mold and bacteria growth.
-
Durable coil design: Rifled tubing and lanced fins ensure efficient heat transfer and long-term reliability.
-
Warranty-backed: Limited-parts warranty provides added peace of mind when installed properly.
-
Supplemental heat ready: Can integrate with a 15 kW electric heat kit (WBC1502SV) for additional heating support in cold weather.
Q&A
Q: What components are included in this system?
A: A 5‑ton heat pump outdoor unit (4SHP14LB160P‑50A), a 5‑ton multi‑position air handler (BCE5C60MA1P‑50), and a 15 kW electric heat kit (WBC1502SV).
Q: What is the system’s cooling capacity?
A: Nominal 5 tons, with 14 SEER efficiency.
Q: What power supply does the outdoor unit require?
A: 208–230 V, single-phase, 60 Hz.
Q: What type of compressor does it use?
A: Scroll compressor.
Q: What refrigerant is used?
A: R‑410A.
Q: What type of blower motor does the air handler have?
A: Permanent split capacitor (PSC) single-speed motor.
Q: What airflow does the air handler support?
A: Up to approximately 1,980 CFM.
Q: What filter size is required?
A: 18″ × 20″ × 1″.
Q: What installation orientations are supported for the air handler?
A: Multi-position: upflow or horizontal (left/right).
Q: What efficiency or comfort benefits does this system offer?
A: Provides reliable heating and cooling, tight cabinet sealing for reduced leakage, and consistent airflow for comfort.
Q: What durability or indoor-air-quality features does the air handler include?
A: Anti-microbial drain pan and efficient coil design for better heat transfer and reduced microbial growth.
Maintenance Tips
-
Turn off system power before performing any maintenance.
-
Replace or clean the air filter every 1–3 months to maintain airflow and efficiency.
-
Keep the outdoor unit area clear of debris and maintain at least two feet of clearance for proper airflow.
-
Inspect and clean indoor evaporator and outdoor condenser coils annually to maximize heat exchange.
-
Flush and clear the condensate drain line and pan regularly to prevent clogs and water damage.
-
Check all electrical connections for tightness, wear, or corrosion.
-
Monitor refrigerant levels; call a technician if performance drops or unusual noises occur.
-
Test the defrost cycle during colder weather to prevent ice buildup.
-
Schedule professional maintenance at least once a year to service refrigerant, motor, coils, and controls.
-
Keep a maintenance log of filter changes, inspections, and service visits to track system health
