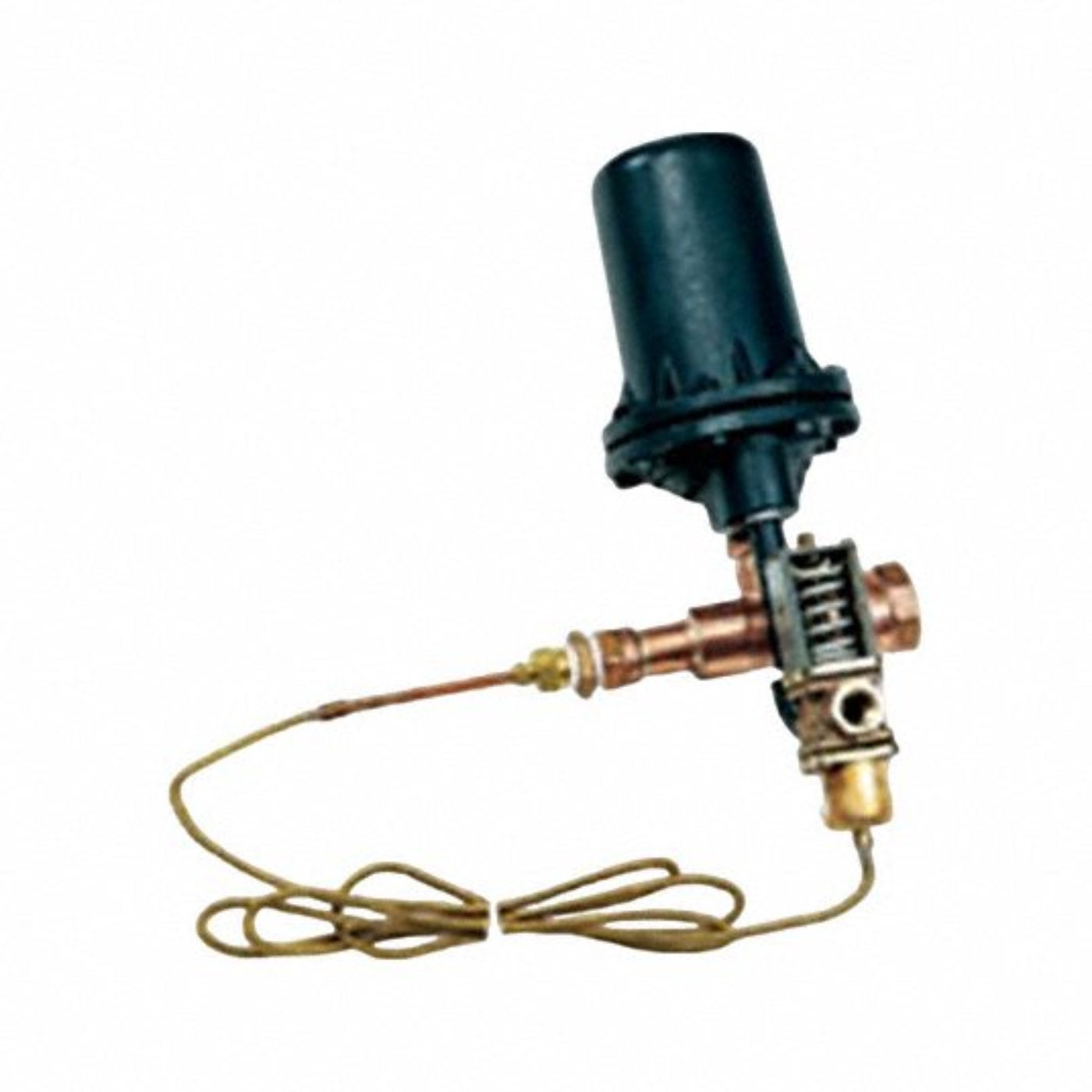

ARMSTRONG AIR D202122 Armstrong Air Condensate Cooler CC-5 - D202122
The Armstrong Air Condensate Cooler CC-5, MPN D202122, is suitable for condensate applications. It is built with a cast iron body and brass controller for durability.
The cooler maintains a factory preset temperature of one hundred thirty-five degrees Fahrenheit. It can handle various condensate needs efficiently.
- Capacity: five gallons per minute
- Adjustable temperature range: one hundred fifteen to one hundred eighty degrees Fahrenheit
- Includes multiple inlet and outlet connections
Specifications
| Capacity |
5 gallons per minute |
| Cold Water Inlet Size |
3/8 inch |
| Controller Material |
Brass |
| Factory Preset Temperature |
135 °F |
| Field Adjustable Range |
115–180 °F |
| Hot Condensate/Water Inlet Size |
3/4 inch |
| Max Cold Water Pressure |
150 psig |
| Model |
CC-5 |
| Sensing Bulb Material |
Bronze |
| Tempered Outlet Size |
1 1/4 inch |
| Vent/Overflow Connection Size |
3/4 inch |
What our Experts Think
-
Effective moisture management: The CC-5 condensate cooler is designed to safely reduce discharge temperatures, protecting drains and plumbing from heat damage.
-
Optimized for Armstrong Air systems: As an OEM-fit component, it integrates smoothly and maintains proper system balance and performance.
-
Improves overall efficiency: By managing condensate more effectively, it helps support consistent cooling operation and reduces strain on connected components.
-
Durable, service-friendly build: Technicians appreciate its dependable construction and straightforward installation in both residential and light commercial setups.
-
A smart preventive upgrade: Helps extend system life and avoid costly drain-line issues—an inexpensive solution with long-term benefits.
Q&A
Q: What is the Armstrong D202122 Condensate Cooler?
A: It’s a CC‑5 condensate cooler designed to mix hot condensate with cold water, reducing the discharge temperature to safe, code-compliant levels.
Q: What is the capacity of the CC‑5 (D202122)?
A: Supports up to 5 gallons per minute (gpm) of combined flow.
Q: What is the temperature control range?
A: Factory preset at 135 °F, adjustable between 115–180 °F.
Q: What are the connection sizes?
A: Hot condensate inlet: ¾″ NPT, cold water inlet: ⅜″ NPT, tempered condensate outlet: 1¼″ NPT, vent/overflow: ¾″ NPT.
Q: What materials are used in this cooler?
A: Cast iron body, brass controller, and bronze sensing bulb for durability and reliable operation.
Q: Why is this cooler important in a condensate system?
A: It prevents scalding by tempering hot condensate, ensuring safe discharge temperatures and compliance with building codes.
Q: What is the maximum cold water pressure?
A: Up to 150 psig.
Q: Is the D202122 a replacement part?
A: Yes, it replaces older Armstrong part numbers and serves as a direct OEM replacement.
Q: What are the physical dimensions or weight?
A: The CC‑5 weighs approximately 15 lb and is compact for easy installation.
