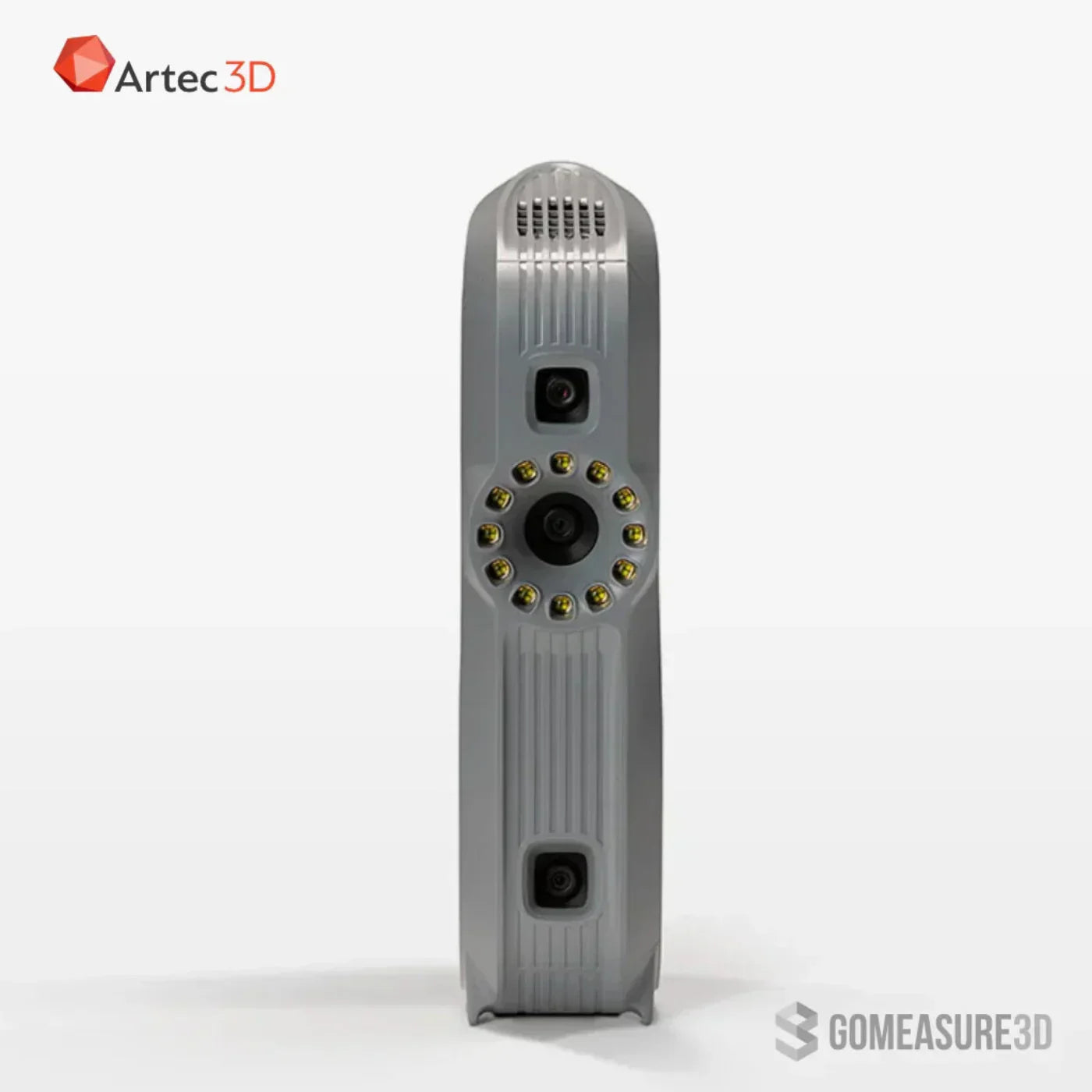

Artec Eva Lite 3D Scanner - ARTEC-SCAN-EVA-L
Affordable 3D Scanner for Professional Results
The Artec Eva Lite 3D Scanner (model ARTEC-SCAN-EVA-L) is a streamlined version of the standard Artec Eva scanner, designed to provide efficient 3D scanning capabilities for professionals working with medium to large objects.
Brochures
- Artec Eva Lite brochure
- Artec 3D scanner brochure (all models)
Features
- Entry-level professional white-light 3D scanner
- Handheld 3D scanning system
- Geometry tracking and capture only
- Ideal for applications where color is not a necessity or your current budget is tight
Specifications
| Type |
Handheld 3D Scanner |
| 3D Point Accuracy |
Up to 0.1 mm |
| 3D Resolution |
Up to 0.5 mm |
| 3D Accuracy Over Distance |
0.1 mm + 0.3 mm/m |
| HD Mode |
No |
| Hybrid Geometry and Texture Tracking |
No (does not capture color) |
| Data Processing Algorithm |
Geometry-based |
| Data Acquisition Speed |
Up to 2 million points/second |
| Made in |
Luxembourg |
What our Expect Think
-
Affordable Precision: Offers high-quality 3D scanning at a budget-friendly price.
-
Fast & Efficient: Captures accurate scans quickly, ideal for rapid scanning projects.
-
Compact & Portable: Lightweight design for easy transport and use in various environments.
-
Versatile: Suitable for a wide range of scanning applications, from small objects to medium-sized parts.
-
User-Friendly: Easy to set up and operate, making it perfect for both professionals and beginners.
Q&A
Q: What is the Artec Eva Lite 3D Scanner - ARTEC-SCAN-EVA-L?
A: The Artec Eva Lite 3D Scanner is a lightweight, portable 3D scanning device that captures high-quality, full-color 3D models with ease, designed for quick and accurate scanning of medium to large objects
Q: How does the Artec Eva Lite differ from the standard Artec Eva?
A: The Eva Lite is a simplified version with a slightly lower resolution but still provides exceptional value for cost-effective scanning of larger objects and rapid 3D model creation.
Q: What industries benefit from the Artec Eva Lite 3D Scanner?
A: Ideal for industries like healthcare, manufacturing, art, and design, where high-quality 3D models are needed for analysis, prototyping, and digital preservation.
Q: Is the Artec Eva Lite 3D Scanner easy to use?
A: Yes, it features an intuitive interface and lightweight design, allowing both beginners and experienced users to quickly start scanning and creating accurate 3D models.
Maintenance Tips
-
Regular Cleaning: Use a microfiber cloth to gently clean the scanner, especially the lens and sensors, to prevent dust and dirt buildup.
-
Lens Care: Clean the lens with a lens-safe cleaner and soft cloth to avoid scratches that could affect scan quality.
-
Battery Maintenance: Charge the battery regularly and avoid overcharging. Disconnect the charger once fully charged to extend battery life.
-
Proper Storage: Store the scanner in a protective case when not in use, in a dry, cool environment to prevent moisture damage.
-
Software Updates: Keep the scanning software up to date to ensure optimal performance and access to new features.
-
Check Cables and Connections: Inspect cables and connectors for signs of wear or damage, especially after frequent use.
-
Calibration: Periodically calibrate the scanner to maintain high accuracy, particularly if the scanner is used for precise projects.
