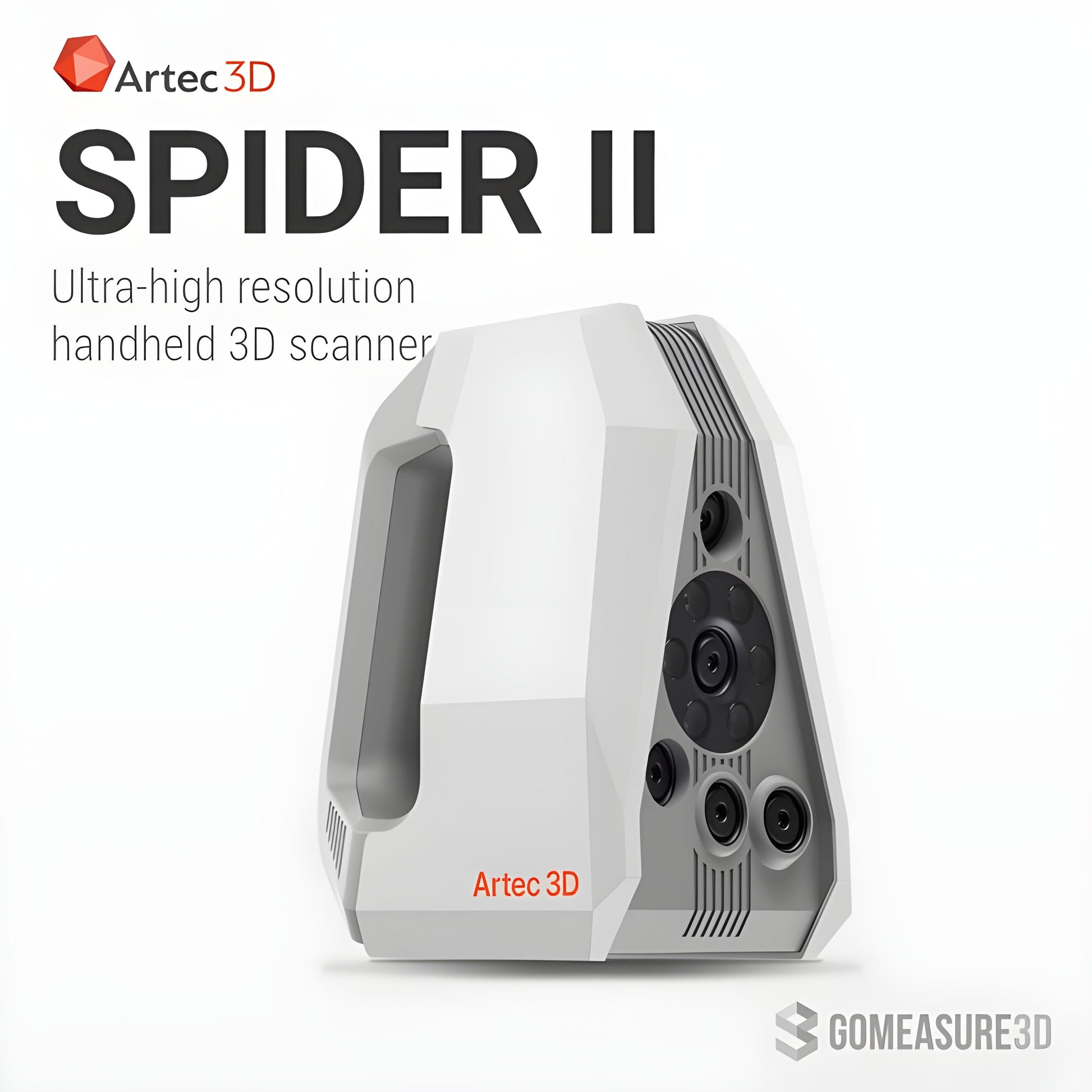

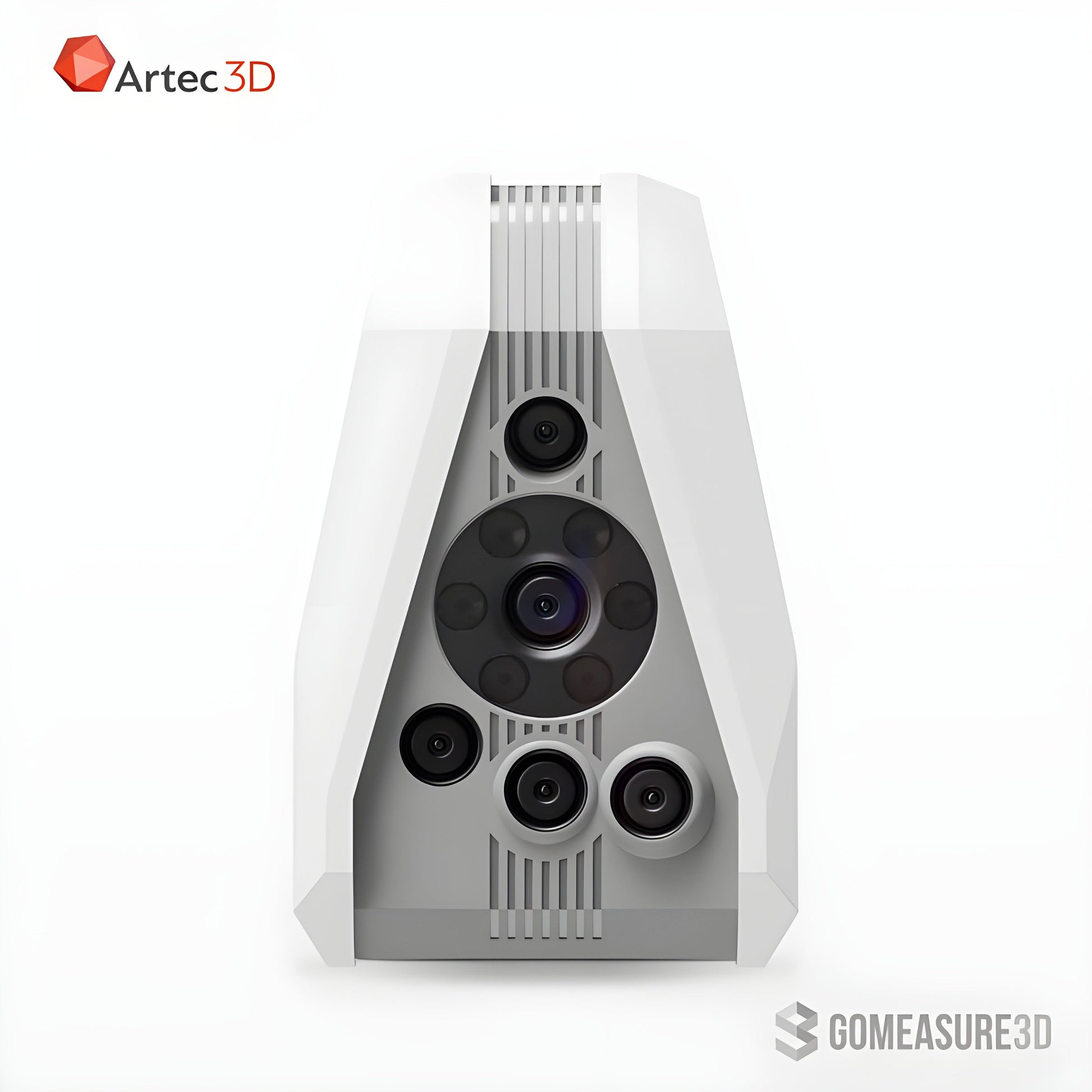

Artec Spider II 3D Scanner
Industry-Leading Ultra-High Resolution Handheld 3D Scanner
Brochure
- For more information, please read the Artec Spider II leaflet.
Features
- Next generation of Artec Space Spider
- Ultra-high-resolution and accuracy of 0.05mm
- Capture small to medium objects for high-quality scans
- For applications including CAD, quality inspection, and more
- Just point and shoot. No need for targets or calibration
- Hybrid geometry and texture-based capture (capture the color of an object
Specifications
| Type |
Handheld 3D Scanner |
| Object Size Compatibility |
Small to medium-sized objects |
| 3D Point Accuracy |
Up to 0.05 mm |
| 3D Resolution |
Up to 0.1 mm |
| 3D Accuracy Over Distance |
0.05 mm + 0.3 mm/m |
| Hybrid Geometry and Texture Tracking |
Yes (captures color) |
| Data Processing Algorithm |
Geometry and texture-based |
| Data Acquisition Speed |
Up to 1 million points/second |
What our Expect Think
-
Extreme Precision & Detail – Captures small objects with up to 0.05mm accuracy.
-
Enhanced Scanning Speed – Faster data capture for efficiency in professional workflows.
-
No Calibration Required – Ready to scan instantly with stable, high-resolution results.
-
Advanced Temperature Control – Maintains accuracy in various environments.
-
Seamless Software Integration – Works with Artec Studio and leading CAD applications.
Q&A
Q: What is the Artec Spider II 3D Scanner?
A: The Artec Spider II is a high-precision handheld 3D scanner designed for capturing intricate details with metrology-grade accuracy, ideal for reverse engineering, quality control, and forensics.
Q: How accurate is the Spider II?
A: It offers an accuracy of up to 0.05 mm and a resolution of 0.1 mm, making it perfect for scanning small objects and fine details.
Q: What industries benefit from the Spider II?
A: It's widely used in engineering, manufacturing, healthcare, forensics, and digital preservation, where high-precision 3D data is required.
Q: Does it require markers for scanning?
A: No, the Spider II uses structured-light scanning technology, eliminating the need for targets or markers while maintaining high accuracy.
Q: Is it compatible with Artec Studio software?
A: Yes, the Spider II integrates seamlessly with Artec Studio software, enabling advanced 3D data processing and analysis.
Maintenance Tips
-
Keep Lenses Clean – Use a microfiber cloth to remove dust and smudges for precise scans.
-
Warm Up Before Scanning – Allow the scanner to reach optimal temperature for maximum accuracy.
-
Avoid Harsh Environments – Use in stable lighting and temperature conditions for consistent results.
-
Update Software & Firmware – Regular updates improve performance and compatibility.
-
Store in a Protective Case – Prevent dust accumulation and physical damage when not in use.
