BK Resources UBDW-21-IBCP30-8 Bar Equipment - UBDW-21-IBCP30-8
BK Resources • Model UBDW-21-IBCP30-8 • NSF Certified

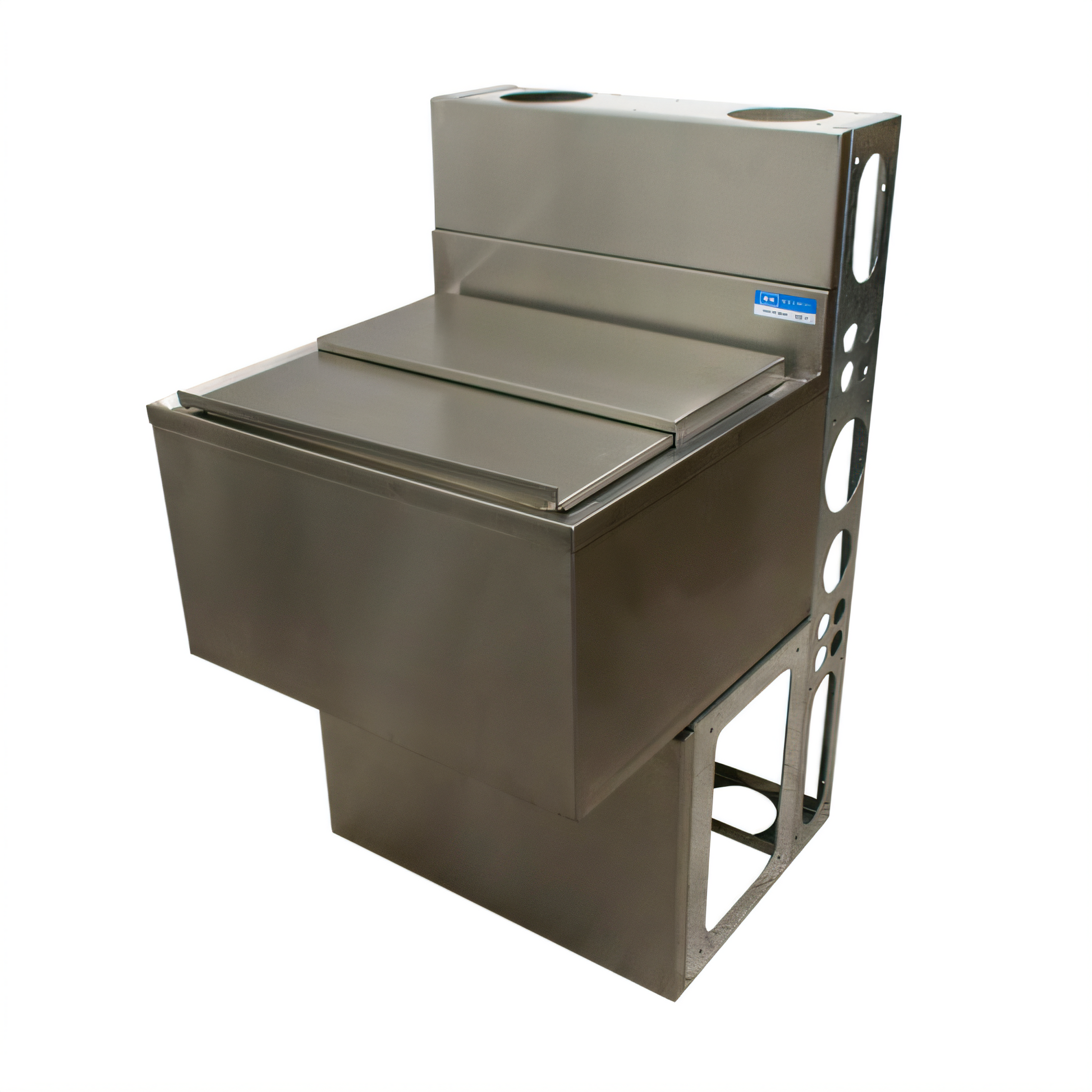

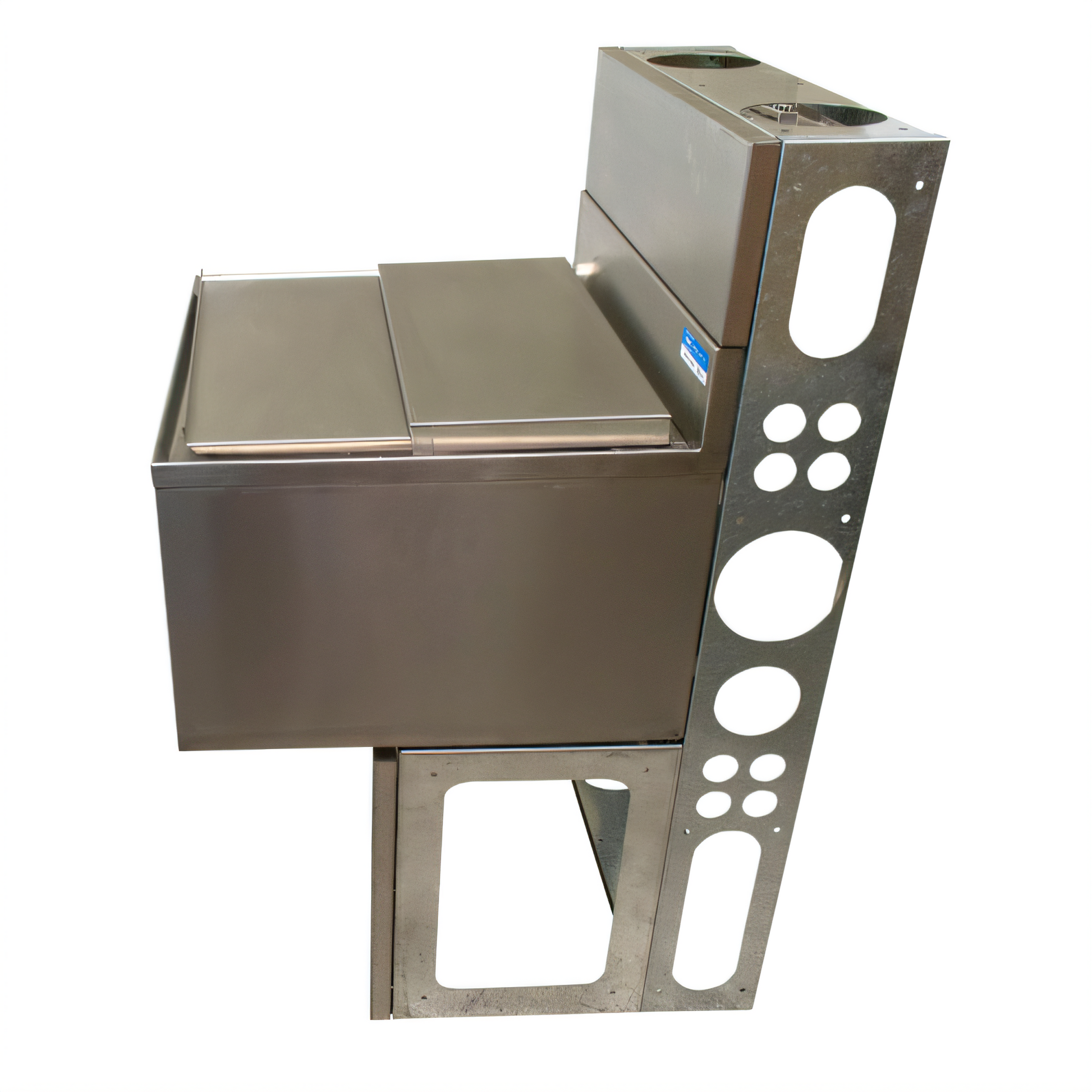

Built for busy bars and beverage stations, this BK Resources underbar ice bin pairs a roomy, fully insulated 97 lb ice well with an integrated 8-circuit aluminum cold plate—so you can chill up to eight beverage lines while keeping a generous supply of ice at the perfect serving temperature.
Features
-
8-circuit aluminum cold plate chills soda, beer or cocktail lines directly in the bin for ice-cold pours every time.
-
High-capacity ice well holds up to 97 lb of ice (25" W × 18" D × 12 9⁄16" H interior).
-
Premium build: 18 ga 304 stainless steel body, die-formed wall & base and stainless steel sliding lids.
-
4" sanitary backsplash protects surrounding walls from water and ice splash.
-
Adjustable corrosion-resistant bullet feet level the unit quickly on uneven floors.
-
41" overall height / 30" work height provides an ergonomic reach for bartenders.
-
NSF listed for safe, hygienic ice storage in commercial food-service environments.
Specifications
| Manufacturer / Model |
BK Resources UBDW-21-IBCP30-8 |
| Ice Capacity |
97 lb |
| Cold Plate |
8-Circuit Aluminum (integral, fully sealed) |
| Interior (Ice Bin) |
25" W × 18" D × 12 9⁄16" H |
| Overall Dimensions |
30" L × 26 3⁄4" W × 41" H |
| Work Height |
30" |
| Backsplash Height |
4" |
| Construction |
18 ga 304 Stainless Steel body, lids & legs; die-formed wall & base |
| Feet |
Adjustable high-impact, corrosion-resistant bullet feet |
What our Experts Think
-
Premium Stainless Steel Construction: Durable, corrosion-resistant, and built for heavy-duty bar use.
-
Optimized Bar Workflow: Compact design keeps tools, glassware, and supplies organized and accessible.
-
Easy to Clean: Smooth surfaces simplify sanitation and daily maintenance.
-
Sturdy & Reliable: Supports frequent use in busy bar or restaurant environments.
-
Versatile Functionality: Ideal for bars, restaurants, and catering operations requiring efficient prep and service.
Q&A
Q: What is the UBDW‑21‑IBCP30‑8?
A: A commercial-grade underbar insulated ice bin with integrated cold plate, designed for efficient ice storage and beverage chilling at busy bars and beverage stations.
Q: What are the dimensions and ice capacity?
A: Measures approximately 30″ W × 21″ D × 33‑1/2″ H with a 12‑9/16″ deep insulated ice bin holding up to 97 lbs of ice for extended service.
Q: What materials and build quality does it feature?
A: Built from 18/304 stainless steel with a die wall and base for durability, corrosion resistance, and long commercial life.
Q: What functional features are included?
A: Includes an 8‑circuit aluminum cold plate for beverage cooling, a backsplash to contain splashes, and a 1/2″ drain with plug for easy melt-water removal.
Q: Is it suitable for commercial sanitation standards?
A: Yes, it is NSF‑certified for safe ice storage and commercial foodservice use.
Q: How does it support bar workflow?
A: Provides quick access to large ice volumes while chilling multiple beverage lines, streamlining drink prep and service during peak hours.
Q: Who is this underbar ice bin ideal for?
A: Perfect for bars, restaurants, hotel lounges, catering beverage stations, and high-volume hospitality venues needing reliable, hygienic ice storage and beverage cooling.
Maintenance Tips
-
Daily Cleaning: Wipe all surfaces with a mild, non-abrasive cleaner to remove spills and sticky residue.
-
Sanitize Regularly: Use a food-safe sanitizer to maintain hygiene in high-use areas.
-
Inspect Components: Check doors, drawers, hinges, and gaskets; tighten or adjust as needed.
-
Avoid Harsh Chemicals: Do not use bleach or abrasive pads that can damage finishes.
-
Prevent Water Damage: Dry spills promptly to avoid corrosion or rust.
-
Lubricate Moving Parts: Lightly lubricate sliding drawers, hinges, or casters for smooth operation.
