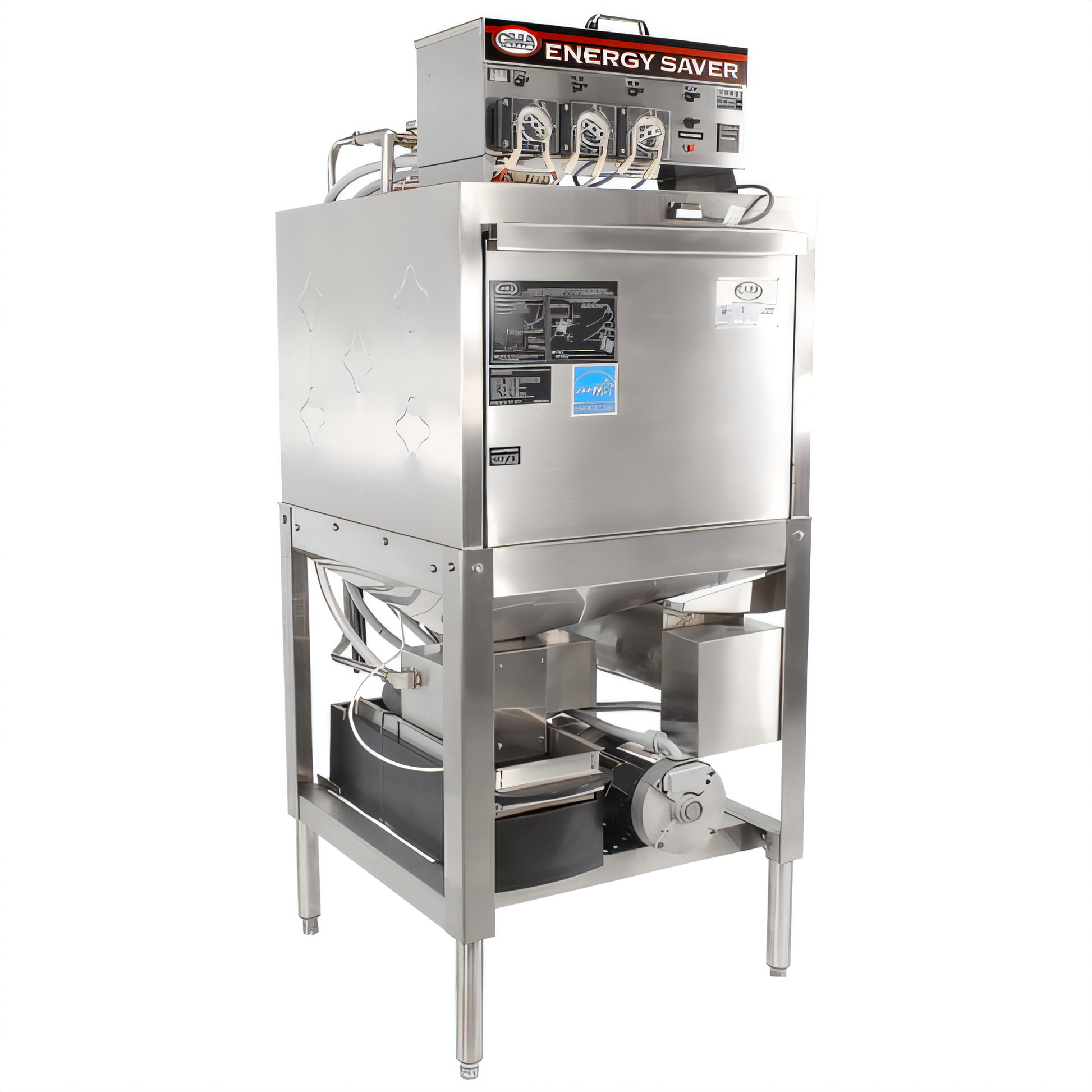

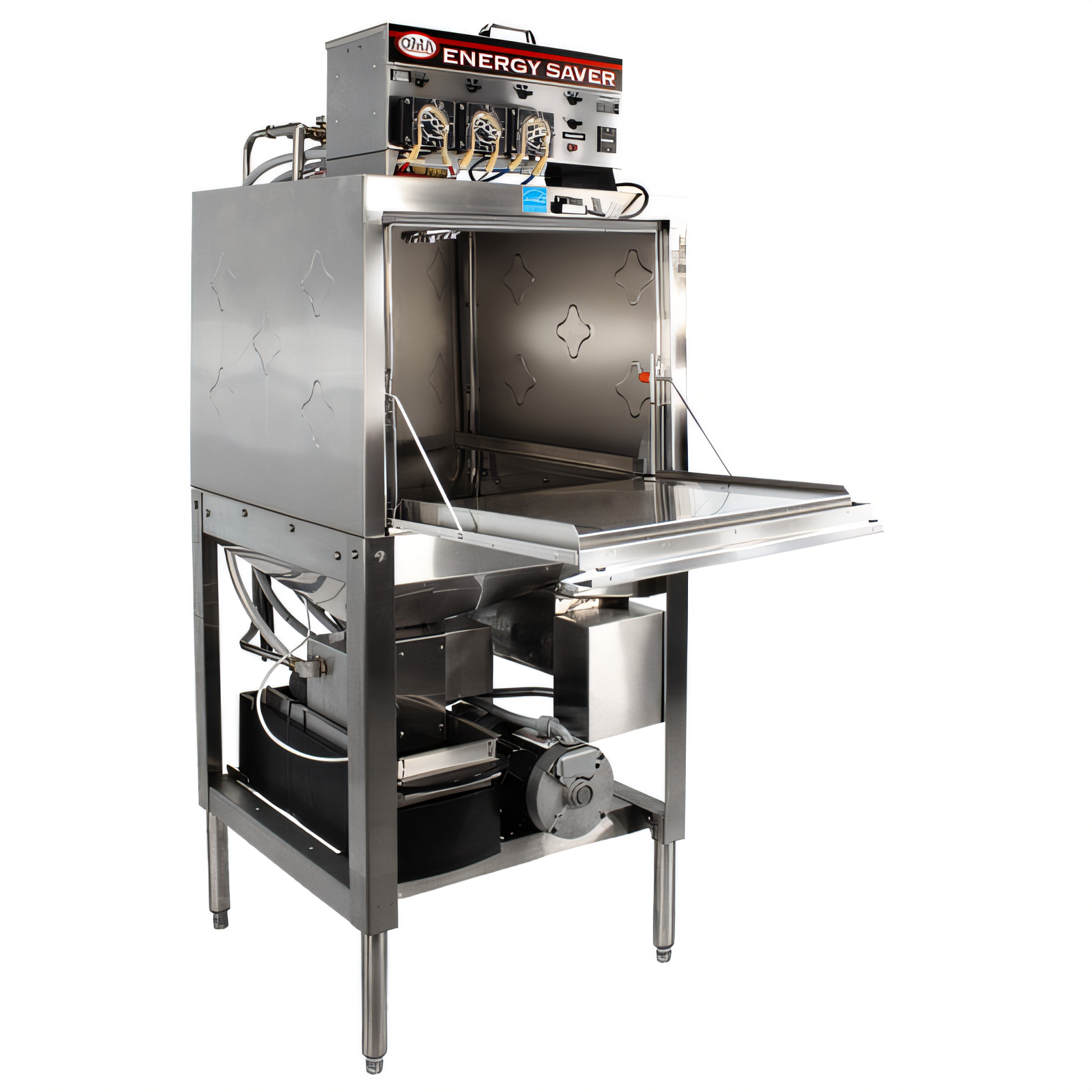

CMA Energy Mizer® EST-FL Front-Loading Low-Temp Dishwasher
40 racks/hr • 1.09 gal per rack • ENERGY STAR® Certified
Keep dishes moving and utility costs down with the Energy Mizer® EST-FL. This compact, front-loading
dishwasher delivers high-volume performance in just 5 sq ft of floor space, making it the perfect
replacement for bulky door-type machines or tight kitchens that demand big results.
Key advantages
- Tiny footprint—25-1/4" × 25-1/4" cabinet saves up to 75 % of the space used by hood-type machines.
- 90-second total cycle cleans up to 40 racks per hour.
- Ultra-efficient—uses only 1.09 gal of water per rack (≈43.6 gal/hr).
- Low-temperature chemical sanitizing: no costly booster heater required (120–140 °F supply water).
- Automatic 3-product dispensing system with top-mounted, splash-safe controls.
- Stainless steel upper & lower wash arms driven by a powerful 1 HP pump (52 GPM).
- Pumped fresh-water rinse for consistent final-rinse quality.
- Built-in scrap accumulator, inside sump & self-cleaning screen reduce clogs and service calls.
- 16" vertical clearance handles sheet pans, stock pots and tall glassware.
- All-stainless construction, ETL-Sanitation & cULus listed, ENERGY STAR® qualified.
Technical specifications
| Model |
EST-FL (Energy Mizer® Front Loader) |
| Machine type |
Single-rack, front loading, low-temp chemical |
| Rack capacity |
40 racks/hr | 90-second cycle |
| Water usage |
1.09 gal per rack | 43.6 gal/hr |
| Cycle breakdown |
Wash 53 s • Rinse 30 s • Dwell 7 s |
| Standard rack size |
20" × 20" |
| Wash pump |
1 HP | 52 GPM |
| Pan/plate clearance |
16" |
| Dimensions (W × D × H) |
25-1/4" × 25-1/4" × 66"
*Cabinet height 55-1/2"–56-1/2"; 66" overall with chemical pumps.
|
| Floor space |
5.06 sq ft |
| Electrical |
115 V / 1 ph / 16 A |
| Water inlet / Drain |
1/2" NPT | 2" |
| Shipping weight |
≈ 243 lb |
| Certifications |
ETL-Sanitation (NSF 3) • cULus • ENERGY STAR® |
Included with your machine
- (1) Peg rack
- (1) Flat rack
- Factory-installed chemical pumps with tubing
- User & installation manual
Factory-installed options
- Hot Water Assurance System – guarantees proper rinse temperature every cycle.
- Low Chemical Alarm – alerts staff when detergent or sanitizer is low.
- Front skirt panel for a finished, enclosed look.
- Alternate cycle times or electrical configurations.
Installation note: Provide a minimum 120 °F (49 °C) incoming water supply—140 °F (60 °C) recommended for best performance. CMA does not recommend the use of tankless/on-demand heaters with this model.
Warranty
The Energy Mizer EST-FL is protected by CMA’s 1-year limited parts & labor warranty when installed and
maintained to factory guidelines.
