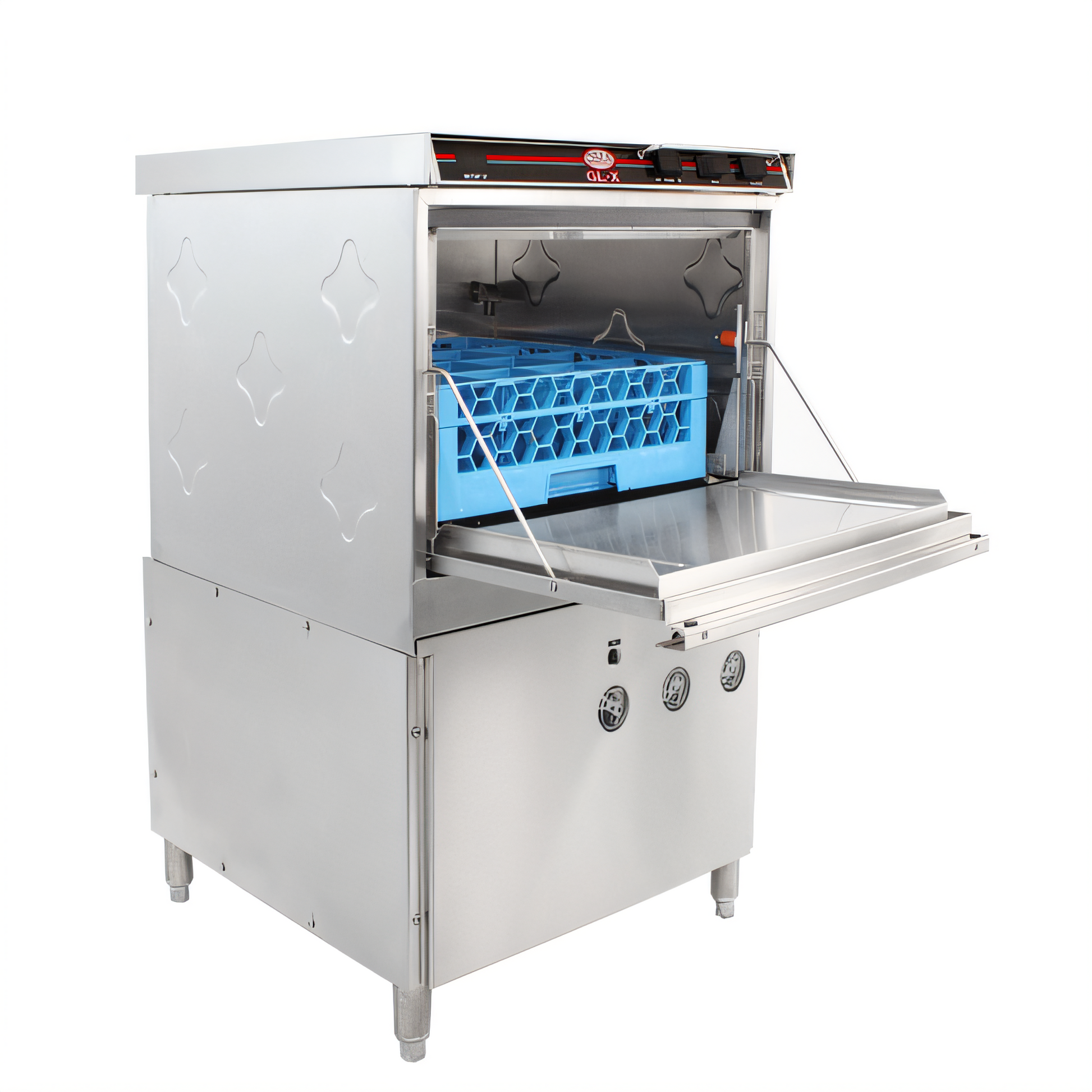

CMA Energy Mizer® GL-X Underbar Glass Washer
30 racks/hr • Low-temperature chemical sanitizing • 24" wide cabinet
Designed for busy bars, cafés, and coffee houses, the Energy Mizer® GL-X delivers sparkling glassware while
slashing utility costs. Its efficient low-temp sanitizing system, rugged stainless-steel construction, and
“Works-in-a-Drawer” serviceability make it the go-to undercounter washer for operations that can’t afford downtime.
Key Features
- High output: processes up to 30 racks per hour.
- Uses just 1.7 gal / cycle to conserve water, energy, and chemicals.
-
Low-temperature chemical sanitizing with built-in detergent, rinse, and sanitizer pumps.
- Integrated deliming system reduces scale and extends component life.
- Upper & lower stainless-steel wash arms with reinforced end caps for consistent spray coverage.
-
Sustainer heater maintains 130 °F wash water between loads for fast recovery.
- Slide-out “Works-in-a-Drawer” electronics drawer speeds troubleshooting and maintenance.
-
Pumped drain allows flexible installation—no floor drain needed.
- Spacious 11-1/4" door opening accommodates tall pint and stemmed glasses.
- Includes one 16-compartment glass rack; accepts standard 20" × 20" racks.
- NSF & cULus listed; backed by a 1-year parts & labor warranty.
Performance Cycle
- Wash: 58 s | Rinse: 32 s | Dwell: 30 s
- Total cycle time: 120 s (2 minutes)
Specifications
| Rack capacity |
30 racks/hr (20" × 20") |
| Water usage |
1.7 gal per rack | 51 gal/hr |
| Door/Glass clearance |
11-1/4" H |
| Wash tank capacity |
1.7 gal |
| Wash pump |
1 HP, 35 GPM |
| Incoming water temp |
Minimum 120 °F (50 °C) |
| Electrical |
115 V / 1-phase / 16 A |
| Dimensions (W × D × H) |
24" × 24-3/4" × 39–40-1/8" |
| Drain / Water inlet |
1" pumped drain | 1/2" NPT inlet |
| Shipping weight |
≈ 202 lb |
Optional Accessories
- Low chemical alarm kit
- 24" drain board
- CMA Temp-Sure™ hot-water assurance system
Installation note: This unit must be installed by qualified personnel in accordance with all local plumbing,
electrical, and health codes. CMA recommends a water hardness level of ≤ 3.5 gpg and a traditional tank-style
water heater for optimal performance.
Specifications are subject to change without notice. Glassware, chemicals, and additional racks sold separately.
