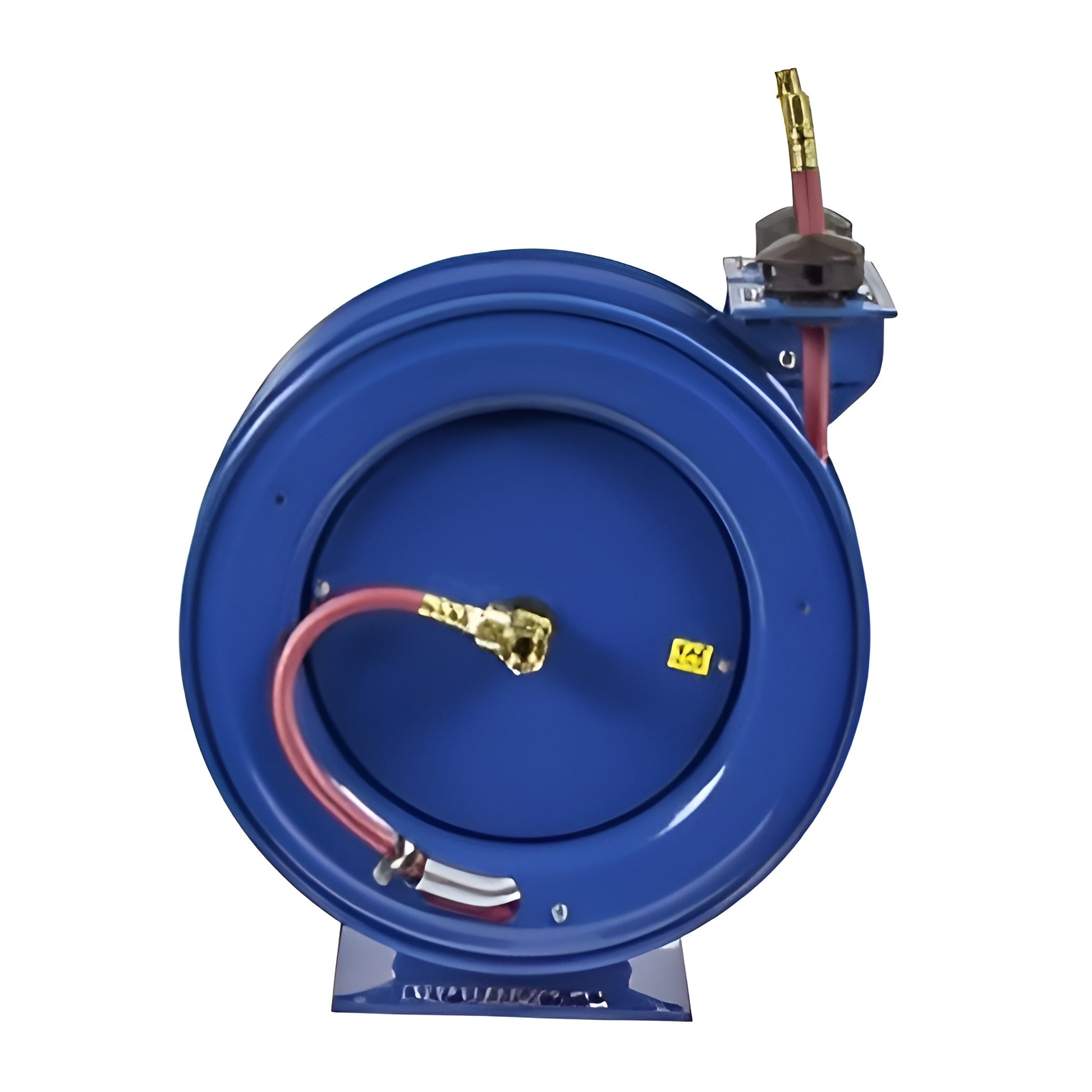

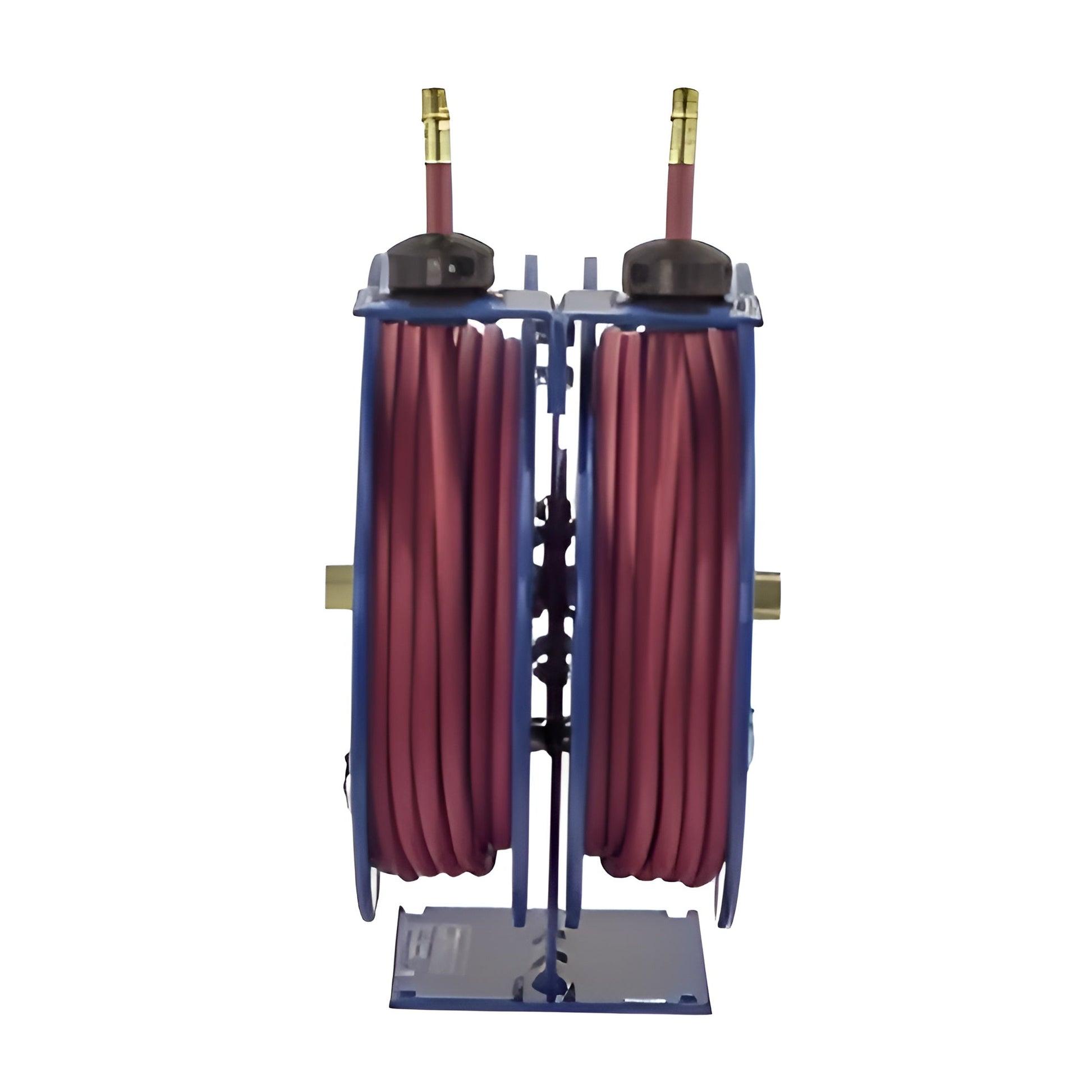

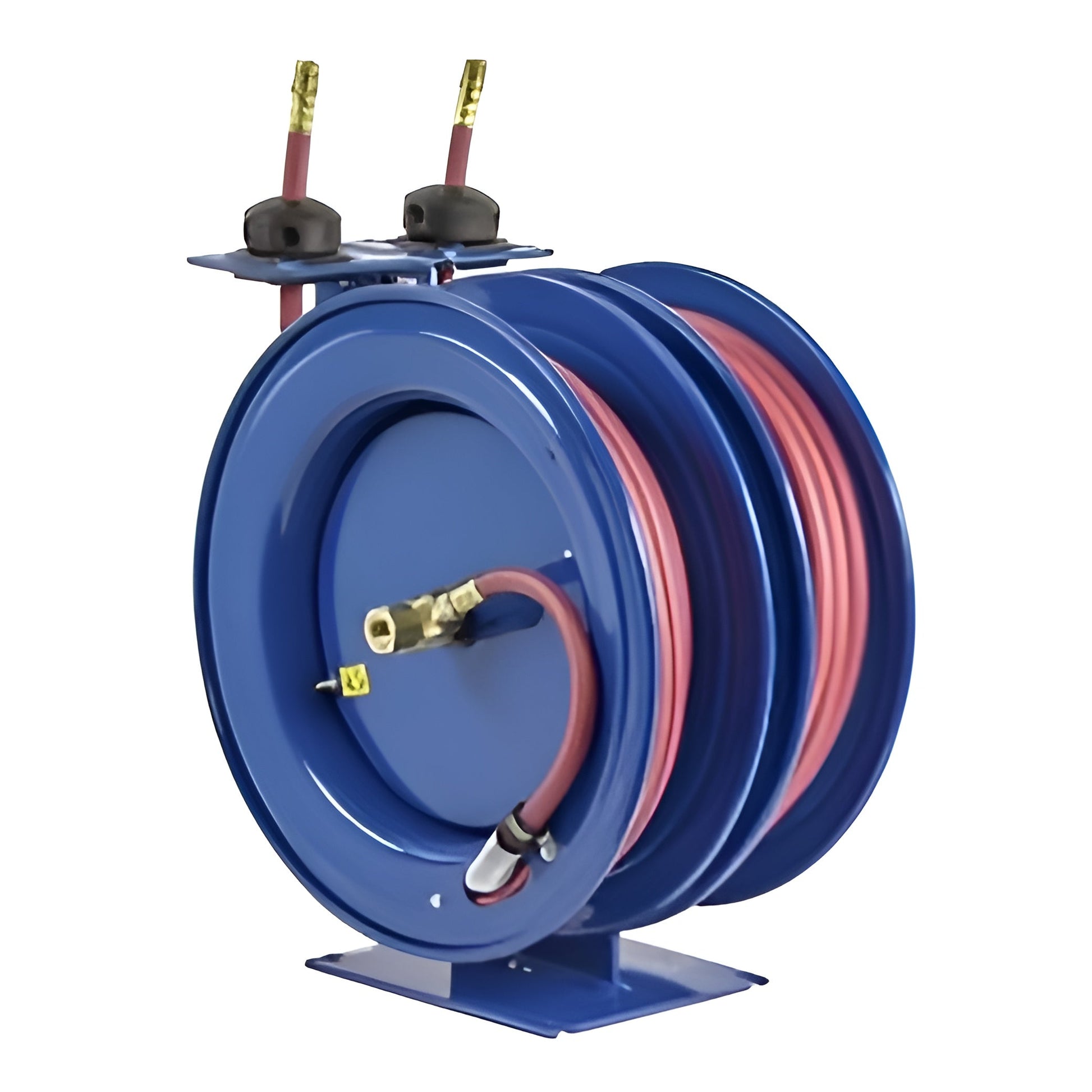

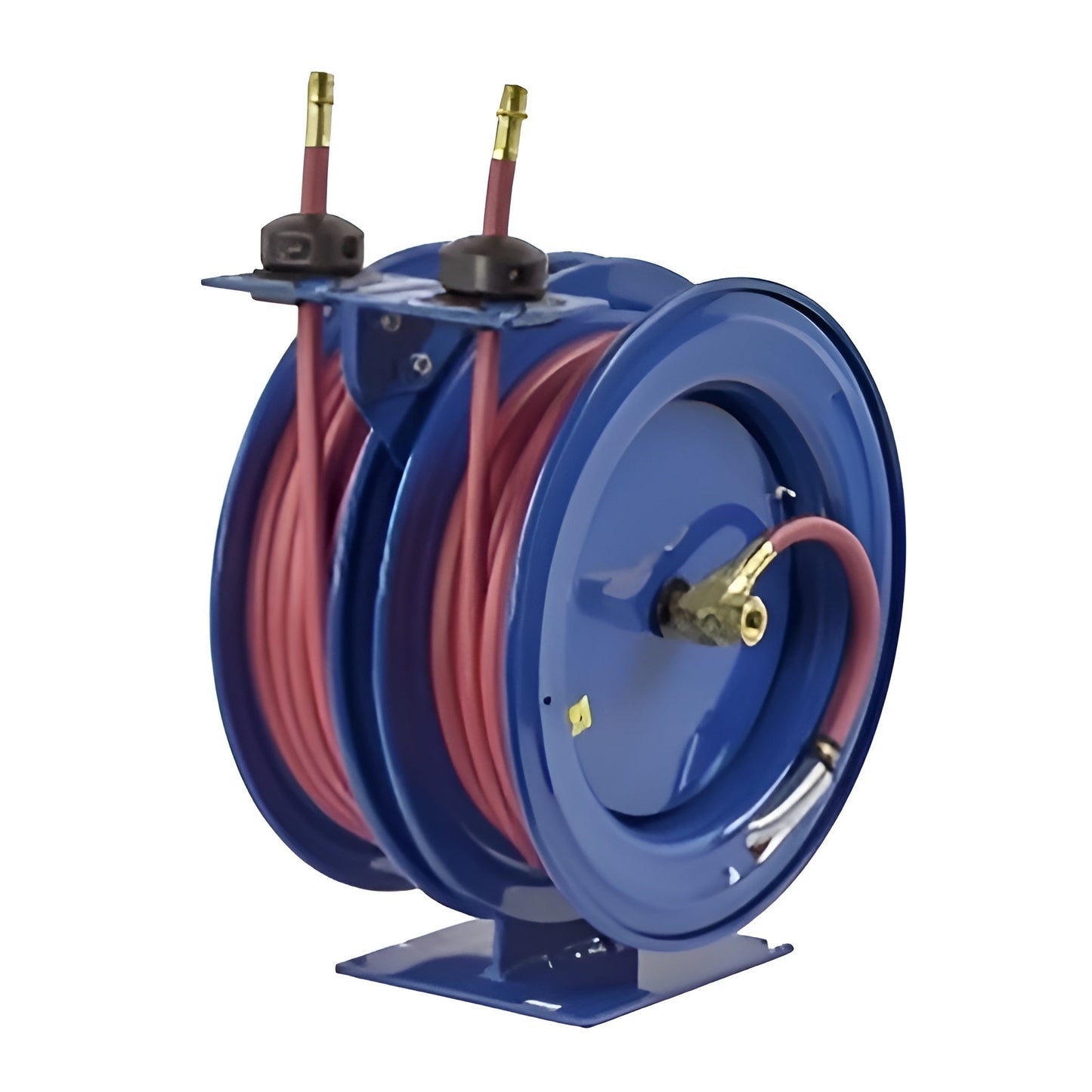

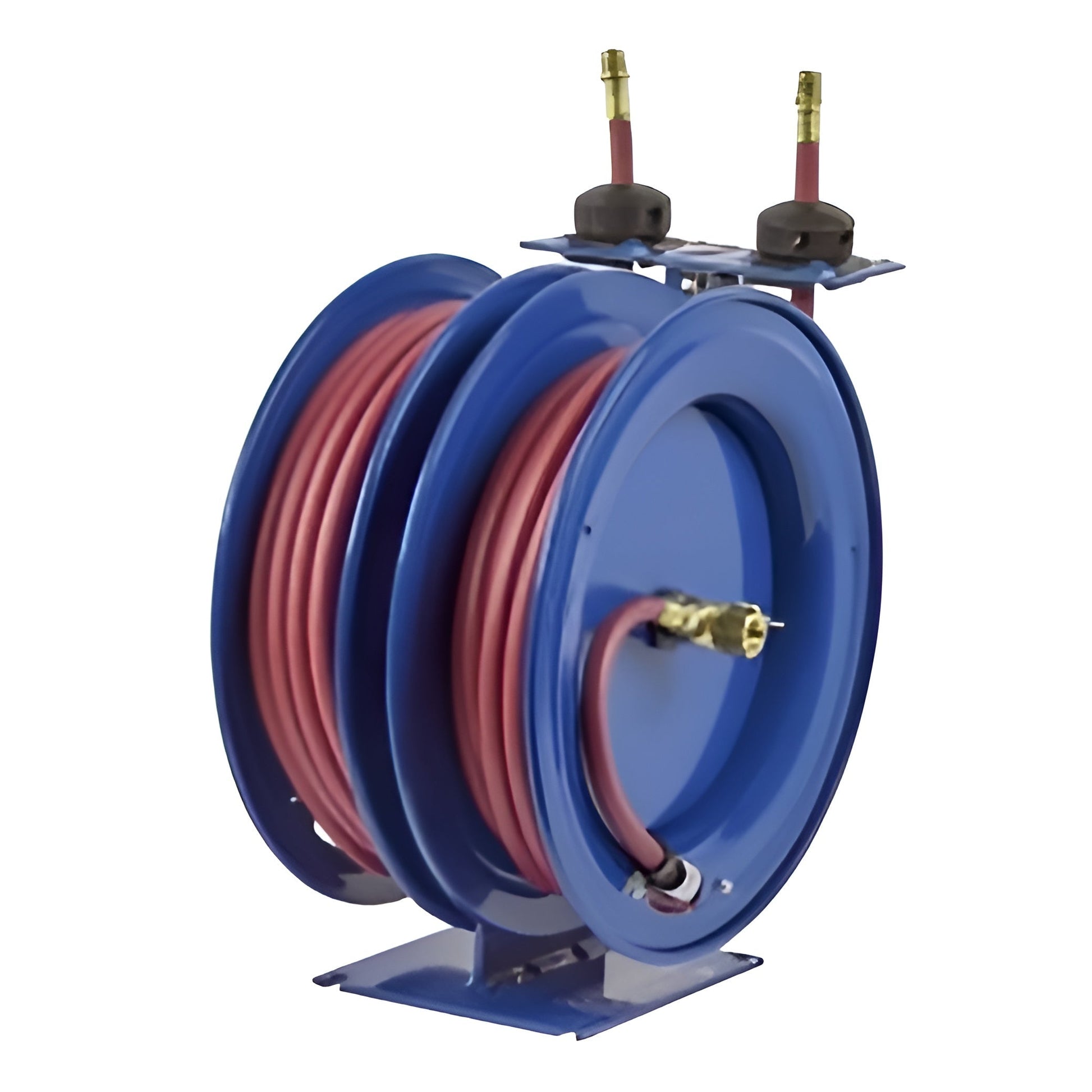

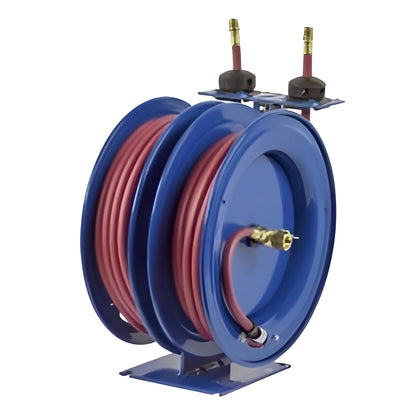

Coxreels C Series "Combination" Medium Pressure Spring Driven Hose Reels - C-MP-325-325
C Series "Combination" Medium Pressure Spring Driven Hose Reels
COXREELS C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVEL - Two external fluid path with machined zinc plated steel 90˚full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASE - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
-
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| C-MP-325-325 |
3/8" |
11/16" |
25' |
Yes |
3000 |
80 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-335-335 |
3/8" |
11/16" |
35' |
Yes |
3000 |
86 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-425-425 |
1/2" |
13/16" |
25' |
Yes |
3000 |
78 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MP-430-430 |
1/2" |
13/16" |
30' |
Yes |
3000 |
84 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-325-325 |
3/8" |
11/16" |
25' |
No |
3000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-335-335 |
3/8" |
11/16" |
35' |
No |
3000 |
68 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-425-425 |
1/2" |
13/16" |
25' |
No |
3000 |
64 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-MPL-430-430 |
1/2" |
13/16" |
30' |
No |
3000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Combination Design: Dual hose reel system, capable of managing two medium-pressure hoses simultaneously, optimizing workspace and increasing productivity.
-
Medium Pressure Capability: Handles up to 3,000 PSI, ideal for air, water, and light hydraulic fluid transfer applications in demanding environments.
-
Spring-Driven Retraction: Features smooth, automatic retraction for quick and efficient hose storage, reducing downtime and minimizing tangling.
-
Heavy-Duty Construction: Built to withstand heavy use, ensuring long-lasting durability and reliable performance in industrial settings.
-
Corrosion-Resistant Finish: Coated with a protective finish to resist rust and corrosion, making it ideal for outdoor and tough working conditions.
-
Space-Saving Design: Efficient dual hose storage reduces clutter and keeps work areas organized, enhancing safety and reducing trip hazards.
-
Versatile Mounting Options: Can be mounted on walls, ceilings, or floors, offering flexibility for installation in various spaces and applications.
Q&A
Q: What is the Coxreels C Series "Combination" Medium Pressure Spring Driven Hose Reel - C-MP-325-325?
A: The Coxreels C-MP-325-325 is a combination, medium-pressure spring-driven hose reel designed to manage two hoses simultaneously. It features a spring rewind mechanism for smooth and efficient hose retraction, making it ideal for dual fluid or air transfer applications.
Q: What is the hose capacity of this reel?
A: The C-MP-325-325 can hold up to 325 feet of medium-pressure hose on each side, providing ample capacity for managing multiple hoses in industrial and commercial settings.
Q: How does the spring-driven mechanism work?
A: The reel utilizes a spring-driven rewind system that automatically retracts both hoses after use, reducing manual effort and keeping the workspace organized and free from tangled hoses.
Q: Is the reel durable?
A: Yes, the C Series is constructed with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability and reliability even in demanding environments.
Q: Is this reel easy to install?
A: Yes, the C-MP-325-325 offers flexible installation options, including wall, floor, or ceiling mounting, making it suitable for a variety of setups in different workspaces.
Q: What are typical applications for this reel?
A: This reel is ideal for use in environments where multiple medium-pressure hoses are required, such as in manufacturing, automotive repair shops, construction sites, and industrial fluid transfer applications.
Maintenance Tips
-
Model: C-MP-325-325
-
Hose Capacity: Designed to hold two hoses, each with up to 100 feet of 3/8” or 1/2” medium-pressure hose
-
Pressure Rating: Rated for medium-pressure applications up to 3000 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for enhanced durability in industrial environments
-
Drive Mechanism: Spring-driven automatic rewind for smooth and efficient hose retraction
-
Swivel Inlet: Dual full-flow swivels for continuous fluid or air delivery to both hoses simultaneously, minimizing hose wear
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth and consistent hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mounting for flexible installation options
-
Applications: Ideal for dual medium-pressure fluid or air transfer in industries such as automotive, maintenance, manufacturing, and other industrial environments
-
Temperature Range: Operates effectively in a wide temperature range, suitable for various industrial applications
-
Weight: Varies based on hose configuration and reel setup
