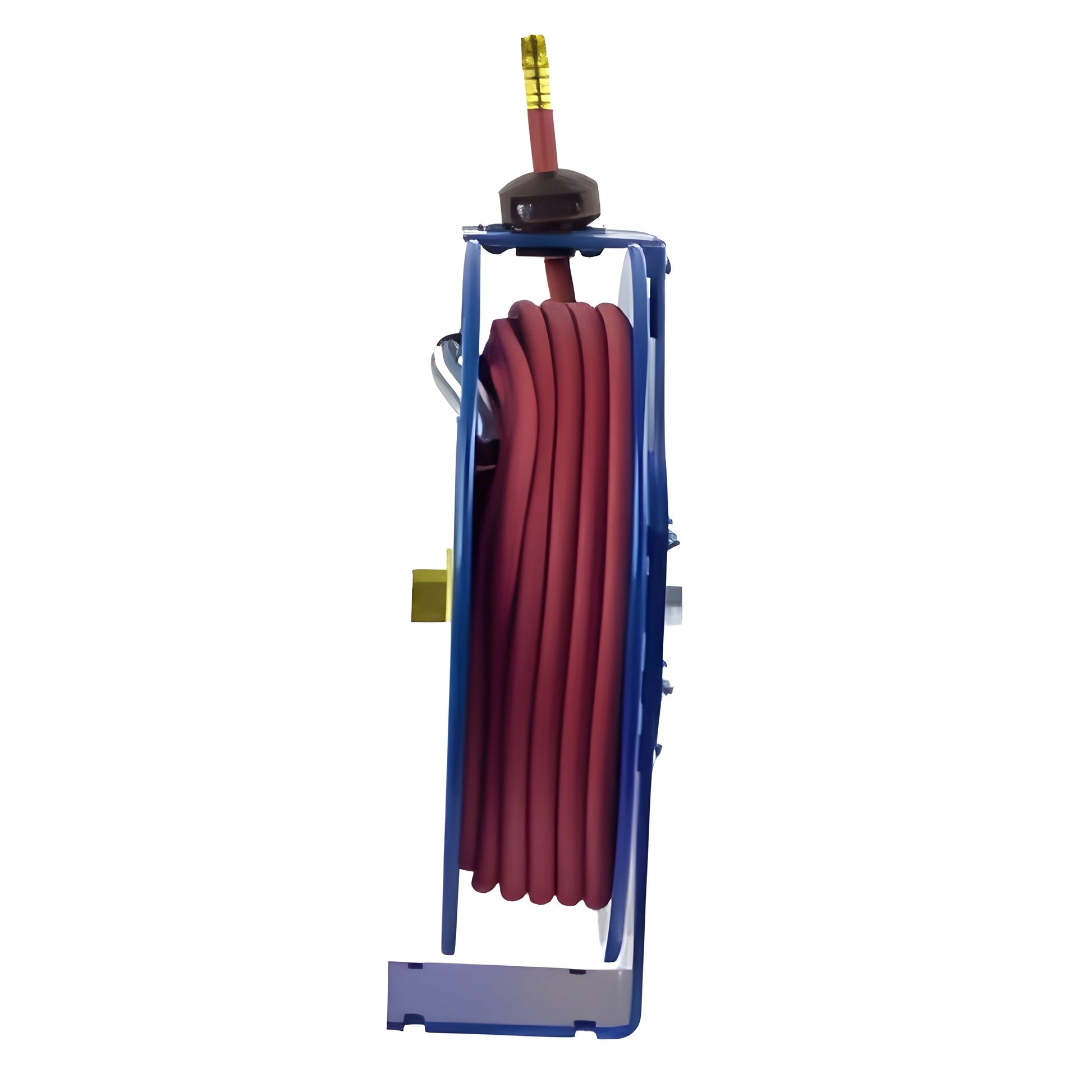

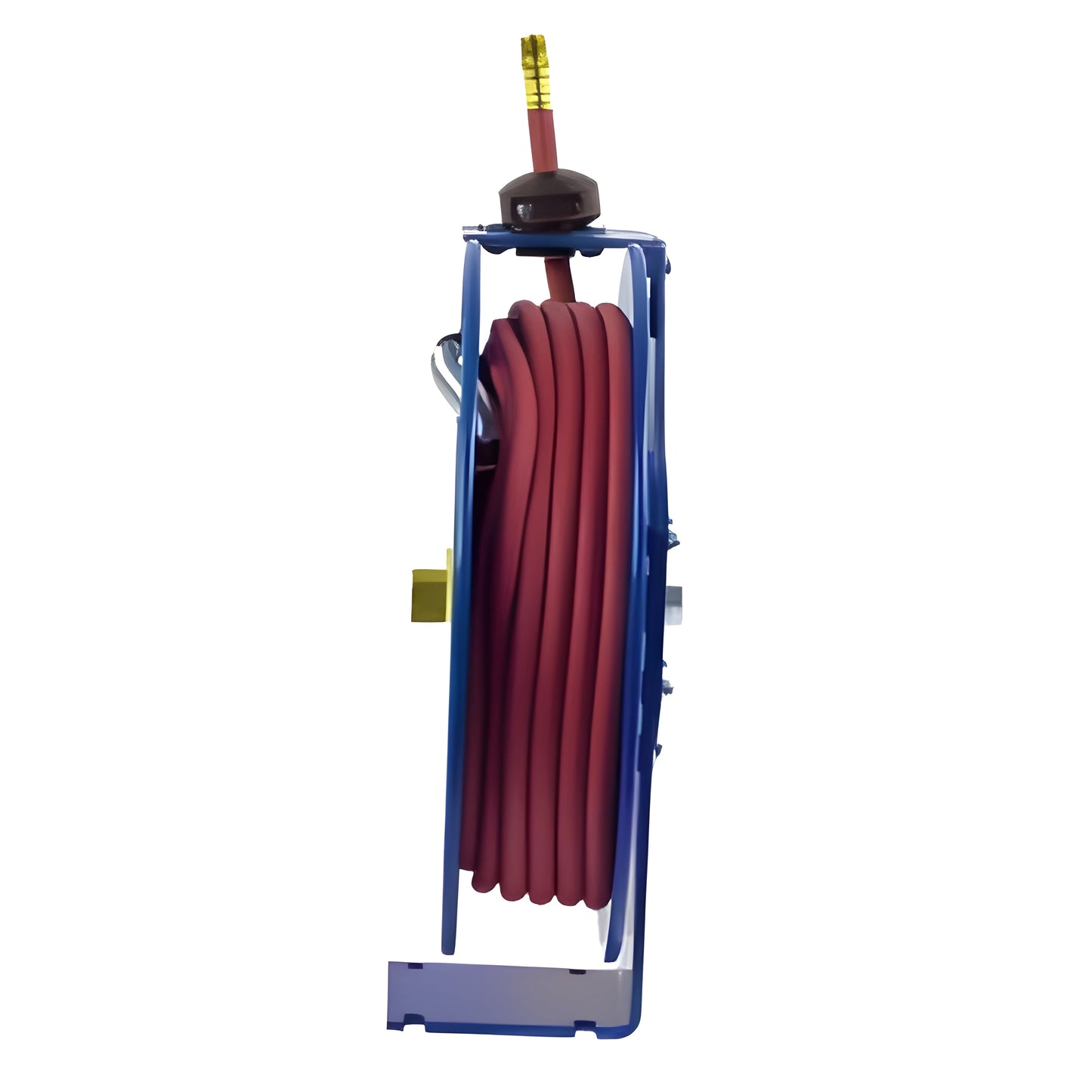

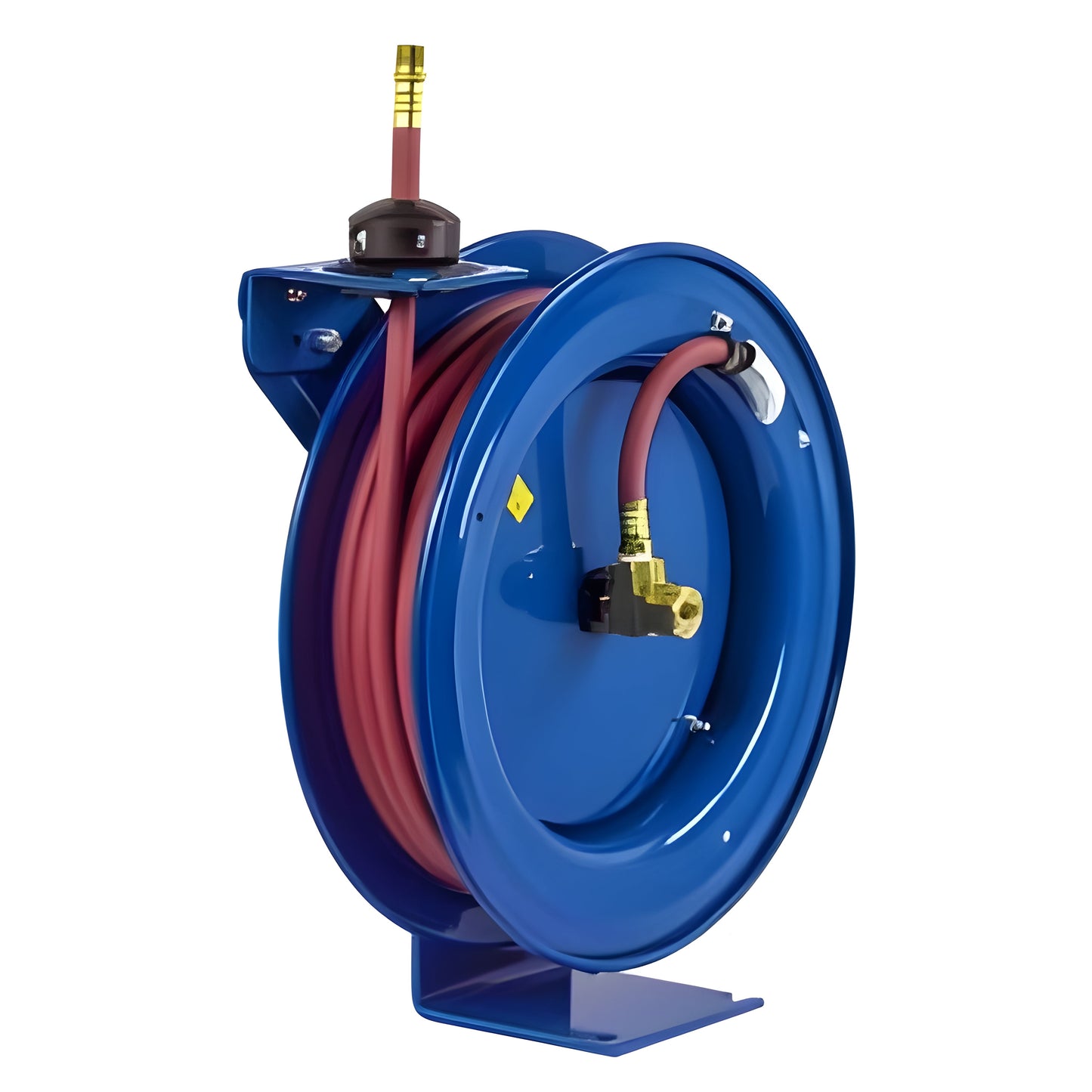

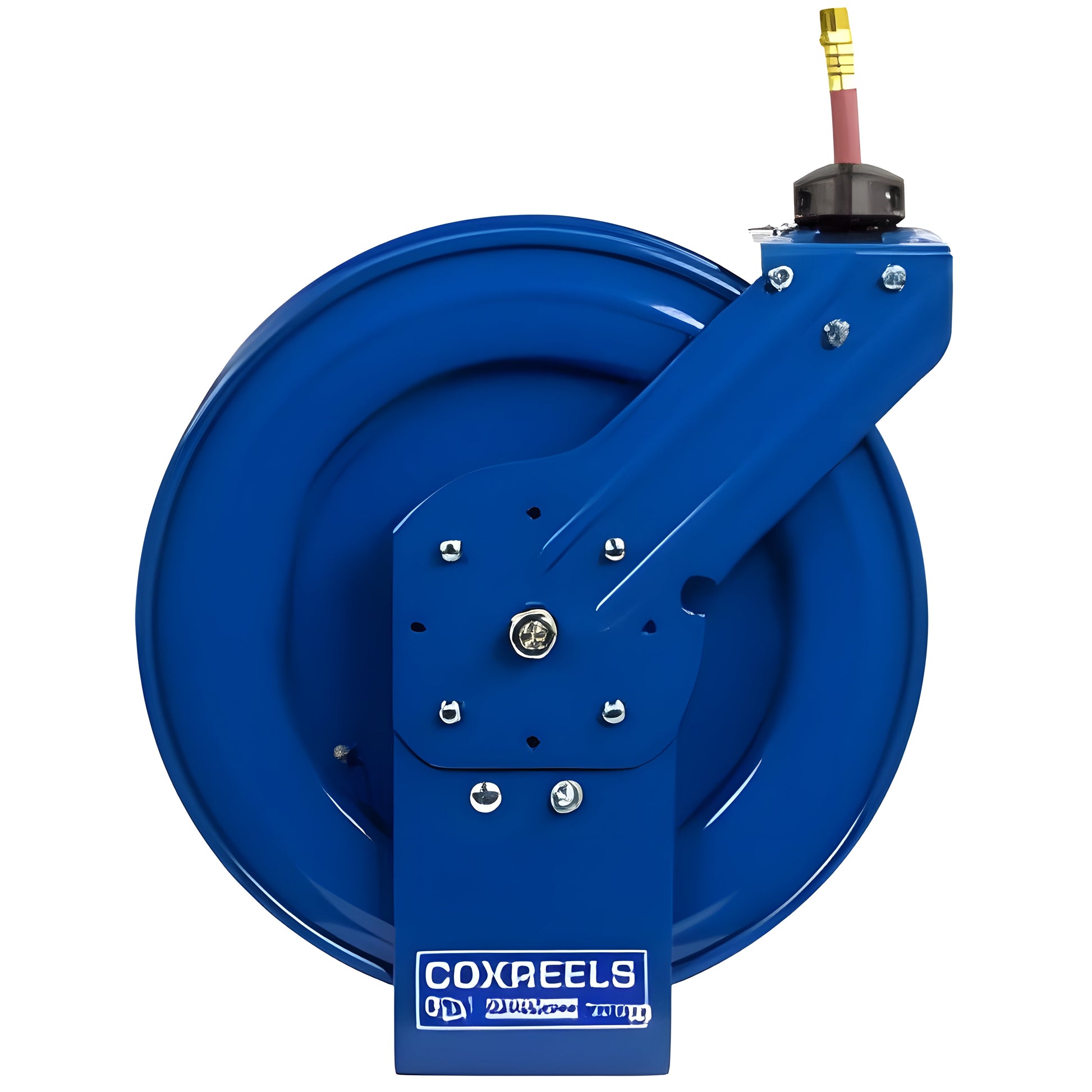

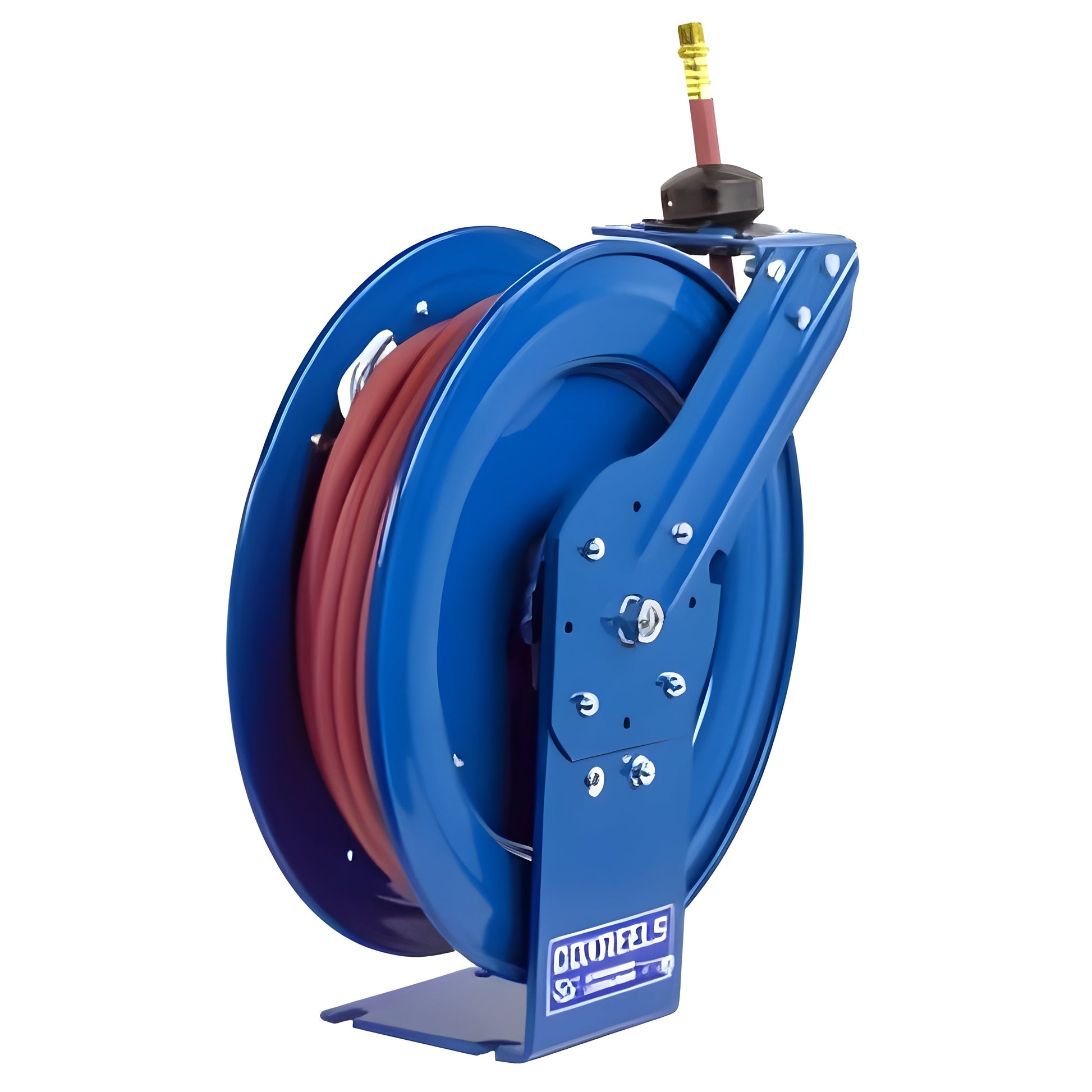

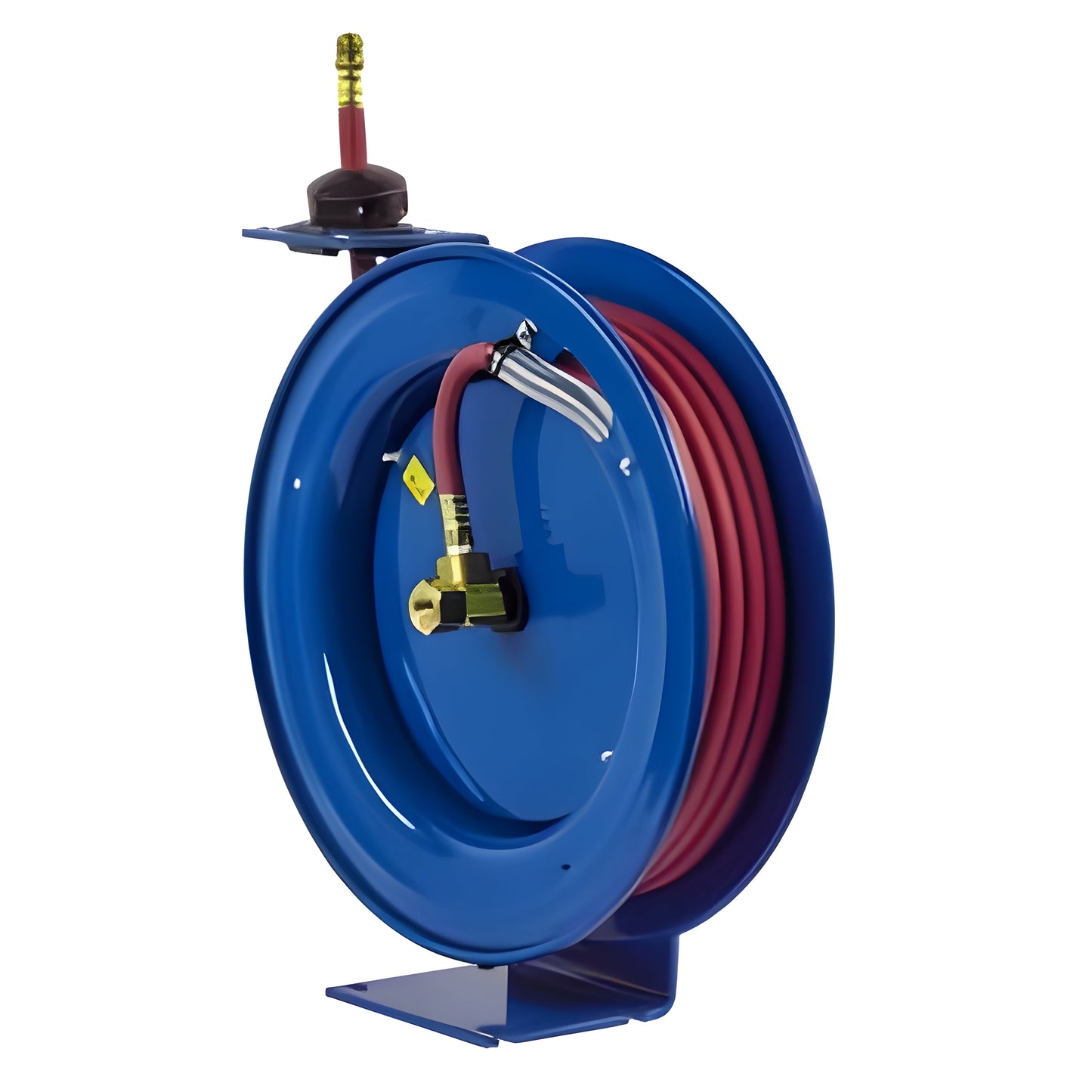

Coxreels P Series “Performance” Medium Pressure Spring Driven Hose Reels - P-MP-320
P Series “Performance” Medium Pressure Spring Driven Hose Reels
COXREELS P Series “Performance” spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| P-MP-320 |
3/8" |
11/16" |
20' |
Yes |
3000 |
46 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-325 |
3/8" |
11/16" |
25' |
Yes |
3000 |
49 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-330 |
3/8" |
11/16" |
30' |
Yes |
3000 |
51 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-335 |
3/8" |
11/16" |
35' |
Yes |
3000 |
52 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-420 |
1/2" |
13/16" |
20' |
Yes |
2500 |
47 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-425 |
1/2" |
13/16" |
25' |
Yes |
2500 |
49 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MP-430 |
1/2" |
13/16" |
30' |
Yes |
2500 |
51 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-320 |
3/8" |
11/16" |
20' |
No |
3000 |
41 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-325 |
3/8" |
11/16" |
25' |
No |
3000 |
42 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-330 |
3/8" |
11/16" |
30' |
No |
3000 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-335 |
3/8" |
11/16" |
35' |
No |
3000 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-420 |
1/2" |
13/16" |
20' |
No |
2500 |
41 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-425 |
1/2" |
13/16" |
25' |
No |
2500 |
42 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-MPL-430 |
1/2" |
13/16" |
30' |
No |
2500 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Medium Pressure Performance: Designed to handle pressures up to 3,000 PSI, ideal for industrial fluid and air transfer applications.
-
Spring-Driven Retraction: Provides smooth and automatic hose retraction, reducing wear and improving efficiency.
-
Heavy-Duty Construction: Built with durable materials to withstand demanding environments and frequent use.
-
Corrosion-Resistant Finish: Protects against rust and wear, ensuring long-lasting durability.
-
Compact & Space-Saving: Optimized for efficient hose storage while maintaining accessibility.
-
Versatile Applications: Perfect for industrial, automotive, and manufacturing environments requiring medium-pressure hose management.
-
Easy Installation & Maintenance: Designed for quick setup and minimal upkeep, providing a hassle-free user experience.
Q&A
Q: What is the Coxreels P Series “Performance” Medium Pressure Spring Driven Hose Reel - P-MP-320?
A: The Coxreels P-MP-320 is a spring-driven hose reel designed for medium-pressure applications, offering smooth automatic retraction and durable hose management in industrial and commercial settings.
Q: What is the hose capacity of this reel?
A: The P-MP-320 can accommodate up to 20 feet of medium-pressure hose, making it ideal for compact spaces while maintaining efficient fluid delivery.
Q: How does the spring-driven mechanism work?
A: The reel features an automatic spring rewind system that ensures smooth and controlled hose retraction, reducing manual effort and preventing hose tangling.
Q: Is the reel durable?
A: Yes, the P Series is built with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability and reliable performance in demanding environments.
Q: Is this reel easy to install?
A: Yes, the P-MP-320 offers flexible mounting options, including wall, floor, and ceiling installation, allowing for versatile use in various workspaces.
Q: What are typical applications for this reel?
A: This reel is ideal for air, water, oil, and hydraulic fluid transfer applications in industries such as automotive, manufacturing, and maintenance.
Maintenance Tips
-
Regular Cleaning – Wipe down the reel and hose with a damp cloth to remove dust, dirt, and debris. Avoid using abrasive cleaners that could damage the finish.
-
Lubricate Moving Parts – Apply a silicone-based lubricant to the spring mechanism and other moving components for smooth operation and longevity.
-
Inspect Hose and Fittings – Check for any wear, cracks, or leaks in the hose. Ensure all fittings are secure and replace any damaged components.
-
Monitor Pressure Ratings – Ensure the reel is operating within the recommended pressure limits to prevent hose or reel damage.
-
Adjust Spring Tension – If the hose does not retract smoothly, adjust the spring tension according to the manufacturer’s instructions.
-
Secure Mounting Hardware – Periodically check and tighten all bolts, screws, and brackets to maintain a stable and secure setup.
-
Proper Storage – Store the reel in a dry, cool area when not in use to prevent exposure to moisture and harsh conditions that could cause corrosion.
