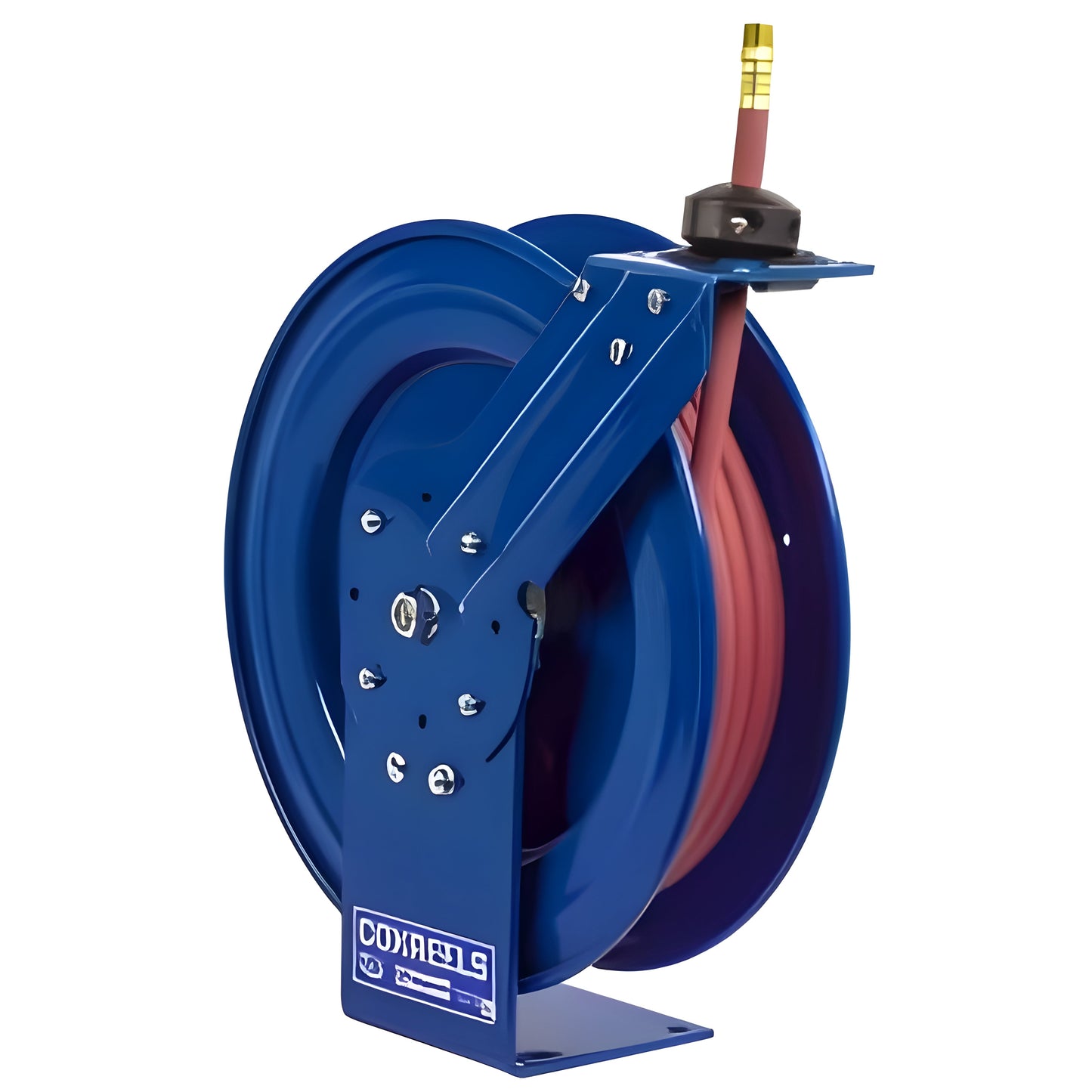

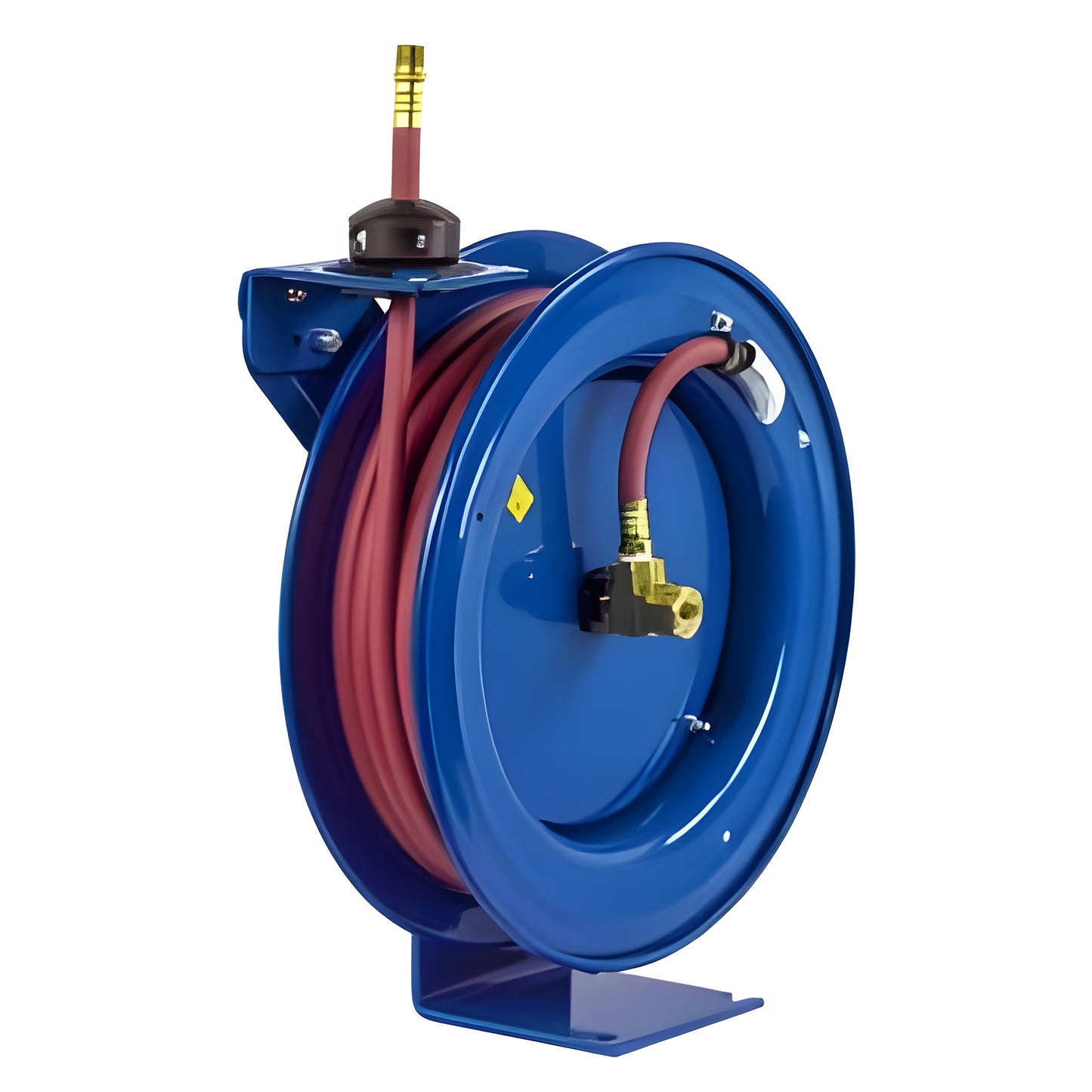

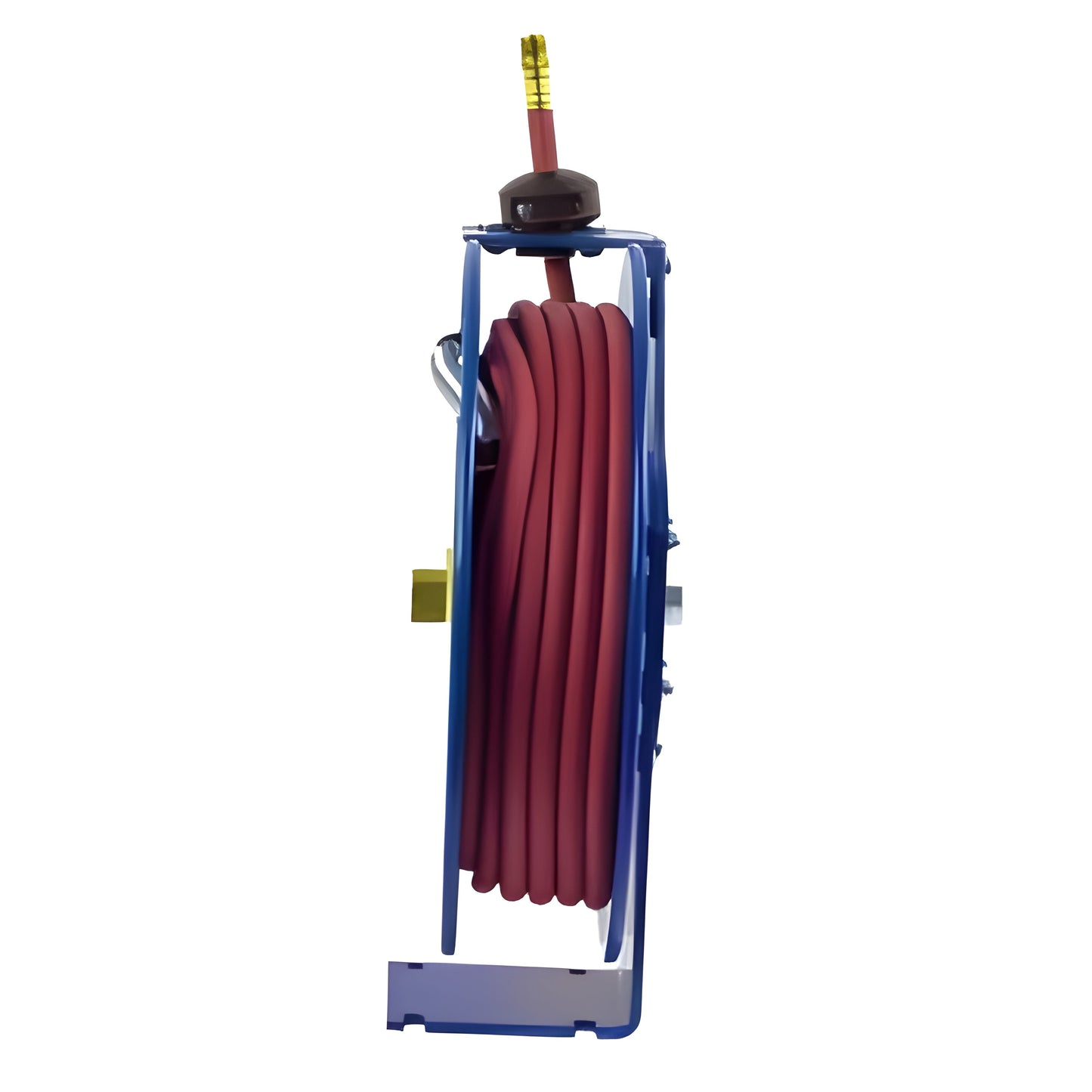

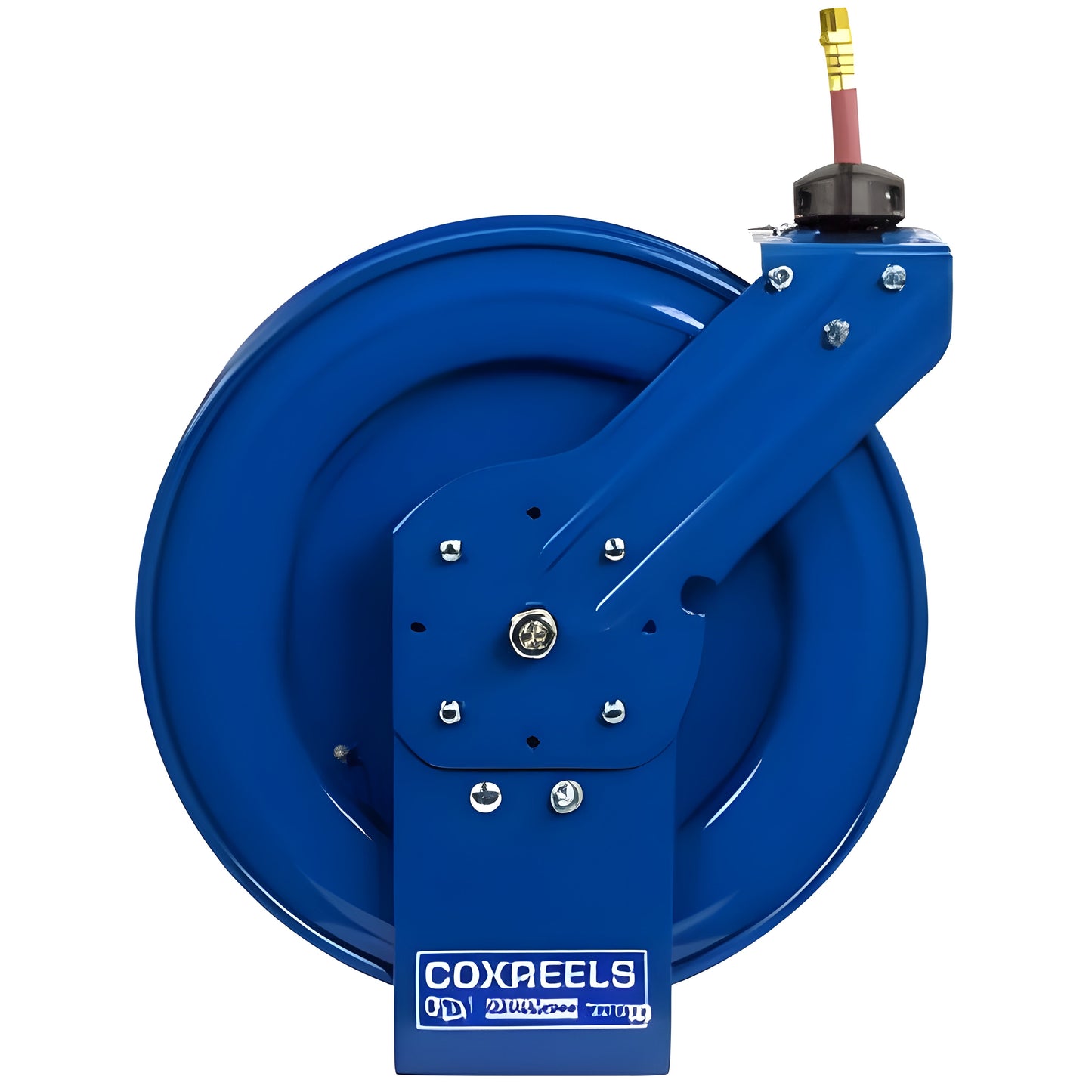

Coxreels P Series “Performance” High-Pressure Spring Driven Hose Reels - P-HP-120
P Series “Performance” High-Pressure Spring Driven Hose Reels
COXREELS P Series “Performance” spring driven hose reels have a long history of dependability and trouble free performance. Their compact space-saving size and heavy duty construction make them highly versatile and virtually indestructible. Time-tested proven components, superior design and craftsmanship have contributed to it’s worldwide reputation as the most trusted hose reel.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| P-HP-120 |
1/4" |
9/16" |
20' |
Yes |
5000 |
46 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-125 |
1/4" |
9/16" |
25' |
Yes |
5000 |
48 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-130 |
1/4" |
9/16" |
30' |
Yes |
5000 |
50 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-135 |
1/4" |
9/16" |
35' |
Yes |
5000 |
51 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-320 |
3/8" |
11/16" |
20' |
Yes |
4000 |
47 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-325 |
3/8" |
11/16" |
25' |
Yes |
4000 |
49 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HP-330 |
3/8" |
11/16" |
30' |
Yes |
4000 |
51 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-120 |
1/4" |
9/16" |
20' |
No |
5000 |
41 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-125 |
1/4" |
9/16" |
25' |
No |
5000 |
42 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-130 |
1/4" |
9/16" |
30' |
No |
5000 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-135 |
1/4" |
9/16" |
35' |
No |
5000 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-320 |
3/8" |
11/16" |
20' |
No |
4000 |
41 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-325 |
3/8" |
11/16" |
25' |
No |
4000 |
42 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| P-HPL-330 |
3/8" |
11/16" |
30' |
No |
4000 |
43 |
7"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
High-Pressure Performance: Designed to handle pressures up to 3,000 PSI, ideal for heavy-duty applications such as hydraulic fluid or high-pressure water and air transfer.
-
Spring-Driven Retraction: Features smooth, automatic hose retraction that enhances operational efficiency and reduces manual handling.
-
Heavy-Duty Construction: Built with durable materials to withstand industrial conditions, ensuring longevity and reliable performance.
-
Corrosion-Resistant Coating: Coated with protective finishes to prevent rust and damage, making it suitable for tough, outdoor environments.
-
Space-Saving Design: Compact and efficient, keeping hoses organized and off the ground to prevent clutter and safety hazards.
-
Versatile Mounting Options: Flexible installation options for wall, ceiling, or floor mounting, optimizing space and accessibility in the workplace.
-
Safety and Convenience: Keeps hoses neatly stored, reducing workplace hazards and extending the lifespan of the hoses.
Q&A
Q: What is the Coxreels P Series “Performance” High-Pressure Spring Driven Hose Reel - P-HP-120?
A: The Coxreels P-HP-120 is a high-pressure, spring-driven hose reel designed for demanding applications. It offers smooth and efficient hose retraction with a durable spring mechanism, ideal for managing high-pressure hoses in industrial and commercial environments.
Q: What is the hose capacity of this reel?
A: The P-HP-120 can accommodate up to 120 feet of high-pressure hose, making it suitable for a variety of heavy-duty fluid transfer tasks.
Q: How does the spring-driven mechanism work?
A: The reel features a spring rewind system that automatically retracts the hose after use, reducing manual effort and keeping the hose neatly stored.
Q: Is the reel durable?
A: Yes, the P Series is constructed with heavy-duty steel and a corrosion-resistant finish, ensuring long-lasting durability and reliable performance in tough industrial settings.
Q: Is this reel easy to install?
A: Yes, the P-HP-120 is designed for flexible installation, offering wall, floor, or ceiling mounting options to fit various workspace needs.
Q: What are typical applications for this reel?
A: This reel is ideal for high-pressure fluid transfer applications in industries such as manufacturing, automotive, agriculture, and oil & gas, where hose management and efficient operation are critical.
Maintenance Tips
-
Model: P-HP-120
-
Hose Capacity: 100 feet of 1/2” high-pressure hose
-
Pressure Rating: Designed for high-pressure applications up to 5000 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for durability in demanding environments
-
Drive Mechanism: Spring-driven automatic rewind for smooth, easy, and fast hose retraction
-
Swivel Inlet: Full-flow swivel for optimal fluid delivery, minimizing friction and wear on the hose
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mounting for versatile installation options
-
Applications: Ideal for use in high-pressure air, water, oil, or fluid transfer applications in industrial, automotive, and commercial settings
-
Temperature Range: Operates effectively in a wide temperature range, suitable for harsh industrial environments
-
Weight: Varies based on specific configurations
