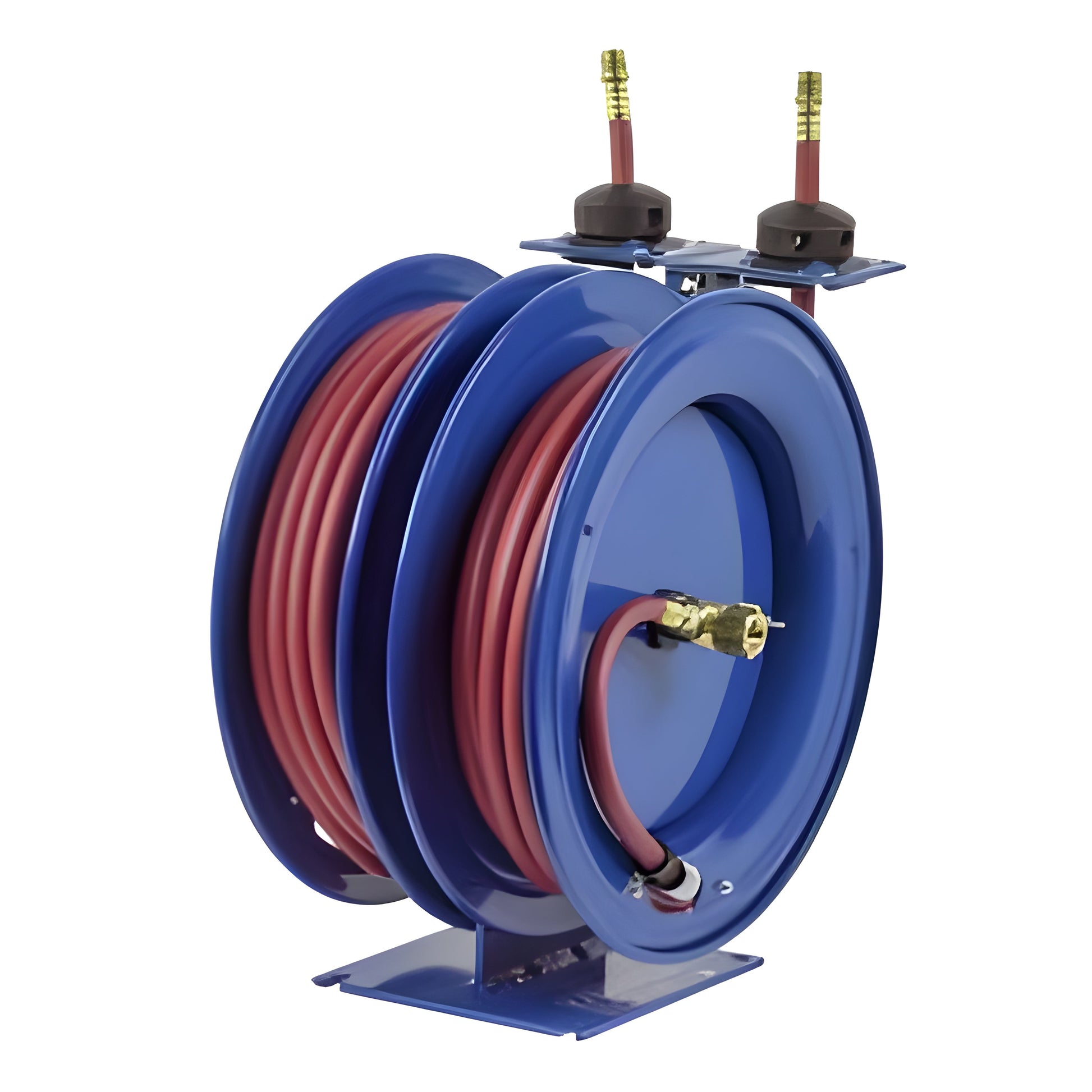

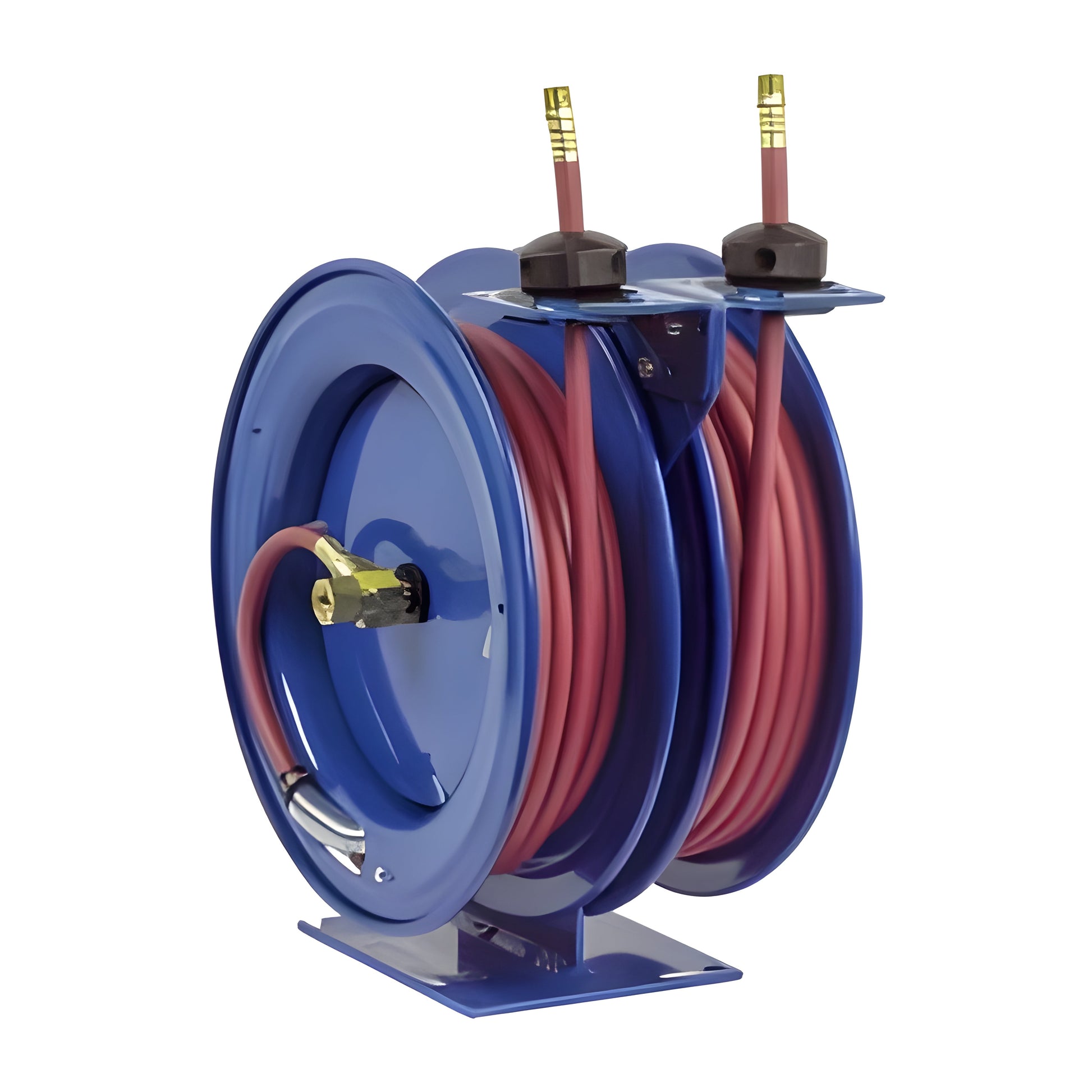

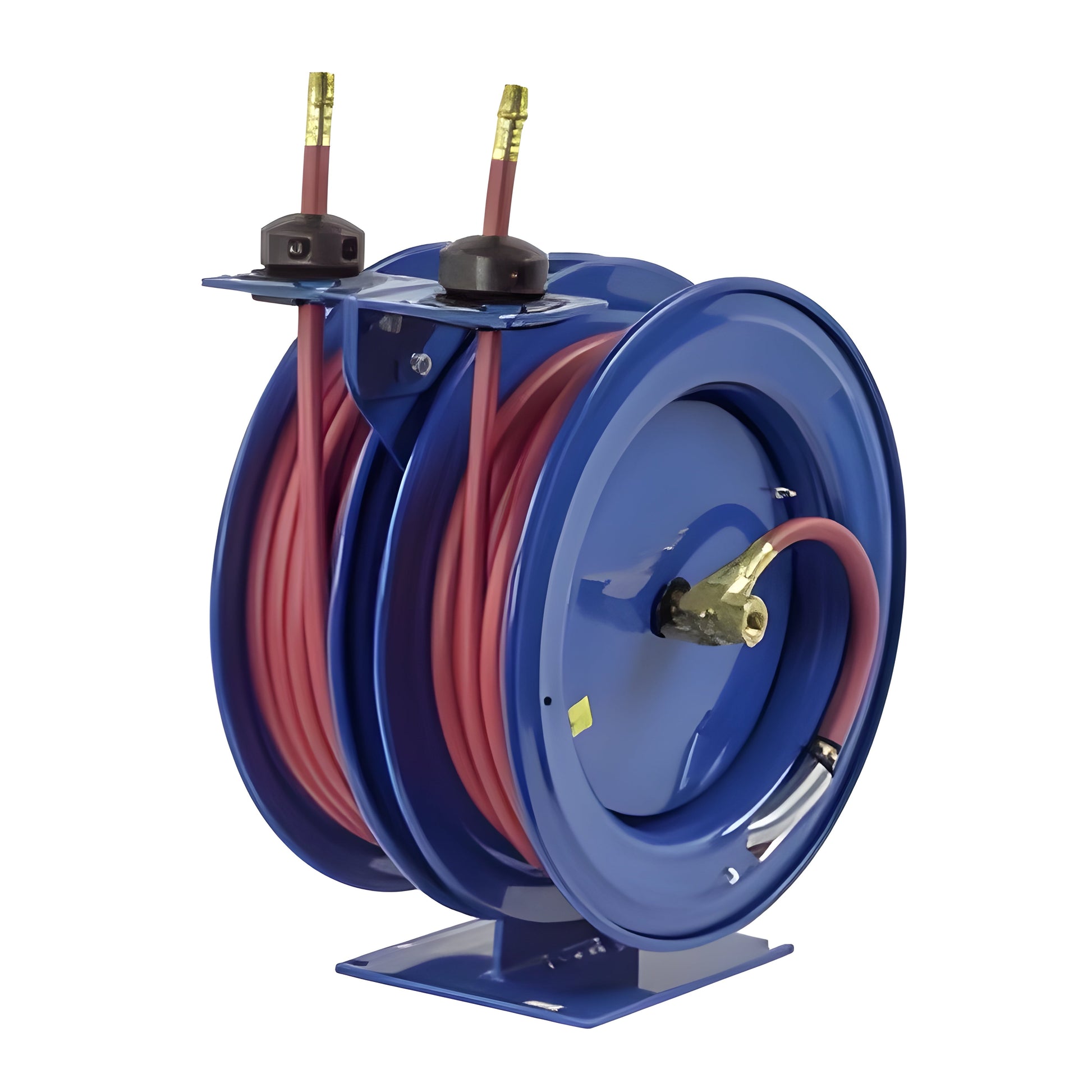

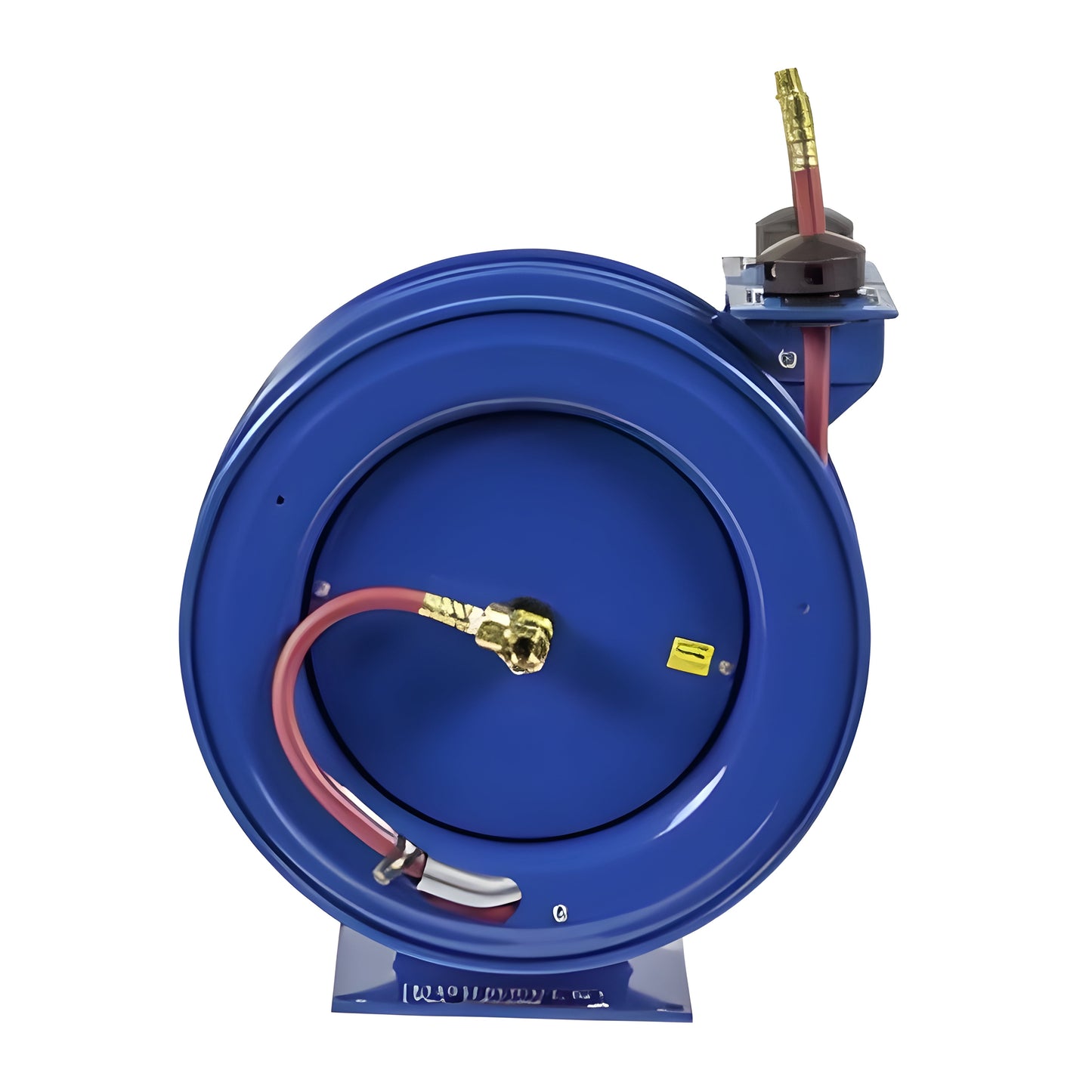

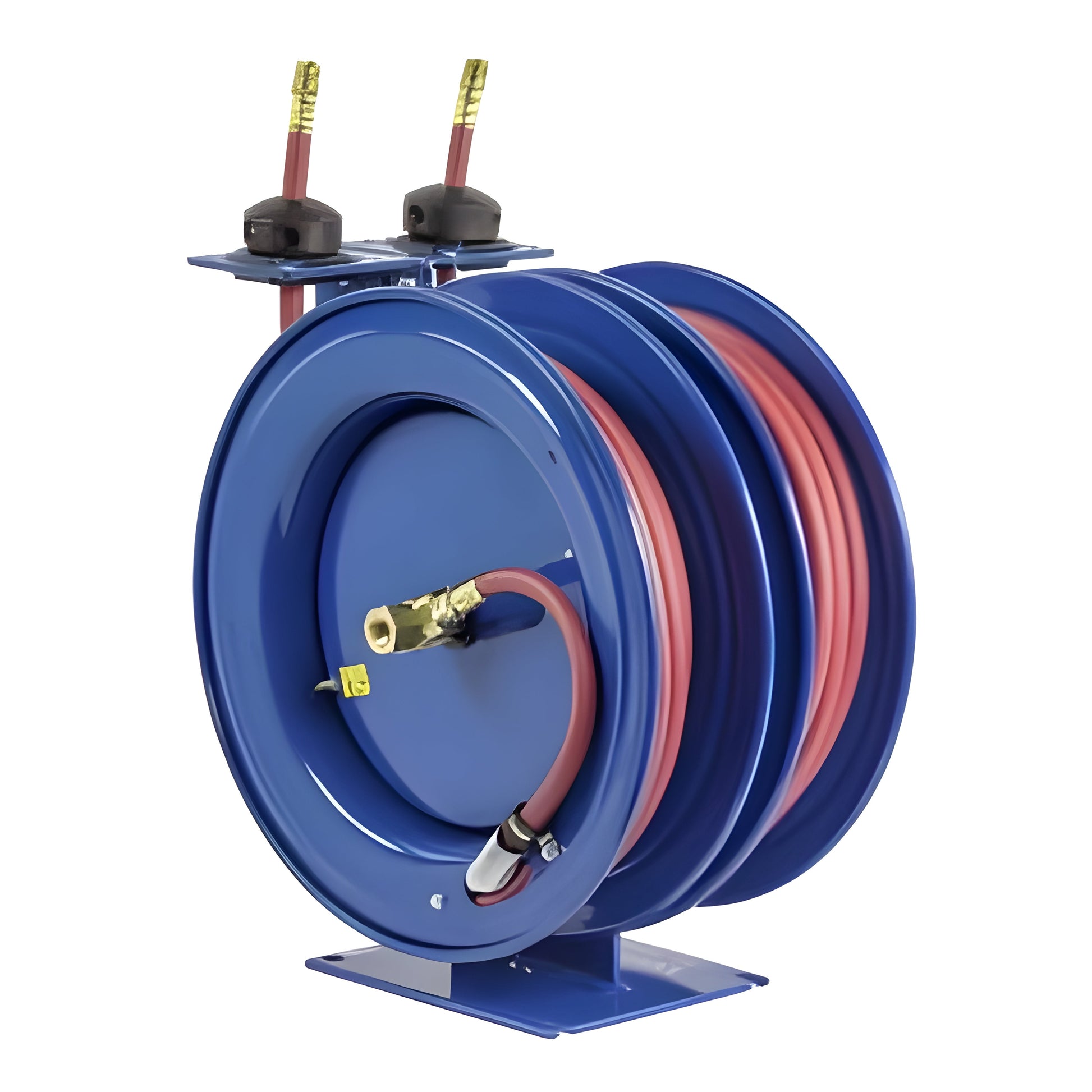

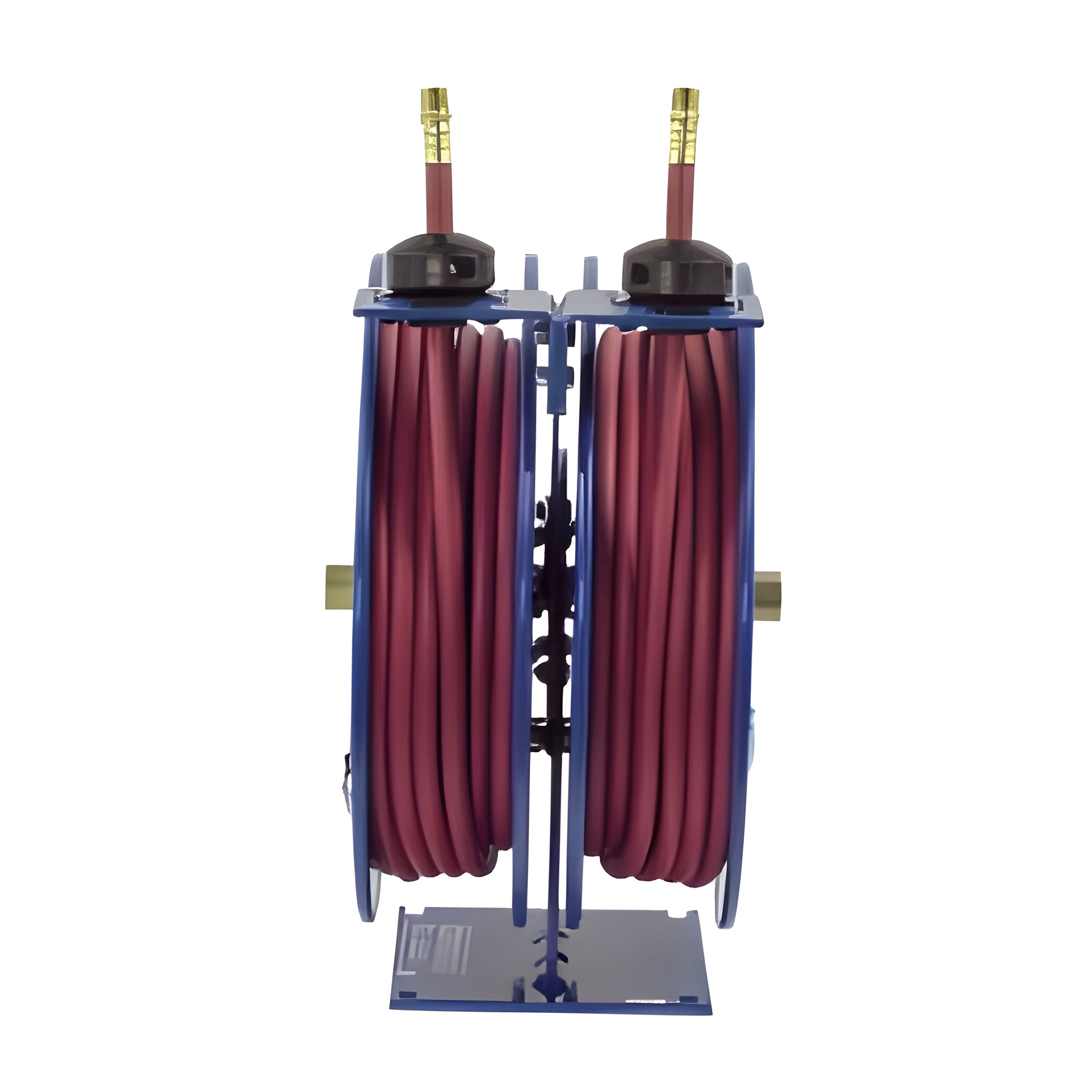

Coxreels C Series "Combination" High Pressure Spring Driven Hose Reels - C-HP-125-125
C Series "Combination" High Pressure Spring Driven Hose Reels
COXREELS C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVELÂ - Two external fluid path with machined zinc plated steel 90Ëfull-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
CARTRIDGE MOTORÂ - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
-
CNC SPUN DISCSÂ - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASEÂ - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
-
MULTI-POSITION GUIDE ARMÂ - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDEÂ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| C-HP-125-125 |
1/4" |
9/16" |
25' |
Yes |
5000 |
78 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HP-135-135 |
1/4" |
9/16" |
35' |
Yes |
5000 |
84 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HP-325-325 |
3/8" |
11/16" |
25' |
Yes |
5000 |
78 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HP-330-330 |
3/8" |
11/16" |
30' |
Yes |
5000 |
82 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HPL-125-125 |
1/4" |
9/16" |
25' |
No |
5000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HPL-135-135 |
1/4" |
9/16" |
35' |
No |
5000 |
68 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HPL-325-325 |
3/8" |
11/16" |
25' |
No |
5000 |
64 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-HPL-330-330 |
3/8" |
11/16" |
30' |
No |
5000 |
66 |
11.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Combination Design: Dual functionality to manage both high-pressure and low-pressure hoses, providing versatility for a range of tasks.
-
Spring-Driven Retraction: Smooth and efficient hose retraction for quick storage and reduced wear.
-
High-Pressure Performance: Handles up to 1,250 PSI, making it ideal for demanding industrial applications.
-
Heavy-Duty Construction: Built with robust materials to withstand tough work environments and frequent use.
-
Corrosion-Resistant Coating: Durable finish ensures long-lasting performance even in harsh conditions.
-
Space-Efficient Design: Compact yet powerful, designed to optimize storage space without sacrificing functionality.
-
Versatile Use: Perfect for applications requiring both high and low-pressure hose management, such as automotive, manufacturing, and construction.
Q&A
Q: What is the Coxreels C Series "Combination" High Pressure Spring Driven Hose Reel - C-HP-125-125?
A: The Coxreels C-HP-125-125 is a combination high-pressure spring-driven hose reel designed to manage two high-pressure hoses simultaneously, offering efficient storage and retraction in demanding environments.
Q: What is the hose capacity of this reel?
A: The C-HP-125-125 can hold up to 125 feet of hose per side, allowing you to store two high-pressure hoses, each up to 125 feet in length.
Q: How does the spring-driven mechanism work?
A: The spring-driven design ensures automatic retraction of both hoses after use, providing smooth, tangle-free storage and reducing the effort needed for winding the hoses manually.
Q: Is the reel durable?
A: Yes, the C Series is built with heavy-duty steel and a corrosion-resistant finish, making it durable and reliable even in harsh, high-pressure industrial environments.
Q: Is this reel easy to install?
A: Yes, the C-HP-125-125 offers flexible mounting options, including wall, floor, or ceiling installation, allowing for versatile and space-efficient hose storage.
Q: What are typical applications for this reel?
A: This reel is ideal for high-pressure fluid transfer in industries such as manufacturing, construction, automotive, and industrial cleaning, where dual hoses are required for operations.
Maintenance Tips
-
Regular Cleaning: Wipe down the reel and hose with a clean, damp cloth to remove dust, dirt, and grime. Avoid using harsh chemicals that could damage the reelâs finish.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the reelâs moving components, especially the spring mechanism, to ensure smooth retraction and operation.
-
Inspect Hose and Fittings: Check the hose for signs of wear, cracking, or leaks. Replace the hose if damaged and inspect all fittings to ensure they are tightly secured.
-
Check Pressure Ratings: Verify that the operating pressure is within the recommended limits to avoid over-stressing the reel and hose.
-
Adjust Spring Tension: If the retraction becomes slow or uneven, adjust the spring tension according to the manufacturerâs instructions to ensure smooth operation.
-
Tighten Fasteners: Periodically inspect and tighten all bolts, screws, and mounting hardware to ensure the reel remains securely in place.
-
Proper Storage: Store the reel in a dry, cool area to avoid exposure to environmental factors that can cause corrosion or damage to the components.
