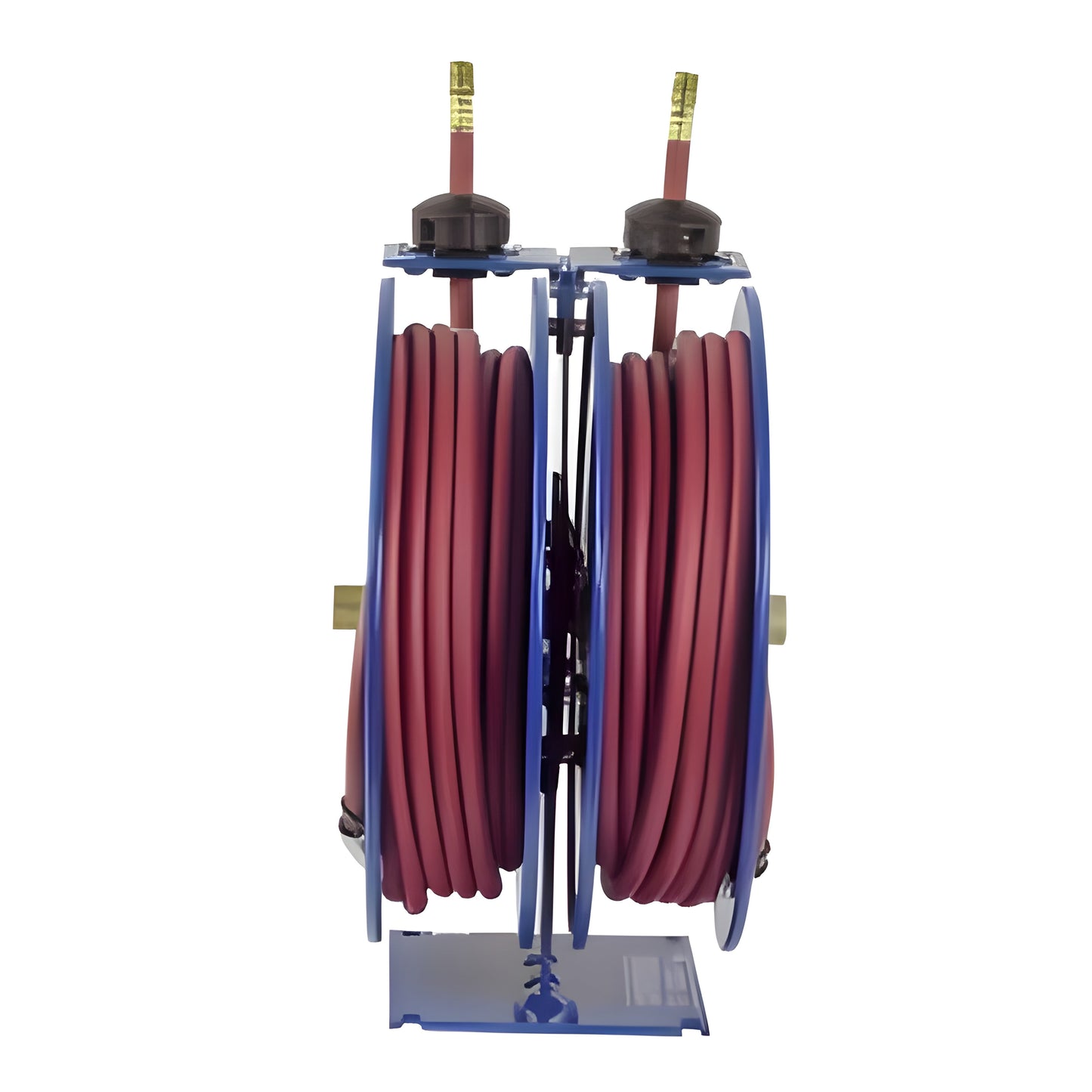

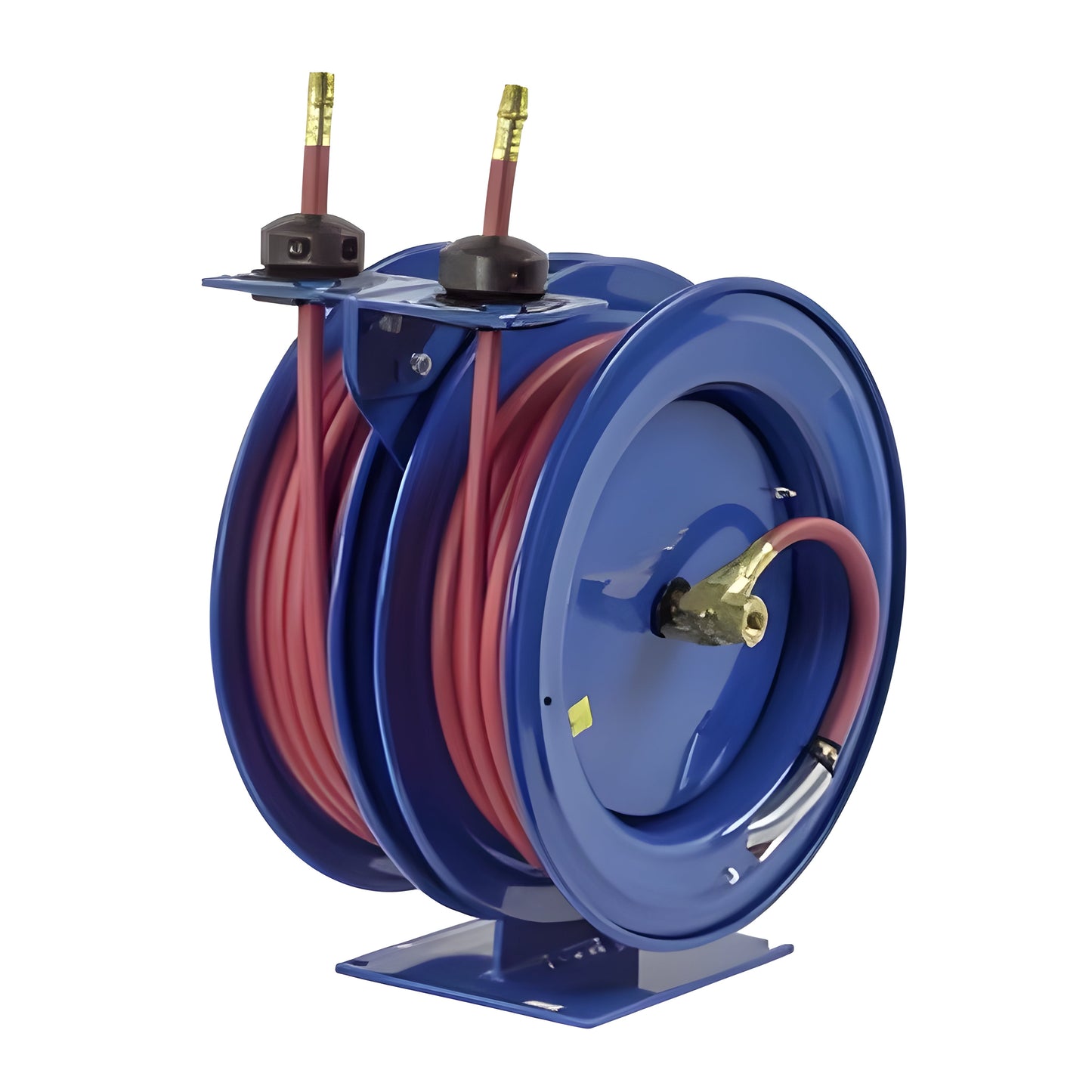

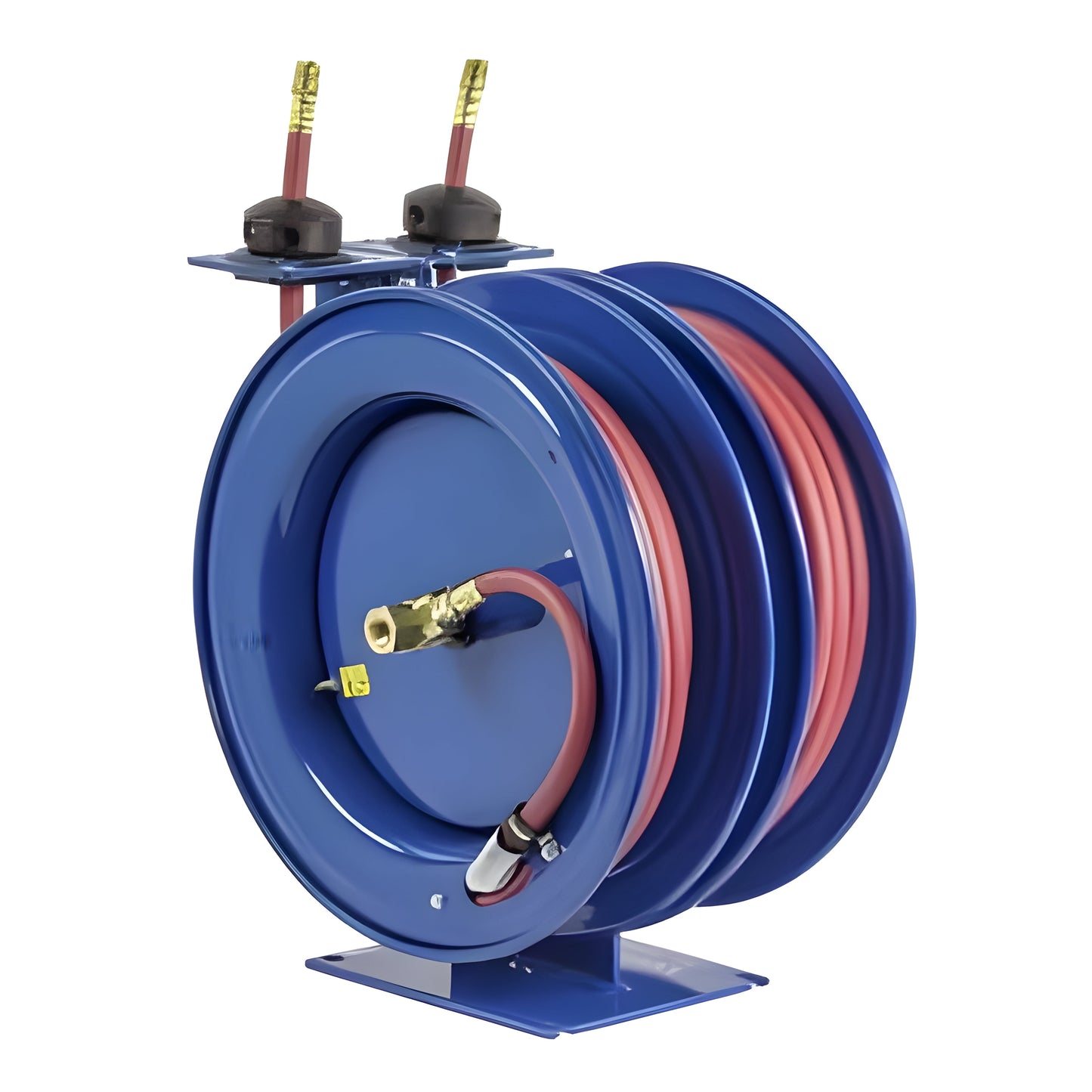

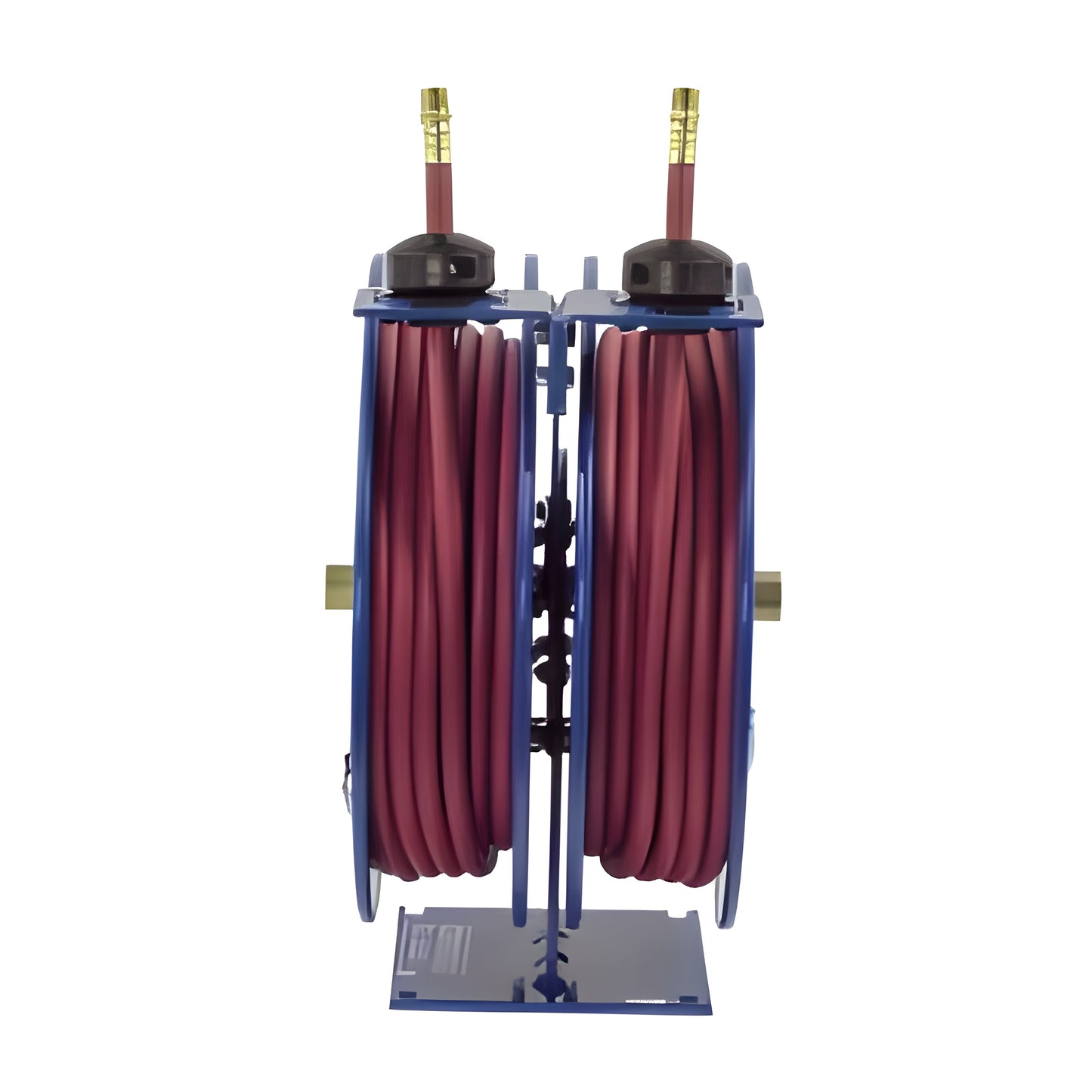

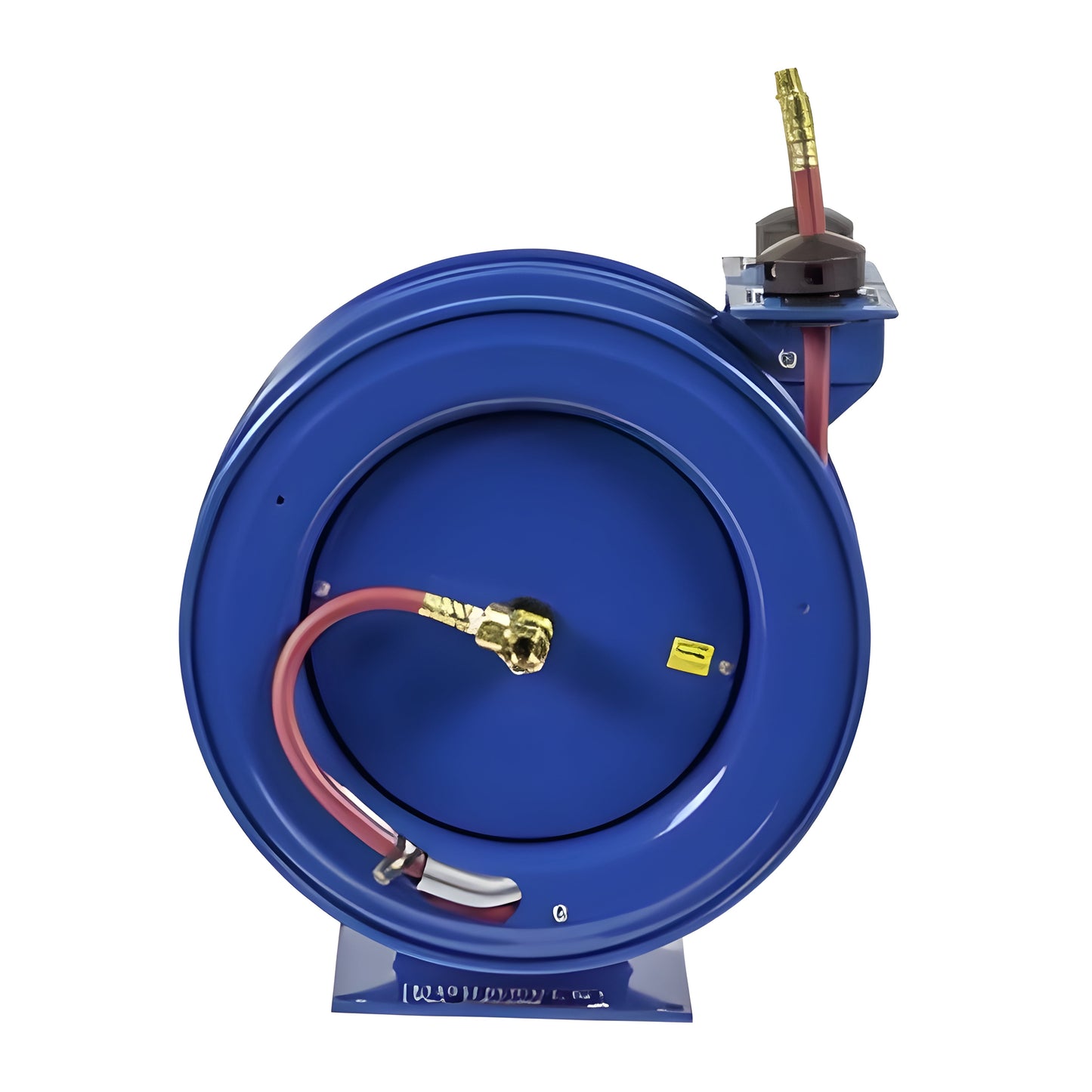

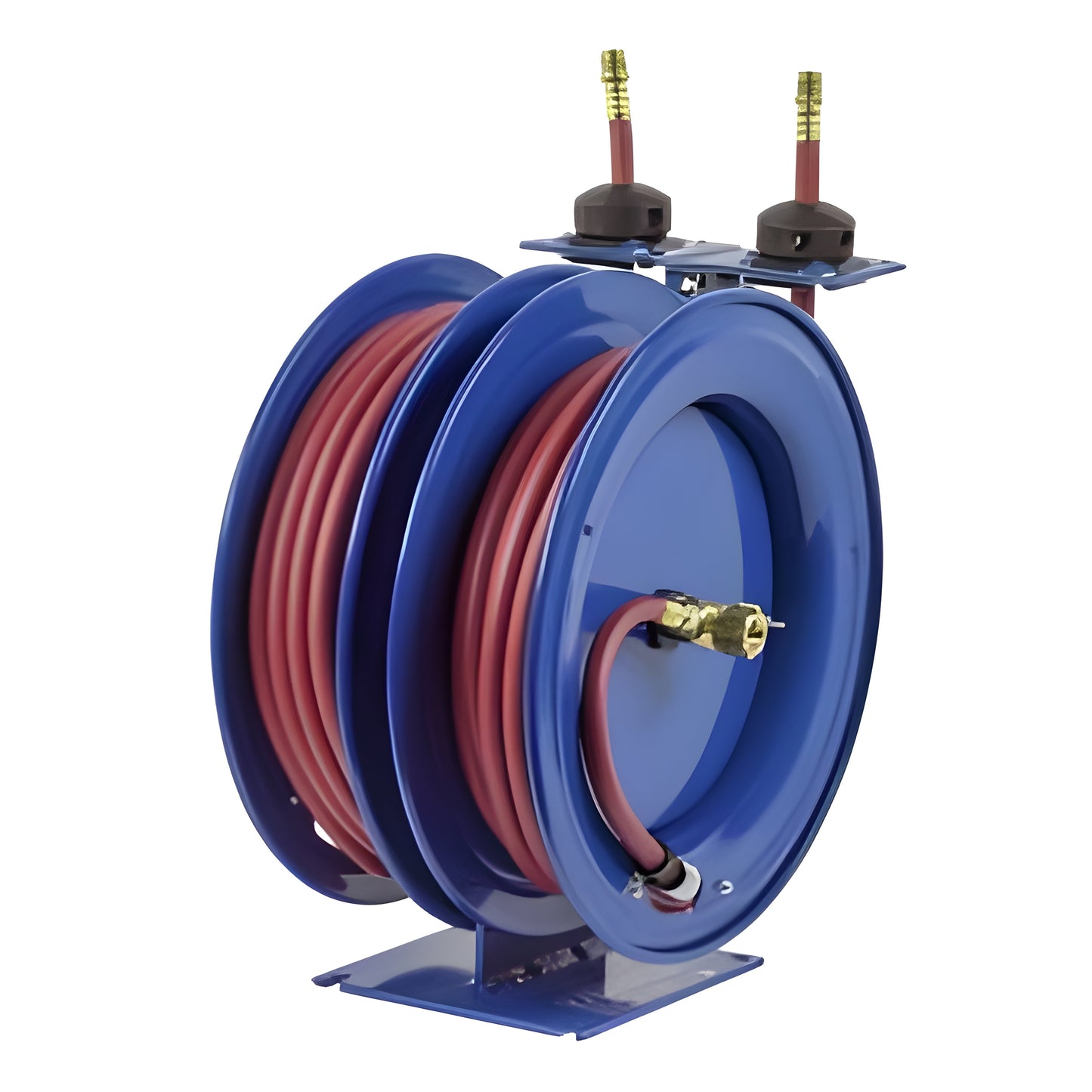

Coxreels C Series "Combination" Low Pressure Spring Driven Hose Reels - C-LP-325-325
C Series "Combination" Low Pressure Spring Driven Hose Reels
COXREELS C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in air hose/electrical cord combinations.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVEL - Two external fluid path with machined zinc plated steel 90˚full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
-
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASE - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for dual hose applications, each reel operates independently.
-
MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| C-LP-125-125 |
1/4" |
1/2" |
25' |
Yes |
300 |
66 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-135-135 |
1/4" |
1/2" |
35' |
Yes |
300 |
67 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-150-150 |
1/4" |
1/2" |
50' |
Yes |
300 |
74 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-325-325 |
3/8" |
5/8" |
25' |
Yes |
300 |
67 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-335-335 |
3/8" |
5/8" |
25' |
Yes |
300 |
69 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-350-350 |
3/8" |
5/8" |
50' |
Yes |
300 |
78 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LP-425-425 |
1/2" |
3/4" |
25' |
Yes |
300 |
70 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-125-125 |
1/4" |
1/2" |
25' |
No |
300 |
60 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-135-135 |
1/4" |
1/2" |
35' |
No |
300 |
60 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-150-150 |
1/4" |
1/2" |
50' |
No |
300 |
64 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-325-325 |
3/8" |
5/8" |
25' |
No |
300 |
60 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-335-335 |
3/8" |
5/8" |
35' |
No |
300 |
60 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-350-350 |
3/8" |
5/8" |
50' |
No |
300 |
64 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-LPL-425-425 |
1/2" |
34/" |
25' |
No |
300 |
60 |
10.5"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Combination Design: Features dual hose capability, allowing for simultaneous management of two low-pressure hoses in one compact reel.
-
Low-Pressure Performance: Ideal for air and water applications, making it a reliable choice for industrial, automotive, and maintenance environments.
-
Spring-Driven Retraction: Smooth, automatic hose retraction reduces manual effort and keeps hoses neatly stored, enhancing efficiency.
-
Heavy-Duty Steel Construction: Built to withstand demanding work environments, ensuring long-term durability and performance.
-
Corrosion-Resistant Finish: Protective coating prevents rust and wear, making it suitable for both indoor and outdoor use.
-
Compact & Space-Saving: Keeps hoses organized and easily accessible, reducing clutter and improving workspace safety.
-
Versatile Mounting Options: Can be installed on walls, ceilings, or workbenches to adapt to different workspaces.
Q&A
Q: What is the Coxreels C Series "Combination" Low Pressure Spring Driven Hose Reel - C-LP-325-325?
A: The Coxreels C-LP-325-325 is a low-pressure, spring-driven hose reel from the C Series, designed for "combination" applications that require the management of two separate hoses. It features an automatic spring rewind system for efficient, hassle-free hose retraction.
Q: What is the hose capacity of this reel?
A: This reel can hold up to 325 feet of low-pressure hose on each of its two reels, providing ample storage for dual hose management in various applications.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring-driven rewind system that automatically retracts both hoses after use, reducing manual effort and ensuring tidy and organized storage.
Q: Is the reel durable?
A: Yes, the C-LP-325-325 is built with robust materials and a corrosion-resistant finish, designed to perform reliably in harsh environments, including outdoor and industrial settings.
Q: Is this reel easy to install?
A: Yes, the reel can be mounted on walls, ceilings, or floors, offering flexibility for different workspaces and installation preferences.
Q: What are typical applications for this reel?
A: This reel is ideal for environments where dual low-pressure hoses need to be managed, such as in manufacturing, service trucks, agriculture, and industrial maintenance, where simultaneous fluid or air delivery is required.
Maintenance Tips
-
Model: C-LP-325-325V
-
Hose Capacity: Designed to hold two hoses, each with up to 100 feet of 3/8” or 1/2” low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for enhanced durability and long service life
-
Drive Mechanism: Spring-driven automatic rewind for smooth and efficient hose retraction, ideal for multiple hoses
-
Swivel Inlet: Dual full-flow swivels allow for continuous fluid or air delivery to both hoses simultaneously with minimal wear
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mounting for versatile installation and easy space management
-
Applications: Perfect for dual hose systems, ideal for low-pressure fluid or air transfer in industries such as automotive, industrial maintenance, and service vehicles
-
Temperature Range: Operates effectively in various environmental conditions, suitable for both indoor and outdoor use
-
Weight: Varies based on hose length and configuration
