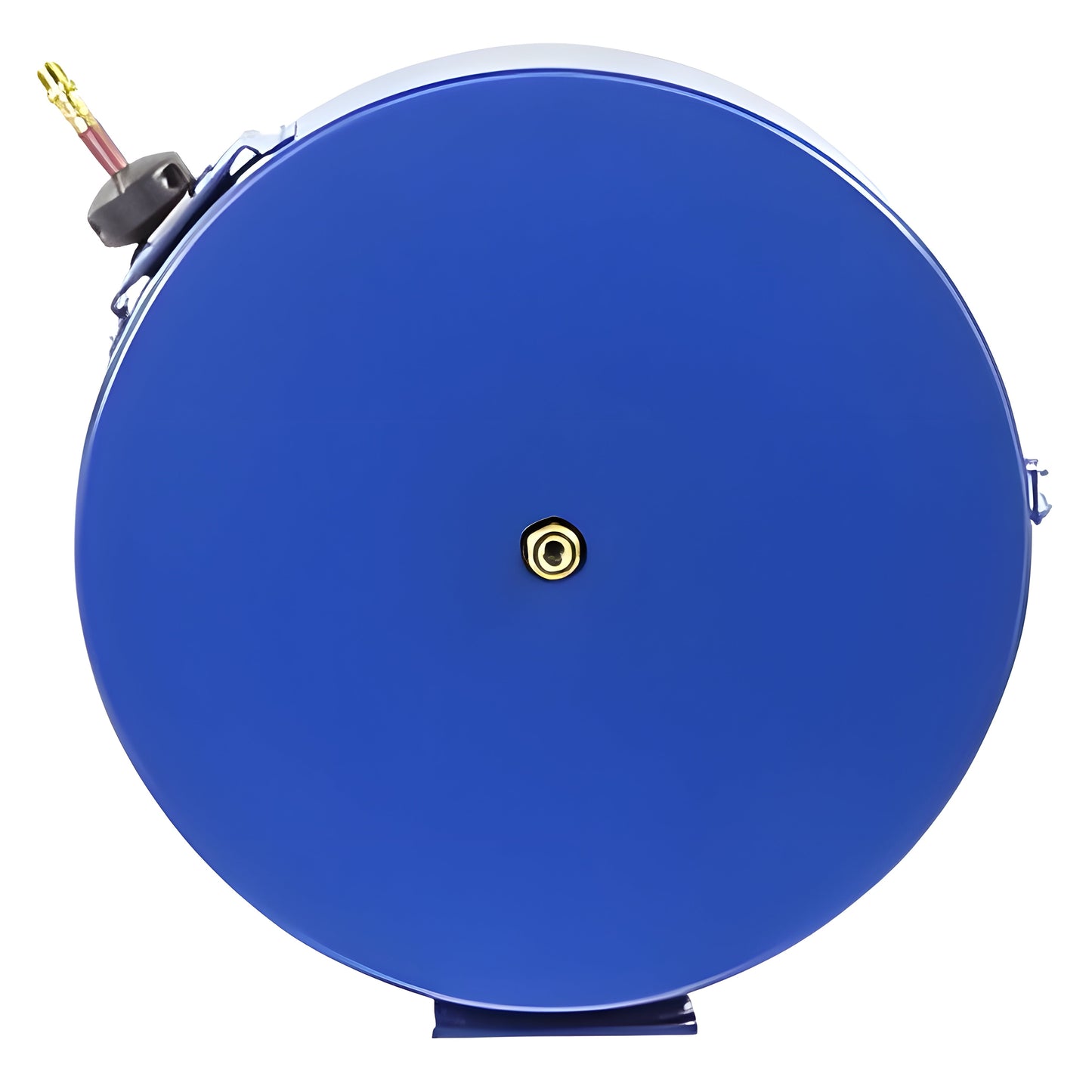

Coxreels EN Series "Enclosed" High-Pressure Spring Driven Hose Reels - ENH-N-125
EN Series "Enclosed" High-Pressure Spring Driven Hose Reels

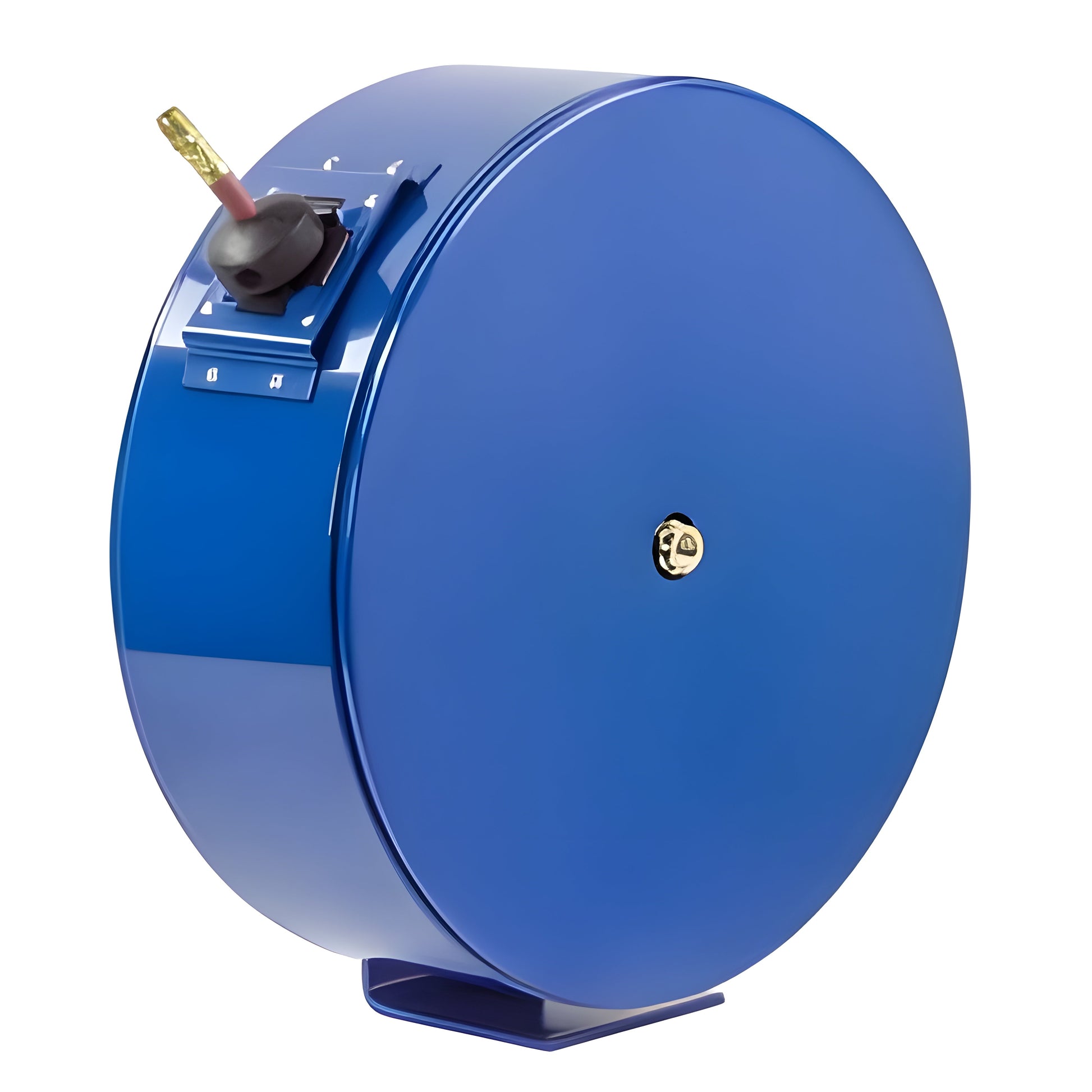

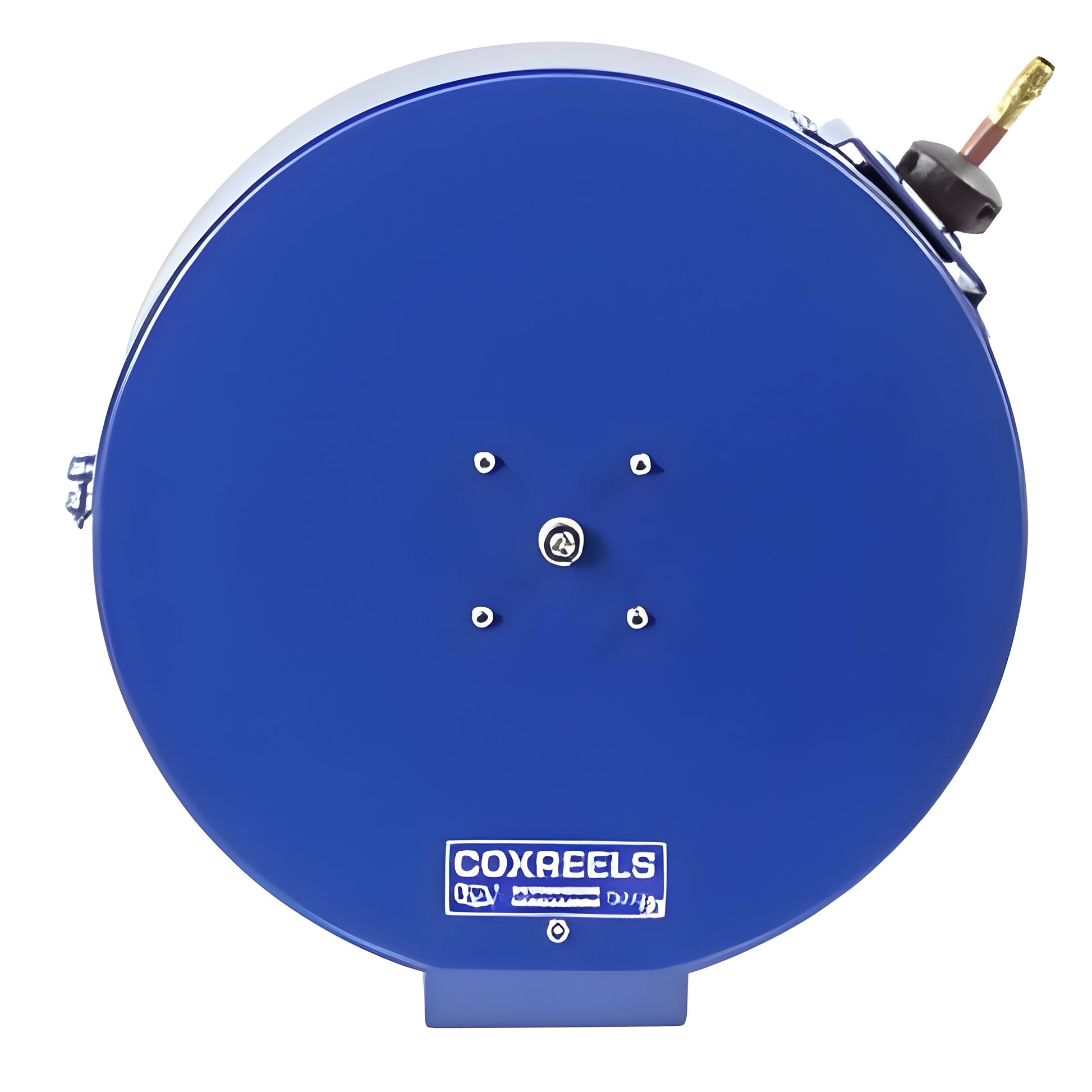

COXREELS EN Series "Enclosed" spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hub™dual axle support system.

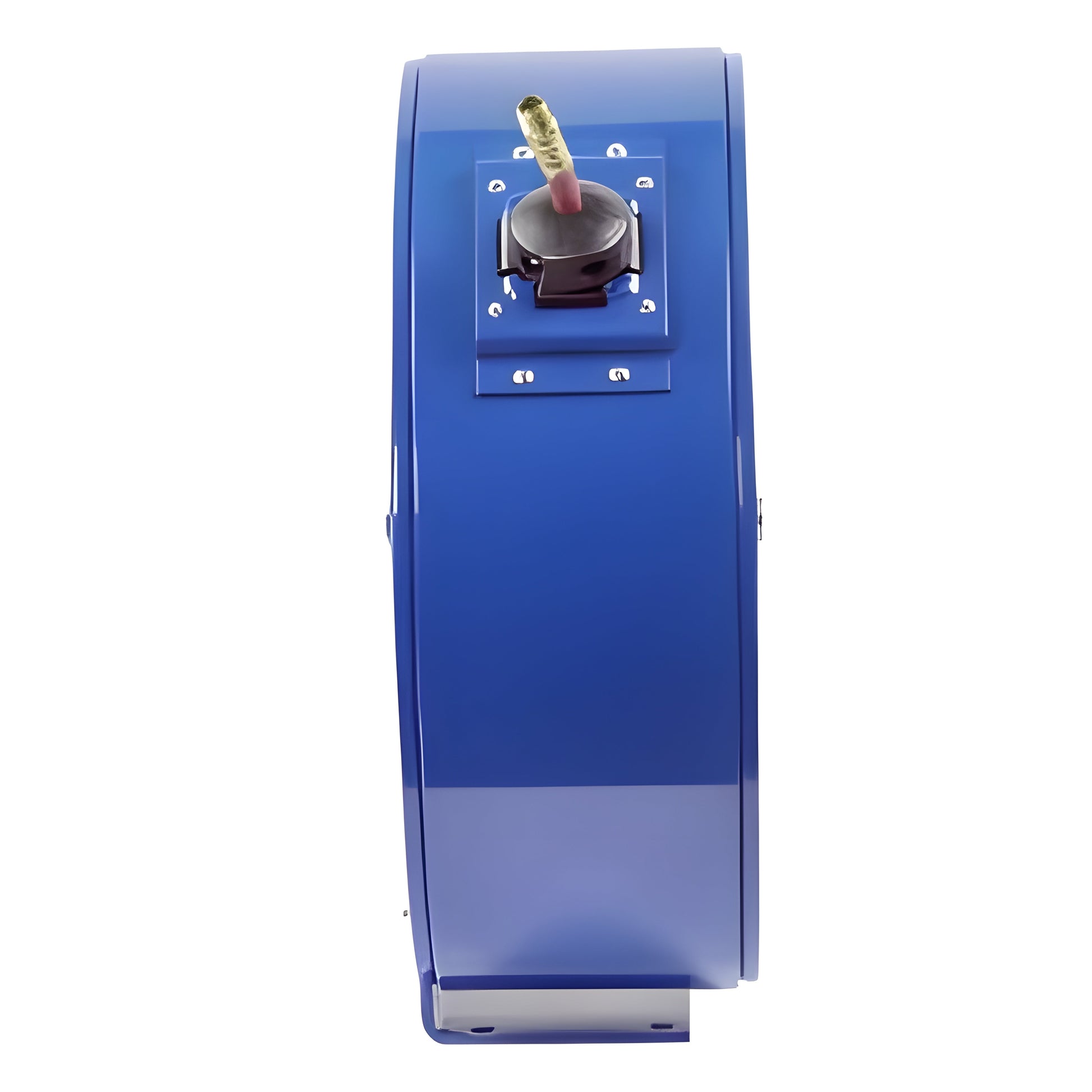

- ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| ENH-N-125 |
1/4" |
9/16" |
25' |
Yes |
5000 |
60 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-135 |
1/4" |
9/16" |
35' |
Yes |
5000 |
63 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-150 |
1/4" |
9/16" |
50' |
Yes |
5000 |
79 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-160 |
1/4" |
9/16" |
60' |
Yes |
5000 |
85 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-325 |
3/8" |
11/16" |
25' |
Yes |
4000 |
61 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-335 |
3/8" |
11/16" |
35' |
Yes |
4000 |
76 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENH-N-350 |
3/8" |
11/16" |
50' |
Yes |
4000 |
80 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-125 |
1/4" |
9/16" |
25' |
No |
5000 |
54 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-135 |
1/4" |
9/16" |
35' |
No |
5000 |
55 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-150 |
1/4" |
9/16" |
50' |
No |
5000 |
68 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-160 |
1/4" |
9/16" |
60' |
No |
5000 |
71 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-325 |
3/8" |
11/16" |
25' |
No |
4000 |
54 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-335 |
3/8" |
11/16" |
35' |
No |
4000 |
67 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENHL-N-350 |
3/8" |
11/16" |
50' |
No |
4000 |
68 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Enclosed Design: Protects the hose from external damage, dirt, and debris, extending its lifespan.
-
High-Pressure Capability: Handles pressures up to 5,000 PSI, ideal for demanding industrial and hydraulic applications.
-
Spring-Driven Retraction: Ensures smooth, controlled retraction for easy hose management and reduced wear.
-
Heavy-Duty Steel Construction: Built to endure tough environments and heavy use.
-
Corrosion-Resistant Finish: Provides long-lasting protection against rust, chemicals, and harsh conditions.
-
Compact & Space-Saving: Enclosed structure optimizes storage and enhances workplace safety.
-
Versatile Applications: Perfect for industrial, construction, and hydraulic systems requiring high-pressure hose management.
Q&A
Q: What is the Coxreels EN Series "Enclosed" High-Pressure Spring Driven Hose Reel - ENH-N-125?
A: The Coxreels ENH-N-125 is a high-pressure, spring-driven hose reel with a fully enclosed design, offering enhanced protection for hoses in demanding environments.
Q: What is the hose capacity of this reel?
A: The ENH-N-125 can accommodate up to 25 feet of high-pressure hose, making it suitable for controlled fluid transfer in industrial applications.
Q: How does the spring-driven mechanism work?
A: The reel features an automatic spring rewind system that smoothly retracts the hose, reducing manual effort while keeping the workspace safe and organized.
Q: What are the benefits of the enclosed design?
A: The enclosed housing protects the hose from dirt, debris, and external damage, extending its lifespan and ensuring reliable operation in harsh conditions.
Q: Is the reel durable?
A: Yes, the EN Series is constructed with heavy-duty steel and a corrosion-resistant powder-coated finish, ensuring long-lasting performance.
Q: Is this reel easy to install?
A: Yes, the ENH-N-125 offers multiple mounting options, including wall, floor, and ceiling installation, making it adaptable to various workspaces.
Q: What are typical applications for this reel?
A: This reel is ideal for high-pressure fluid transfer in industries such as automotive, manufacturing, construction, and maintenance operations.
Maintenance Tips
-
Regular Cleaning – Wipe down the reel’s enclosure and hose with a damp cloth to remove dust, dirt, and debris. Avoid using harsh chemicals that could damage the finish.
-
Lubricate Moving Parts – Apply a silicone-based lubricant to the spring mechanism and pivot points to ensure smooth retraction and longevity.
-
Inspect Hose and Fittings – Check for wear, cracks, or leaks in the hose. Ensure all fittings are secure and replace any damaged components to maintain high-pressure performance.
-
Monitor Pressure Levels – Verify that the system is operating within the recommended pressure range to prevent damage to the hose or reel.
-
Adjust Spring Tension – If the hose retraction is sluggish or uneven, adjust the spring tension according to the manufacturer’s instructions.
-
Secure Mounting Hardware – Periodically check and tighten all bolts, screws, and brackets to keep the reel stable and securely mounted.
-
Proper Storage – Store the reel in a dry, protected location when not in use to prevent corrosion and weather-related damage.
