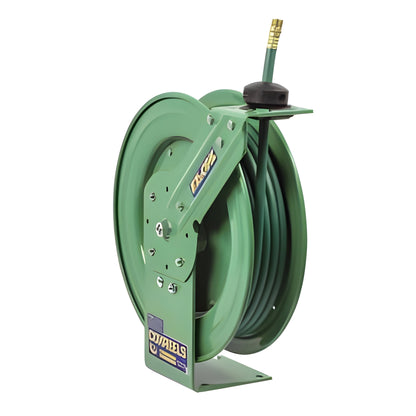

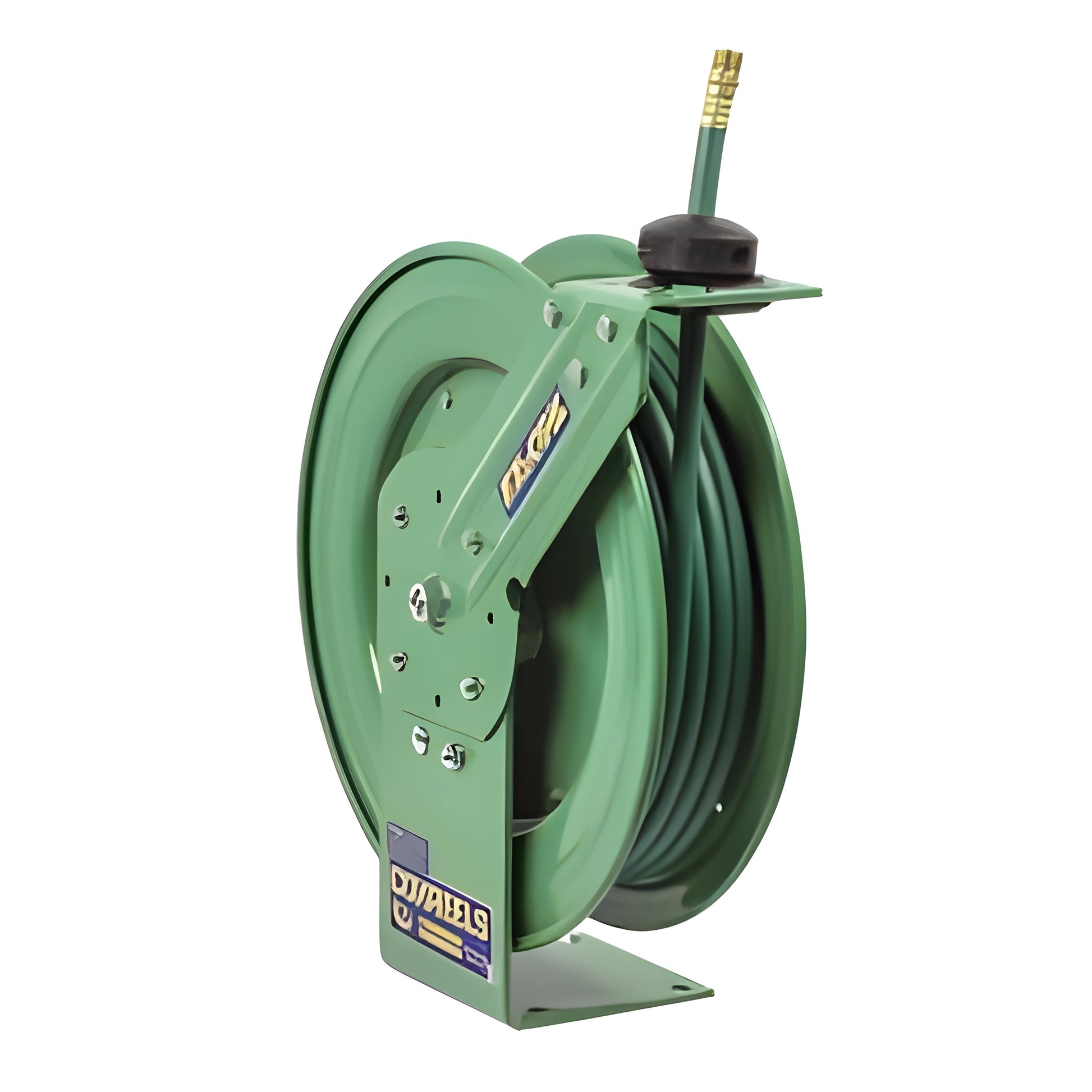

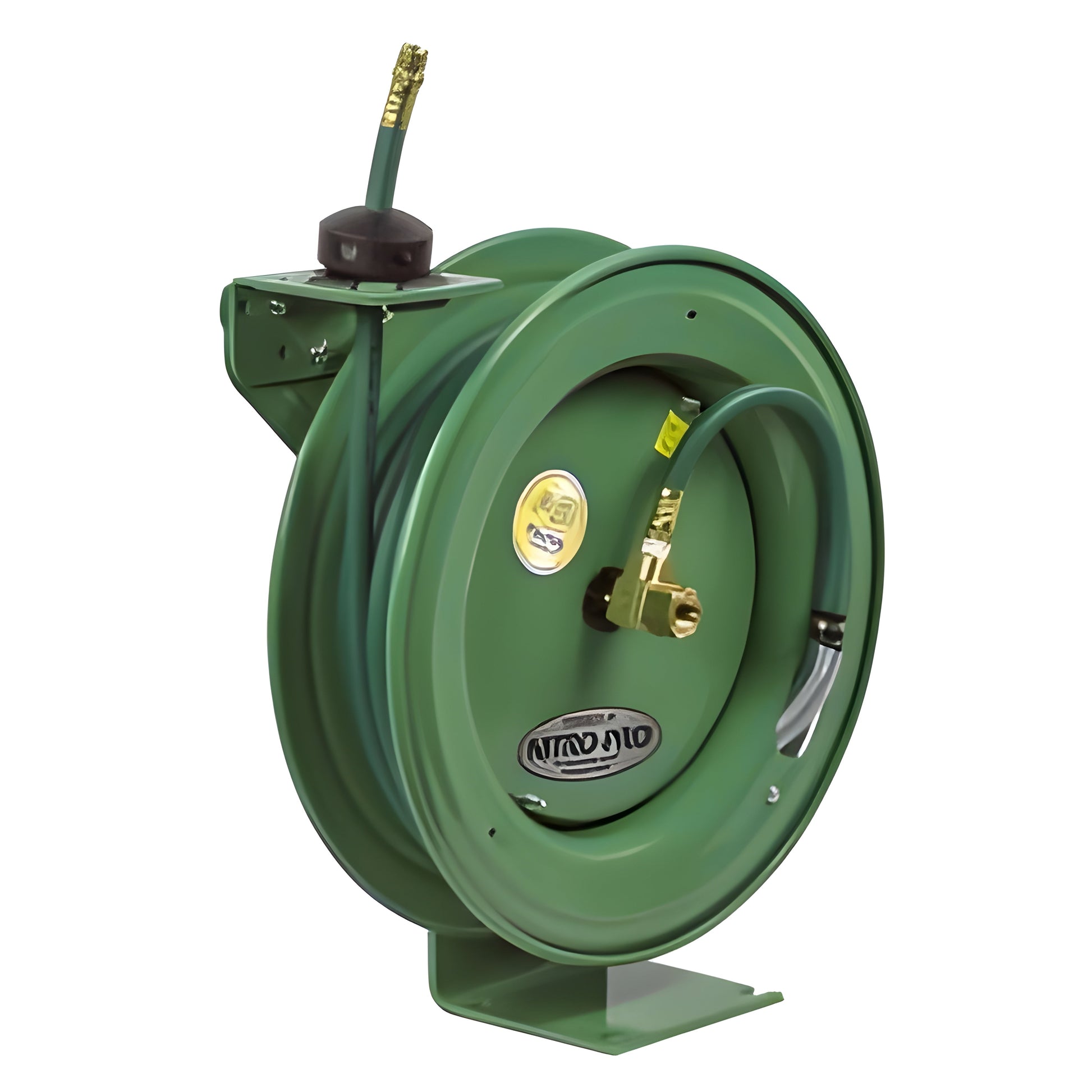

Coxreels EZ-Nitro-Pro Series Low Pressure Spring Driven Hose Reels - EZ-P-NP-350
EZ-Nitro-Pro Series Low Pressure Spring Driven Hose Reels
COXREELS EZ-Nitro-Pro Series spring driven hose reels are the only nitrogen hose reels specifically engineered, tested and approved for use with nitrogen tire inflation systems. These professional-grade specialty reels feature compact space-saving size and heavy duty construction for flexible installation and long-lasting performance. The EZ-Coil® model features Coxreels’ patented rewind safety system that retracts up to 80% slower than conventional spring driven reels. This reel is specifically designed to reduce workplace accidents and increase operator safety.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
- SWIVEL - Nitrogen quality seals in the machined solid from brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- EZ-COIL® EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile aluminium guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting special "Nitrogen green" proprietary CPC™ powder coat finish, adjustable solid rubber hose stop, green nitrogen hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| EZ-P-NP-350 |
3/8" |
5/8" |
50' |
Yes |
300 |
43 |
6.75"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EZ-P-NPL-350 |
3/8" |
5/8" |
50' |
No |
300 |
36 |
6.75"(W) 18.63"(H) 17.13"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Nitro-Pro Technology: Specifically designed for high-performance and extended durability, perfect for tough, low-pressure applications.
-
Low-Pressure Capability: Ideal for air, water, and light-duty fluid transfer, making it versatile across industries such as automotive, agriculture, and construction.
-
Spring-Driven Retraction: Effortless automatic hose retraction, saving time and minimizing manual effort.
-
Heavy-Duty Construction: Built to last with rugged materials, ensuring reliability in demanding environments.
-
Corrosion-Resistant Finish: Resists rust and wear, making it suitable for both indoor and outdoor use.
-
Space-Saving Design: Compact and efficient, keeping hoses neatly organized and accessible while reducing workspace clutter.
Q&A
Q: What is the Coxreels EZ-Nitro-Pro® Series Low Pressure Spring Driven Hose Reel - EZ-P-NP-350?
A: The EZ-P-NP-350 is a low-pressure, spring-driven hose reel designed for use in demanding environments. It features the Nitro-Pro® series construction for enhanced durability and corrosion resistance.
Q: What is the hose capacity of this reel?
A: The reel holds up to 350 feet of low-pressure hose, offering ample storage for various fluid or air transfer tasks.
Q: How does the spring-driven mechanism work?
A: The reel features a spring-driven rewind system that automatically retracts the hose, keeping your workspace neat and saving time on manual hose management.
Q: What makes the Nitro-Pro® design stand out?
A: The Nitro-Pro® construction enhances the reel’s resistance to corrosion and wear, making it ideal for use in tough, industrial environments.
Q: How is this reel mounted?
A: The reel is designed for versatile installation on walls, ceilings, or service vehicles, providing flexibility for different workspaces.
Q: What are typical applications for this reel?
A: Ideal for low-pressure fluid or air transfer in industries such as agriculture, automotive, and general maintenance, where hose retraction and protection are essential.
Maintenance Tips
-
Model: EZ-P-NP-350
-
Hose Capacity: Holds up to 100 feet of 3/8” or 1/2” low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for long-lasting durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth, effortless hose retraction
-
Swivel Inlet: Full-flow brass swivel ensures unrestricted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth, consistent hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mount for versatile installation options
-
Applications: Ideal for low-pressure fluid and air transfer in workshops, service trucks, and industrial environments
-
Temperature Range: Operates efficiently in a wide range of temperatures
-
Weight: Varies based on hose configuration and reel setup
