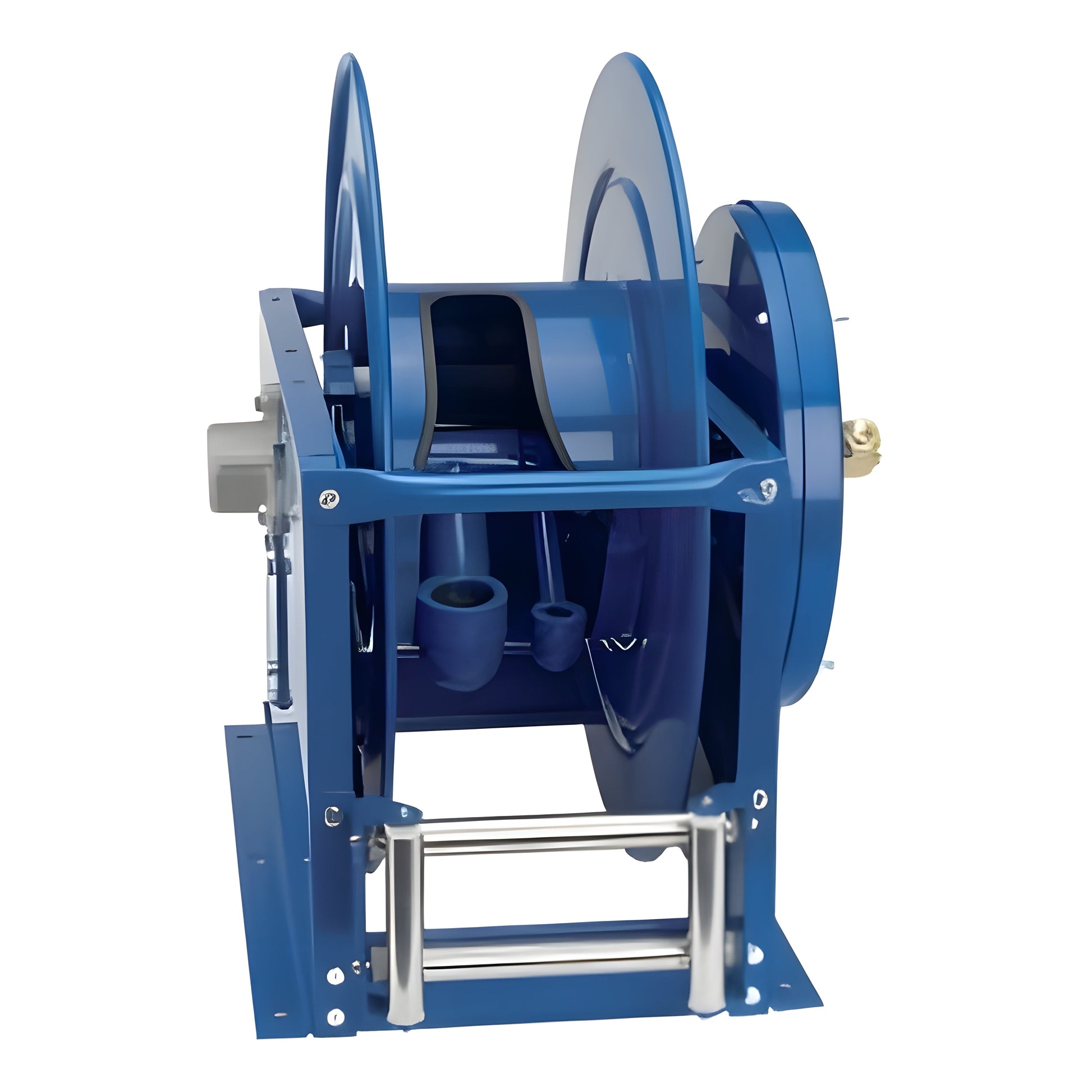

Coxreels V Series Spring Driven Vacuum Hose Reels - V-SLPL-825
V Series Spring Driven Vacuum Hose Reels
COXREELS V Series spring driven vacuum hose reels are available in both vacuum only and vacuum/pneumatic combinations. Both are designed to extract unwanted fumes, particles and by-products from your work area. The vacuum/pneumatic models have dual plumbing for vacuum extraction while simultaneously powering pneumatic tools such as grinders and sanders in an enclosed efficient system.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty.
- Made in the U.S.A. - Sold & Supported Worldwide.
Features
-
CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
-
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
BOX STYLE FRAME DESIGN - Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
-
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
-
STEEL ROLLERS - Heavy duty 1" stainless steel pinch-proof rollers.
-
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet, and top frame cross-brace.
Specifications
| MODEL |
I.D |
LENGTH |
HOSE |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| V-SLPL-825 |
1 1/2" |
25' |
No |
102 |
17.5"(W) 24.5"(H) 26.38"(L) |
14"(M) 22"(N) |
15.38"(X) 25"(Y) |
| VA-DLPL-825 |
1 1/2" |
25' |
No |
107 |
20.13"(W) 24.5"(H) 26.38"(L) |
14"(M) 22"(N) |
15.38"(X) 25"(Y) |
| 16932 |
28" disc size |
✔ |
|
|
|
|
|
What Our Experts Think
-
Heavy-Duty Performance: Designed for high-temperature exhaust and ventilation applications.
-
Spring-Driven Retraction: Ensures smooth, controlled retraction for hassle-free operation.
-
Durable Steel Construction: Built to withstand demanding industrial environments.
-
Compact & Efficient Design: Saves space while providing maximum functionality.
-
Corrosion-Resistant Finish: Protects against wear and harsh conditions for long-lasting use.
-
Easy Installation & Maintenance: User-friendly setup with minimal upkeep required.
-
Versatile Applications: Ideal for automotive, welding, and industrial exhaust extraction
Q&A
Q: What is the Coxreels V Series Spring-Driven Vacuum Hose Reel - V-SLPL-825?
A: The Coxreels V-SLPL-825 is a heavy-duty, spring-driven hose reel designed specifically for vacuum hoses, offering smooth retraction and reliable performance in vacuum systems for industrial and commercial applications.
Q: What type of hoses does this reel support?
A: The V-SLPL-825 is designed to accommodate vacuum hoses up to 25 feet in length and up to 1 inch in diameter, making it ideal for efficient hose management in vacuum environments.
Q: How does the spring-driven mechanism work?
A: The spring-driven mechanism automatically retracts the hose after use, ensuring quick, tangle-free storage and keeping your workspace organized.
Q: Is the reel durable?
A: Yes, it is built with high-quality steel and a corrosion-resistant finish, ensuring long-lasting durability even in demanding, high-use environments.
Q: Is the reel easy to install?
A: Yes, the V-SLPL-825 offers flexible mounting options, including wall, ceiling, or floor installation, for easy integration into various setups.
Q: What are the typical applications for this reel?
A: This reel is perfect for vacuum cleaning, industrial dust collection, and other vacuum hose applications in environments like workshops, factories, and commercial spaces.
Maintenance Tips
-
Clean Regularly: Wipe the reel and hose with a damp cloth to remove dust, dirt, and debris. Avoid abrasive cleaners that may damage the surface.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the spring mechanism and moving components to ensure smooth retraction and operation.
-
Inspect Hose and Fittings: Check the vacuum hose and fittings for cracks, leaks, or wear. Replace any damaged parts to prevent performance issues.
-
Check Tension: Adjust the spring tension as needed to maintain proper hose retraction and ensure smooth functioning.
-
Secure Fasteners: Periodically tighten all mounting bolts and fasteners to keep the reel stable and secure.
-
Proper Storage: Store in a dry, protected area to prevent exposure to harsh environmental factors like moisture and extreme temperatures.
