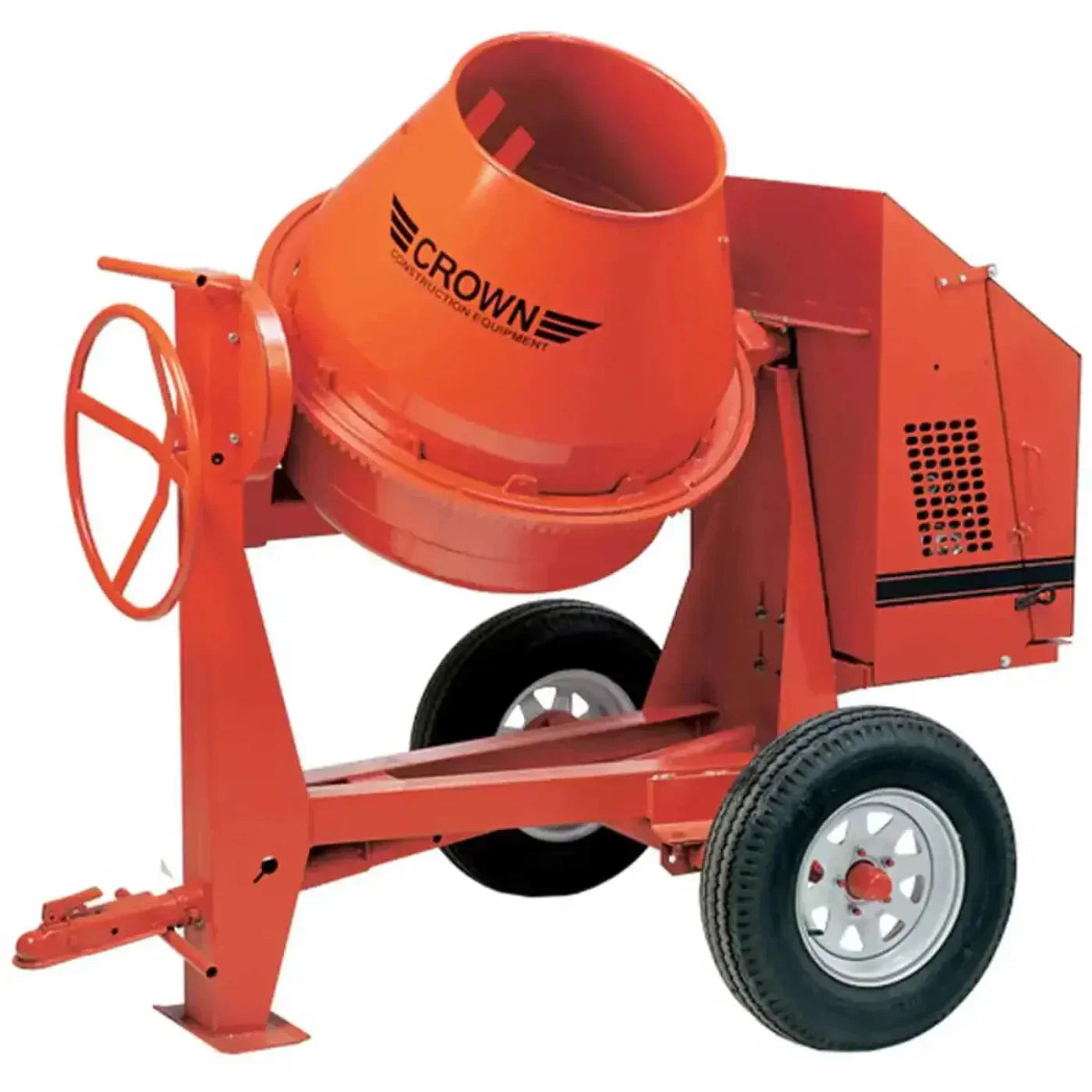

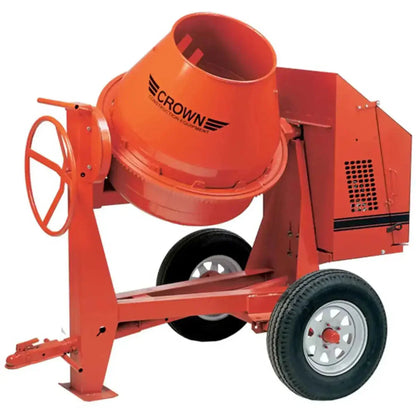

Crown C9 Towable Concrete Mixer - 1103-1.5hp Electric-Pintle
Crown C9 Towable Concrete Mixer
Features
- Choose between 8 hp Honda gas motor, single phase 1.5 hp electric motor (110/220 V, 18/9 amps), or 6.4 hp Yanmar Diesel motor
- Drive pinions and gear rings are made with cast iron for better durability
- 2 Sets of laser cut steel blades provides a smooth, fast and more thorough mix
- New dumping mechanism comes standard with a multi-position drum lock for easy cleaning
- Extra-Large B78x13 tires for smooth towing to your job
- 1.5 bag capacity, 6 cubic ft batch output
- Highway tow able comes with high speed taper roller bearings, and heavy duty axles for years of trouble-free towing
- High Strength Frame newly designed frame provides improved durability and stronger support in the areas where you need it
- The raised frame construction allows for convenient dumping for a wheel-barrow
- Lifetime Warranty, All Crown mixers feature a lifetime warranty on the drum bearing and seals
- Heavy-duty one-piece cast-iron ring gear for longer life
- Optional lighting kit sold separately here
- Free shipping from Crown warehouse
- Wheels are not installed prior to delivery; Wheel assembly is required on this unit prior to use
What's Included
- Crown C9 Concrete Mixer
- 2" Ball Hitch or a Pintle Hitch (Chose Option During Checkout)
- Safety Chains
- Operator's manual
Specification
| Drum Capacity |
9 cu ft |
| Bag Capacity |
1 - 1.5 bags (88 lbs pre-mix) |
| Max RPM |
18 |
Drum Diameter
Opening |
19 inch |
| Drum Height |
31 inch |
| Dimensions |
78 x 52 x 70 in |
| Weight |
860 lbs |
What Our Experts Think
-
1.5 HP Electric Motor β Provides consistent and powerful mixing performance for concrete and other materials.
-
Towable Design β Easily moved around job sites, improving efficiency and saving time.
-
Heavy-Duty Pintle Drive β Ensures reliable and smooth operation, even in tough conditions.
-
Durable Construction β Built to withstand the rigors of construction work with long-lasting durability.
-
Ideal for Large Projects β Perfect for mixing large batches of concrete, mortar, or other materials.
Q&A
Q: What is the Crown C9 Towable Concrete Mixer used for?
A: It is a towable concrete mixer designed for mixing and transporting concrete on construction sites, making it ideal for both small and large-scale concrete jobs.
Q: What motor powers the C9 Towable Concrete Mixer?
A: The C9 is powered by a 1.5hp electric motor, ensuring consistent and reliable mixing performance on-site.
Q: How does the towable feature benefit users?
A: Its towable design allows for easy transportation around job sites, making it convenient for moving large quantities of concrete without additional manual handling.
Q: Is the Crown C9 easy to operate?
A: Yes, the pintle-style design and user-friendly controls make it simple to operate and maneuver, even in challenging job site conditions.
Q: Who benefits from using the C9 Towable Concrete Mixer?
A: Contractors, construction teams, and masonry professionals who need a reliable, mobile concrete mixer for efficient mixing and transportation.
Maintenance Tips
-
Clean After Use β Wash the drum, mixing blades, and other parts to remove concrete residue and prevent buildup.
-
Lubricate Moving Parts β Apply lubricant to the gearbox, bearings, and towable axle regularly to ensure smooth operation.
-
Check Electrical Components β Inspect the power cord, motor, and connections for any damage or wear and replace as needed.
-
Inspect Tires & Axles β Ensure the tires are properly inflated and check the axles for wear or damage.
-
Examine Mixing Blades β Inspect blades for signs of wear or damage and replace them if theyβre no longer effective.
-
Tighten All Bolts β Regularly check and tighten any loose bolts, nuts, or fasteners to prevent vibration and wear during use.
-
Store in a Dry Area β When not in use, store the mixer in a clean, dry space to avoid rust and corrosion.
