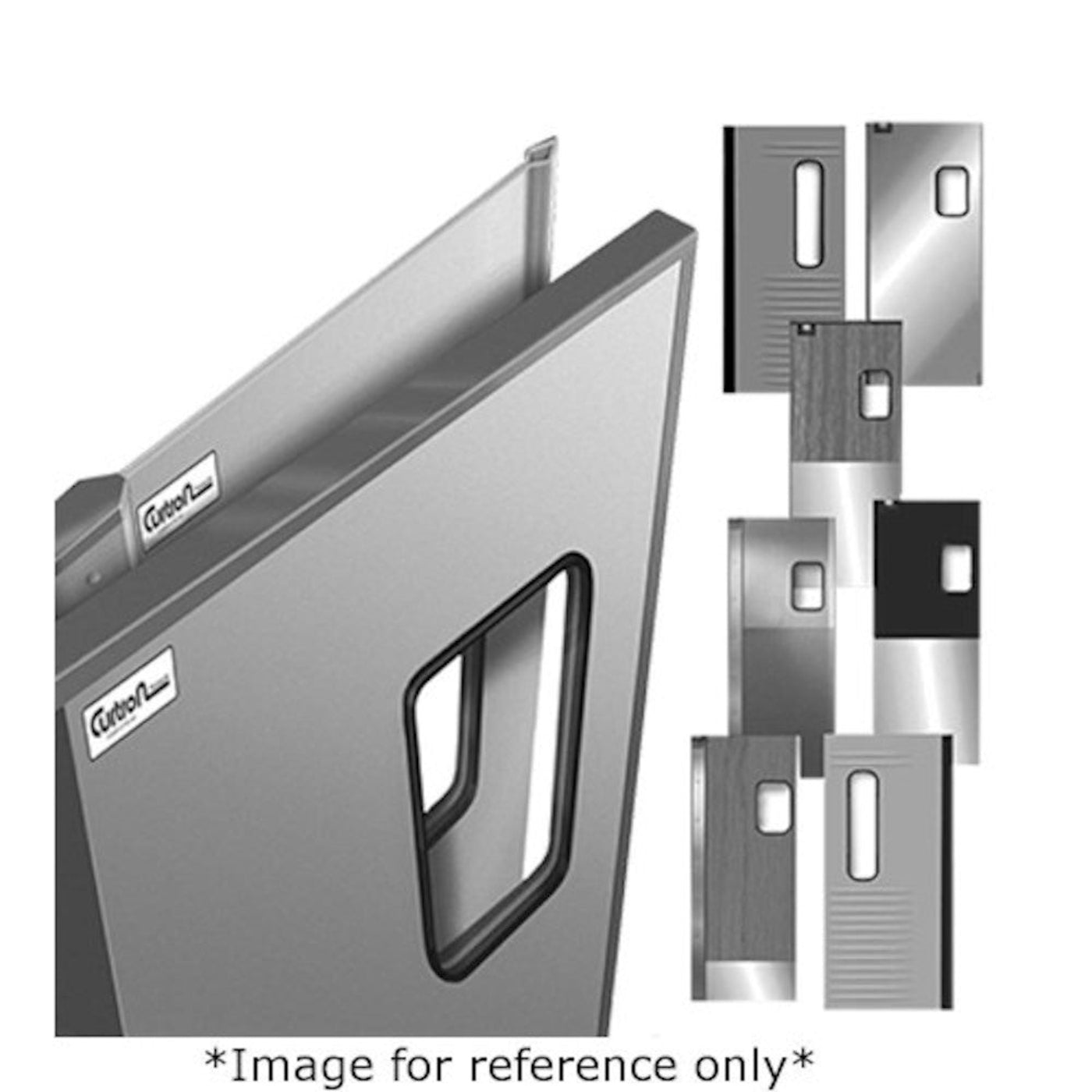

Curtron SPD-30-AL-GK-DBL-6084 60" x 84" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL6084
The Curtron SPD-30-AL-GK-DBL-6084 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-6084 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 30" x 84" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.
Features
- (2) 30" x 84" door panels
- .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-AL-GK-DBL-6084
- Dimensions: 84" H x 60" W
- Approximate Weight: 196 lbs.
What our Experts Think
-
Optimal Mid-Width Access (60″ × 84″) — Two 30″-wide panels provide ample clearance for staff and carts while fitting typical commercial door heights.
-
Durable Aluminum Finish — .032″ tempered aluminum panels offer corrosion resistance and easy cleaning for high-use commercial environments.
-
Robust Core & Sealing (GK Variant) — 0.750″ exterior-grade wood core with full-perimeter gasket improves air sealing, durability, and noise reduction in service-traffic zones.
-
Enhanced Visibility for Safety — Each panel includes a 9″ × 14″ clear window, allowing personnel to see oncoming traffic and reducing collision risk.
-
Efficient Two-Way Traffic Flow — Double-swing design supports smooth movement of personnel and equipment, enhancing workflow in busy areas.
Q&A
Q: What are the dimensions of this door?
A: Fits a rough opening 60″ wide × 84″ high.
Q: What does the model code “AL‑GK‑DBL‑6084” mean?
A: “AL” = aluminum exterior finish, “GK” = full‑perimeter gasket, “DBL” = double swing (two panels), “6084” = 60″ width × 84″ height.
Q: How many panels does it have and what are their sizes?
A: Two swing panels, each approximately 30″ wide × 84″ high.
Q: What are the construction materials?
A:
-
Exterior: Aluminum finish
-
Core: 0.75″ (¾″) solid composite wood
-
Windows: Each panel has a 9″ × 14″ viewing window
-
Gasket: Full‑perimeter gasket
Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, stock rooms, and warehouses where two-way swing access and a durable aluminum finish are required.
Q: What should be verified before installation?
A: Confirm the rough opening matches 60″ × 84″, allow adequate swing clearance, and ensure the frame supports an aluminum double-swing door with gasket.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Does the door include a frame?
A: No, the frame is typically supplied separately.
Q: Are kickplates or impact plates included?
A: Optional stainless steel kickplates or impact plates may be added; not included by default.
Q: What maintenance is recommended?
A: Clean aluminum surfaces with mild cleaners, inspect hinges and gasket regularly, maintain swing clearance, and keep windows clean.
Maintenance Tips
-
Clean regularly: Wipe aluminum panels and full-perimeter gaskets with mild soap and warm water; dry thoroughly. Avoid harsh chemicals, solvents, or abrasives.
-
Inspect hinges and hardware every 3–6 months: Remove hinge covers if possible, clean old grease, apply light grease to hinge cams and pivot pins, and tighten any loose fasteners.
-
Check alignment and seals: Ensure both panels swing freely, close evenly, and gaskets maintain full contact to preserve sealing and energy efficiency.
-
Keep swing path clear: Remove debris, carts, or equipment from the door’s path to prevent impact damage or misalignment.
-
Use non-abrasive cleaning tools: Soft cloths help protect the aluminum finish and gasket integrity.
