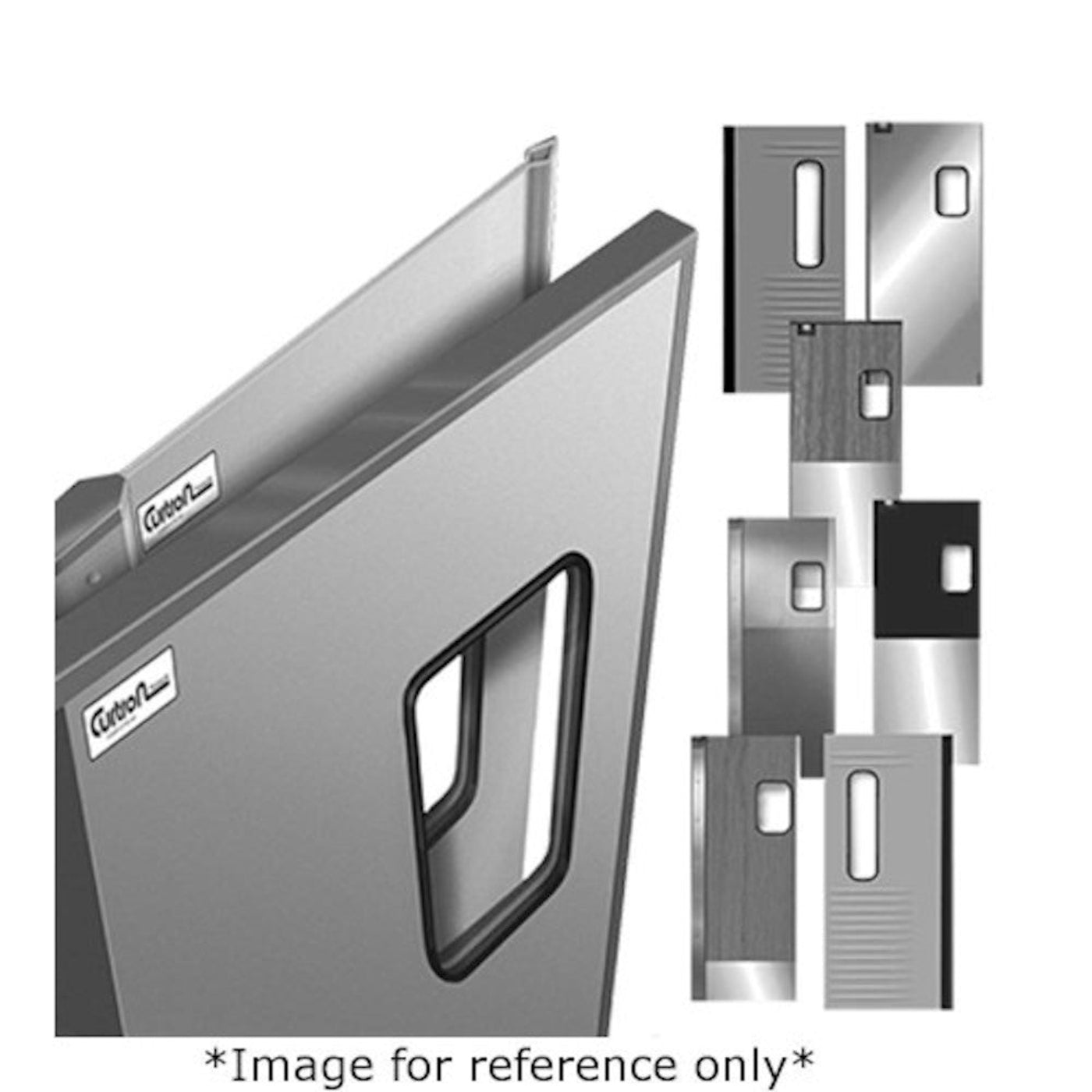

Curtron SPD-30-AL-GK-DBL-7296 72" x 96" Service-Pro Series 30 Double Swing Door - CUSPD30ALGKDBL7296
The Curtron SPD-30-AL-GK-DBL-7296 Service-Pro Swing Door creates a barrier between customers and kitchens, stock rooms, and warehouses to reduce noise. It is made of .032" tempered aluminum and has a satin anodized finish. The SPD-30-AL-GK-DBL-7296 comes with a full perimeter gasket and a 3/4" exterior grade solid wood core. It has two 36" x 96" door panels and two 9" x 14" windows. The Swing Door comes with a Save-T hinge assembly and bottom pin. It does not come with a kickplate or impact plate.
Features
- (2) 36" x 96" door panels
- .032" tempered aluminum with satin anodized finish exterior and full perimeter gasket
- 0.750" exterior grade solid wood core
- (2) 9" x 14" clear windows
- No kickplate / impact plate
- Save-T hinge assembly and bottom pin
Specifications
- Model: SPD-30-AL-GK-DBL-7296
- Dimensions: 96" H x 72" W
- Approximate Weight: 269 lbs.
What our Experts Think
-
High-Traffic Size (72″ × 96″) — Full 72″ width and 96″ height provide ample clearance for carts, equipment, and two-way movement in busy service zones.
-
Robust Aluminum Finish with Gasketing — .032″ tempered aluminum panels with full-perimeter gasket ensure hygiene, durability, and effective airflow/noise control.
-
Durable Core & Impact Protection — 0.750″ exterior-grade wood core offers structural integrity under frequent use.
-
Safety & Visibility — Each panel includes a 9″ × 14″ clear window to improve sightlines and reduce collisions.
-
Smooth Workflow Design — Double-swing panels allow efficient two-way traffic of personnel and carts, reducing bottlenecks.
Q&A
Q: What are the dimensions of this door?
A: Fits a rough opening of 72″ wide × 96″ high.
Q: What does the model code “AL‑GK‑DBL‑7296” mean?
A:
-
AL = Aluminum exterior finish
-
GK = Full‑perimeter gasket
-
DBL = Double swing (two panels)
-
7296 = Width 72″ × Height 96″
Q: How many panels does it have and what are their sizes?
A: Two swing panels, each approximately 36″ wide × 96″ high.
Q: What are the core and materials?
A:
Q: Where is this door typically used?
A: Ideal for commercial kitchens, service corridors, back-of-house areas, and high-traffic spaces needing two-way swing access.
Q: What should be checked before installation?
A: Verify rough opening matches 72″ × 96″, confirm adequate swing clearance, and ensure the frame supports an aluminum double-swing door with gasket.
Q: Is the door fire-rated?
A: No, this model is not fire-rated.
Q: Does the door include a frame?
A: No, the frame is typically supplied separately.
Q: Are kickplates or impact plates included?
A: No, these are optional accessories.
Q: What maintenance is recommended?
A: Clean aluminum surfaces with mild cleaners, inspect hinges and bottom pins, check gasket condition, and keep windows clear.
Maintenance Tips
-
Clean panels & gaskets every 3–6 months: Use a soft cloth with mild soap and warm water; dry thoroughly. Avoid solvents, acetone, harsh chemicals, or abrasives.
-
Inspect hinges & hardware every 6 months: Remove old grease, apply light wheel-bearing type grease to hinge cams and pivot pins (do not over-grease), and tighten any loose fasteners.
-
Check alignment & sealing quarterly: Ensure both panels swing freely, close evenly, and gaskets maintain full contact to preserve proper sealing and energy efficiency.
-
Keep the swing path clear: Remove debris, carts, or equipment to prevent impact damage or misalignment.
-
Use non-abrasive cleaning tools: Protect aluminum finishes and gasket edges from scratches or damage.
