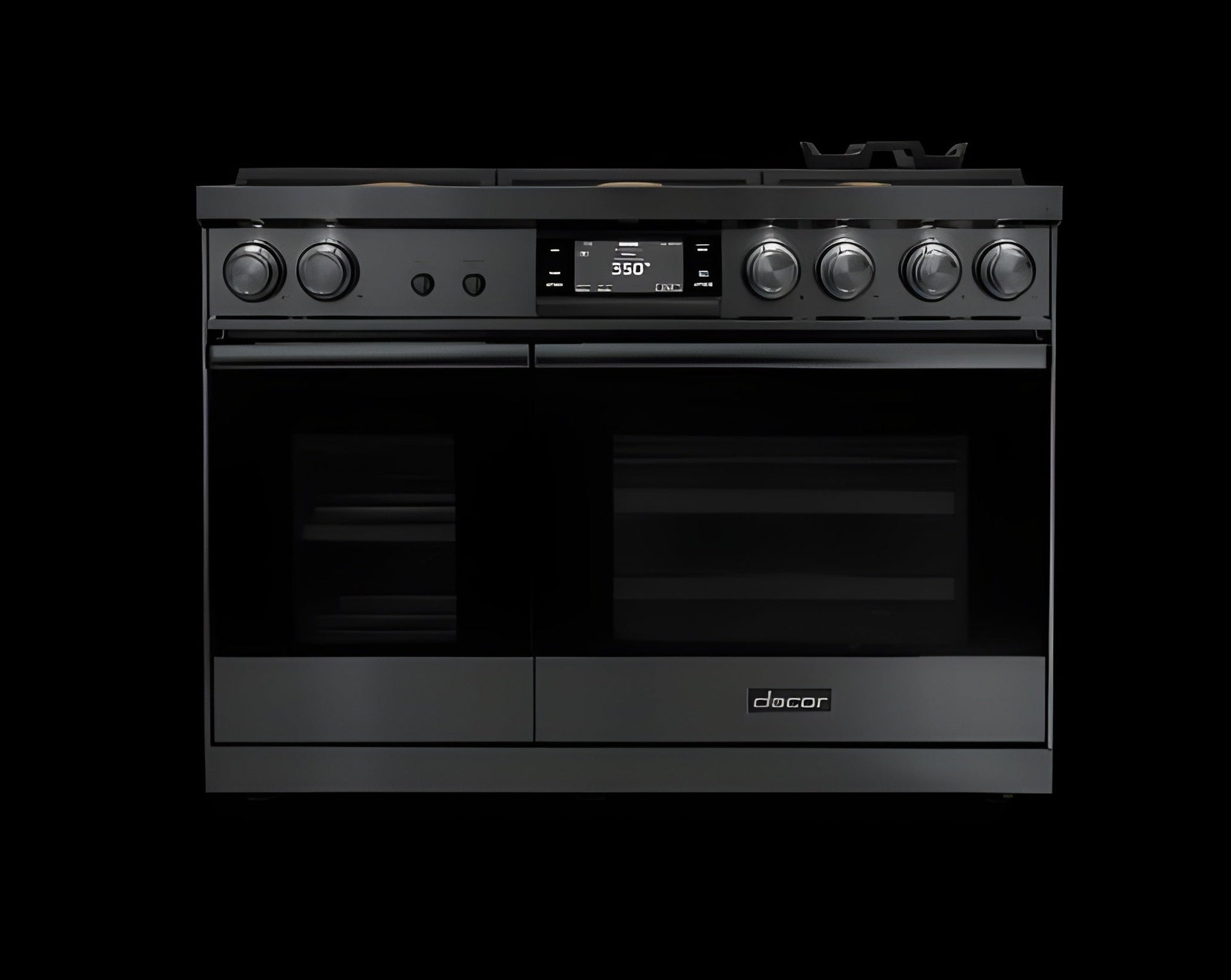

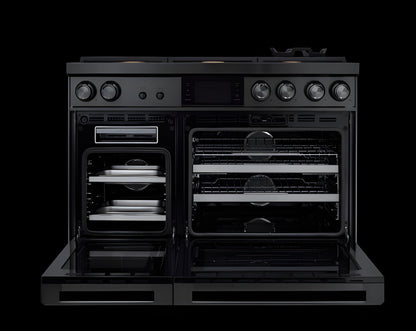

DACOR 48" Range, Graphite Stainless Steel, Natural Gas & Liquid Propane - DOP48C86DLM-KT
Transform the way you cook with innovations like steam-roasting and steam-baking, speed convection, a built-in Wi-Fi-enabled LCD touchscreen, and the power of 22K BTU dual-stack sealed brass burners. Designed to inspire the imagination and make every meal an encore performance.
Features
- WI-FI-ENABLED 7 INCH LCD CONTROL PANEL
- REALSTEAM OVEN
- CHEF MODE
- DUAL FOUR-PART PURE CONVECTION

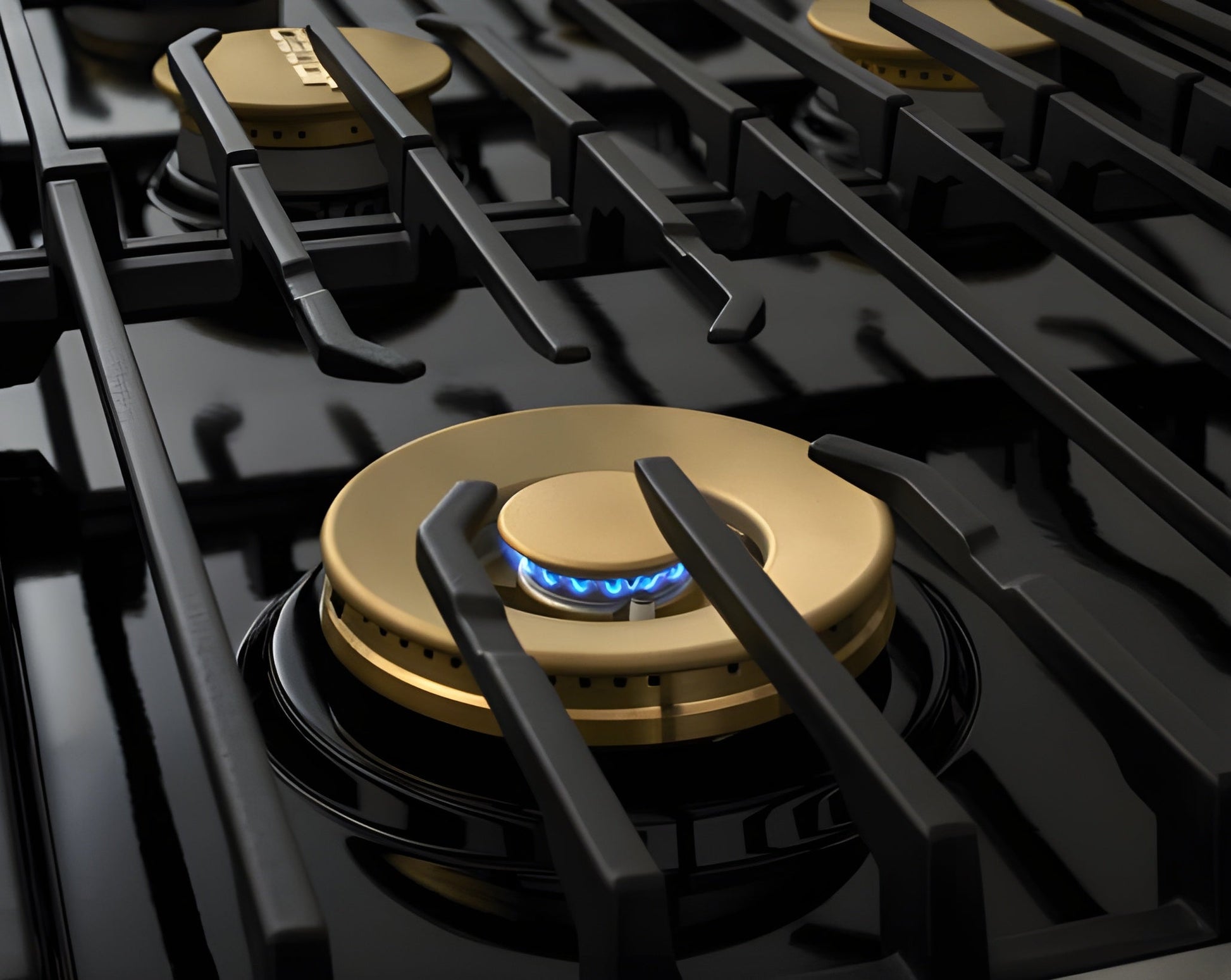

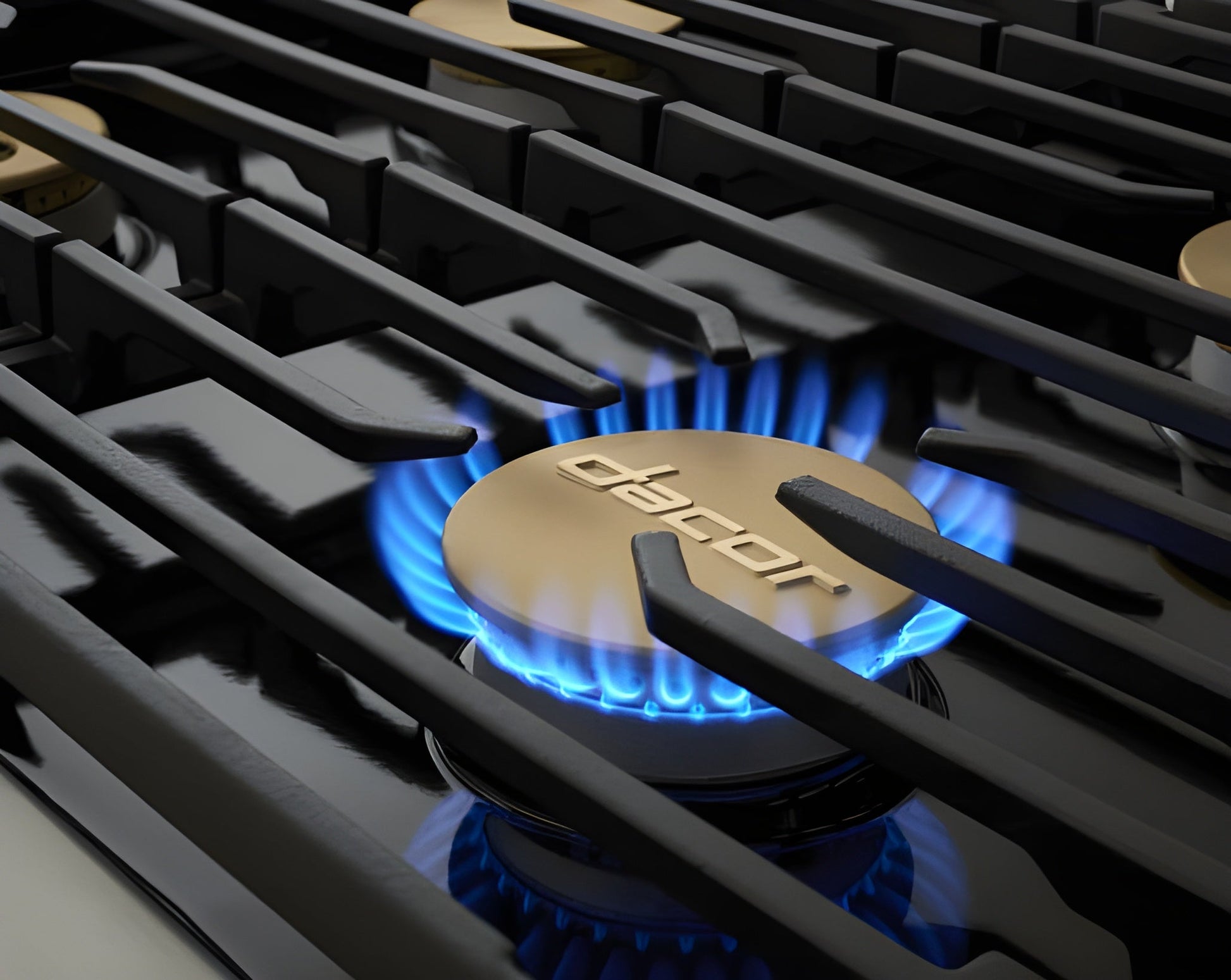

- SIMMERSEAR BURNERS
- ILLUMINA KNOBS
- LUXURIOUS FINISHES
- SMARTTHINGS INTEGRATION
Specifications
| OVERALL DIMENSIONS |
Width : 47-7/8"
Height : 36-1/8"
Depth : 27-1/2"
Please refer to the Installation Instructions for more detailed dimensions.
|
| BURNER CONFIGURATION |
Left Front : 22,000 BTU
Left Rear : 16,000 BTU
Center Front : 16,000 BTU
Center Rear : 16,000 BTU
Right Front : 22,000 BTU
Right Rear : 9,000 BTU
|
| INTERIOR CAPACITY |

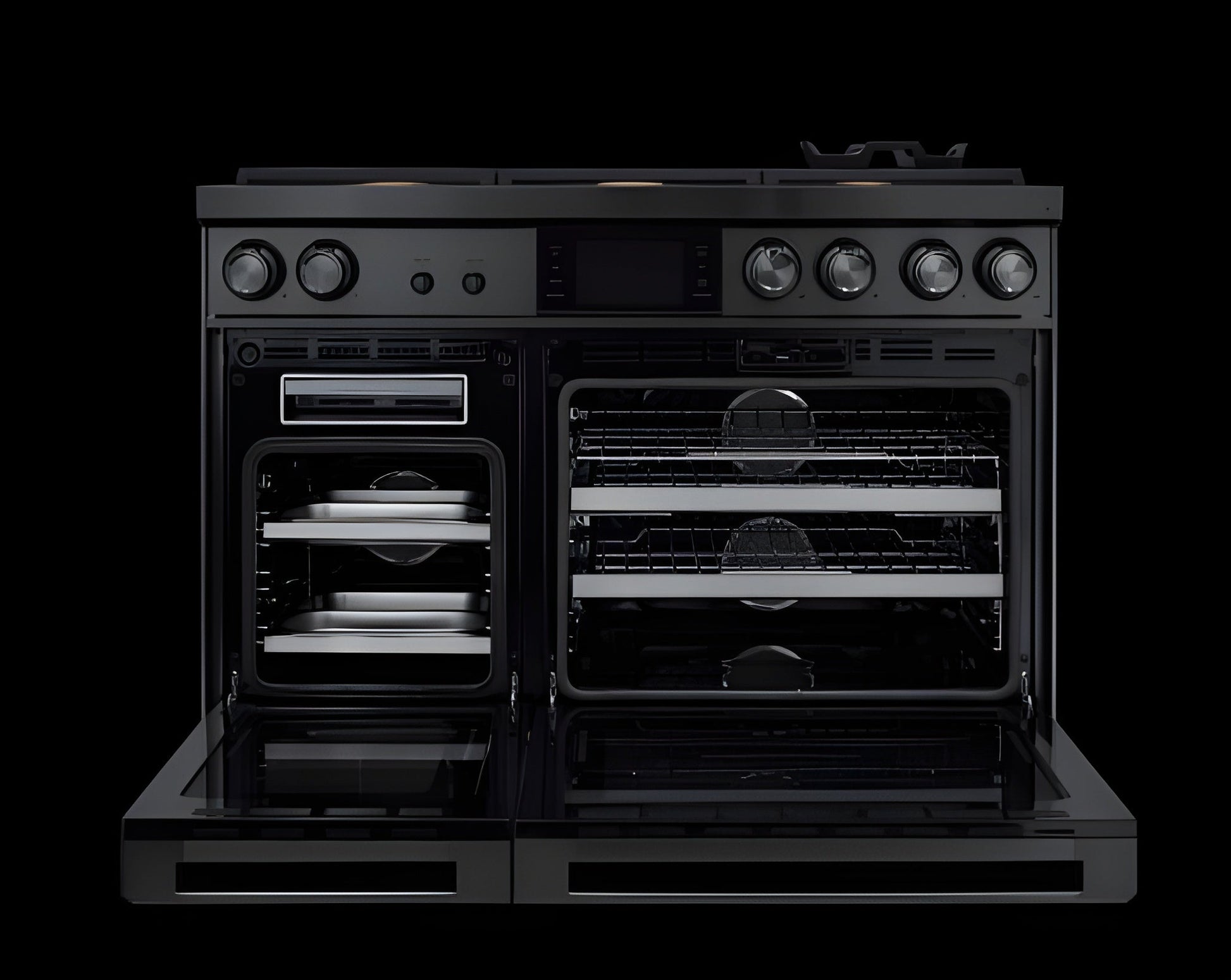

Right Oven : 4.8 ft.
Left Oven : 1.8 ft.
|
| REQUIREMENTS |
Electrical: 240V / 208V, 60Hz, 50A |
| ACCESSORIES |
ARG48 : Modernist Griddle, 48" 6-Burner Range |
| CONFIGURATIONS |
DOP48C86DLS/DA : 48" Range, Stainless Steel, Natural Gas & Liquid Propane
DOP48C86DLM/DA : 48" Range, Graphite Stainless Steel, Natural Gas & Liquid Propane
|
Manual
What Our Experts Think
-
Professional Cooking Power β Features a 22K BTU burner and a versatile six-burner configuration for all your cooking needs.
-
Graphite Stainless Steel Finish β A striking, modern aesthetic that complements luxury kitchens with ease.
-
Dual Fuel Technology β Combines the precision of gas cooking with the consistent results of an electric oven for ultimate flexibility.
-
Large Oven Capacity β A 5.7 cu. ft. oven to handle big meals and multiple dishes at once.
-
IlluminaΒ Knobs β LED-lit knobs for enhanced safety and style, ensuring precision control.
-
Infrared Broiler β Guarantees even, high-heat broiling for professional-grade results.
Q&A
Q: What is the DACOR 48" Range in Graphite Stainless Steel?
A: The DACOR DOP48C86DLM-KT is a 48" range in sleek graphite stainless steel, designed for both natural gas and liquid propane use, combining professional performance with a sophisticated look.
Q: What is the BTU output?
A: The range offers burners with up to 22,000 BTU, ideal for high-heat cooking such as stir-frying and boiling.
Q: Does it have a convection oven?
A: Yes, the range includes a true convection oven, ensuring even heat for baking, roasting, and broiling.
Q: Is this range compatible with both natural gas and liquid propane?
A: Yes, it can be used with either natural gas or liquid propane, offering flexibility for different fuel types.
Q: What are the dimensions?
A: Approx. 47.9" W x 29.9" D x 36" H.
Maintenance Tips
-
Clean Burners & Grates β Regularly clean burners and grates with warm, soapy water to avoid grease buildup.
-
Wipe Exterior β Use a microfiber cloth and stainless steel cleaner to keep the graphite stainless steel surface streak-free.
-
Inspect Gas Connections β Periodically check gas lines for leaks and wear to ensure safety.
-
Check Flame Color β Ensure burner flames are blue for best performance. Yellow or orange flames may require cleaning or adjustment.
-
Clean Oven Interior β Wipe down the oven after use to prevent grease and food buildup. For deeper cleaning, use a mild cleaner.
-
Inspect Door Seal β Examine the door gasket for wear and tear to maintain heat efficiency.
-
Maintain Ventilation β Regularly clean the range hood and ventilation system to ensure optimal airflow.
