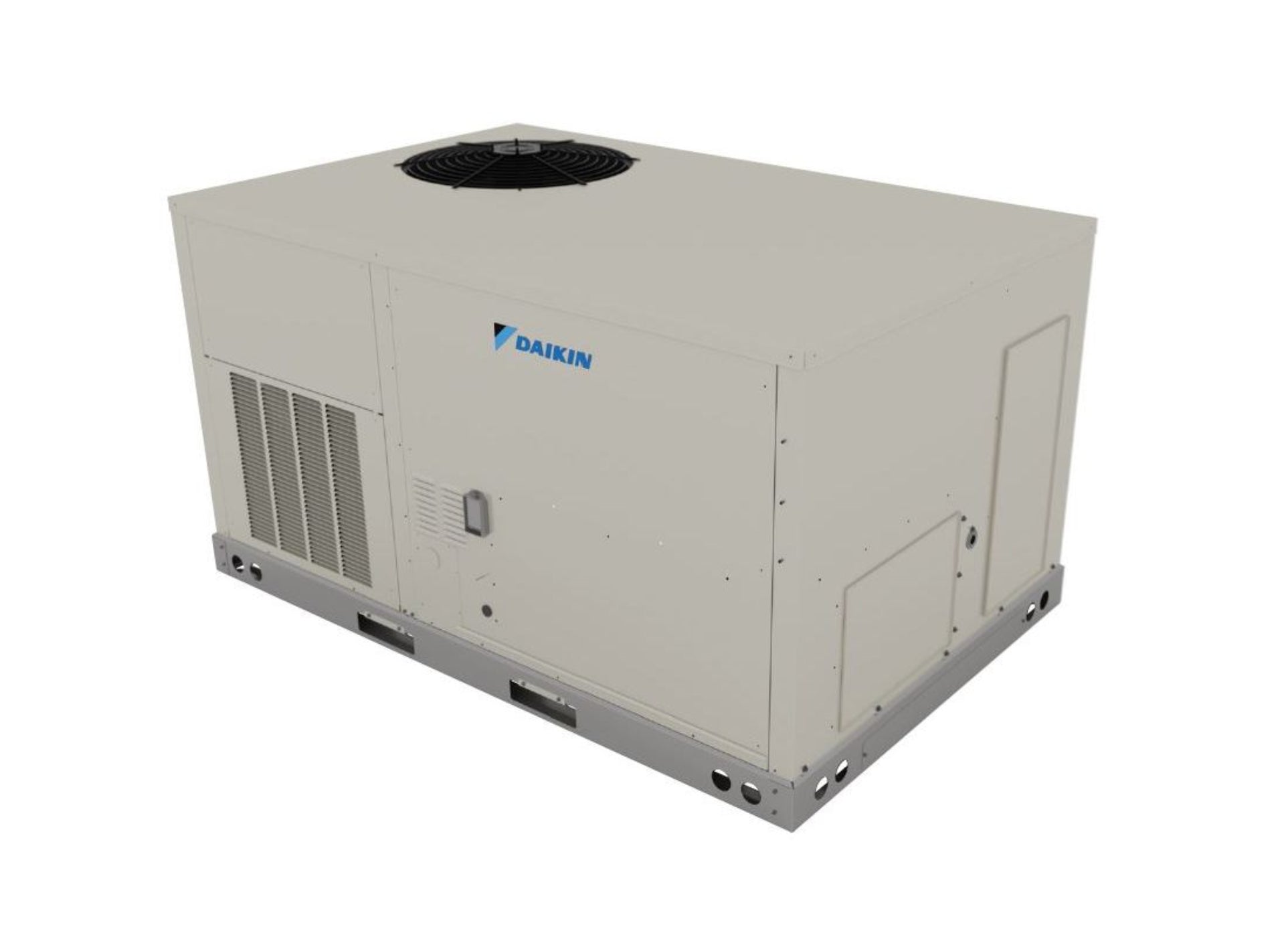

Daikin Light Commercial 5 Ton Packaged Air Conditioner and Gas Furnace Unit, 208/230-3-60V with 16.2 SEER2 - DRG0603DH00001S
The Daikin DRG0603DH00001S Light Commercial Packaged Air Conditioner and Gas Furnace provides superior heating and cooling that is both superbly energy efficient and self-contained in one unit. The system is suitable for rooftop or ground-level installation, and airflow can be set for horizontal or downflow applications. The galvanized steel cabinet coated with UV-resistant paint ensures that the unit can operate effectively during any weather conditions and at any time. Several drive options accommodate a wide range of design conditions to meet your application needs. Factory-installed pressure switches are standard.
Features
- Highly energy-efficient scroll compressor
- Copper tube/aluminum fin coils
- High and low pressure switches
- High-capacity and steel-cased filter drier
- Built-in filter rack with standard 2-inch filters
- 24-volt terminal strip
- Convertible airflow: horizontal or downflow application
- AHRI Certified; ETL Listed
Installation and Maintenance
Daikin Packaged units are designed with an easier and faster installation in mind for both new construction and retrofit. Our packaged rooftop units are built to be a direct replacement for most rooftop units on the field without the need of a curb adapter, to be able to replace the unit in a shorter time and at a lower cost.
What Our Experts Think
-
Efficient 5-ton unit perfect for small commercial spaces.
-
Combines air conditioning and gas furnace for year-round comfort.
-
16.2 SEER2 rating ensures excellent energy efficiency.
-
Built with durable Daikin components for reliable performance.
-
Compatible with 208/230-3-60V electrical systems.
Q&A
-
What spaces is this unit suitable for?
Small commercial buildings, offices, and retail areas.
-
Is it energy-efficient?
Yes, 16.2 SEER2 rating lowers electricity costs.
-
Does it provide both heating and cooling?
Yes, it integrates AC and a gas furnace for year-round use.
-
What voltage does it require?
208/230-3-60V, standard for commercial installations.
Maintenance Tips
-
Inspect and clean filters monthly.
-
Clean coils annually to maintain efficiency.
-
Check refrigerant levels each season.
-
Schedule professional inspection at least once per year.
-
Ensure proper airflow around the unit for optimal performance.
