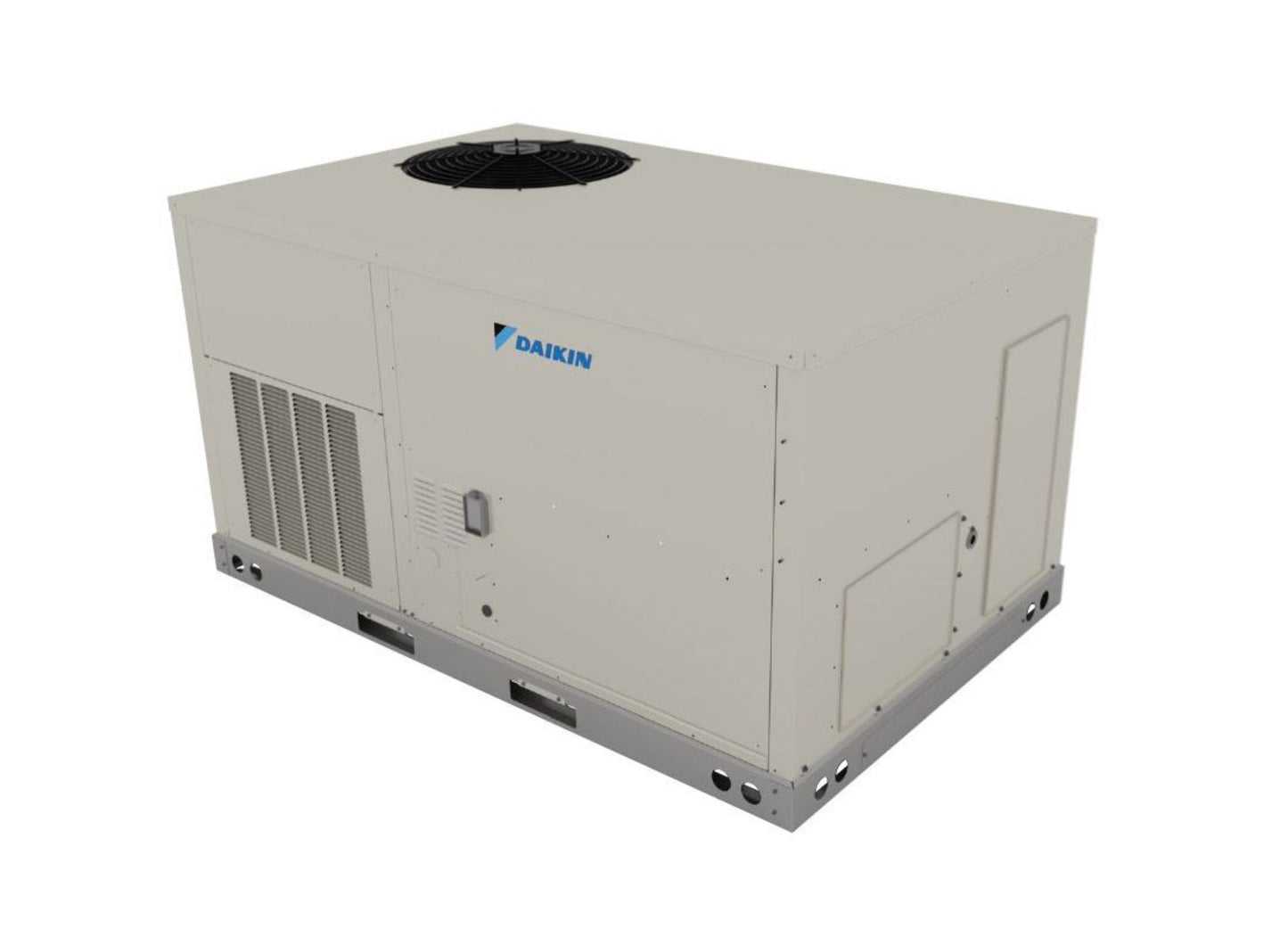

Daikin Light Commercial 6 Ton Packaged Air Conditioner and Gas Furnace Unit, 460-3-60V with 15.5 IEER2 - DFG0724DH00001S
The Daikin DFG0724DH00001S Light Commercial Packaged Air Conditioner and Gas Furnace provides superior heating and cooling that is both energy efficient and self-contained in one unit. The system is suitable for rooftop or ground-level installation, and airflow can be set for horizontal or downflow applications. The galvanized steel cabinet coated with UV-resistant paint ensures that the unit can operate effectively during any weather conditions and at any time. Several drive options accommodate a wide range of design conditions to meet your application needs. Factory-installed pressure switches are standard.
Features
- Energy-efficient scroll compressor
- Copper tube/aluminum fin coils
- High and low pressure switches
- High-capacity and steel-cased filter drier
- Built-in filter rack with standard 2-inch filters
- 24-volt terminal strip
- Convertible airflow: horizontal or downflow application
- AHRI Certified; ETL Listed
Installation and Maintenance
Daikin Packaged units are designed with an easier and faster installation in mind for both new construction and retrofit. Our packaged rooftop units are built to be a direct replacement for most rooftop units on the field without the need of a curb adapter, to be able to replace the unit in a shorter time and at a lower cost.
What Our Experts Think
-
Compact 6-ton unit ideal for small to medium light commercial spaces.
-
Combines air conditioning and gas furnace for year-round comfort.
-
15.5 IEER2 rating offers excellent energy efficiency.
-
Durable Daikin components ensure reliable long-term performance.
-
Compatible with 460-3-60V electrical systems for stable operation.
Q&A
-
What spaces is this unit suitable for?
Small to medium commercial buildings, offices, and retail areas.
-
Is it energy-efficient?
Yes, with a 15.5 IEER2 rating for reduced energy costs.
-
Does it provide both heating and cooling?
Yes, it integrates AC and a gas furnace for year-round use.
-
What voltage does it require?
460-3-60V, standard for commercial installations.
Maintenance Tips
-
Inspect and clean filters monthly.
-
Clean coils annually to maintain peak efficiency.
-
Check refrigerant levels each season.
-
Schedule professional inspection at least once per year.
-
Keep airflow around the unit unobstructed for optimal performance.
