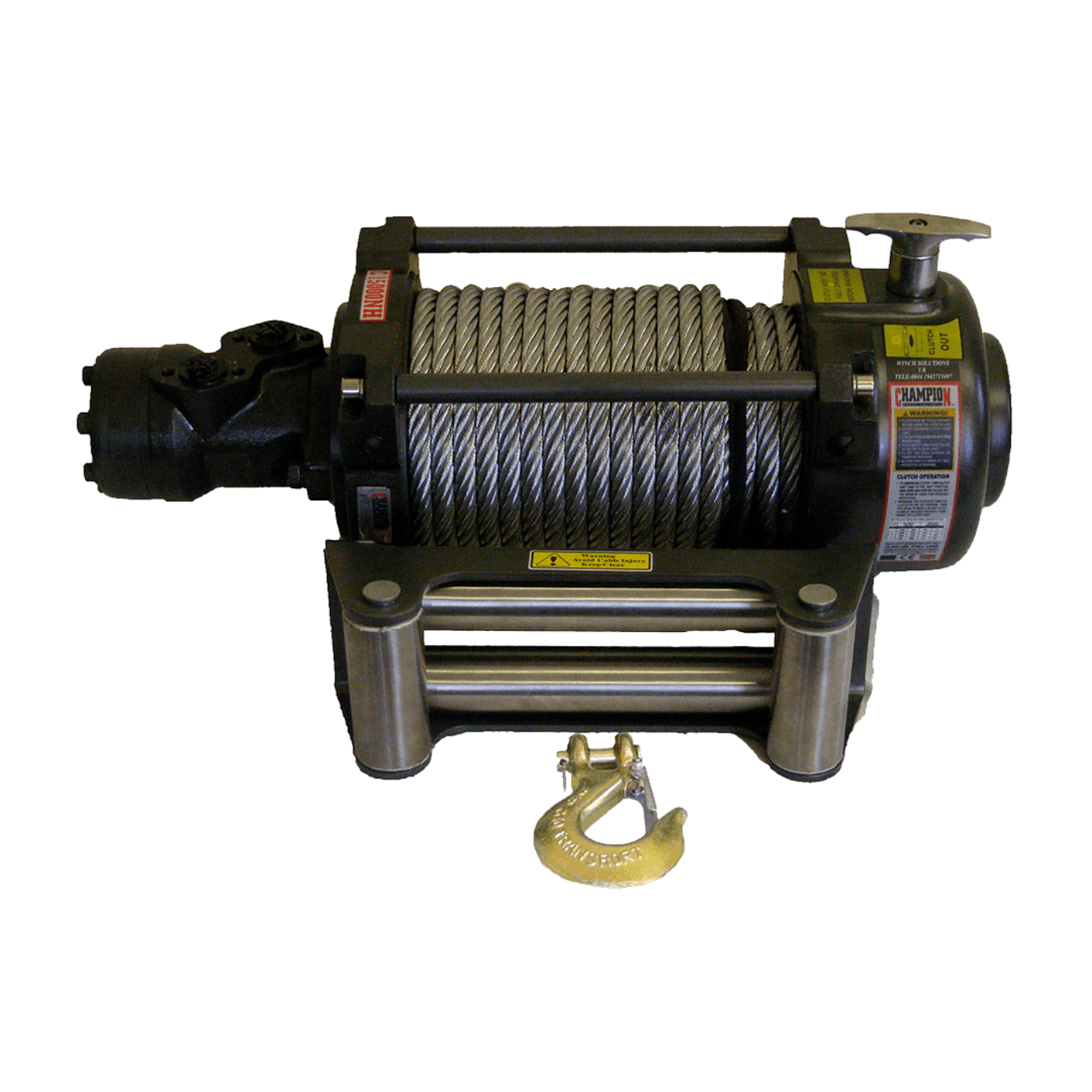

DK2 15,000 NH HYDRAULIC WINCH

COMPACT & TOUGH. WARRIOR HYDRAULIC WINCHES FOR INDUSTRIAL AND COMMERCIAL APPLICATIONS. VALUE WITHOUT COMPROMISE.

Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic motor ensures
maximum performance over the full load range. Complete with internal brake to ensure maximum control
and load holding and backed by Warrior’s un-rivalled Limited Lifetime Warranty. Stainless steel roller fairleads and fittings are standard.

Features

Patented heavy duty gearing
Integral, automatic failsafe brake
Spring engaged manual freespool
Stainless steel fairlead and fittings
Rugged and compact for long life

Specification

ITEM NUMBER
15000NH

RATED LINE PULL
15000 LBS (6804 KG)

MOTOR
HYDRAULIC DIS 80 ML/R

GEARING
33.4:1

DRUM SIZE - DIAMETER x LENGTH
89 x 217mm (3.5 x 8.54')

CABLE - DIAMETER x LENGTH
12mm x 26.5m (0.47' x 87')

DIMENSIONS
554 x 226 x 262mm (21.81 x 8.9 x 10.3')

MOUNTING PATTERN
254 x 114.3mm (10 x 4.5')

WEIGHT
68.8 KG (152 LBS)

MAX FLOW L/MIN
45

MAX PRESSURE MPA
12.5

CLUTCH
PULL & TURN

CERTIFICATION
CE CERTIFIED




LAYER OF ROPE / CABLE
LINE PULL: LBS (KGS)
ROPE ON DRUM FT (M)

1
15000 (6804)
18.0 (5.5)

2
12120 (5498)
41.7 (12.4)

3
10168 (4612)
65.9 (20.1)

4
8757 (3972)
86.9 (26.5)




LINE PULL: LBS (KGS)
LINE SPEED FT/MIN (M/MIN)
FLOW L/MIN • PRESSURE MPA

0
1.6 (0.5)
5 • 2.0

5000 (2268)
3.3 (1.0)
10 • 4.3

10000 (4536)
6.6 (2.0)
20 • 8.7

12000 (5443)
9.8 (3.0)
30 • 10.0

15000 (6804)
19.7 (6.0)
60 • 13.0

Manual

Manual Instruction

Technical Diagram

Brochure

Order shipment preparation takes 3 days. Once shipped orders usually takes 2 weeks to be delivered. These are estimations; can be delayed for reasons beyond our control. You can always contact us to know the exact time once you placed an order with us. Have a look at our

ITEM NUMBER	15000NH
RATED LINE PULL	15000 LBS (6804 KG)
MOTOR	HYDRAULIC DIS 80 ML/R
GEARING	33.4:1
DRUM SIZE - DIAMETER x LENGTH	89 x 217mm (3.5 x 8.54')
CABLE - DIAMETER x LENGTH	12mm x 26.5m (0.47' x 87')
DIMENSIONS	554 x 226 x 262mm (21.81 x 8.9 x 10.3')
MOUNTING PATTERN	254 x 114.3mm (10 x 4.5')
WEIGHT	68.8 KG (152 LBS)
MAX FLOW L/MIN	45
MAX PRESSURE MPA	12.5
CLUTCH	PULL & TURN
CERTIFICATION	CE CERTIFIED

LAYER OF ROPE / CABLE	LINE PULL: LBS (KGS)	ROPE ON DRUM FT (M)
1	15000 (6804)	18.0 (5.5)
2	12120 (5498)	41.7 (12.4)
3	10168 (4612)	65.9 (20.1)
4	8757 (3972)	86.9 (26.5)

LINE PULL: LBS (KGS)	LINE SPEED FT/MIN (M/MIN)	FLOW L/MIN • PRESSURE MPA
0	1.6 (0.5)	5 • 2.0
5000 (2268)	3.3 (1.0)	10 • 4.3
10000 (4536)	6.6 (2.0)	20 • 8.7
12000 (5443)	9.8 (3.0)	30 • 10.0
15000 (6804)	19.7 (6.0)	60 • 13.0
