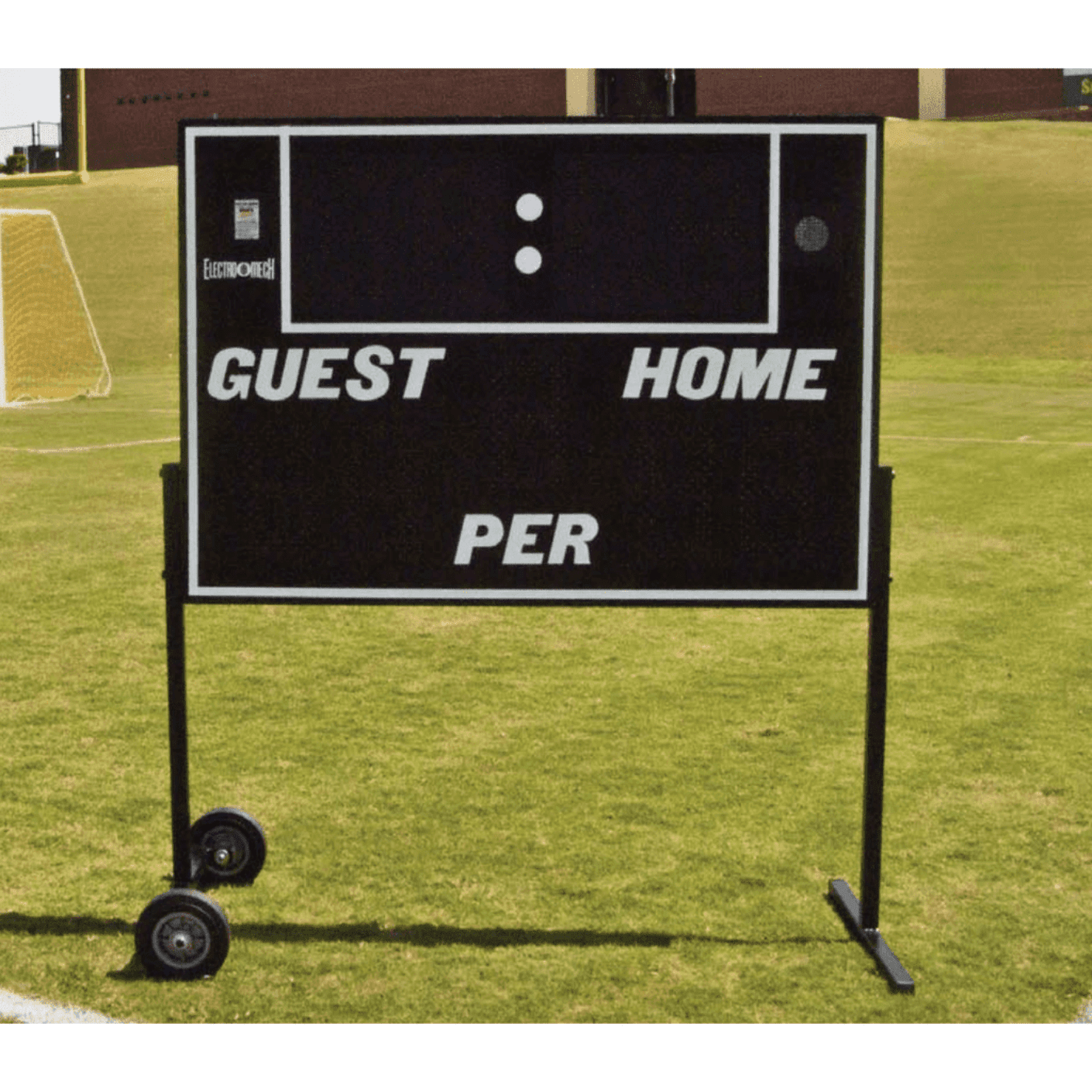

Electro-Mech Portable T-Cart Leg Kit

The T-Cart Leg Kit includes

• Leg assembly with wheels

• Leg assembly with foot

• Four bolts

First, attach the Leg/Foot Assembly (the one without wheels) to one side of the scoreboard cabinet, using two bolts.

A torque of 30 ft. lbs. is sufficient to keep the legs in place.

Next, have one person lift the scoreboard cabinet into position using the attached leg assembly as a pivot while a second person attaches the Leg/Wheel assembly to the other side of the scoreboard cabinet.

Use the remaining two bolts to secure the Leg/Wheel assembly. You may orient the wheels to face in or out.

After a final check on all four bolts, use the leg assembly without wheels as a handle to guide your scoreboard into its final position.
