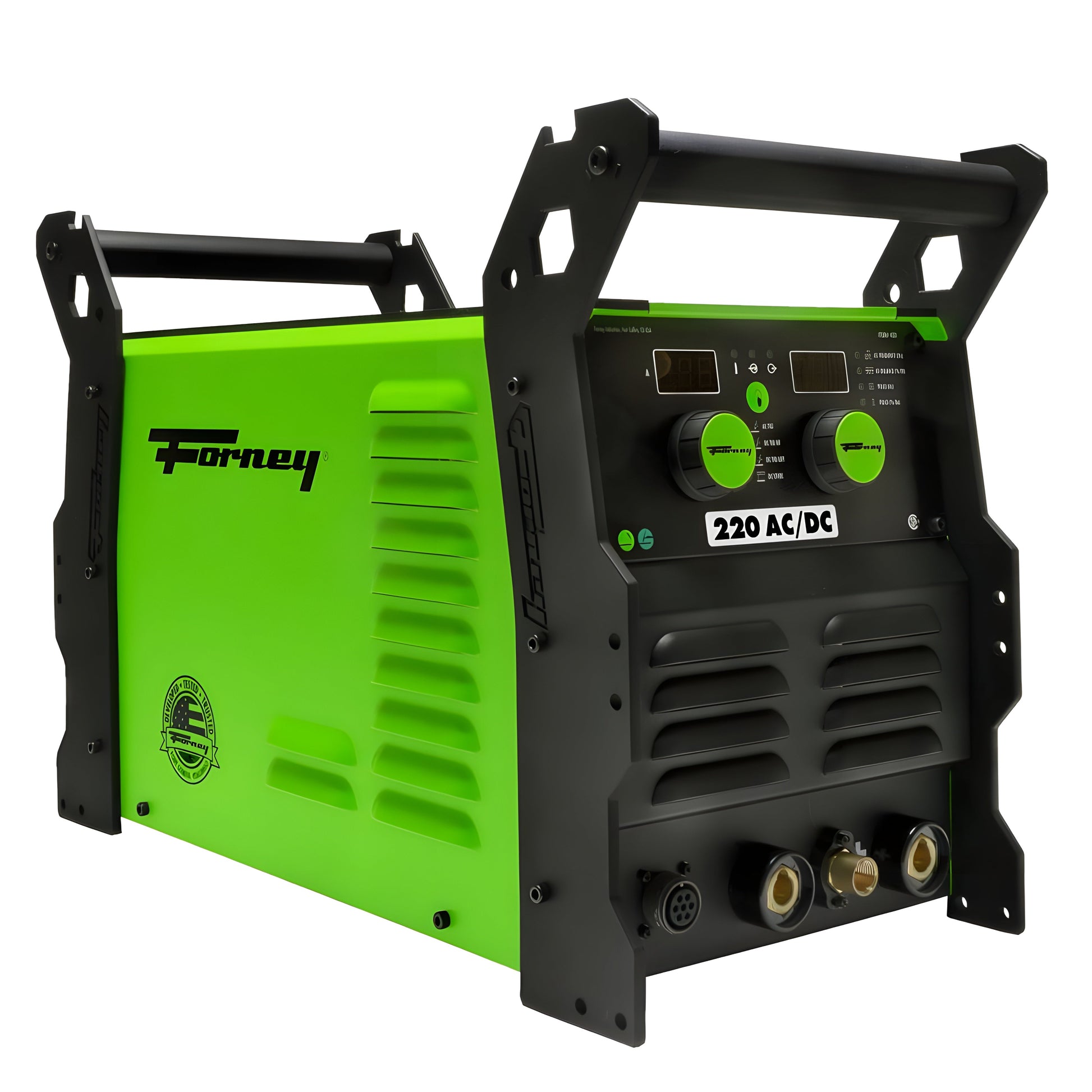

Forney 220 AC/DC TIG Welder Amptrol Package - 421

Forney 220 AC/DC TIG Welder Amptrol Package - 421

The Forney 220 AC/DC TIG welder is an ideal TIG machine for a wide variety of users. Perfect for beginners to professionals, this powerful machine features dual-voltage with 120V/230V input power. The ability to weld up to 1/2” and 220 AMPs of welding power makes machine a great tool for professionals. The intuitive controls allow for quick set-up and simple operation. This machine features amperage control settings as low as 5 AMPs, features pulse capabilities and allows users to weld with low frequency. What’s more, the ability to use AC and DC power makes welding anything from mild steel to aluminum a breeze!

Features

• Stable Arc at 5 AMPs
• Pulse Welding
• High Frequency Starts
• Ability to Turn Off High Frequency
• TIG Torch/Hand Amptrol Combination
• Dual-Voltage
• Digital Gauges

Specifications

Processes

• SMAW (Stick)
• GTAW- DC-P (TIG/Pulsed TIG)

Output Power

TIG

• 120V: 40% @ 130 AMP
• 230V: 35% @ 220 AMP

Stick

• 120V: 40% @ 85 AMP
• 230V: 35% @ 200 AMP

Input Power

• 120V @ 24.8 AMP
• 230V@ 32 AMP

Welding Capacity

• Up to 1/2 inch

Wire/Electrode Diameter

• Stick: 1/16" (1.6 mm) to 5/32" (4.0 mm)
• TIG: .40" (1.02 mm) to 1/8" (3.2 mm)

Unit Weight of Welder Out of Display Box

• 54 lbs. (24.54 kg)

Unit Dimensions of Welder Out of Display Box

• H: 15.5" (393.7 mm)
• L: 23.25" (263.53 mm)
• W: 10.375" (590.55 mm)

For Use On

• Solid Steel
• Cast Iron/Steel
• Stainless Steel
• Aluminum

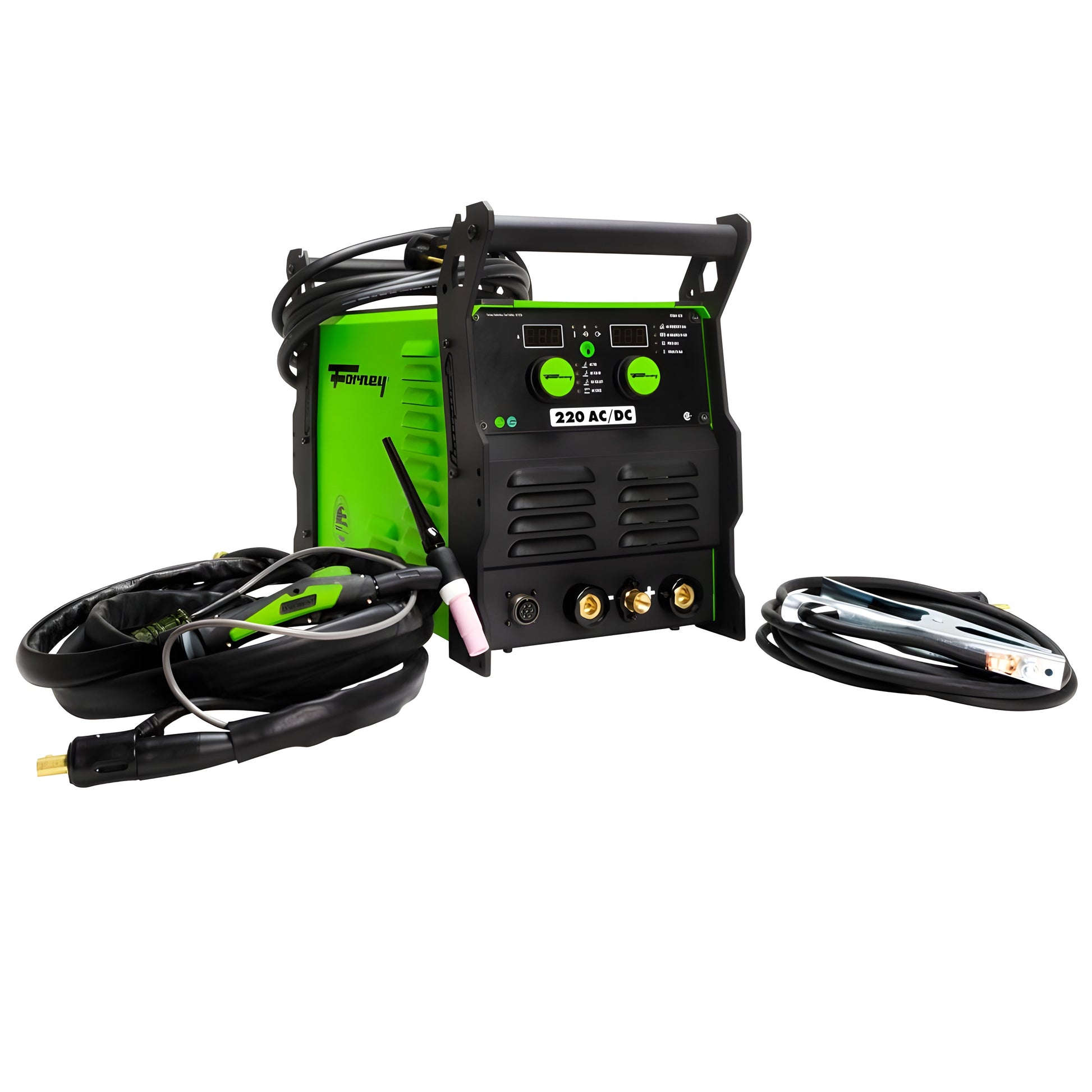

Included Accessories

• Amptrol TIG Torch
• 15’ (4.57 m) Ground Clamp with Cable
• 15’ (4.57 m) Electrode Holder with Cable
• 15’ (4.57 m) Input Power Cable
• Flowmeter with Hose

What Our Experts Think

• AC/DC Flexibility: Welds with both AC and DC for precise control over a variety of materials, including aluminum, steel, and stainless steel.
• Amptrol Foot Pedal: Included for seamless amperage adjustments, providing better control over the arc during the welding process.
• Impressive Power: Up to 220 amps of power, suitable for welding thicker metals with ease.
• Comprehensive Kit: Comes with all necessary accessories, including TIG torch, ground clamp, and Amptrol foot pedal, for a complete welding setup.
• Durable Build: Designed for reliability and long-term use in professional and industrial environments.

Q&A

Q: What is the Forney 220 AC/DC TIG Welder Amptrol Package?
A: A TIG welder that supports both AC and DC welding, designed for welding aluminum, steel, stainless steel, and other materials, with an included Amptrol foot pedal for precise control.

Q: What is the amperage range?
A: 10–220A, providing flexibility for a wide range of materials and thicknesses.

Q: What welding processes does it support?
A: TIG welding with AC for aluminum and DC for steel and stainless steel.

Q: What is the duty cycle?
A: 40% at 220A, offering steady performance for medium-duty welding tasks.

Q: Does it include the Amptrol foot pedal?
A: Yes, it includes an Amptrol foot pedal for easy and precise amperage control during welding.

Q: What type of power input is required?
A: 220V power supply, suitable for more demanding welding jobs.

Q: Is it suitable for both beginners and professionals?
A: Yes, its user-friendly controls and the addition of the Amptrol foot pedal make it suitable for both beginners and advanced welders.

Maintenance Tips

• Inspect Cables & Connections: Regularly check for frayed wires, loose connections, and damaged insulation to prevent electrical hazards.
• Clean Torch & Consumables: Keep the torch, electrode holder, and gas nozzle free from debris and oxidation for optimal arc stability.
• Check Gas Flow & Hoses: Ensure gas hoses are leak-free and properly connected to maintain shielding gas integrity.
• Monitor & Replace Tungsten Electrodes: Sharpen or replace electrodes as needed for precise and stable welding performance.
• Maintain Proper Cooling: Prevent overheating by following the recommended duty cycle and ensuring adequate airflow around the welder.
• Keep Ground Clamp Secure: Ensure a tight and clean ground connection to avoid inconsistent welds.
• Store in a Dry, Clean Area: Protect the welder from moisture, dust, and contaminants to prevent internal damage.
• Schedule Routine Maintenance: Periodically inspect internal components, fans, and circuit boards for dust buildup or wear.
