Forney 220 Multi-Process (MP) Welder - 410

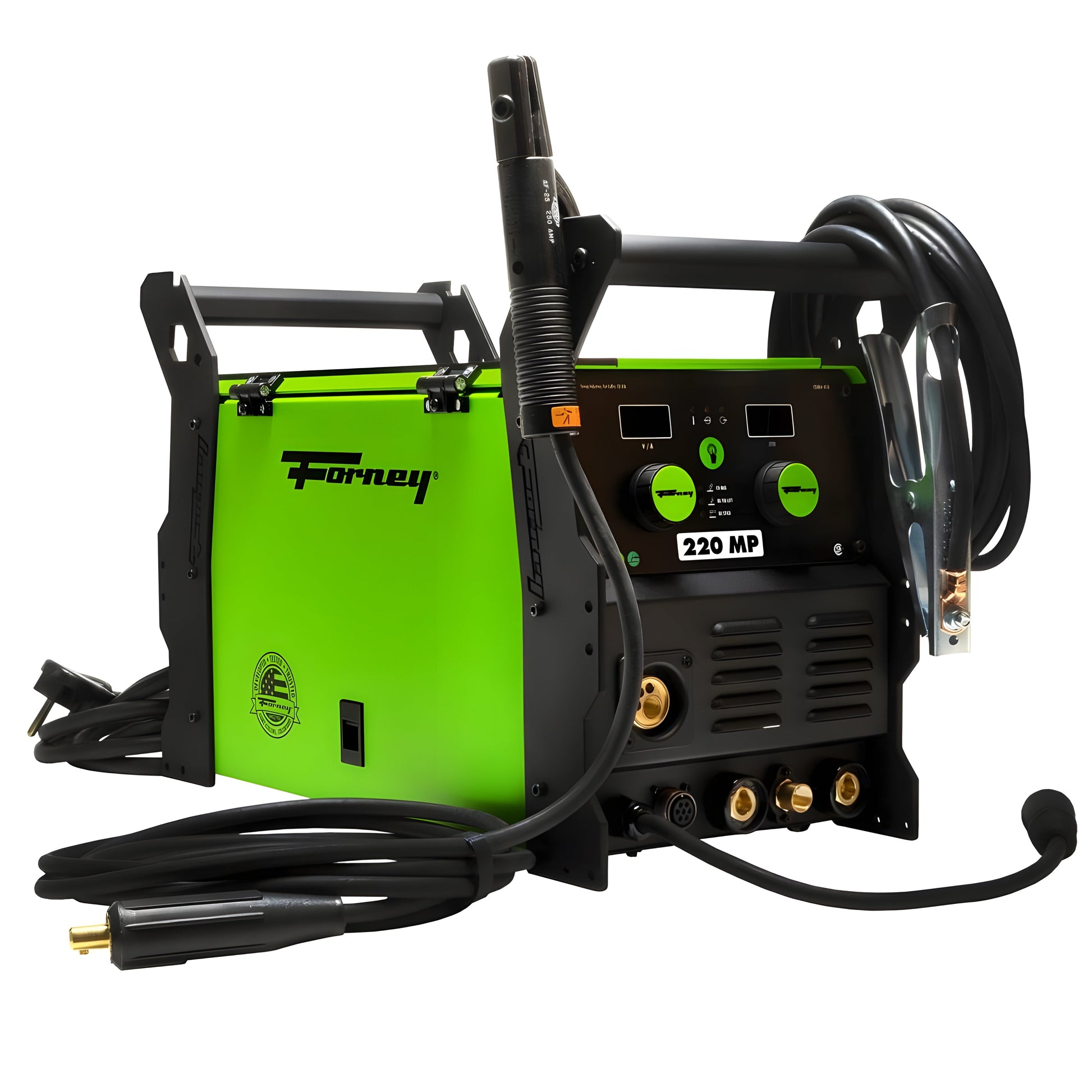

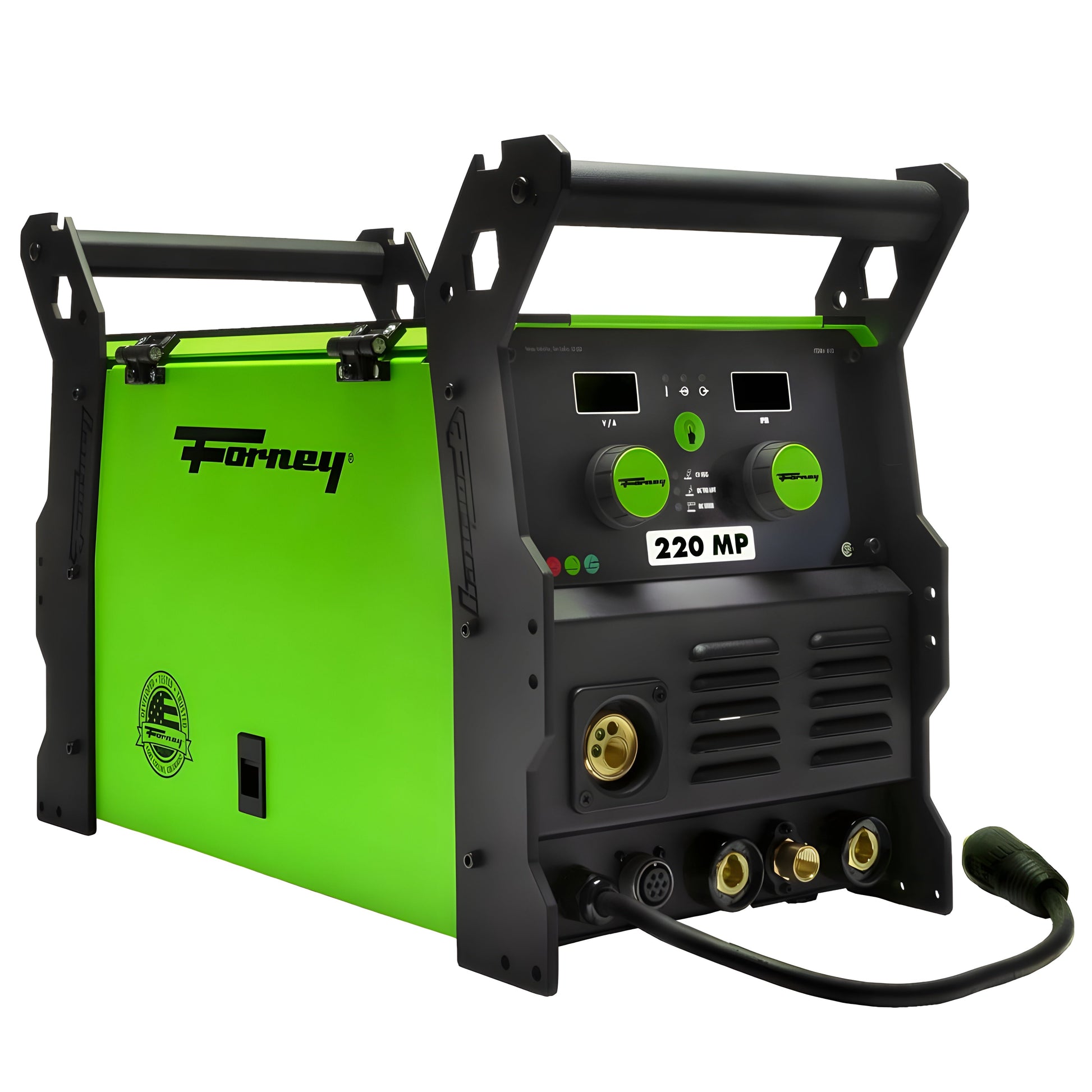

Forney 220 Multi-Process (MP) Welder
His preferred field of expertise is routine maintenance welding and quick on-site troubleshooting. In fact, thanks to its small size and limited weight for a semiautomatic welding machine, it can be taken anywhere. It is suitable for gas-free flux-cored wire or gas conventional wire (MIG) or conventional rod (ARC) welding.
๐๐๐๐๐๐๐ ๐๐๐: There is a lot of use of this Forney 220 Multi-Process (MP) Weldersuch as on steel, stainless steel, cast iron, and aluminum. Ideal for anything from do-it-yourself projects to light industrial work, this powerful welding machine features.
๐
๐๐๐๐๐๐๐
๐๐ ๐๐๐๐๐๐๐: There are lots of unique features with this product like All-Metal Drive System, Multi-Process, Auto Torch Detect, Digital Displays, and Dual-Voltage which makes the best product for Welder.
๐๐๐๐๐๐๐๐: There is a 3-year warranty on this product. and the machine is rugged and technologically advanced with a digital display, all-metal drive system.
๐๐๐๐-๐๐๐๐๐๐๐: Forneyโs 220 Multi-Process welders are equipped with dual-voltage 120V/230V input power and adapter.
๐๐๐๐ ๐๐ ๐๐๐: Very easy to use this product with any complexity. The proper switch allows you to change the process quickly.
๐๐๐๐ ๐๐ ๐๐๐๐๐: Lightweight easily carried to any, Maintenance, Repair, Metal Fabrication, and Hobbyist project.
๐๐๐๐ ๐๐๐๐๐๐๐ ๐๐๐๐๐๐๐: Best ingredients are used to produce this product for long-lasting use.
Features
- All-Metal Drive System
- Auto Torch Detect
- Digital Displays
- Multi-Process
- Dual-Voltage
๐๐ง๐๐ฅ๐ฎ๐๐๐ ๐๐๐๐๐ฌ๐ฌ๐จ๐ซ๐ข๐๐ฌ
- 12.5โ (3.81 m) 200 AMP PRO-Grip MIG Gun
- 15โ (4.57 m) Ground Clamp with Cable
- 15โ (4.57 m) Electrode Holder with Cable
- 15โ (4.57 m) Input Power Cable
- Flowgauge with Hose
- Extra Contact Tips
Specification
| Processes: |
GMAW (MIG)
FCAW (Flux-Cored)
SMAW (Stick)
GTAW- DC (TIG) |
| Output Power: |
MIG:
120V: 35% @ 90 AMP
230V: 40% @ 200 AMP
Stick:
120V: 32% @ 80 AMP
230V: 40% @ 200 AMP
TIG:
120V: 35% @ 110 AMP
230V: 40% @ 200 AMP |
| Input Power: |
120V @ 21.4 AMP
230V @ 38 AMP |
| Welding Capacity: |
Up to 1/2 inch |
| Wire/Electrode Diameters: |
.024โ (0.6 mm) to .035โ (0.9 mm) |
| Unit Weight of Welder Out of Display Box: |
51 lbs. (23.18 kg) |
| Unit Dimensions of Welder Out of Display Box: |
H: 15.5โ (393.7 mm)
L: 23.25โ (263.53 mm)
W: 10.375โ (590.55 mm) |
What Our Experts Think
-
Versatile Welding: Supports Stick and TIG welding for a range of applications.
-
Powerful Performance: Delivers up to 220 amps, ideal for professional and heavy-duty jobs.
-
Dual Voltage Compatibility: Operates on both 120V and 240V for maximum flexibility.
-
Lightweight & Portable: Compact design with a sturdy handle for easy transport.
-
Easy-to-Use Controls: Simple setup with adjustable settings for precision welding.
Q&A
Q: What is the Forney 220 MP Welder - 410?
A: A multi-process welder that supports MIG, Stick, and DC TIG welding for versatility in various applications.
Q: What welding processes does it support?
A: MIG (GMAW), Stick (SMAW), and DC TIG (GTAW) welding.
Q: What is the amperage range?
A: 120V: 10โ140A, 240V: 10โ220A, offering flexibility for different material thicknesses.
Q: What power input does it require?
A: Dual-voltage (120V/240V) capability for home and industrial use.
Q: What is the duty cycle?
A: 60% at 220A (240V) for extended welding time without overheating.
Q: Can it weld aluminum?
A: Yes, but requires a spool gun for MIG aluminum welding (sold separately).
Q: Does it have a digital display?
A: Yes, an easy-to-read digital display for precise adjustments.
Q: Is it portable?
A: Yes, lightweight and compact with a durable handle for easy transport.
Q: Does it come with a warranty?
A: Yes, Forney provides a manufacturerโs warrantyโcheck specifics for details.
Maintenance Tips
-
Inspect Cables & Connections: Check for loose, frayed, or damaged wires to ensure safe and reliable operation.
-
Clean Drive Rollers & Wire Feed System: Remove dust and debris for smooth wire feeding and consistent weld quality.
-
Monitor & Replace Contact Tips & Nozzles: Worn tips affect arc stabilityโreplace them regularly for optimal performance.
-
Check Ground Clamp: Ensure a secure, clean connection to prevent erratic arc behavior.
-
Inspect Gas Flow & Hoses: Look for leaks and maintain proper shielding gas flow for MIG and TIG welding.
-
Follow Duty Cycle Limits: Prevent overheating by adhering to the recommended duty cycle.
-
Keep Ventilation Openings Clear: Clean dust and debris from cooling vents to ensure proper airflow and cooling.
-
Store in a Dry, Clean Area: Protect from moisture and contaminants to extend machine life.
-
Perform Routine Maintenance: Regularly inspect fans, wire drive mechanisms, and internal components for wear or buildup.
