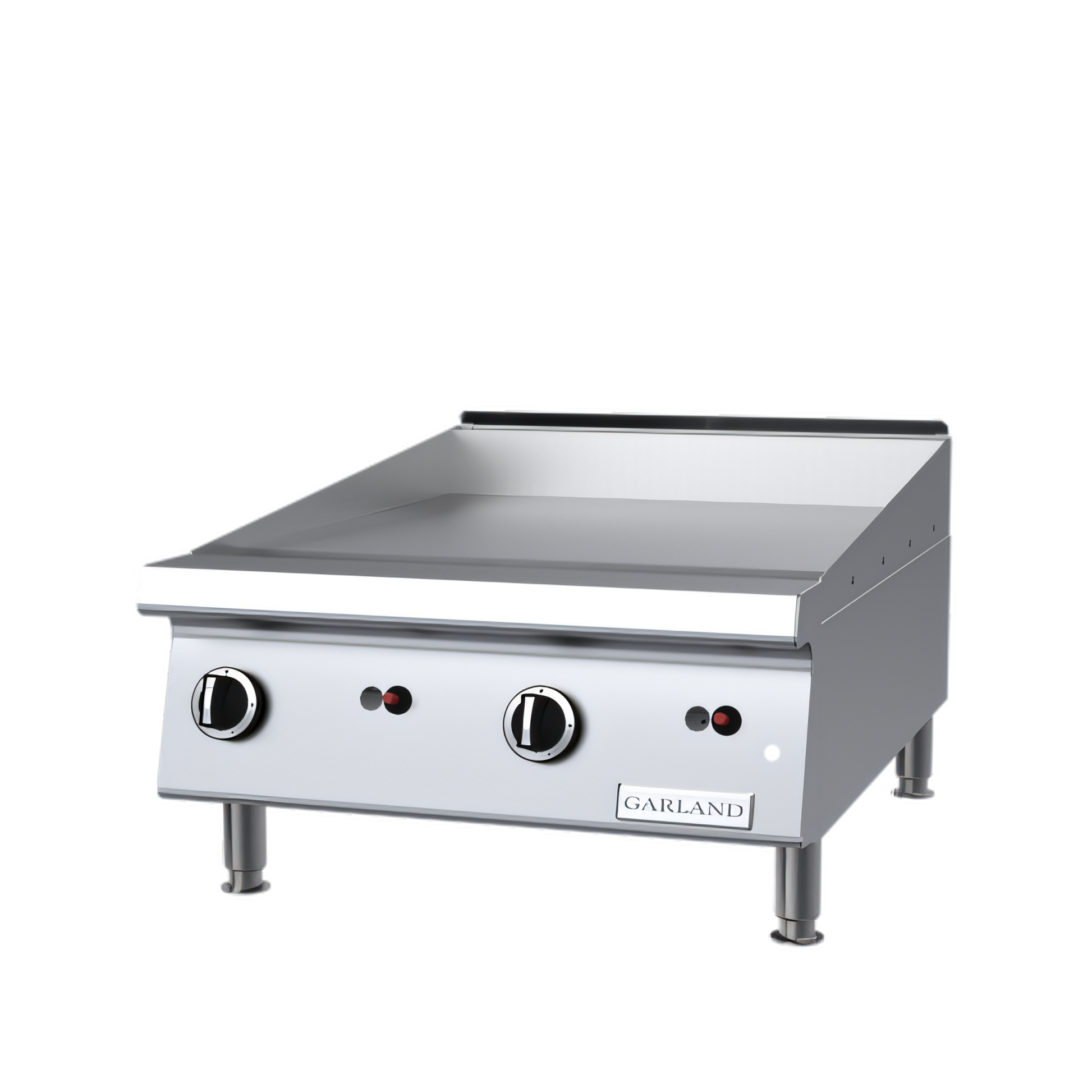

Signature 24" Heavy-Duty Countertop Gas Griddle
Model GTGG24-G24M | Garland Commercial Ranges
Built for demanding, all-day production, the Garland Signature griddle delivers the heat, durability
and easy cleanup busy kitchens need—without taking up full-size range space.
Key advantages
- Compact 23-5/8" (600 mm) width fits any cookline while providing a full 23" plate depth.
- 1" thick polished steel plate stores heat for fast recovery and even searing.
- Two 27,000 BTU “U” burners with manual hi-lo valves (one burner every 12") → 54,000 BTU total.
- Reliable piezo-spark pilot ignition—no external power required.
- 4" wide front grease trough leads to a large stainless grease drawer for hassle-free cleanup.
- All-stainless front, sides & back plus 4" adjustable stainless legs for a professional, easy-wipe finish.
- NSF listed • CSA Star & CSA Flame certified for gas safety.
Performance you can count on
- Plate temperature range: approx. 320 °F – 730 °F (160 °C – 388 °C) using the hi-lo valves.
- Thick plate plus even-heat burner design virtually eliminates hot & cold spots.
- 3/4" NPT rear manifold with built-in regulator ships ready for natural or propane gas (specify when ordering).
At-a-glance specs
| Cooking surface |
23-5/8" W × 23" D (600 × 584 mm) |
| Griddle plate |
1" (25 mm) smooth polished steel |
| Controls |
2 manual hi-lo valves | individual piezo pilot igniters |
| Total input |
54,000 BTU/h (15.8 kW) |
| Burners |
2 × “U” track burners – 27,000 BTU each |
| Grease management |
4" (102 mm) trough · 1.4 gal stainless drawer |
| Overall dimensions |
23-5/8" W × 32" D × 13" H (with legs) |
| Shipping weight |
≈280 lb (127 kg) |
| Construction |
Stainless steel front, sides & back · 4" adjustable legs |
| Certifications |
NSF | CSA Star & Flame |
Optional accessories
- Chrome or grooved griddle plate
- Stainless skirt kit for flush counter mounting
- Stainless equipment stand with shelf & casters
- Electric spark ignition (120 V or 208/240 V)
- Removable condiment rail (1/9 pan cut-outs)
Installation note: This heavy-duty griddle is intended for commercial use only and
must be installed by a licensed gas professional in accordance with local codes.
Need a larger footprint? Signature models are also available in 36", 48", 60" and 72" widths—contact us for details.
