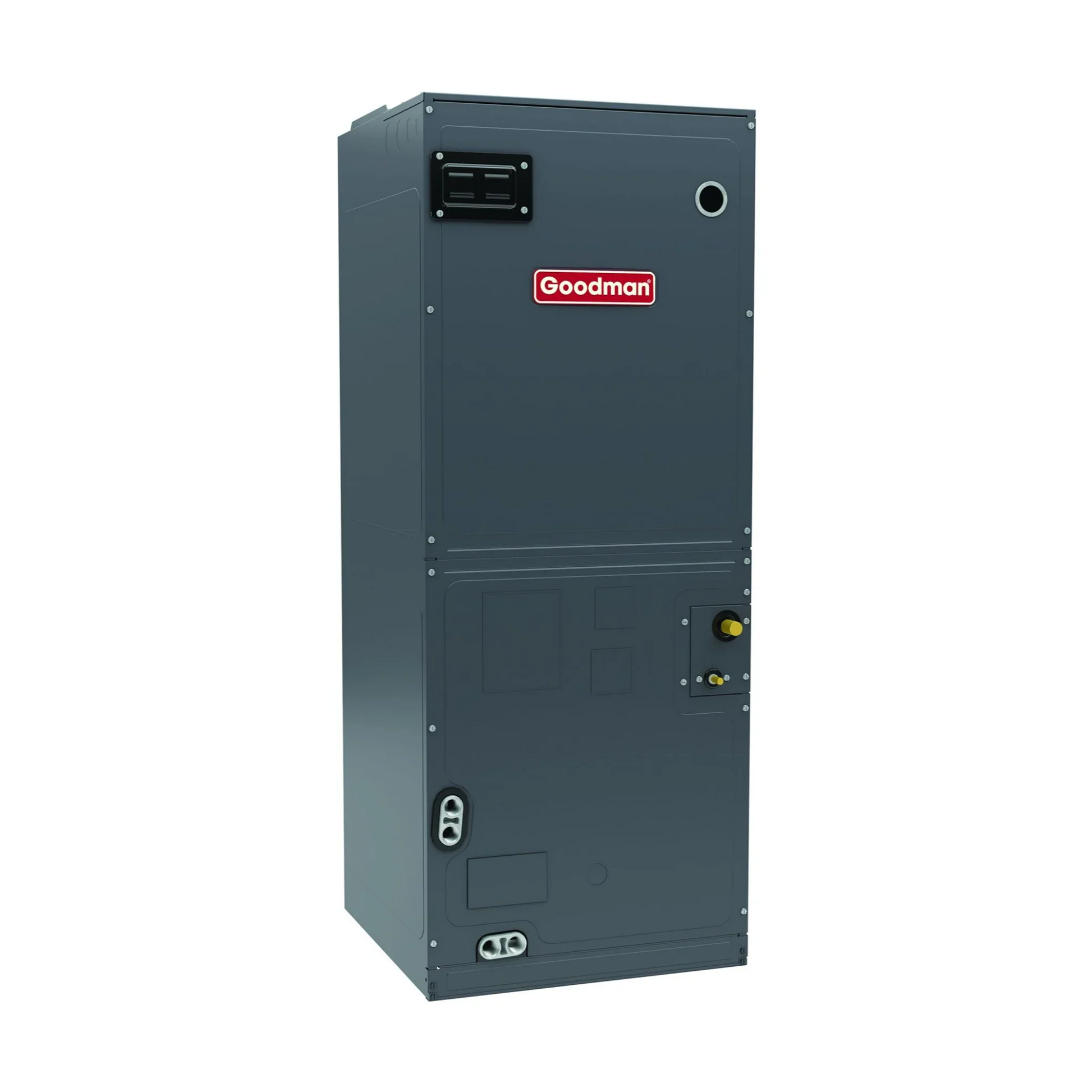

Goodman - 3.5 Ton/42,000 BTU Multi-Position Air Handler With ECM Motor and TXV - R32 - AMST42CU1300

Goodman - 3.5 Ton/42,000 BTU Multi-Position Air Handler With ECM Motor and TXV - R32 - AMST42CU1300

The AMST is all about effective air distribution. It includes an all-aluminum evaporator coil and internal factory-installed valves for cooling and heat pump applications thermal expansion. These advanced components excel at ensuring that your home stays comfortable and your central system runs efficiently. The ECM fan motor is a huge step up from older models as it requires less electricity to operate and provides more consistent air circulation.

Features

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Direct drive, multi-speed ECM blower motor
• All-aluminum evaporator coil
• Coil mounting track for quick repositioning
• Optimized for use with R-32 refrigerant
• Cabinet air leakage less than 2.0% at 1.0 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• Cabinet air leakage less than 1.4% at 0.5 inch Hâ‚‚O when tested in accordance with ASHRAE standard193
• AHRI certified; ETL listed
• Rigid SmartFrame cabinet
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce con- densation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access


Specifications

Manual

• Spec Sheet
• Installation Manual

What our Experts Think

• Modern R‑32 Ready Indoor Air Handler
  The Goodman AMST42CU1300 3.5 Ton Air Handler is built for R‑32 refrigerant split systems, providing improved environmental compliance and efficiency when paired with a matched outdoor unit.

• Precise Cooling with Factory‑Installed TXV
  A built‑in thermostatic expansion valve (TXV) ensures accurate refrigerant metering and better coil performance—helping stabilize superheat, boost efficiency, and reduce load‑related temperature swings.

• Energy‑Smart ECM Blower Motor
  The multi‑speed ECM blower adjusts airflow to match load demands, delivering quieter operation, smoother comfort, and lower electrical use compared with traditional PSC motors.

• Flexible Multi‑Position Installation
  Designed for upflow, downflow, and horizontal orientations, this air handler adapts to most duct layouts—including attic, closet, or crawlspace installs—without complex cabinet modifications.

• Durable, High‑Performance Coil & Cabinet
  The all‑aluminum evaporator coil maximizes heat transfer and resists corrosion, while the SmartFrame cabinet delivers low air leakage and robust structural rigidity.

• Condensation Control & Easy Maintenance
  Features like a thermoplastic drain pan with secondary drains, foil‑faced insulation to reduce cabinet moisture, and tool‑less filter access help prevent water issues and simplify servicing.

Q&A

Q1: What type of HVAC component is this?
A: The Goodman AMST42CU1300 is a multi‑position indoor air handler designed for 3.5 ton split‑system HVAC setups, providing conditioned air distribution and pairing with outdoor heat pumps or AC condensers.

Q2: What motor and airflow technology does it use?
A: It features a direct‑drive, multi‑speed 9‑speed ECM blower motor, which delivers smooth, efficient airflow and quieter operation compared to single‑speed motors.

Q3: Is a TXV included?
A: Yes — it includes factory‑installed thermal expansion valves (TXVs) for efficient refrigerant metering in both cooling and heat pump applications.

Q4: What refrigerant compatibility does it have?
A: This air handler is optimized for R‑32 refrigerant, supporting modern, environmentally friendly HVAC systems.

Q5: What installation orientations are supported?
A: The multi‑position design allows upflow, downflow, left‑horizontal, or right‑horizontal installation, offering flexible placement for various ductwork configurations.

Q6: What type of coil does it use?
A: It uses an all‑aluminum evaporator (AlumaFin) coil for superior heat transfer and corrosion resistance.

Q7: What durability and build features does it offer?
A: The unit has a rigid SmartFrame cabinet with foil‑faced insulation, low‑leakage construction (<2% per ASHRAE standards), thermoplastic drain pan with secondary drains, and tool‑less filter access for easy maintenance and reliable performance.

Maintenance Tips

• Replace or Clean the Air Filter Regularly – Check the indoor air filter every 1–3 months and replace or clean it to maintain proper airflow and keep the evaporator coil clean. A dirty filter restricts airflow and reduces efficiency.

• Inspect & Clean the Evaporator Coil Annually – Dust and debris on the all‑aluminum coil reduce heat transfer. Have a professional clean the coil each year to preserve comfort and efficiency.

• Check Condensate Drain & Pan – Ensure the thermoplastic drain pan and condensate line are clear to prevent water buildup, microbial growth, and overflow issues.

• Monitor Blower Motor Performance – The multi‑speed ECM motor delivers efficient airflow; annually inspect for proper operation and listen for unusual noises that could signal wear.

• Verify Refrigerant Lines & TXV Operation – Make sure R‑32 refrigerant lines are leak‑free and insulated; the factory‑installed TXV should be checked during professional maintenance for correct metering.

• Maintain Unit Clearance & Orientation – Keep surrounding area clear and ensure unit orientation (upflow/downflow/horizontal) is unobstructed so airflow isn’t restricted.

• Annual Professional HVAC Service – A licensed technician should inspect electrical connections, check refrigerant charge, clean coils, and test drain lines each year to maintain peak performance and system longevity.
