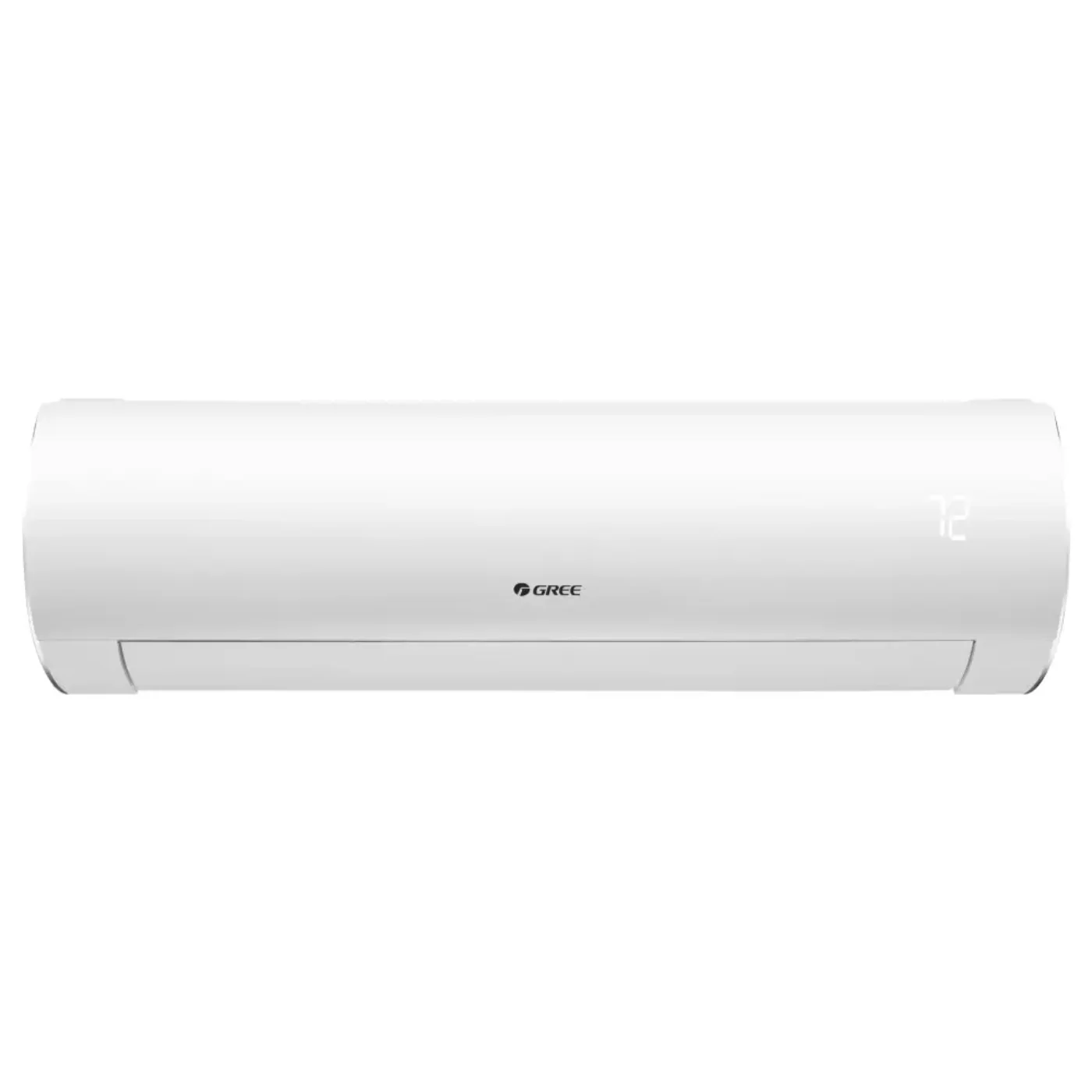

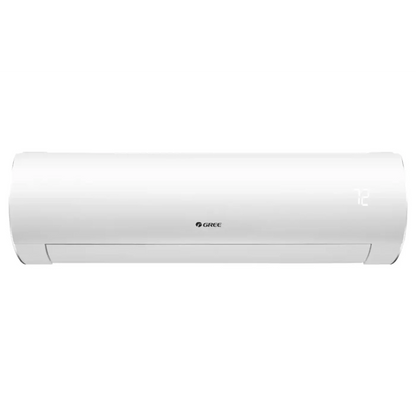

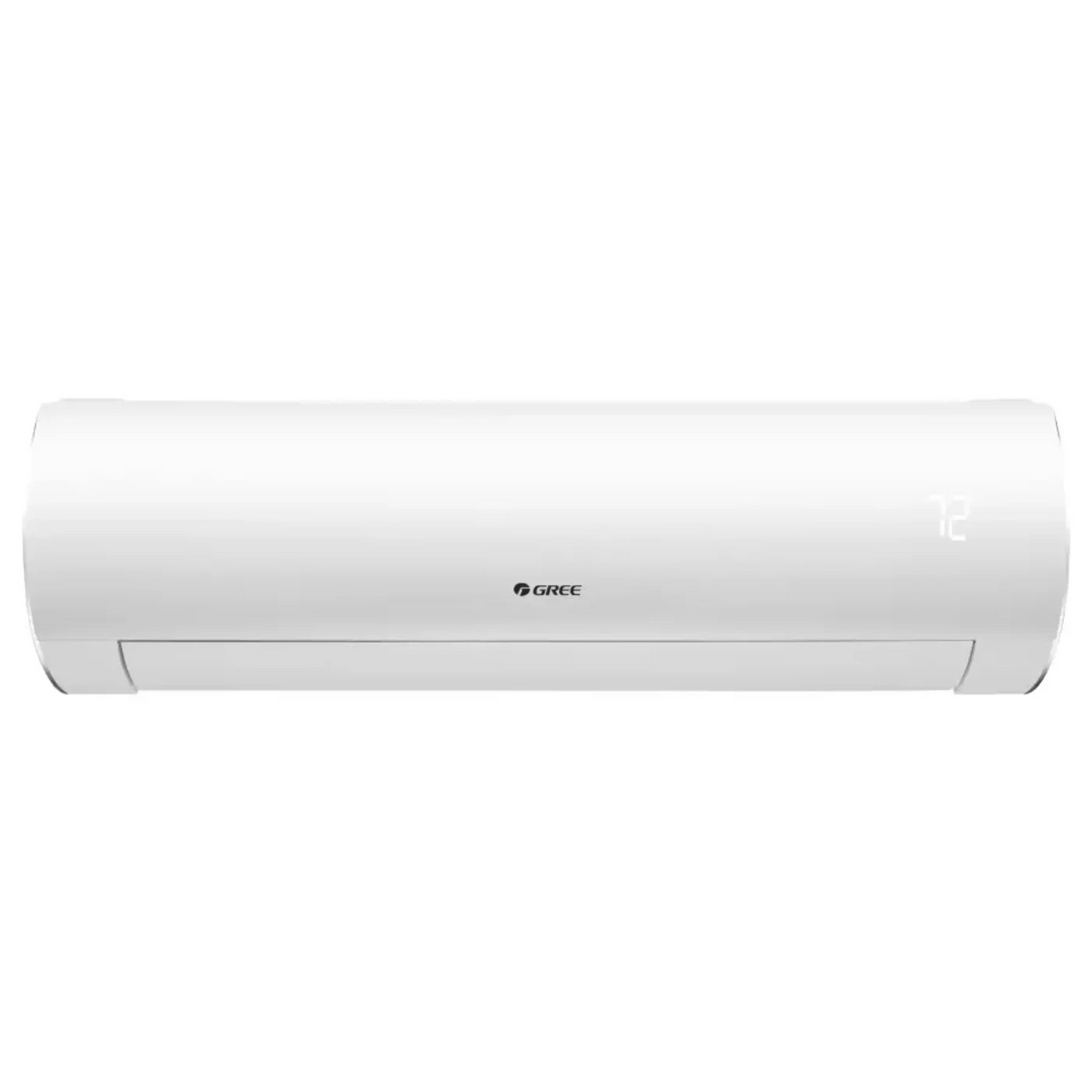

GREE Sapphire 9K BTU Wall Mount Mini-Split Single Zone Air Handler - SAP09HP230V1AH
The Gree Sapphire is an ultra high-efficiency ductless mini split system from Gree. It features a quiet, unobtrusive design with advance performance. The Sapphire is the quietest head for Gree multi zone systems and has wi-fi capability pre-installed. In addition to its quiet operation, it has a subtle appearance designed to blend into any living space. With seven speeds, the unit can provide maximum comfort while still operating quietly. Other smart technology includes an I Feel Mode, which adjusts airflow and temperature for maximum comfort, and a sleep mode which saves energy while automatically adjusting the room's temperature. The Sapphire series also features washable polymeric air filters which improve air quality.
Features
- Heating, Cooling, Dry, and Fan modes
- Polymeric air filters
- I Feel mode
- Privacy lock mode
- Sleep mode
- Fahrenheit °F / Celsius °C
- Handheld IR remote control included
Specifications
| SKU |
SAP09HP230V1AH |
| Brand / Manufacturer |
Gree |
| System Type |
Wall-Mounted Mini-Split Indoor Unit |
| Zone Compatibility |
Single Zone |
| Cooling Capacity |
9,000 BTU |
| Heating Capacity |
9,000 BTU |
| BTU / Tonnage |
9,000 BTU / 0.75 Ton |
| Controller |
Wireless (Included) |
| Maximum Airflow |
206 – 424 CFM |
| Refrigerant |
R410A |
| Electrical Requirements |
208/230V, 1 Phase, 60 Hz |
| Phase |
Single Phase |
| Liquid Line Size |
1/4" |
| Suction Line Size |
1/2" |
| Drain Size |
5/8" |
| Indoor Sound Level |
19 – 45 dB(A) |
| EER |
Not Specified |
| Weight |
36.4 lbs |
| Dimensions (H × W × D) |
12.1" × 39.9" × 8.7" |
| Mini-Split Type |
Wall Mounted |
What our Experts Think
-
Reliable Comfort for Small Spaces: 9,000 BTU capacity delivers efficient heating and cooling for bedrooms, home offices, or small living areas.
-
Quiet Operation: Engineered for low indoor sound levels, making it ideal for sleeping or work environments where peace matters.
-
Smart Control Ready: Wi‑Fi compatibility and intuitive features like sleep mode and timer settings make daily use simple and energy‑efficient.
-
Flexible Airflow: Multiple fan speeds and adjustable airflow help maintain even comfort throughout the room.
-
Compact & Durable Design: Slim wall‑mount profile fits unobtrusively into interiors and is built for corrosion resistance and long service life.
-
Efficient Paired Performance: Works smoothly with the matching outdoor unit to deliver balanced temperature control year‑round.
Q&A
Q: What is this product?
A: A wall-mounted indoor air handler for a single-zone mini-split system, providing cooling and heating to one room.
Q: What capacity does it support?
A: Works with a 9,000 BTU system, suitable for small to mid-sized rooms such as bedrooms, offices, or dens.
Q: What refrigerant does it use?
A: Uses R-410A refrigerant, standard for efficient modern mini-split systems.
Q: How efficient and flexible is it?
A: Part of the Sapphire series, featuring inverter technology, multiple fan speeds, and precise airflow control.
Q: What comfort features are included?
A: Includes Wi-Fi control, sleep mode, I-Feel temperature sensing, privacy lock mode, self-diagnosis, timer, and adjustable fan speeds for customizable comfort.
Q: How quiet is it?
A: Designed for quiet operation, with indoor sound levels ranging approximately 19–45 dB(A) depending on fan speed.
Q: What climates can it handle?
A: Operates efficiently in a wide temperature range, with low-ambient cooling and heating in very cold outdoor conditions.
Q: Where is this air handler best used?
A: Ideal for homes, apartments, offices, guest rooms, and similar spaces needing efficient single-zone year-round comfort.
Q: Why choose this model?
A: Combines compact wall-mount design, energy-efficient inverter technology, quiet operation, smart controls, and reliable single-zone HVAC performance.
Maintenance Tips
-
Clean filters regularly: Remove and wash or vacuum the indoor air filters every 2–4 weeks to maintain airflow, efficiency, and indoor air quality.
-
Wipe exterior surfaces: Use a soft, dry cloth to gently clean the front panel and louvers to reduce dust buildup.
-
Check condensate drainage: Ensure the condensate pan and drain line are clear so water drains properly and avoids leaks or mold growth.
-
Keep airflow unobstructed: Avoid placing furniture, curtains, or objects near the air inlet and outlet to support proper circulation.
-
Avoid harsh cleaners: Do not use abrasive tools or strong chemical cleaners on coils or internal components to prevent damage.
-
Pre‑season check: Before peak cooling/heating seasons, run the system briefly to confirm smooth, quiet operation.
-
Annual professional service: Schedule yearly HVAC maintenance to inspect electrical connections, blower components, and overall system performance.
