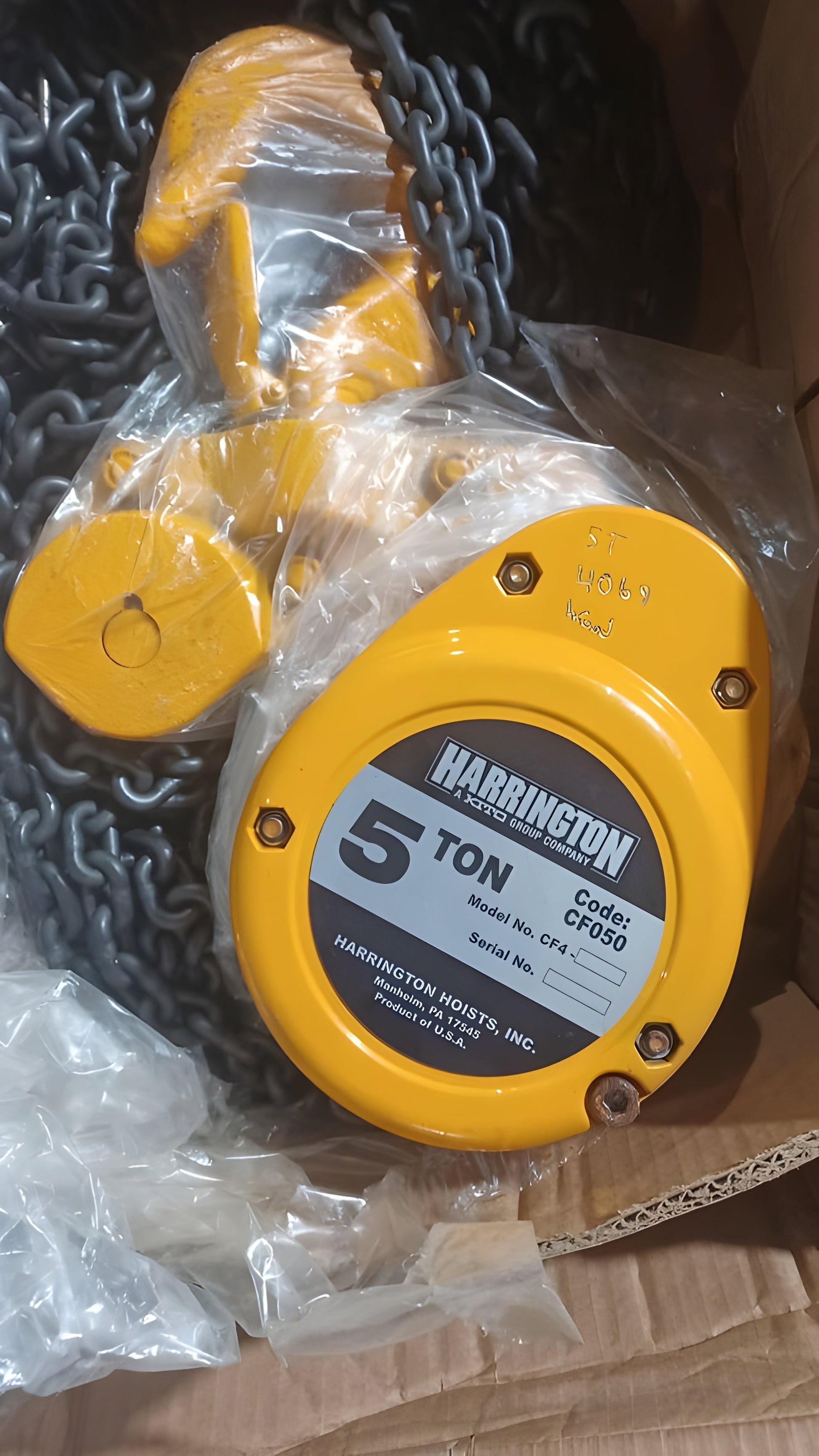

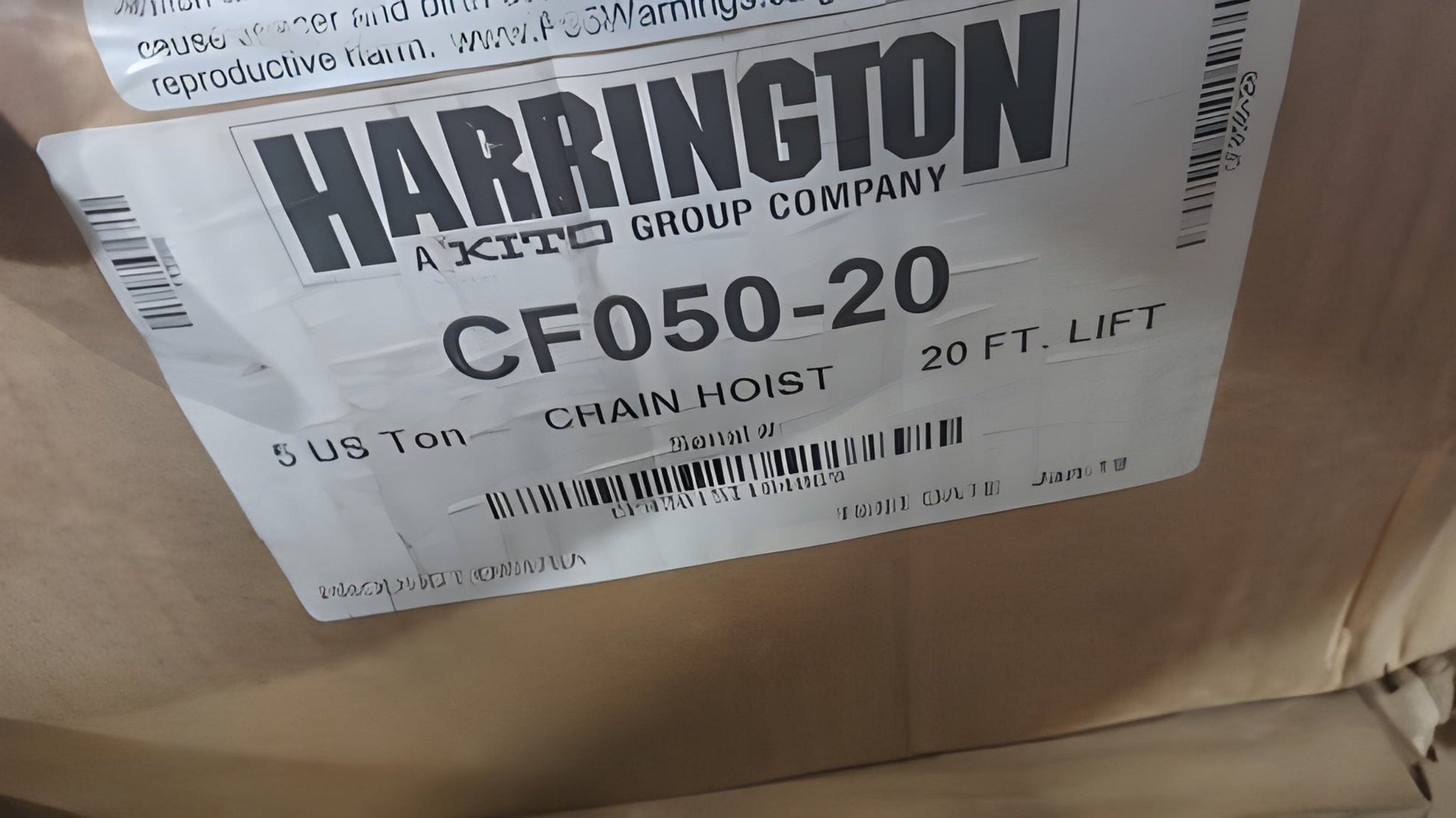

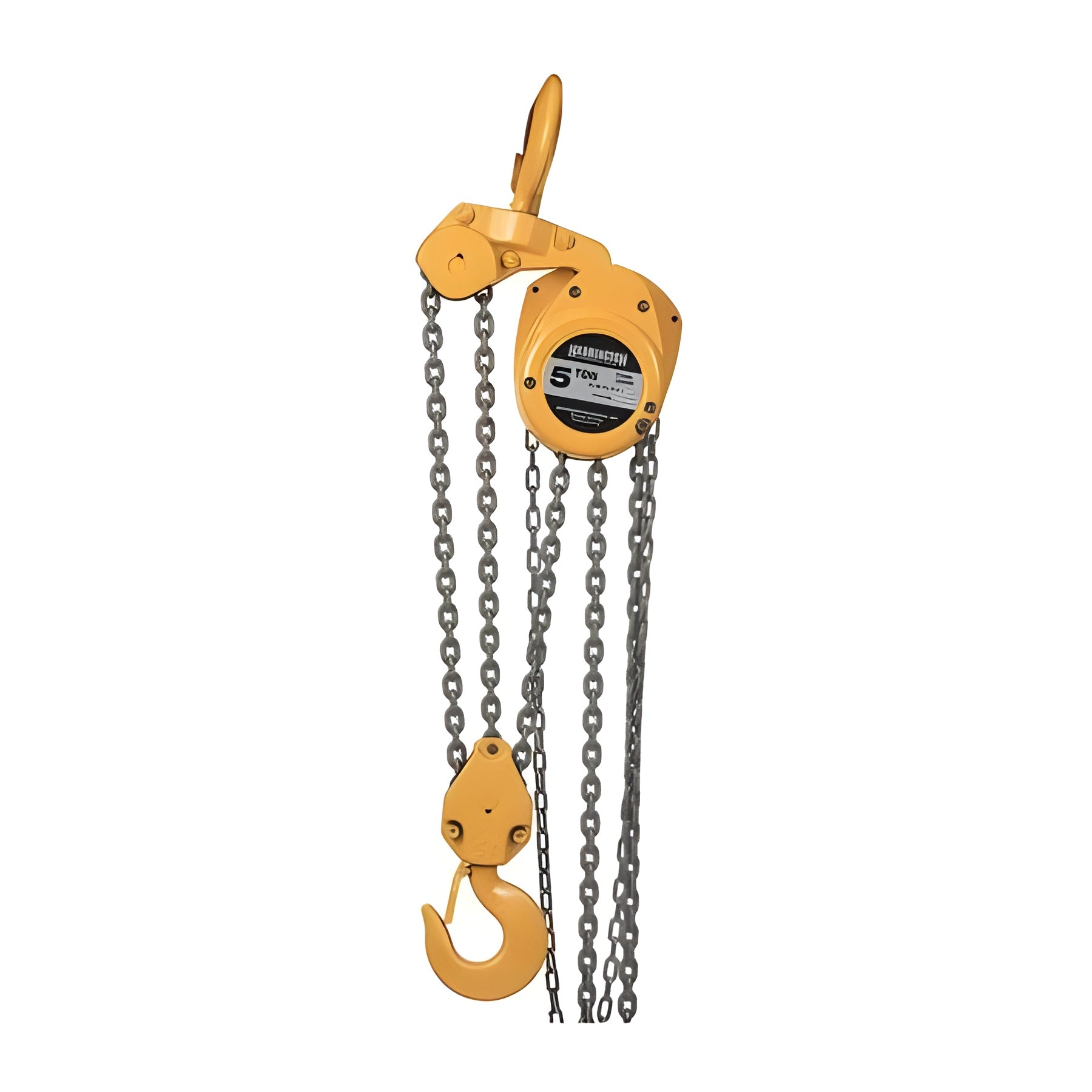

Harrington CF050-20 Hand Chain Hoist with 5 Ton Lift Capacity & 20FT Chain Chain Fall - New Surplus - Harrington CF050-20 New
Harrington CF050-20 5ton 20' lift Hoist - New Surplus
Manual Chain Hoist, Load Capacity 10,000 lb, Hoist Lift 20 ft, Hook Opening 1 13/16 in, Min. Between Hooks 24 3/8 in, Housing Length 24 3/8 in, Housing Width 13 1/2 in, Housing Depth 6 in, Pull to Lift Rated Load 92 lb, Brake Weston Style Brake, Standards ANSI/ASME B30.16, Includes Heat Treated Alloy Steel Hooks, Hoist Overload Protection No, Hoist Mount Hook Mounted - No Trolley
Specifications
| Load Capacity |
10,000 lb |
| Hoist Lift |
20 ft |
| Hoist Mount |
Hook Mounted - No Trolley |
| Hoist Overload Protection |
No |
| Pull to Lift Rated Load |
92 lb |
| Min. Between Hooks |
24 3/8 in |
| Hook Opening |
1 13/16 in |
| Housing Length |
24 3/8 in |
| Housing Width |
13 1/2 in |
| Housing Depth |
6 in |
| Includes |
Heat Treated Alloy Steel Hooks |
| Item |
Manual Chain Hoist |
| Trolley Configuration |
Hook Mounted - No Trolley |
| Brake |
Weston Style Brake |
| Manufacturer's Warranty Length |
2 yr |
| Standards |
ANSI/ASME B30.16 |
What Our Experts Think
-
Lifting Capacity: It has a 5-ton (10,000 lbs) lift capacity, designed for lifting heavier loads with ease.
-
Chain Fall: The hoist offers a 20-foot chain fall, providing the necessary height to lift large items over a considerable distance.
-
Hand Chain Operation: This hoist operates manually with a hand chain, which gives the operator control over lifting and lowering loads without the need for power.
-
New Surplus Condition: It is brand new surplus, meaning the hoist has never been used but may have been stored as overstock.
-
Durability: Designed for industrial applications, this hoist is made to withstand tough lifting conditions and is built to last in demanding environments.
Q&A
-
Lifting Capacity: 5 Ton (10,000 lbs).
-
Chain Fall: 20 feet.
-
Condition: New Surplus (unused and in excellent condition).
-
Manual Operation: Powered by hand chain for precise control.
-
Durable Design: Built to withstand tough industrial environments.
-
Compact: Ideal for areas with limited space for larger hoists.
-
Application: Suitable for heavy-duty lifting applications such as construction, warehouse operations, and lifting machinery or large components.
Maintenance Tips
-
Inspect Regularly: Check the chain, hooks, and gears for wear or damage before use.
-
Lubricate Chain: Apply a light coat of hoist-grade lubricant to the load chain for smooth operation.
-
Clean Thoroughly: Remove dust, dirt, and grease from the hoist to ensure smooth functioning.
-
Test Brake and Lift: Ensure the brake system works correctly and that the hoist lifts smoothly.
-
Store Properly: Store the hoist in a dry, clean environment to prevent rust and damage.
