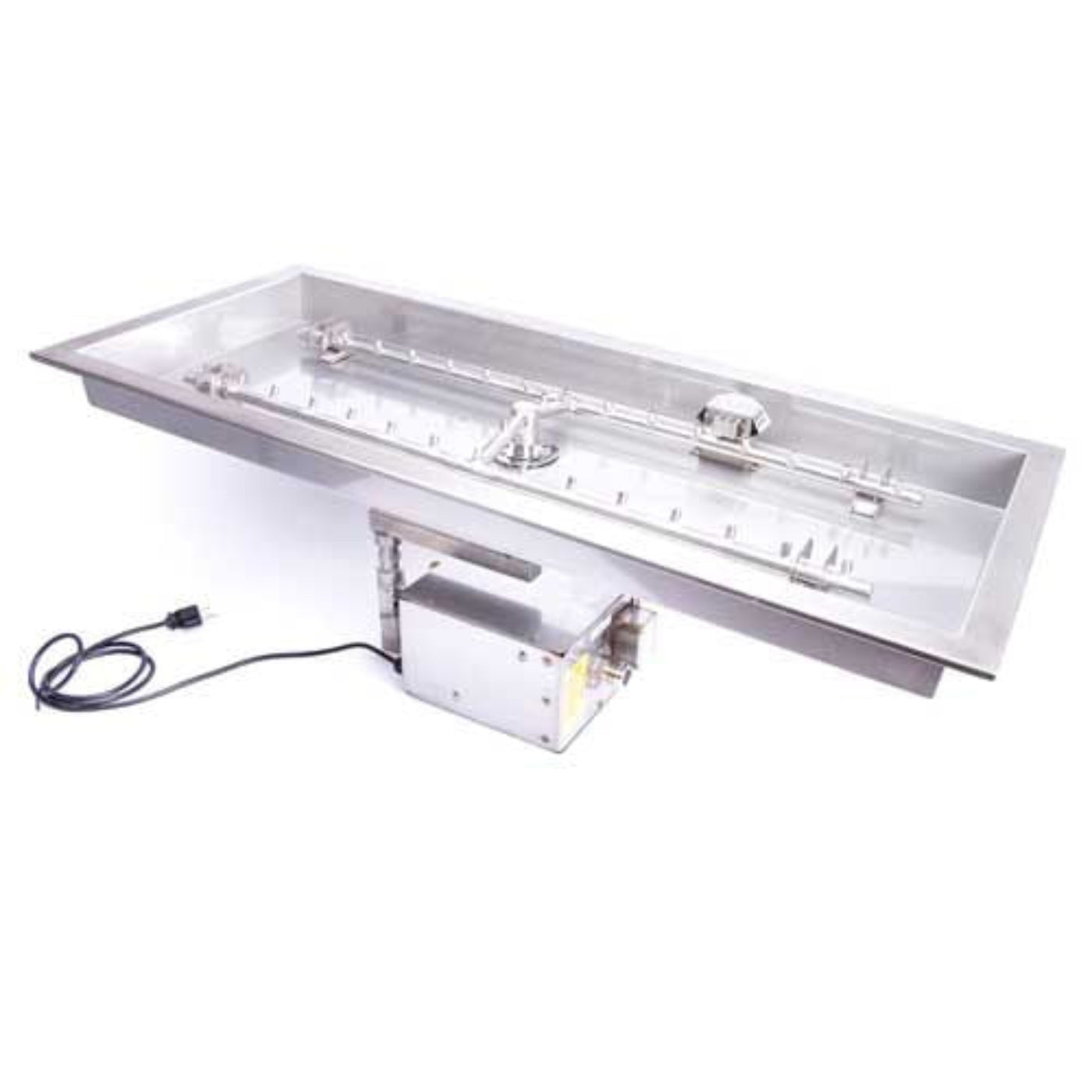

HPC 78″ x 16″ Torpedo H-Burner Hot Surface Electronic Ignition System - TOR-78x16SSEI-H-120VAC-NG
How Our Electronic Ignition System Works
-
Start-Up: This is done by use of a wall switch or remote control. The system completes initial safety checks and starts the pilot gas flow when the ON command is received. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
-
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
-
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.
Features:
- Fully Assembled- ready to install. Control components are protected within valve box.
- Start via wall switch, remote or whole house system; auto re-light if flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- On/Off models: Use optional wall switch or Remote Control available.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- 24vac Option: Typically used poolside or with other lower voltage requirements.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff.
- CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
- Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.
On/Off Models: Includes the convenience and safety features- optional remote control available.
High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
What Our Experts Think
-
Professional-grade 78″ x 16″ H-Burner with hot surface electronic ignition.
-
Provides even, adjustable flames for linear fire pits.
-
Durable construction for residential or commercial outdoor use.
-
Designed for efficiency, safety, and easy operation.
-
Ideal for modern outdoor fire features and entertaining spaces.
Q&A
-
Q: What fuel does it use?
A: Natural gas (NG) connection required.
-
Q: Is it compatible with standard fire pits?
A: Designed for linear H-burner fire pit setups; verify dimensions before installation.
-
Q: Can I install it myself?
A: Professional installation recommended; hot surface electronic ignition simplifies operation.
Maintenance Tips
-
Inspect burner and gas connections regularly for leaks.
-
Clean burner ports and surfaces to maintain flame performance.
-
Cover or protect during harsh weather to prolong lifespan.
-
Avoid abrasive cleaners or harsh chemicals.
-
Follow manufacturer guidelines for safe operation and ignition system care.
