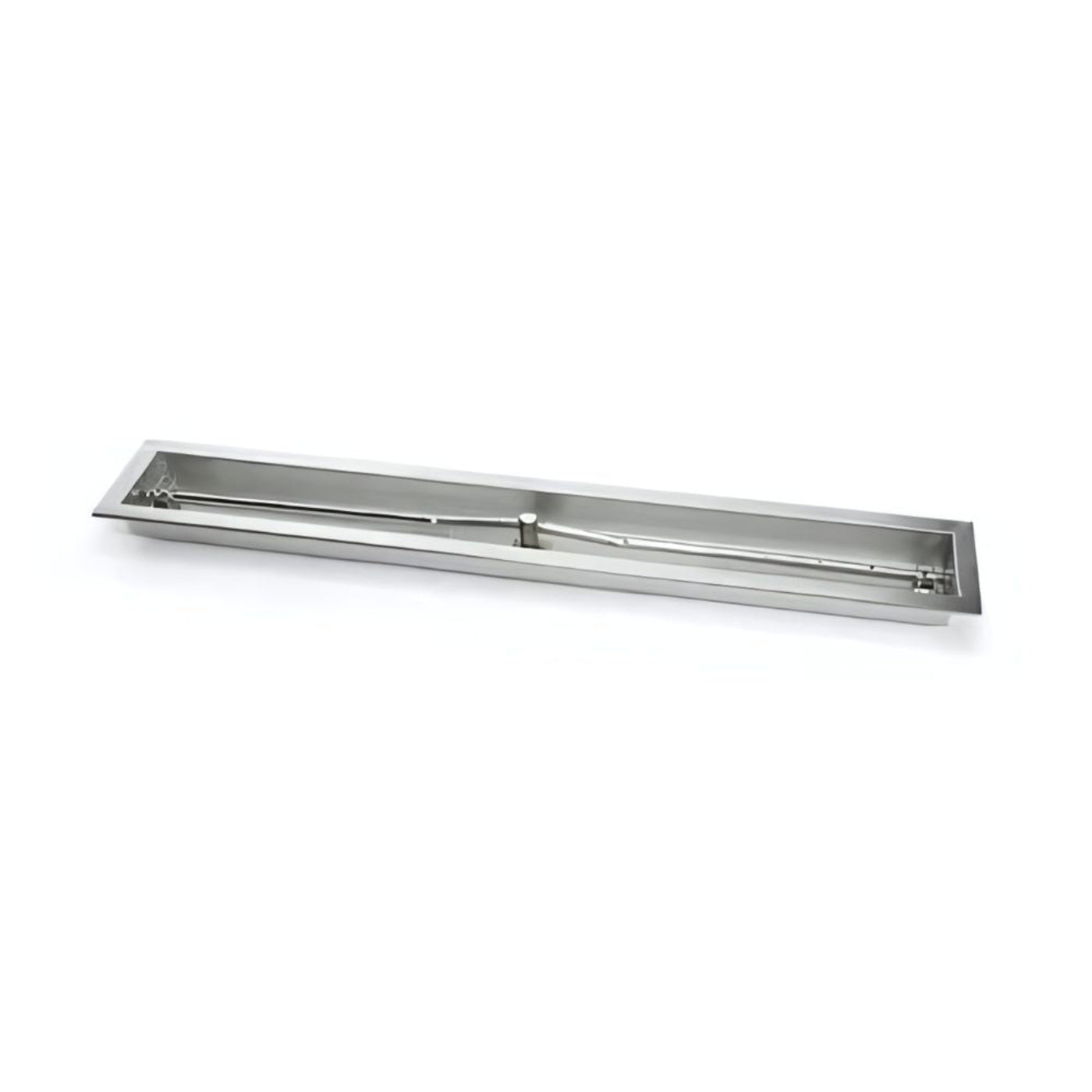

HPC Linear Trough In Ground Match Lit Fire Pit Kit

Introducing Our In Ground Match Lit Kits

The match lit fire pit insert kit includes everything you need to put together an in-ground or above match lit pit. Includes burner, manual valve and fittings.

We offer a specific fire pit kit designed for LP applications. The LP kit also includes a properly sized air mixer. Please follow instructions during installation – Media type and amount is critical for safe operation.

These burners are exclusively made by HPC – the unique V-shaped pan design saves on media vs. a standard rectangle bowl pan found at other manufacturers.

• The T-burner and pan are constructed with #304 SS
• 24”, 36”, & 48” pans are made with 18g SS
• Larger 60”, 72”, & 96” are made of 16g SS
• All fire kits include: trough pan, T-burner, burner brackets, & center bracket

Warping of pan lip while HOT is common – could cause lip to not sit flush on surface. Please recess lip below enclosure top to hide any warping.

Burners

• FPS/24TRGH Kit / 24” / 18g
• FPS/36TRGH Kit / 36” / 18g
• FPS/48TRGH Kit / 48” / 18g
• FPS/60TRGH Kit / 60” / 16g
• FPS/72TRGH Kit / 72” / 16g
• FPS/24TRGH-LP / 10~12” / 50k
• FPS/36TRGH-LP / 10~12”  / 75k
• FPS/48TRGH-LP / 10~12” / 100k
• FPS/60TRGH-LP / 10~12” / 125k
• FPS/72TRGH-LP / 10~12” / 150k
• FPS/96TRGH-LP/ 10-12″ / 200k
