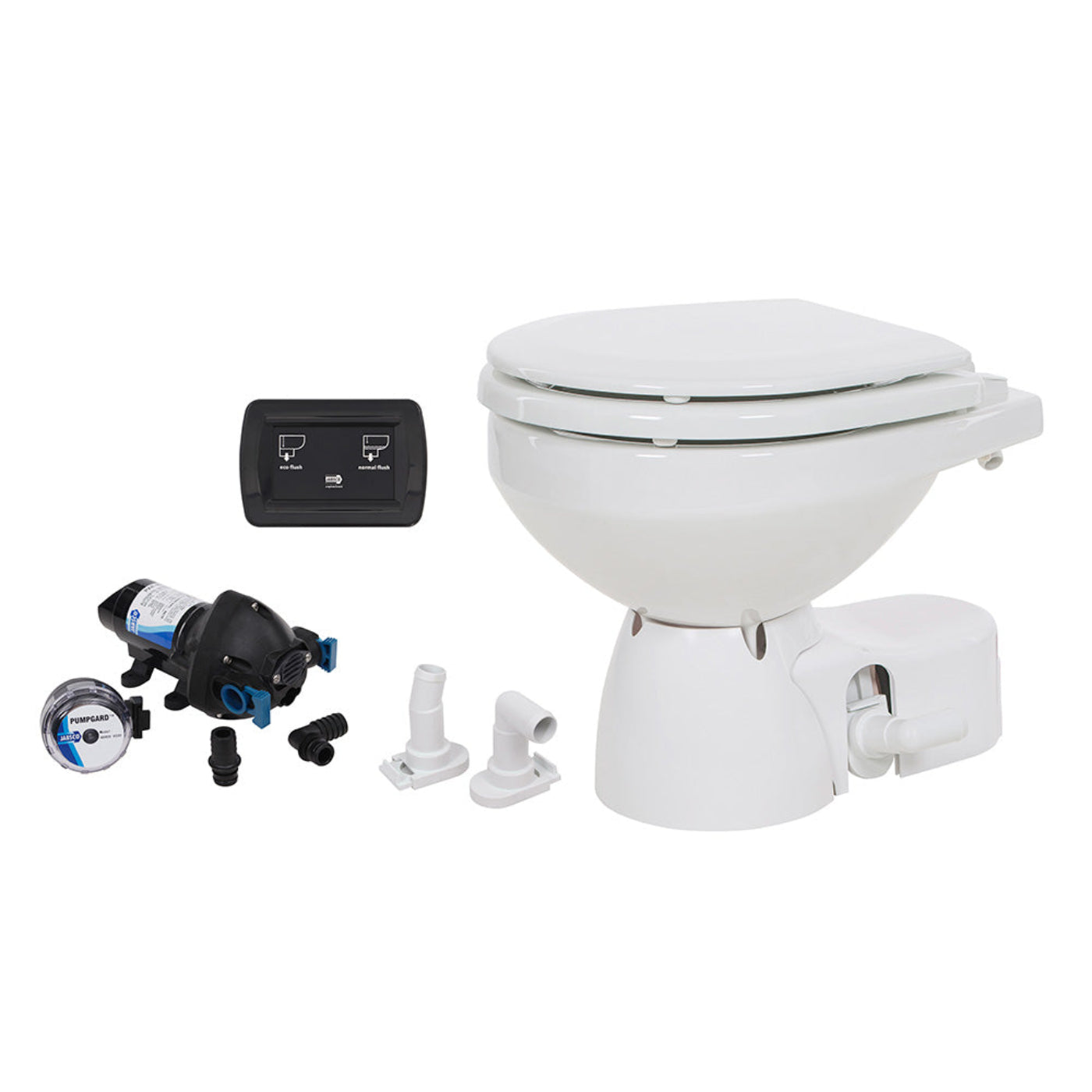

Jabsco Quiet Flush E2 Raw Water Toilet Compact Bowl - 12V - Soft Close Lid - CWR-102563

Jabsco Quiet Flush E2 Raw Water Toilet Compact Bowl - 12V - Soft Close Lid  - CWR-102563

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy to Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.

Features

• The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90-degree discharge port for easy install

• Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
• C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service time

• Stylish, low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-liter (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill ‘empty’ feature to leave bowl dry when the boat is in motion

Specifications

What our Experts Think

• Advanced Marine Flush System: Intuitive touch‑sensor control panel with eco, full, and empty flush options gives precise control and uses minimal water.

• Compact & Space‑Smart: Compact bowl design fits tight head spaces without sacrificing comfort or performance.

• Quick‑Release Servicing: Tool‑free C‑clip quick‑release system lets you access the macerator pump and discharge hose fast, saving time on maintenance.

• Flexible Installation: Rotatable base and discharge pump plus straight or 90° port options accommodate a variety of plumbing layouts.

• Raw Water Operation: Designed to flush with sea, river, or lake water for dependable performance in marine environments.

• Marine‑Ready Build: Compact, corrosion‑resistant construction is engineered for boat sanitation systems with reliable long‑term use.

Q&A

Q1: What type of toilet is this?
A: A marine electric toilet with a compact bowl, designed for raw water flushing on boats and yachts.

Q2: What voltage does it use?
A: Operates on 12 V DC, suitable for standard marine electrical systems.

Q3: What are its key features?
A: Intuitive touch sensor panel with multiple flush options (eco, full, empty), quick‑release service system, and flexible installation with rotatable base and pump orientation.

Q4: How efficient is the flushing system?
A: Offers a water‑saving eco mode using as little as 1 liter per flush, with “no spill” emptying when under way.

Q5: Is it easy to install in tight spaces?
A: Yes — the base and discharge pump rotate, and both straight and 90° discharge ports are supported.

Q6: How easy is maintenance?
A: The quick‑release C‑Clip design allows tool‑free access to the macerator pump and discharge hose for fast servicing.

Q7: What are its dimensions and weight?
A: About 14″ H × 13.9″ W × 16.3″ D, weighing approx. 34.2 lbs (15.5 kg) — compact for space‑constrained boats.

Maintenance Tips

• Regular Cleaning: Wipe the bowl and exterior with a soft cloth and non-abrasive cleaner; avoid harsh chemicals that can damage seals.

• Hose & Fitting Inspection: Check hoses, clamps, and connections for leaks, wear, or corrosion; replace as needed.

• Pump & Macerator Care: Flush periodically with fresh water to prevent buildup and odors.

• Electrical Check: Ensure wiring and terminals are secure and free of corrosion.

• Operational Test: Run the toilet regularly to verify proper flushing and smooth lid function.
