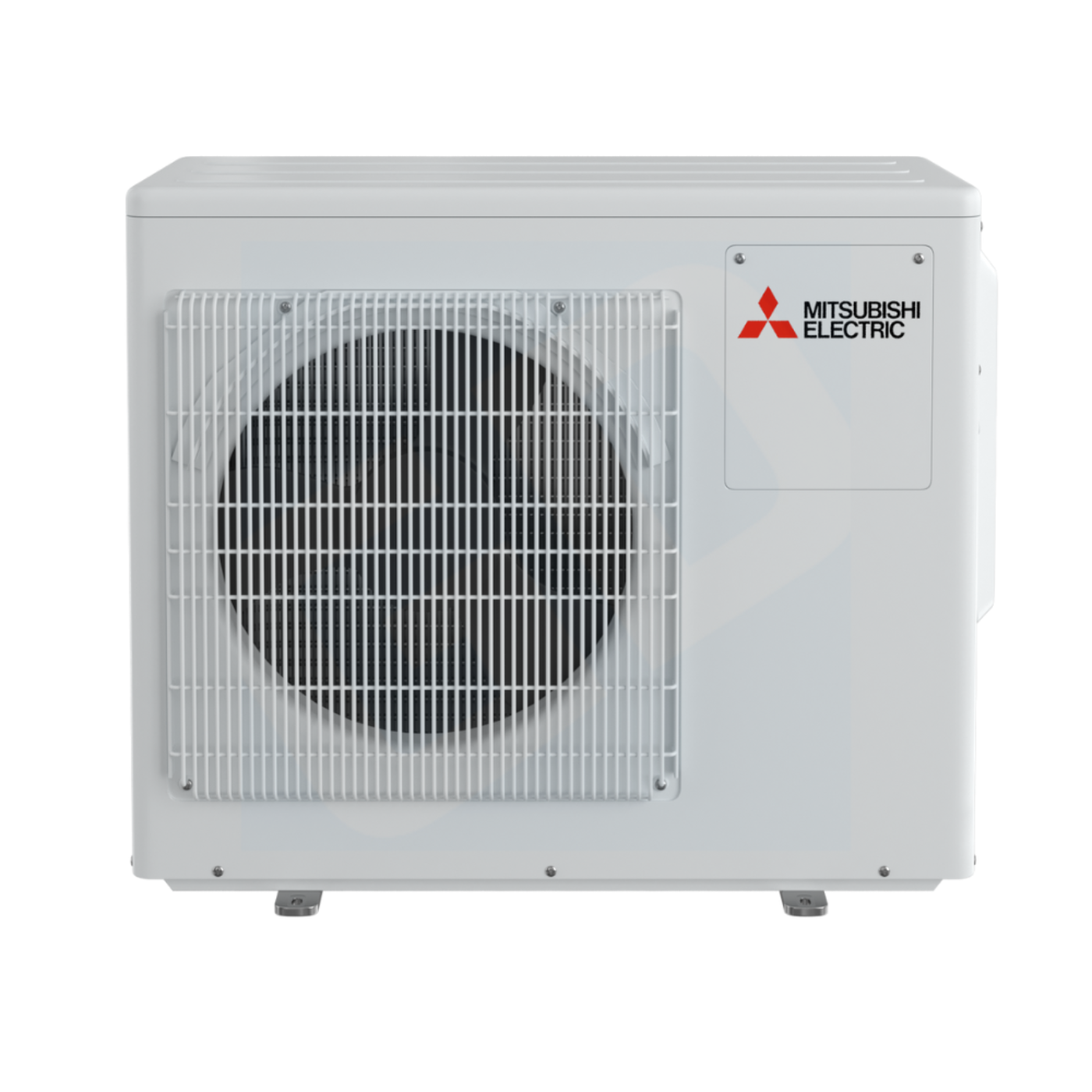

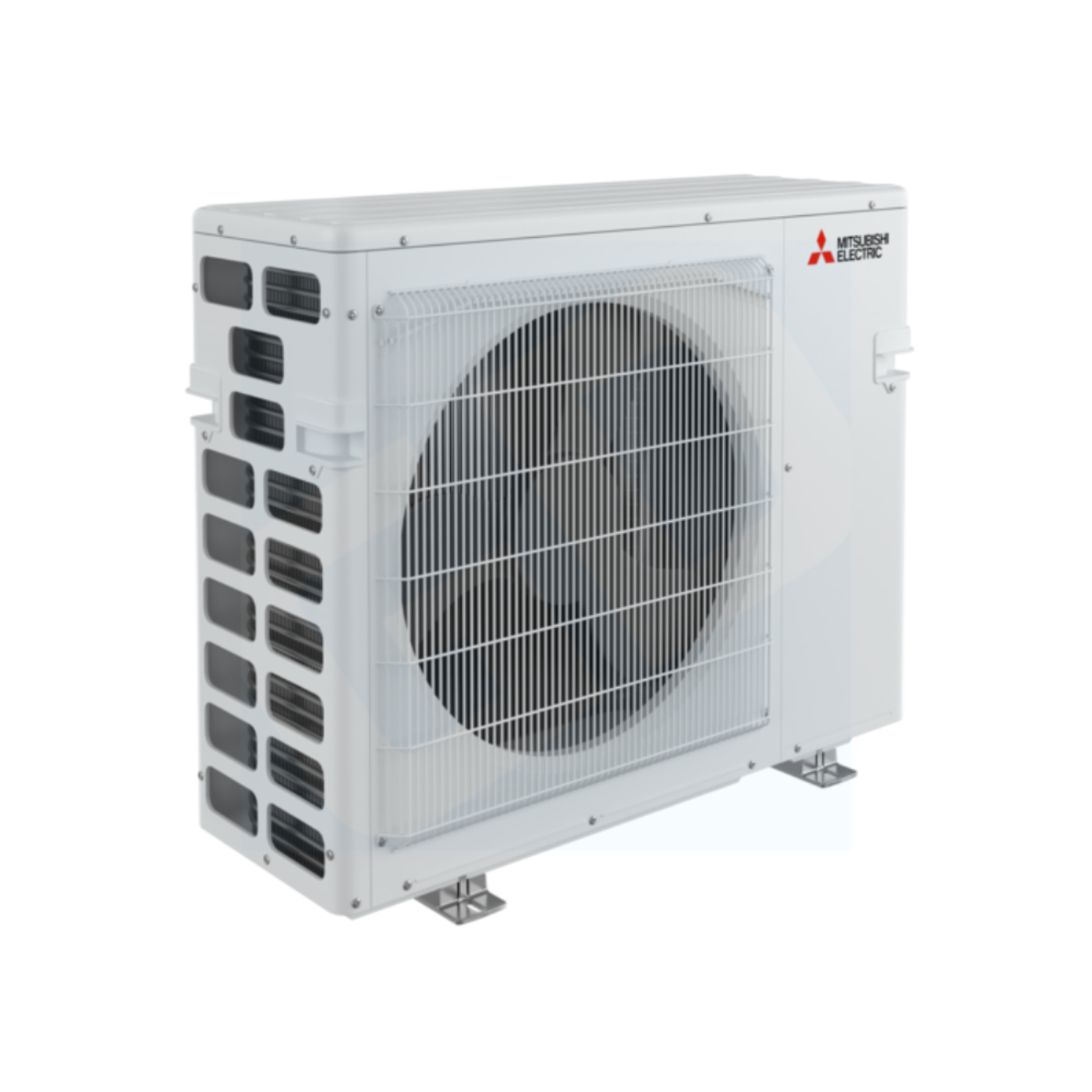

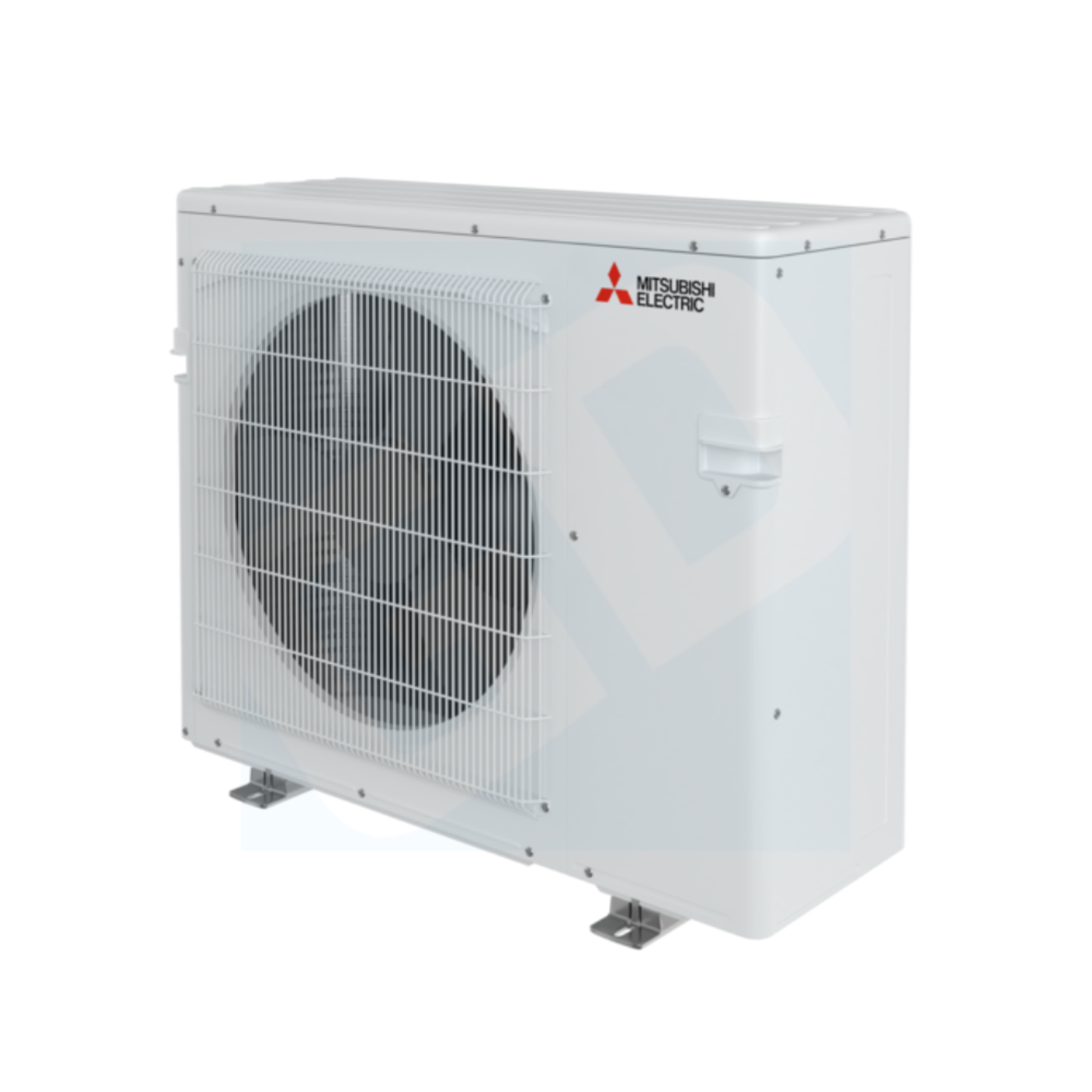

Mitsubishi MXZ-2D20NL 20,000 BTU 2-Zone Heat Pump Unit - R454B - MXZ2D20NL

Mitsubishi MXZ-2D20NL 20,000 BTU 2-Zone Heat Pump Unit - R454B - MXZ2D20NL

 a compact, efficient, and versatile heat pump designed to deliver year-round comfort for up to two zones. Built with Mitsubishi’s advanced INVERTER technology, this unit ensures precise temperature control, energy efficiency, and quiet operation—making it a great choice for small multi-room applications.

With a maximum cooling capacity of 22,000 BTU/h and a maximum heating capacity of 25,800 BTU/h at 47°F, the MXZ-2D20NL performs reliably across a range of climates. It maintains solid heating output even in colder conditions—delivering 16,600 BTU/h at 17°F and 13,700 BTU/h at 5°F. Efficiency ratings reach SEER2 up to 20, HSPF2 up to 10, and COP values up to 3.92 at 47°F, with ENERGY STAR certification for non-ducted and mixed configurations.

Designed for longevity, the MXZ-2D20NL features a Blue Fin anti-corrosion coating on the heat exchanger, tested to withstand 2,000 hours under ASTM B117 standards. The twin rotary INVERTER-driven compressor (model SRB140FQHM1T) provides smooth, efficient modulation of capacity, while keeping noise levels low—51 dB(A) in cooling and 55 dB(A) in heating. The modern Munsell 3.0Y 7.8/1.1 finish blends into most exteriors, and an optional base pan heater can be added for enhanced winter performance.

This model supports two indoor units, with total piping lengths up to 164 ft and a maximum height difference of 49 ft between outdoor and indoor units. It comes pre-charged with 4 lbs. 7 oz. of R454B refrigerant for quick, efficient installation.

Safety features include compressor overcurrent detection, compressor thermal protection, fan motor overheating/voltage safeguards, and high-pressure protection. With a compact footprint of 33-1/16" W x 13" D x 27-15/16" H and a weight of just 119 lbs, the MXZ-2D20NL offers dependable Mitsubishi performance in a space-saving design—ideal for smaller multi-zone heating and cooling needs.

Specifications

What our Experts Think

• Balanced Heating & Cooling for Medium‑Large Spaces: The Mitsubishi MSZ‑GX24NL‑U1 24,000 BTU Wall‑Mounted Indoor Unit delivers strong cooling and heating performance (≈22,400 BTU cooling, ≈27,600 BTU heating) suitable for living rooms, open floor areas, and larger bedrooms when paired with a compatible outdoor unit.

• Sleek Wall‑Mounted Profile: Its slim, modern design fits seamlessly into interiors while maximizing floor space — a versatile choice for residential and light commercial zones.

• Quiet, Zoned Comfort: Whisper‑quiet operation and adjustable fan speeds offer balanced airflow with minimal noise disruption, enhancing comfort in daily use.

• Advanced Airflow & Modes: Features like Econo Cool (energy‑saving airflow optimization), Smart Dry Mode for humidity control, and Powerful Mode for rapid temperature adjustment adapt performance to your lifestyle.

• Improved Indoor Air Quality: Built‑in Dual Barrier Coating and electrostatic enzyme filtration help reduce dust, smoke, and oil buildup, making maintenance easier and air cleaner.

• Smart Controls & Connectivity: Works with the included back‑lit remote, and supports Wi‑Fi control via Mitsubishi Comfort app or wired/wireless thermostats for convenient scheduling and operation.

• Energy Efficiency & R‑454B Refrigerant: Designed around R‑454B refrigerant with a solid SEER2 rating (≈21.5), it balances performance with reduced environmental impact and operating costs.

• Expert Verdict: A versatile indoor unit that combines efficient performance, quiet comfort, smart airflow control, and cleaner air features — ideal for year‑round HVAC needs in medium to large living

Q&A

Q: What type of unit is the MSZ‑GX24NL‑U1?
A: It’s a wall‑mounted ductless mini‑split indoor air handler designed to be paired with a compatible Mitsubishi outdoor heat pump for year‑round heating and cooling.

Q: What are its capacity ratings?
A: The unit has a nominal 24,000 BTU cooling capacity (approximately 22,400 BTU rated) and a heating capacity up to ~27,600 BTU when matched with the proper outdoor unit.

Q: What refrigerant type does it use?
A: It uses R‑454B refrigerant, a lower‑GWP, modern refrigerant for improved efficiency and reduced environmental impact.

Q: Is Wi‑Fi control supported?
A: Yes — it includes built‑in Wi‑Fi, enabling remote control via the Mitsubishi Comfort app for temperature, fan speeds, modes, and schedules.

Q: How is airflow and comfort managed?
A: The unit offers multiple fan speed settings (Low, Medium, High, Powerful, Auto) and Econo Cool mode to adjust airflow efficiently while maintaining comfort.

Q: Does it include filtration features?
A: Yes — a Dual Barrier Coating and electrostatic enzyme filter help reduce dust, smoke, and other contaminants for better indoor air quality.

Q: What size rooms is it suitable for?
A: It’s ideal for large living spaces, family rooms, offices, or larger zones up to ~1,000 sq ft when correctly matched with outdoor capacity.

Q: How quiet is the unit?
A: It operates quietly with sound levels typically between ~30–53 dB(A) depending on fan speed.

Q: What are its electrical specs?
A: Works on 208–230 V, single‑phase, 60 Hz with standard mini‑split electrical characteristics.

Q: What’s included in the package?
A: Includes the MSZ‑GX24NL‑U1 indoor unit and a hand‑held remote controller (outdoor unit and line sets sold separately).

Maintenance Tips

• Clean Air Filters Regularly: Remove and wash the indoor filters every 2–4 weeks (or more often in dusty environments) to maintain strong airflow and system efficiency. Dirty filters restrict performance and reduce comfort.

• Keep Intake & Discharge Clear: Ensure that furniture, curtains, or décor don’t obstruct airflow vents — unobstructed airflow maximizes cooling/heating efficiency.

• Dust Exterior Surfaces: Wipe the front panel and grille gently with a soft cloth to prevent dust buildup that can reduce airflow and performance.

• Inspect Drain Path: Check the condensate drain path (if accessible) for blockages to prevent moisture buildup and potential odors.

• Annual Professional Service: Schedule a yearly HVAC check to clean internal coils, verify refrigerant and electrical connections, and ensure safe, efficient operation.

• Use Smart & Energy Modes: Utilize energy‑saving and humidity control modes (like Econo Cool and dry mode) to reduce load and improve comfort while minimizing power consumption.

• Wi‑Fi & App Maintenance: If equipped with built‑in Wi‑Fi, keep your control app updated and monitor performance data to catch issues early.
