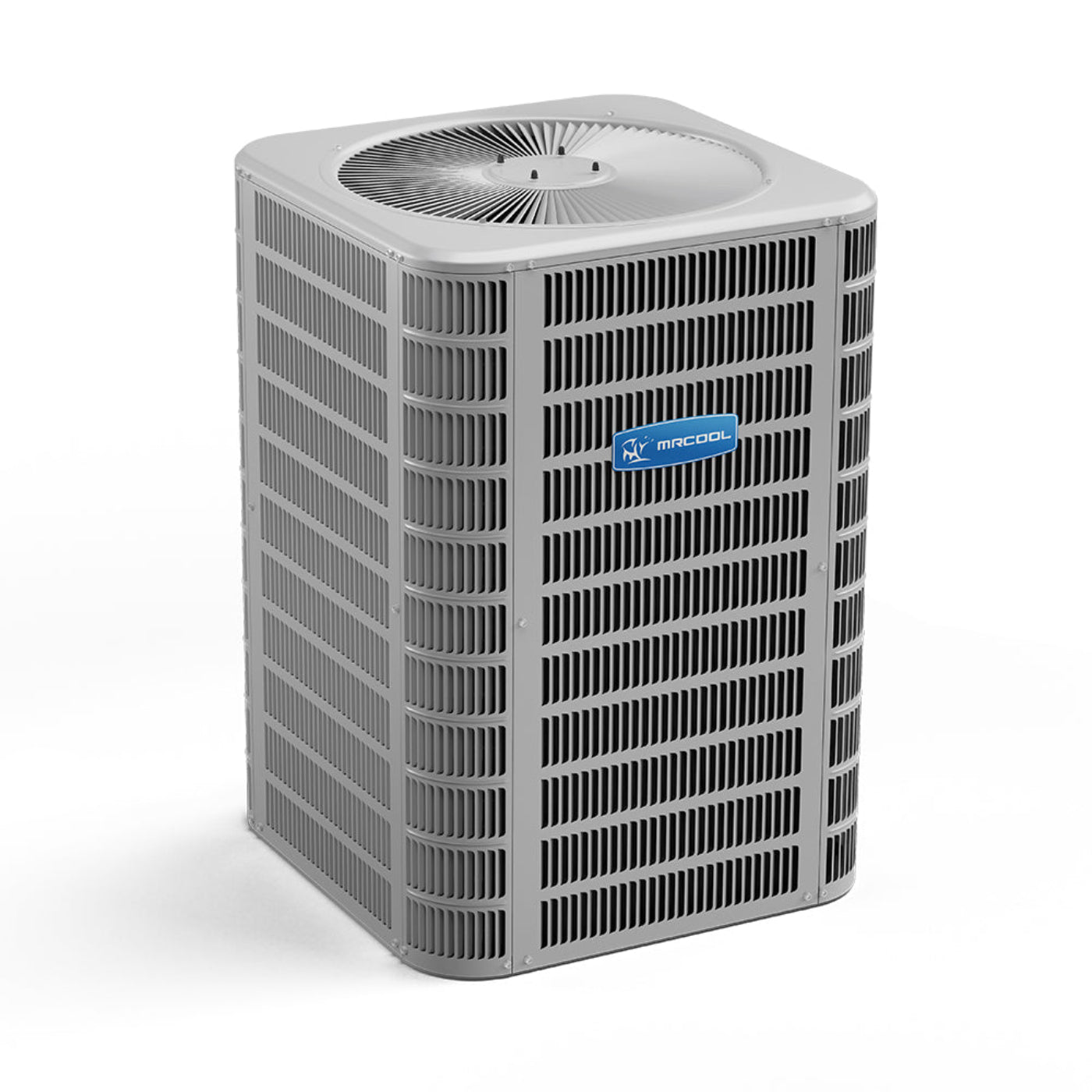

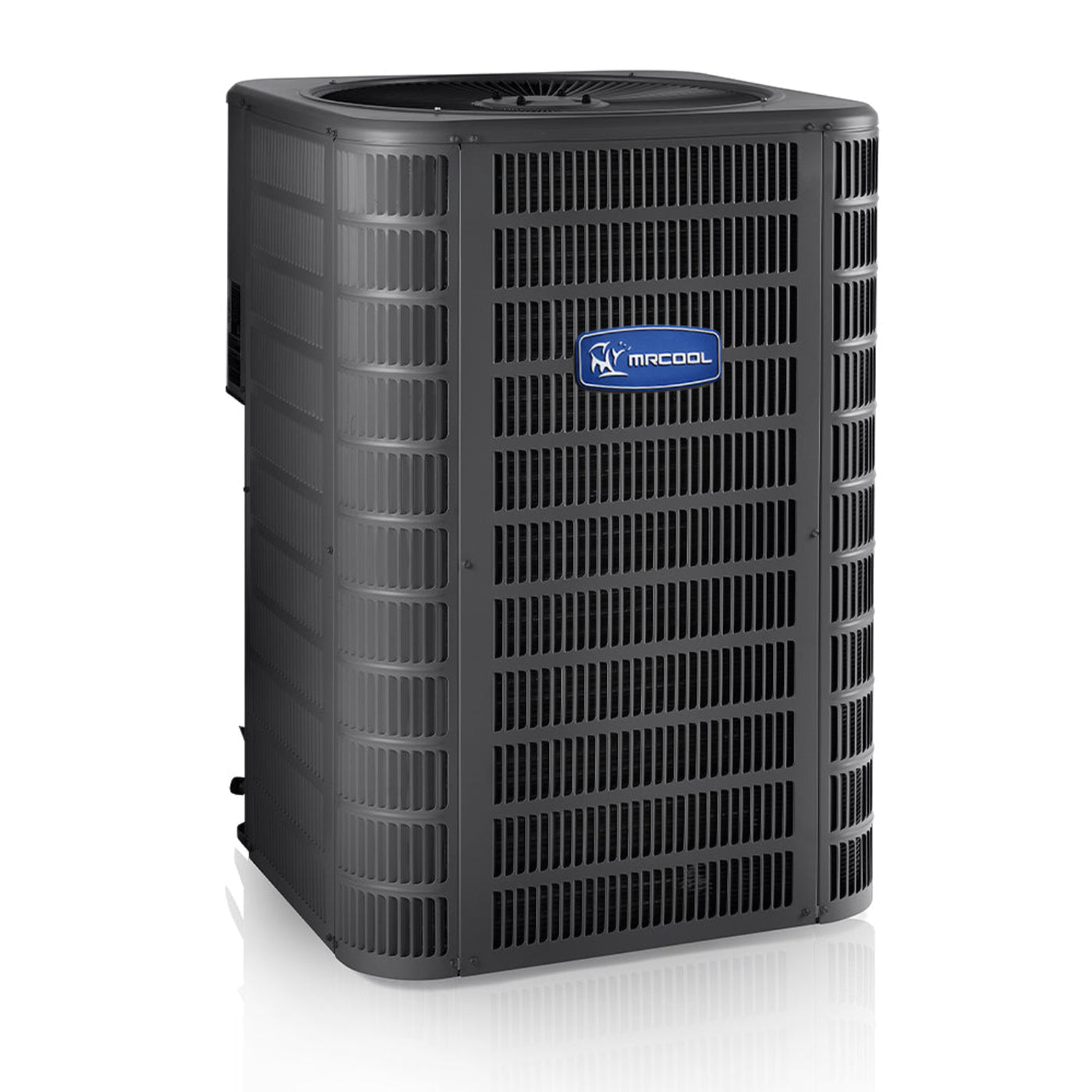

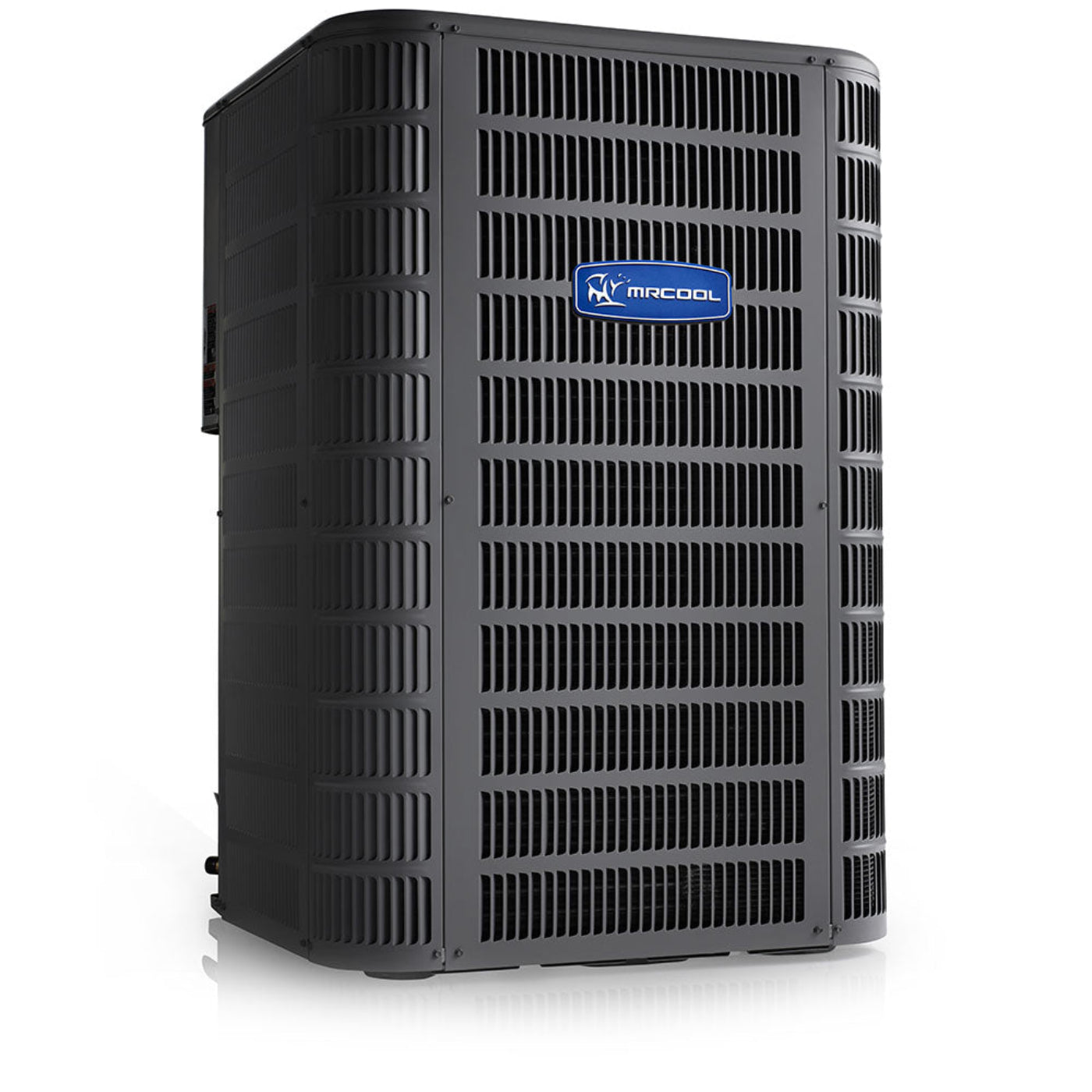

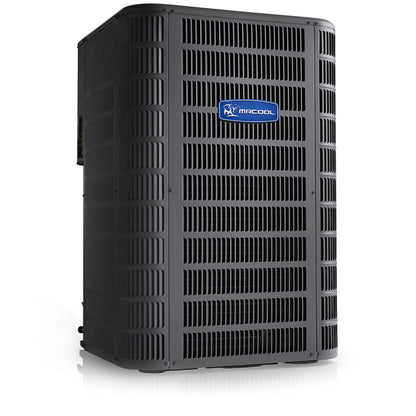

MRCOOL 2 Ton 16 SEER Split System Air Conditioner Condenser, - MAC16024A
Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 2 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides "cooling" (this is NOT a heat pump).
Features
-
CoolGuard total corrosion protection technology designed coil

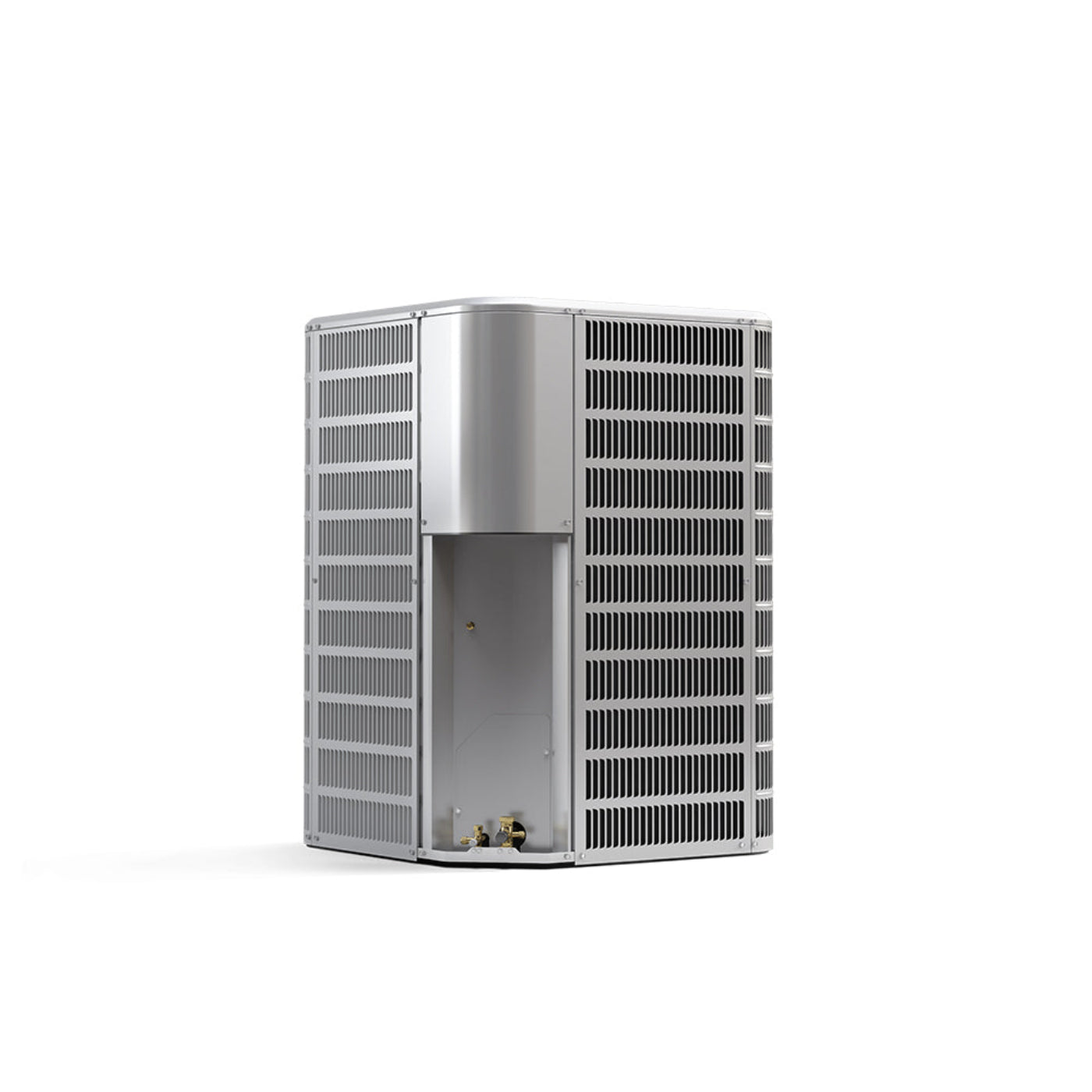

- Corner-mounted controls for easy service
- Full metal louvered construction to protect the coil/ hail protection
- Factory installed high pressure switch
- Thread-on pressure switches for simple, quick replacement
- 10 year limited warranty on compressor
- Charged for 15 feet of line set

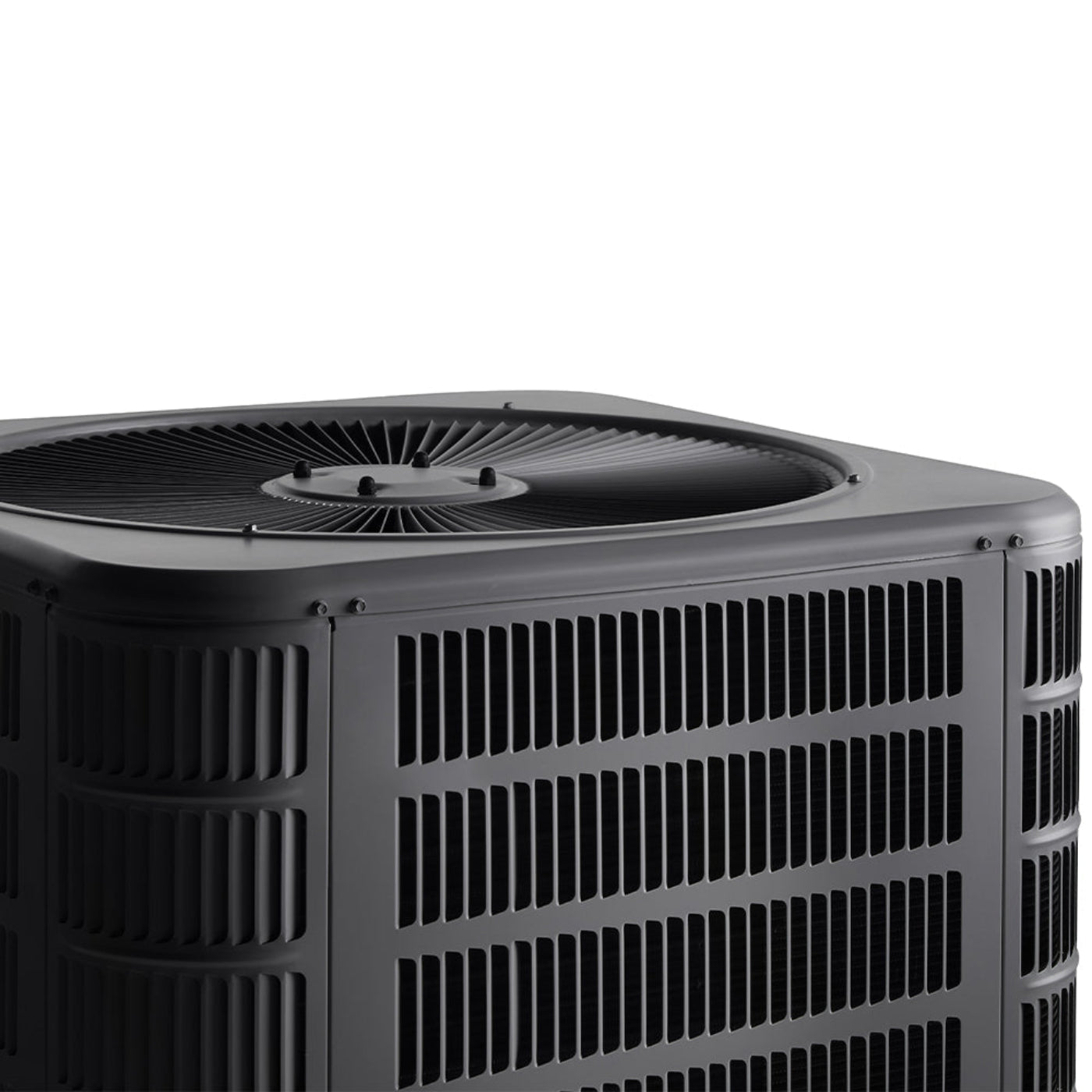

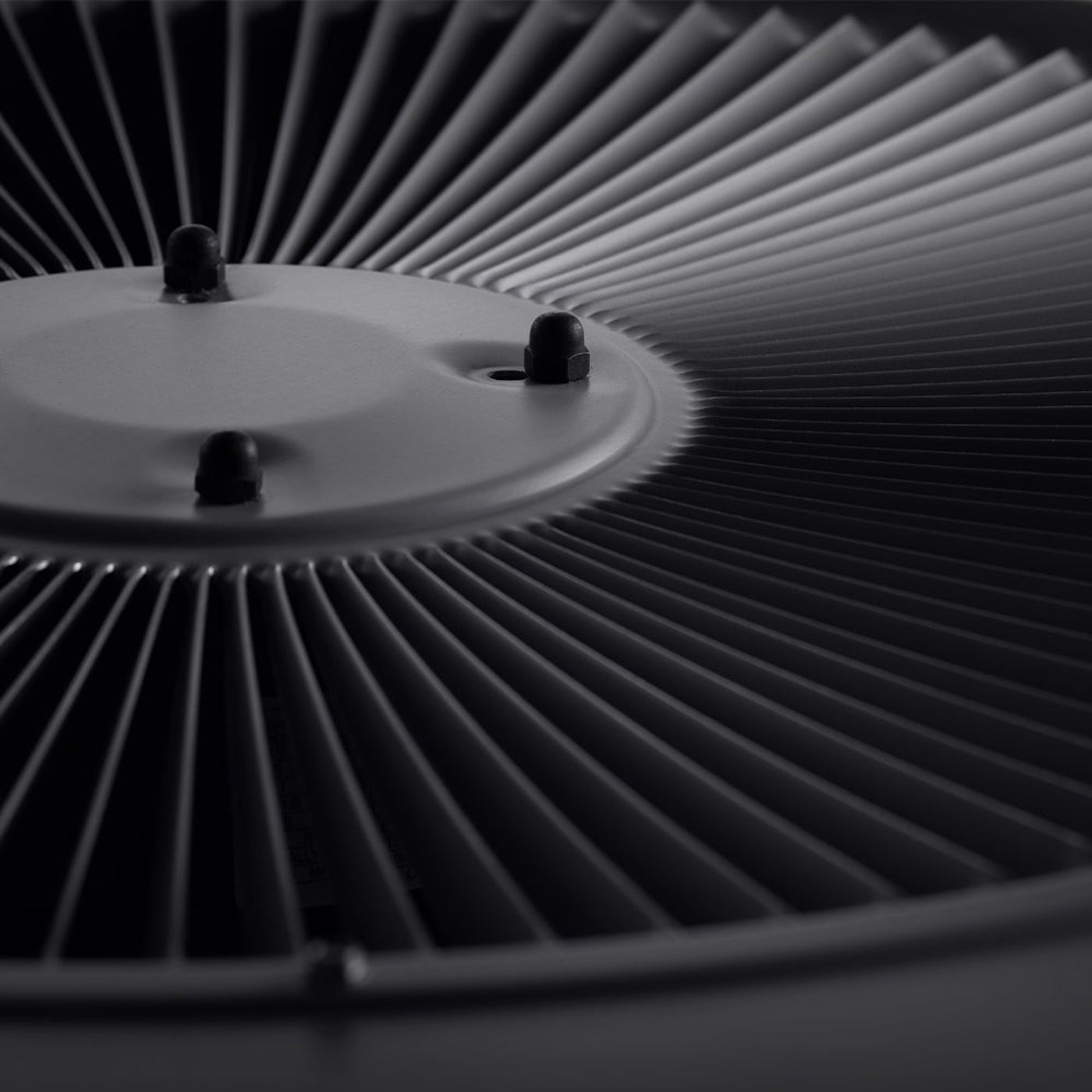

- Fan orifice for smoother airflow and sound level reduction
- Lanced fins for maximum heat transfer
- Every coil factory tested for leak proof construction
- Internally protected against high temperature motor overload conditions
Specifications
| Product Dimensions |
28.25"W x
37"D x
28.25"H |
| Product Weight |
152 lbs |
| Unit Type |
Split System AC Condensers |
| SEER |
up to 16
|
| Max SEER |
16 |
| EER |
12.2 |
| CFM |
730-850 |
| Tonnage |
2 |
| Cooling Capacity |
23000-24000 |
| Phase |
1 |
| Cycle |
60 |
| Stage |
Single |
| Max Fuse Breaker |
25 A |
| Min Circuit Ampacity |
14.6 |
| Color |
Gray |
| Rated Load |
10.9 |
| Max Coverage Area |
1000 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
73 |
| Decibel Rating |
76 |
| Min Ambient Cool |
(-20F)
|
| Line Set Length |
15ft, 25ft, 35ft, 50ft |
Max
Line Set Length |
50ft
|
| Line Set Fitting Type |
Sweat |
| Liquid Line Size |
3/8 in |
| Suction Line Size |
3/4 |
| Compressor Motor Type |
Scroll |
| Condenser Fan Motor Type |
Direct Drive |
| Condenser Fan Motor HP |
1/6 |
| Condenser Fan Motor RPM |
825 |
| Metering Device |
TXV |
| Auxiliary Heater |
Yes |
| Auxiliary Heater Sizes |
7.5kw, 10kw |
What our Experts Think
-
Reliable cooling: 2-ton capacity efficiently handles mid-sized homes or spaces.
-
Energy-conscious performance: 16 SEER rating ensures effective cooling while keeping electricity costs manageable.
-
Durable design: Built to withstand daily use with minimal maintenance.
-

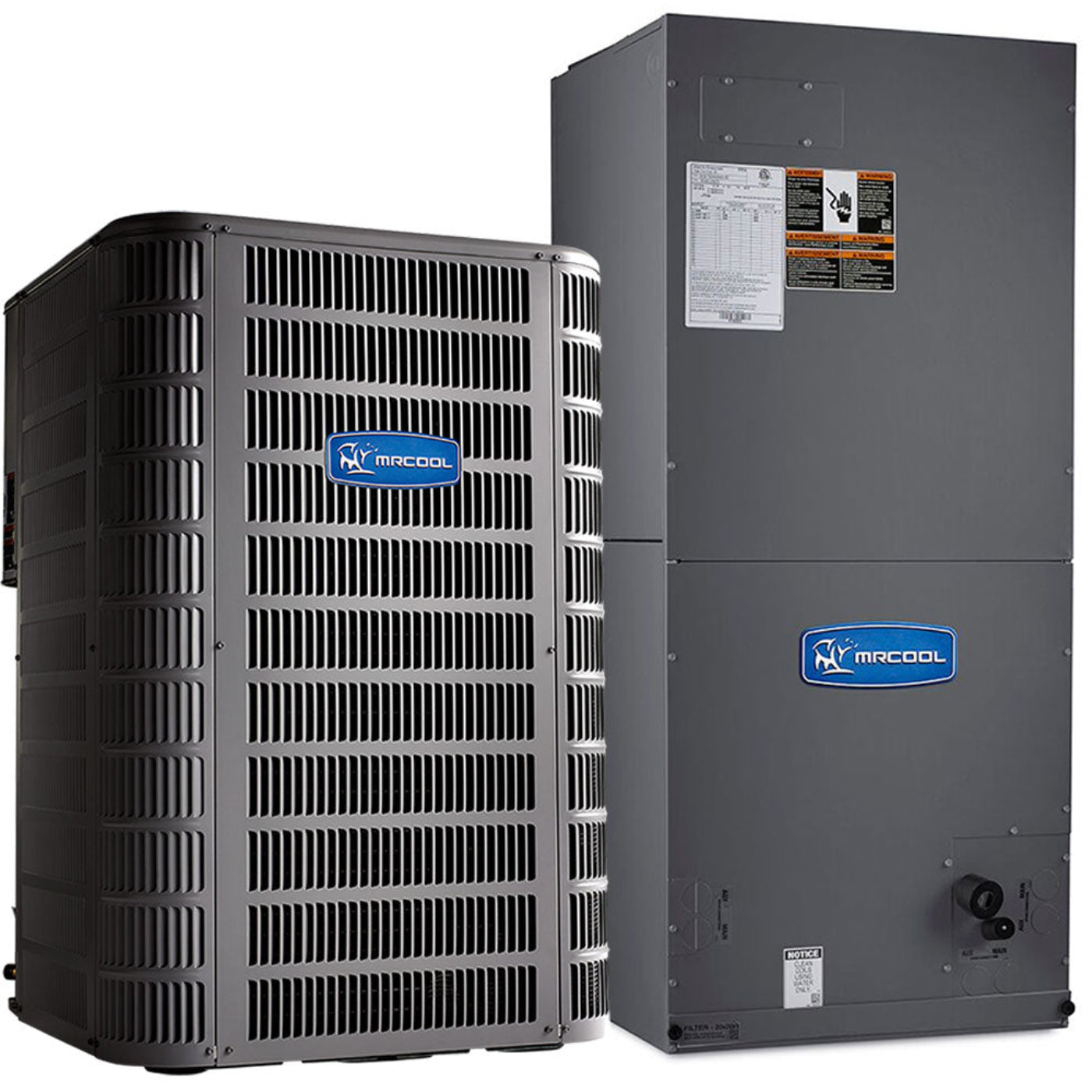

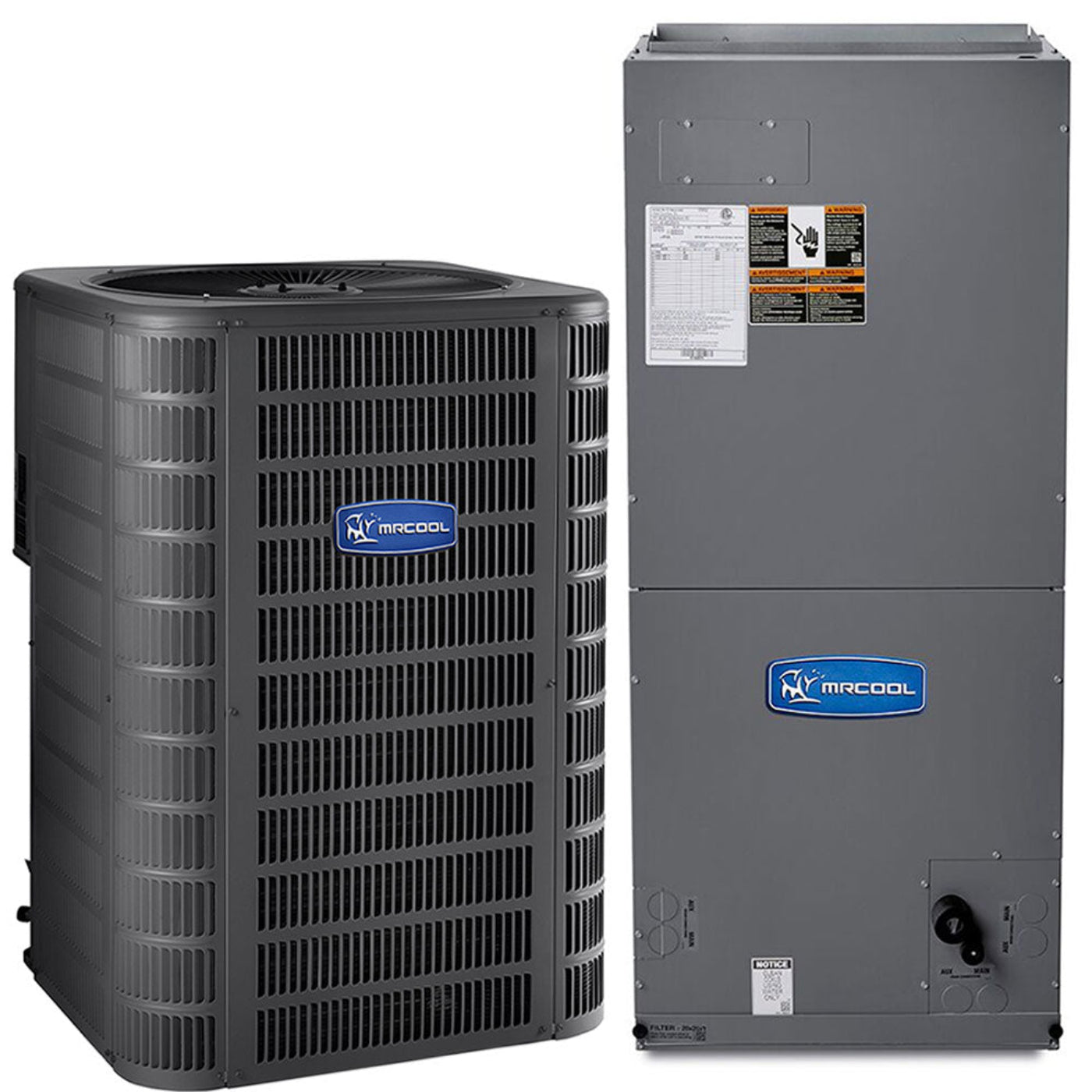

Compatible integration: Works seamlessly with MRCOOL split-system air handlers for optimal performance.
-
Quiet operation: Engineered to reduce noise while maintaining consistent airflow.
Q&A
Q: What is the MRCOOL MAC16024A?
A: A 2-ton 16 SEER split system air conditioner condenser for reliable home cooling.
Q: How efficient is it?
A: Rated 16 SEER, providing energy-efficient operation to help reduce utility costs.
Q: What type of system is it compatible with?
A: Designed to pair with MRCOOL or compatible indoor air handlers in split system setups.
Q: What space is it suitable for?
A: Ideal for small to medium homes, around 1,500–2,000 sq. ft. depending on insulation and climate.
Q: Why choose this condenser?
A: Offers reliable cooling, energy efficiency, and compatibility with standard HVAC systems.
Maintenance Tips
-
Keep the outdoor condenser clear of debris, leaves, and dirt for optimal heat exchange.
-
Inspect refrigerant lines and electrical connections periodically to prevent leaks or faults.
-
Clean condenser coils annually to maintain efficiency and cooling performance.
-
Check and clear condensate drain lines to prevent clogs and water damage.
-
Schedule annual professional service to verify refrigerant levels, electrical integrity, and overall system performance.
-
Use a programmable thermostat to reduce energy costs, optimize comfort, and extend system life.
-
Monitor for unusual noises or vibrations as early signs of mechanical issues.
