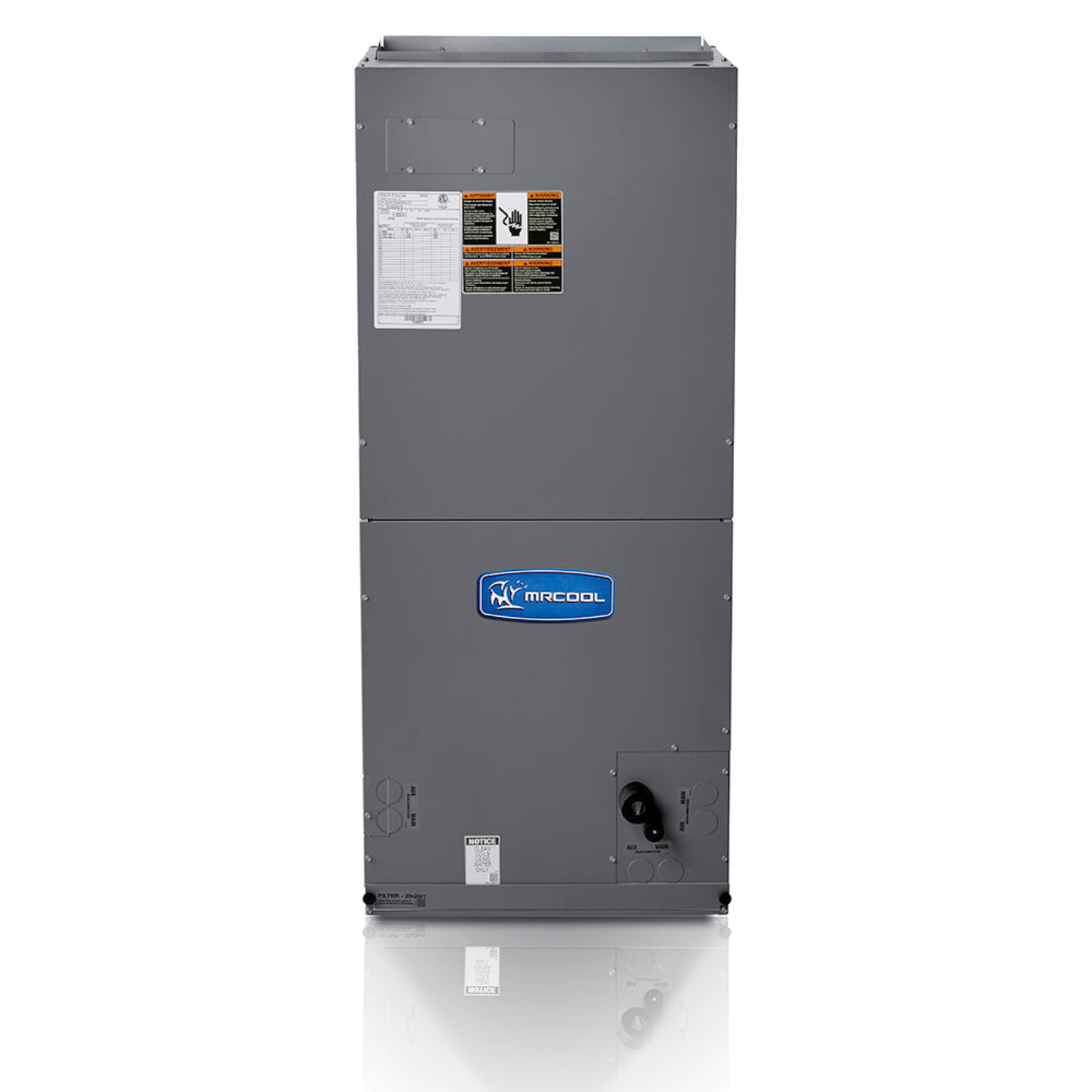

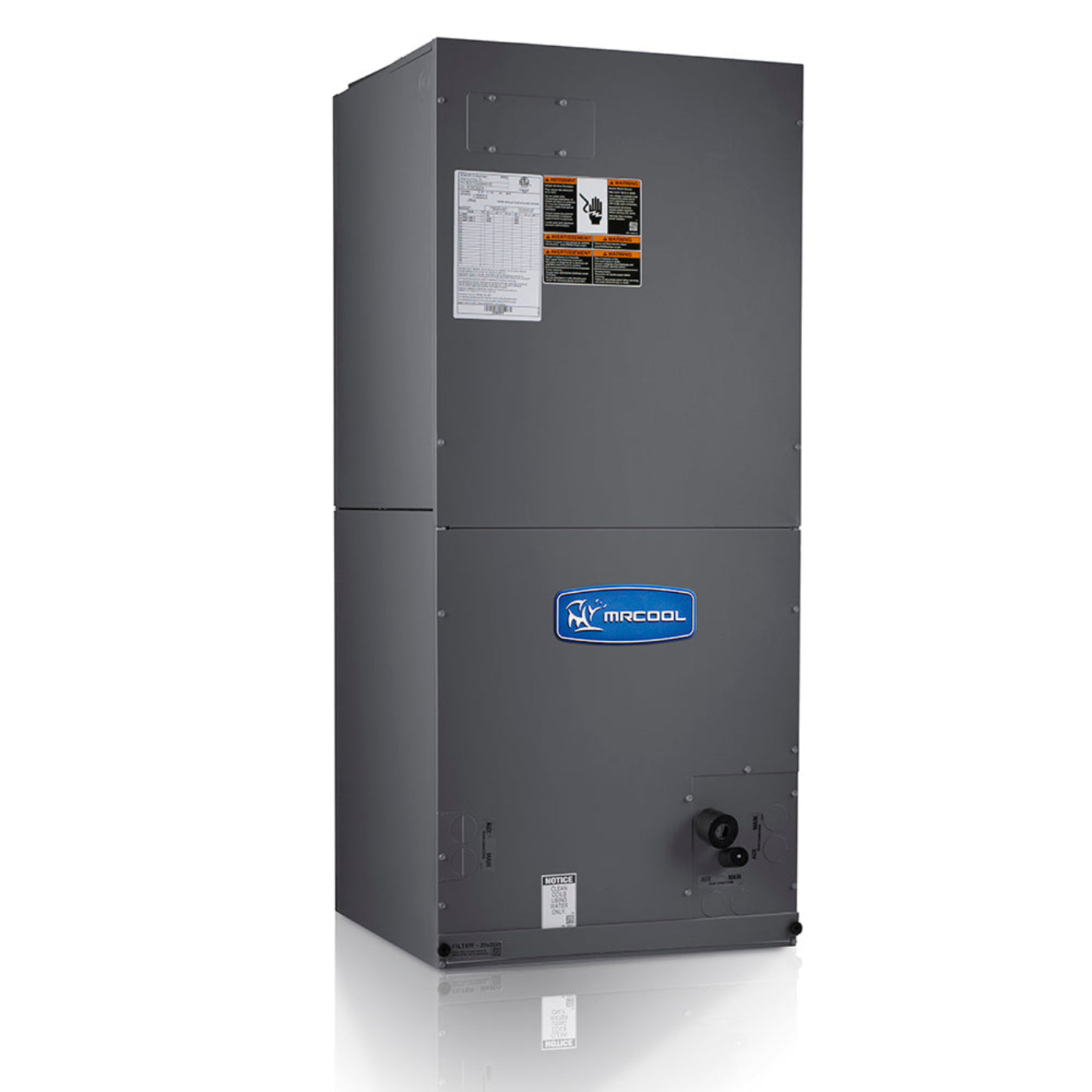

MRCOOL 2 Ton 16 SEER Split System Air Handler, - MAHM024ETA
The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Features
-
Smaller profile for closet applications
- Optional auxiliary heat kits are available
- Baked polyester paint finished over galvanized steel for maximum durability
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
- AHRI certified and ETL listed
Specifications
| Product Dimensions |
18.5"W x
16.5"D x
45.5"H |
| Product Weight |
127 lbs |
| SEER |
Up to 16 |
| CFM |
800 |
| Tonnage |
2 |
| Cooling Capacity |
24,000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/15A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 |
| Max Fuse Breaker |
15 |
| Min Circuit Ampacity |
5 |
| Color |
Gray |
| Color Family |
Gray |
| Max Coverage Area |
1,000 square feet |
| Refrigerant Type |
R-410A |
| Number of Speeds |
5 |
| Inverter |
No |
| Lineset Included |
No |
| Lineset Length |
15ft, 25ft, 35ft, 50ft |
| Max Lineset Length |
50ft |
| Lineset Fitting Type |
Sweat |
| Liquid Line Size |
3/8 |
| Suction Line Size |
3/4 |
| Blower Motor Type |
ECM |
| Blower Motor HP |
1/2 |
| Blower Motor Speeds |
5 Speed |
| Blower Motor RPM |
430-1050 |
| Filter Type |
Replacement |
| Filter Size |
15x20 |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxilary Heater Sizes |
10kw |
| Certifications |
ETL
AHRI |
| Warranty |
Registered 10 Year Parts Warranty
Base 5 Years Parts Warranty |
| Contains Electronics |
Yes |
| Contains Chemicals |
Yes |
| Contains Aerosol |
Yes |
| Contains Compressed Gas |
Yes |
| Proposition 65 Warning |
Yes |
What our Experts Think
-
Reliable 2 Ton performance: Efficiently heats and cools homes up to ~1,000 sq ft with up to 16 SEER rating.
-
Flexible installation: Supports upflow, horizontal left/right, and counter‑flow setups for tight or unconventional spaces.
-
Durable build: Galvanized steel with corrosion-resistant coil, antimicrobial drain pan, and foil-faced insulation for long-term reliability.
-
Efficient airflow: ECM motor with 5-speed blower ensures consistent, quiet performance.
-
Auxiliary heat ready: Compatible with electric heat kits for supplemental warmth (sold separately).
-
Professional ready: Designed to pair with a matching condenser for complete central HVAC performance.
Q&A
Q: What is included with this air handler?
A: Includes a 2 Ton indoor air handler for MRCOOL split system installations. Outdoor condenser, refrigerant line set, and installation hardware are sold separately.
Q: What is the SEER rating?
A: Designed to work with 16 SEER split system condensers, providing energy-efficient cooling performance.
Q: What voltage and phase does it require?
A: Operates on 230V / 60Hz, single-phase power.
Q: What type of installation is required?
A: Designed for split system installations, compatible with MRCOOL 2 Ton 16 SEER condensers. Requires professional or qualified DIY installation.
Q: What refrigerant does it use?
A: Compatible with R-410A refrigerant, environmentally friendly and highly efficient.
Q: What size area can it serve?
A: Efficiently cools and heats spaces of approximately 1,200–1,500 sq. ft., depending on insulation and layout.
Q: Is this system energy efficient?
A: Yes, optimized for high-efficiency operation, quiet airflow, and inverter technology.
Q: What style or design features does it have?
A: Compact indoor unit with durable construction, easy-access panels for maintenance, and designed for installation in attics, closets, or utility rooms.
Maintenance Tips
-
Clean or Replace Filters Monthly: Keeps airflow smooth and efficiency high.
-
Inspect Coils & Fins: Clean indoor coils and straighten bent fins.
-
Check Drain Lines: Ensure condensate drains are clear to prevent water buildup.
-
Monitor Refrigerant Lines: Check for leaks and proper insulation.
-
Annual Professional Service: Maintains peak performance and system longevity.
