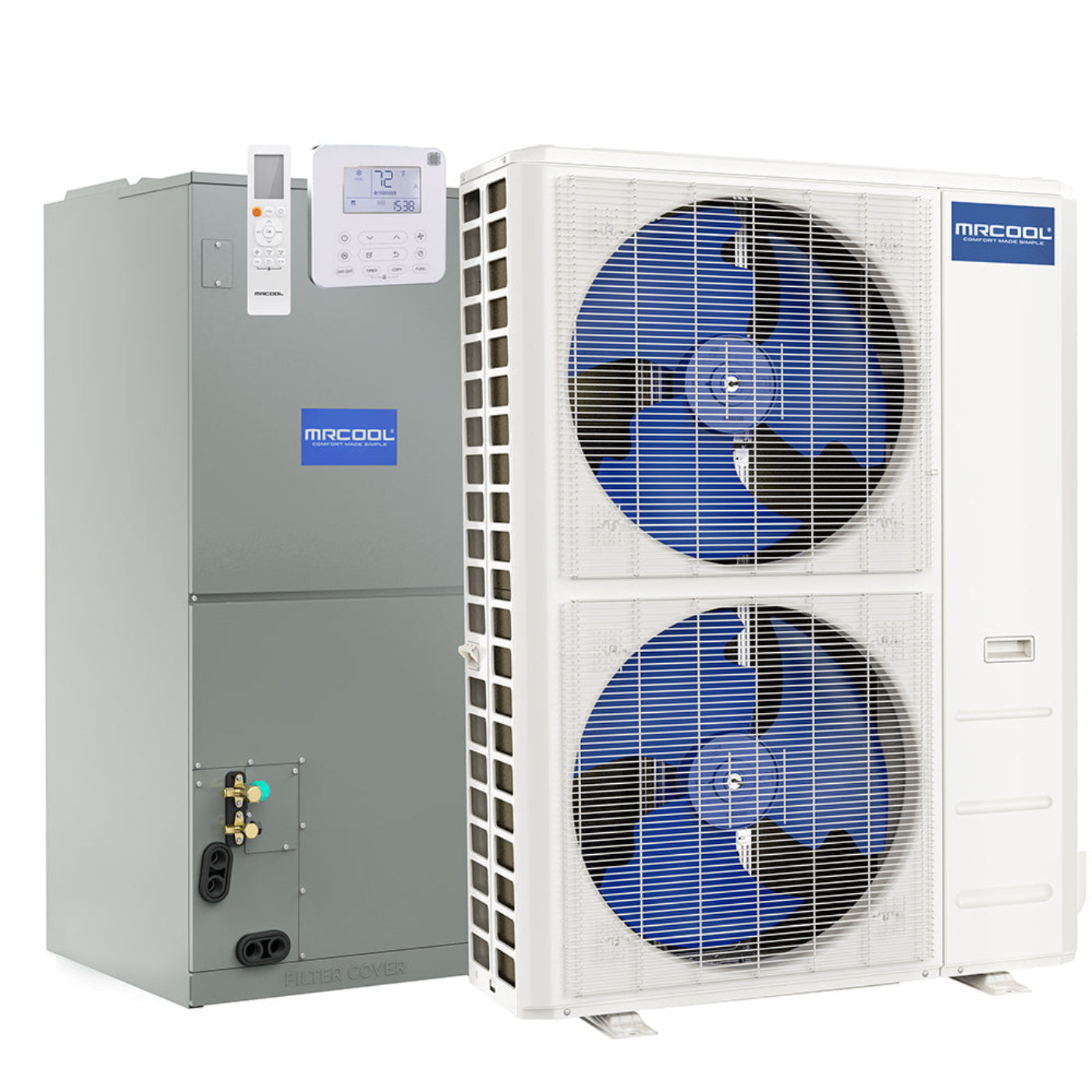

MRCOOL 48K BTU 17.3 SEER Ducted Air Handler and Condenser, - CENTRAL-48-HP-230-00
Making yourself at home can be almost impossible if you don’t have a reliable home comfort unit. Luckily, you can put this affordable MRCOOL 48k BTU up to 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and enjoy instant comfort and savings. This system can cover around 2,000 square feet of your home, so every inch can be filled with crisp, clean, comforting air. You’ll be happy to learn that the air handler is multi-position, so it can be installed in an upflow, downflow, horizontal left or right configuration. This system is compatible with the MrCool No-Vac Quick Connect line set.
The variable speed condenser is one of the reasons why this system is as efficient as it is, so you can enjoy comfort without increasing your bills. Identify error codes on the thermostat or on the panel on the handler. The 10 year parts warranty and 10 year service warranty help greatly in the unlikely case that something goes wrong. Put the MRCOOL 48k BTU 17.3 SEER Central Ducted DC Inverter Heat Pump System in your home and feel instant comfort results.
Features
-
High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.
-
Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
-

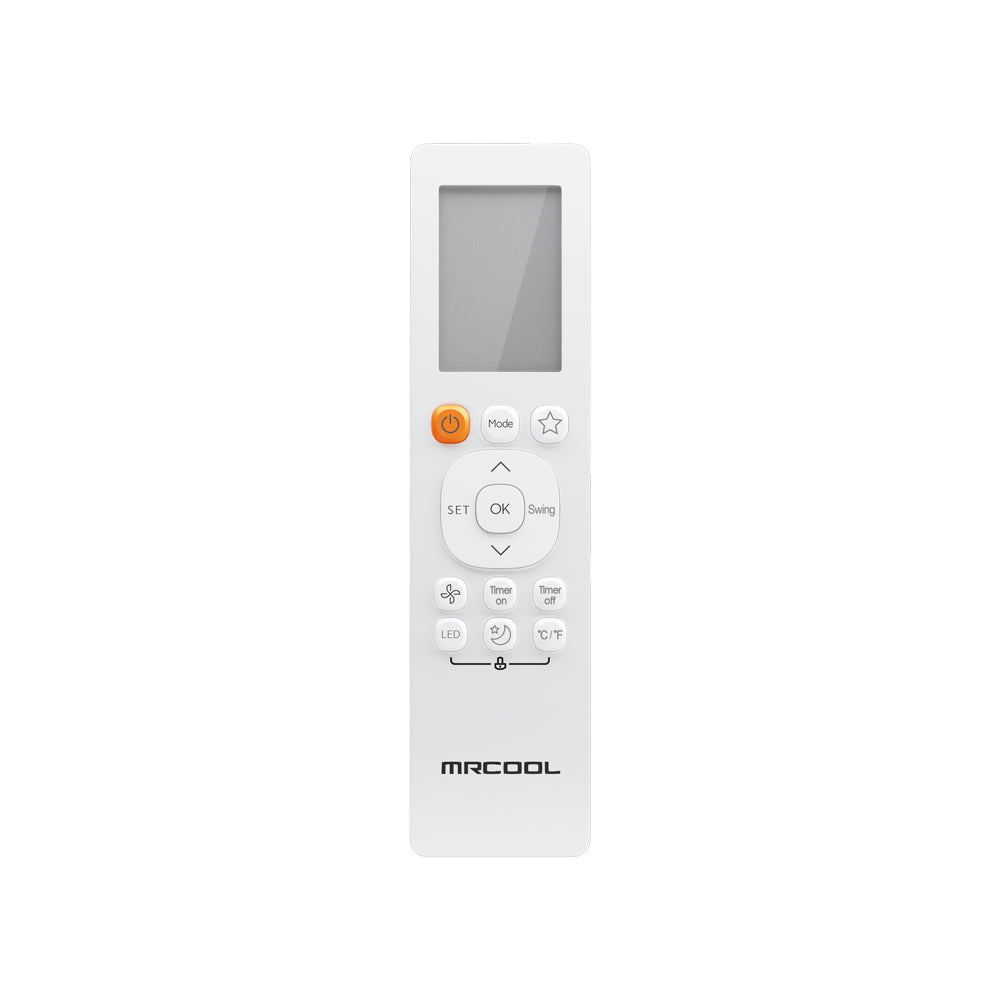

Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Specifications

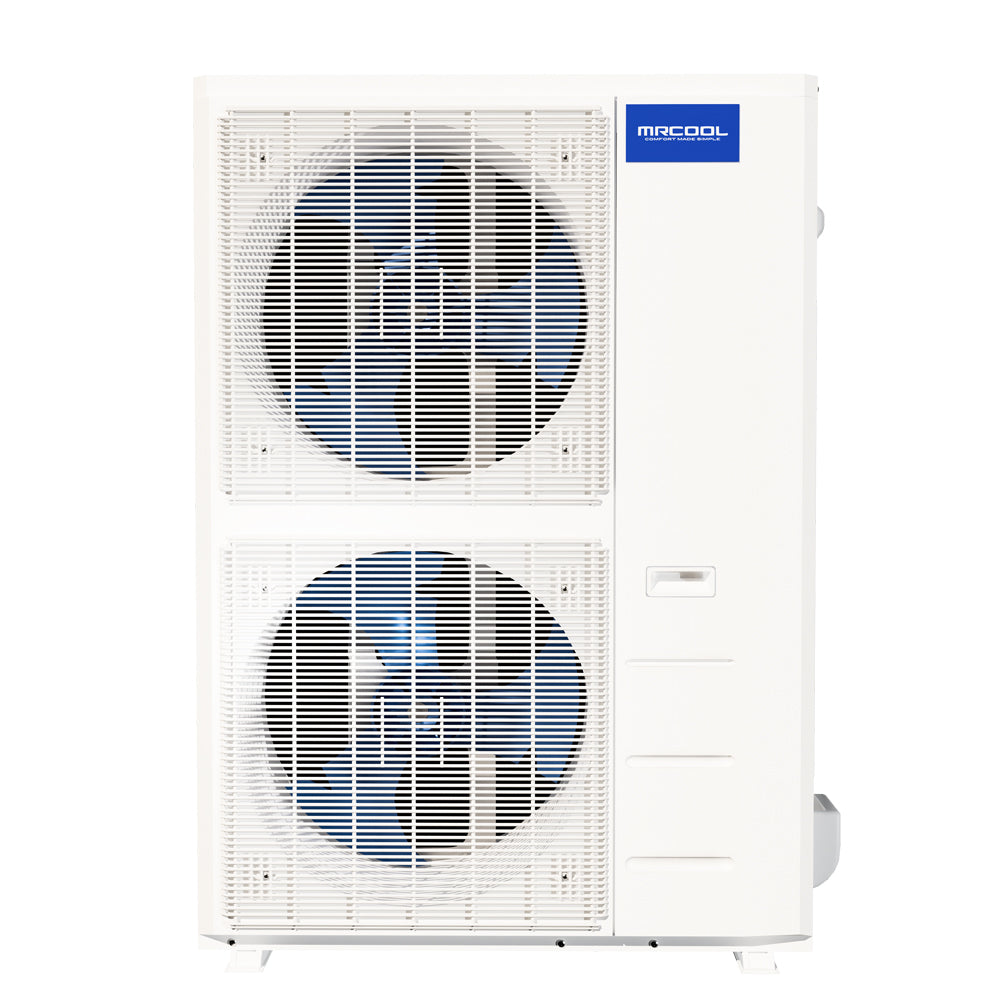

| Condenser Dimensions |
37.48"W x
16.34"D x
52.48"H |
| Condenser Weight |
217.59 lbs |

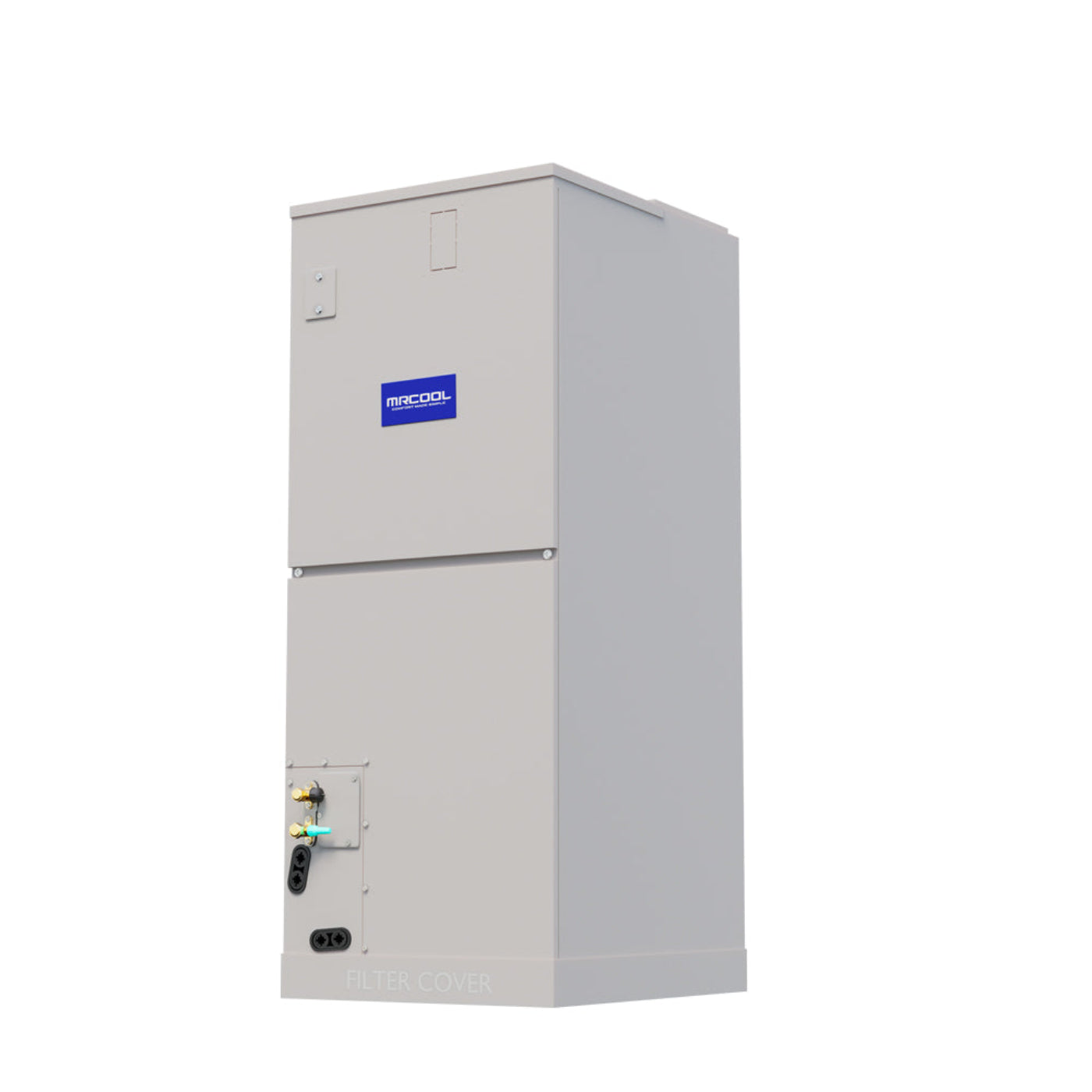

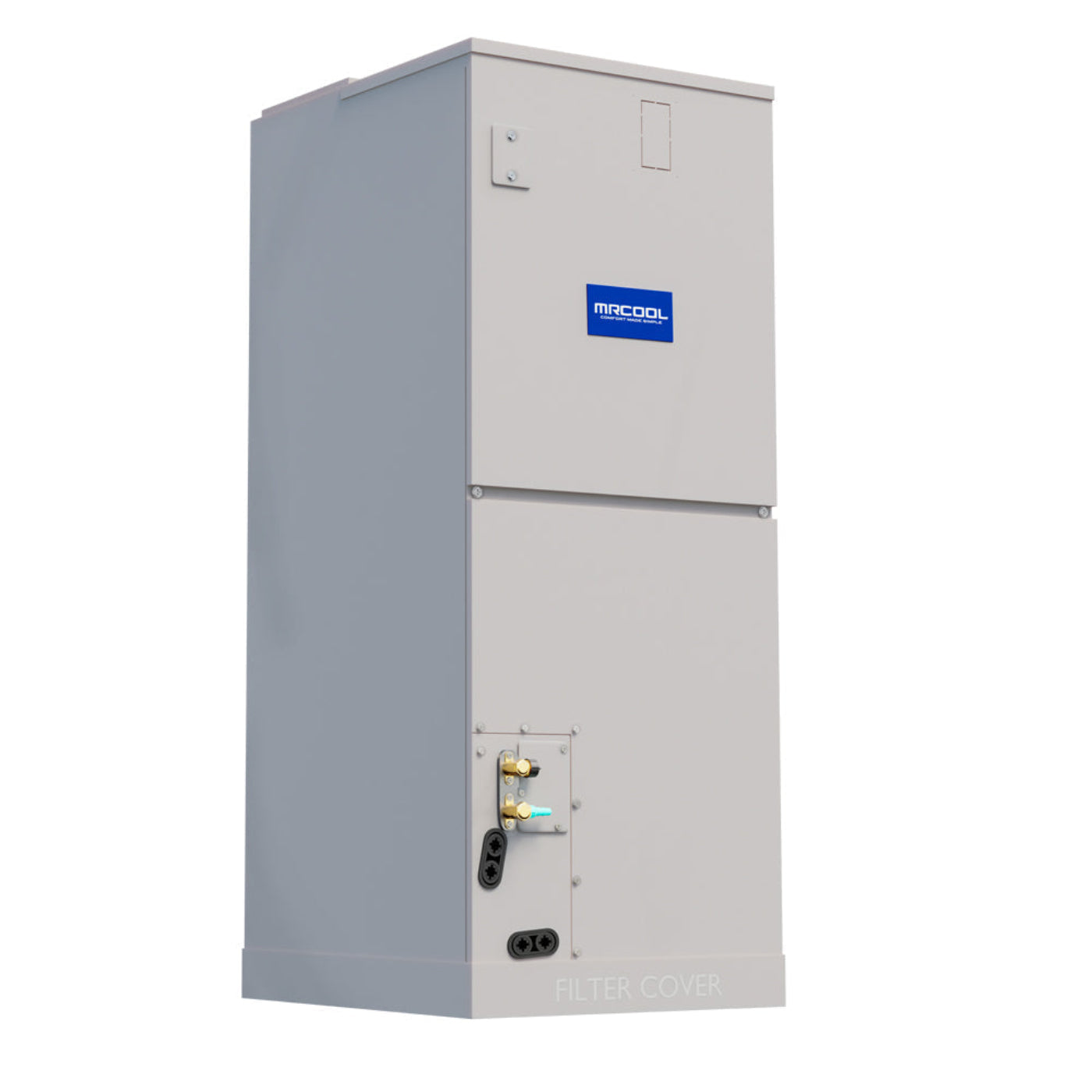

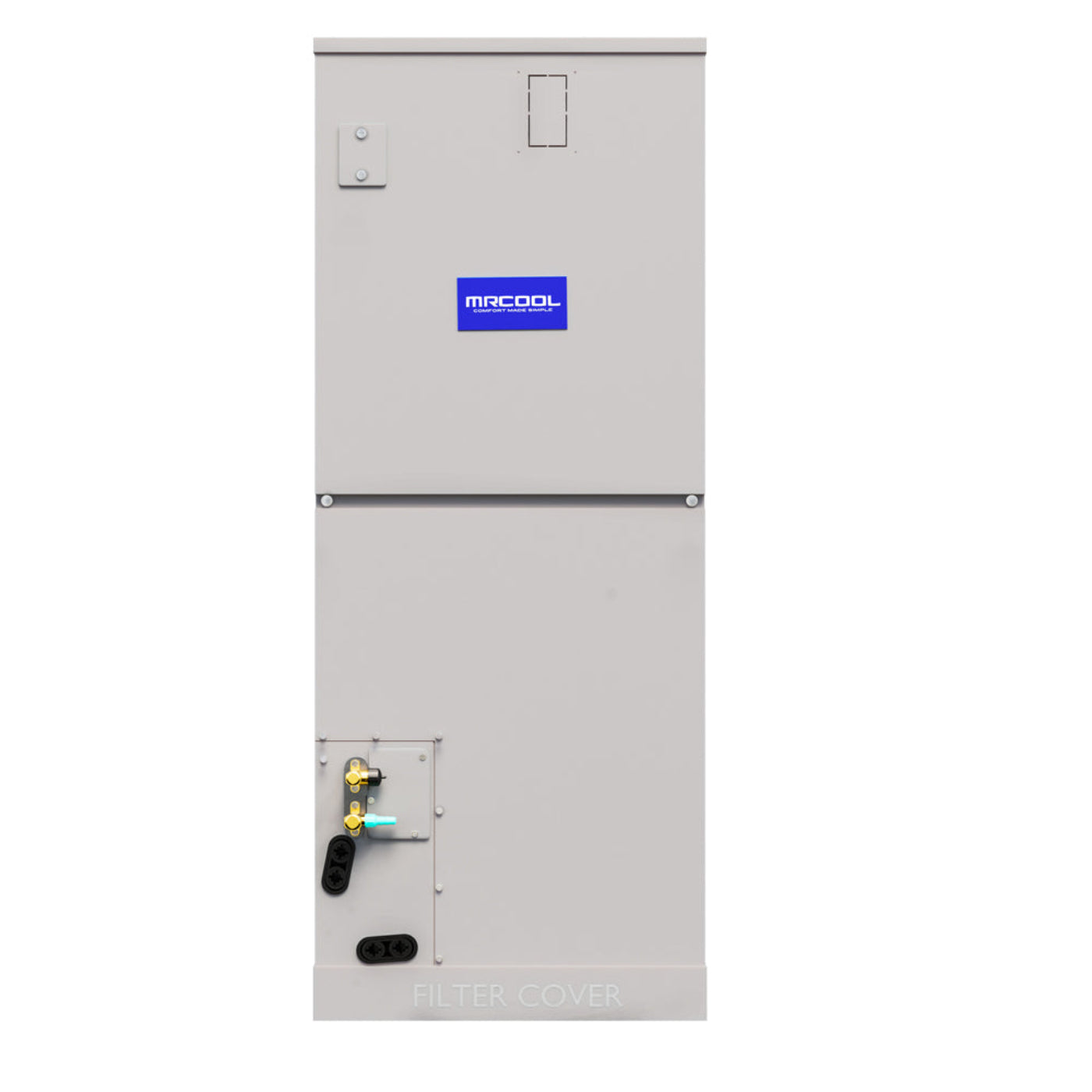

| Air Handler Dimensions |
21.02"W x
21.02"D x
49.02"H |
| Air Handler Weight |
132.50
lbs |
| SEER |
17.3 |
| EER |
9.3 |
| HSPF |
hspf4/hspf5: 10/8.2 |
| CFM |
1282.35/1094.12/905.88 |
| Cooling Capacity |
47,000 BTU |
| Heating Capacity |
55,000 BTU |
| Voltage |
Requires a minimum of
208-230V/60HZ/34A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
50 |
| Min Circuit Ampacity |
34 |
| Color |
Gray |
| Rate Load |
2.4 |
| Zone Capacity |
1 |
| Coverage Area |
2,000 square feet |
| Refrigerant Type |
R410A |
| Refrigerant Volume |
165.79 oz |
| Decibel Rating |
53/50/46 |
| Decibel Rating Low |
46 |
| Decibel Rating High |
53 |
| Air Flow Direction |
Multi-position |
| Min Ambient Cool |
5~122F |
| Min Ambient Heat |
5~75.2F |
| Lineset Included |
No |
| Liquid Line Size |
3/8 in
|
| Suction Line Size |
3/4in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
850/750/650 |
| Filter Type |
Replaceable |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxiliary Heater Sizes |
8kw,10kw,15kw, 20kw |
| Adjustable Thermostat |
Yes |
| Modes |
Fan
Sleep
Auto Cool
|
| Includes |
Remote
Battery |
| App Compatibility |
No |
What our Experts Think
-
High‑Efficiency Whole‑Home Comfort – 48,000 BTU system with 17.3 SEER delivers strong cooling performance with improved energy savings.
-
Complete Ducted Solution – Includes both air handler and condenser for a matched system that’s easier to specify and install.
-
Energy‑Smart Operation – 17.3 SEER rating helps lower utility costs while maintaining consistent cooling and airflow.
-
Balanced Air Distribution – Designed for smooth, quiet ducted airflow throughout living spaces.
-
Durable, Weather‑Ready Components – Robust construction for both indoor and outdoor units ensures reliable, long‑term performance.
-
Professional System Integration – Engineered for seamless pairing with standard ducted HVAC installations and HVAC technician setup.
-
Comfort You Can Count On – Stable temperature control with efficient heat transfer and dependable operation.
Q&A
Q: What is this product?
A: A 48,000 BTU ducted central HVAC system combining an air handler and outdoor condenser for reliable year‑round cooling and heating with 17.3 SEER efficiency.
Q: How energy efficient is it?
A: Rated at 17.3 SEER, offering strong cooling performance while optimizing energy use.
Q: What refrigerant does it use?
A: Uses R‑410A refrigerant, a standard eco‑friendly choice for modern HVAC systems.
Q: What comfort modes are included?
A: Includes timer, auto‑cool, and fan‑only modes, plus a wired thermostat for precise temperature control.
Q: What installation flexibility is available?
A: The multi‑position air handler supports upflow, downflow, and horizontal installations for versatile placement.
Q: What warranty coverage is included?
A: Comes with a 10‑year parts and labor warranty for long-term peace of mind.
Q: What performance benefits does it offer?
A: Designed to efficiently cool and heat homes up to ~2,000 sq ft with reliable airflow and year‑round comfort.
Q: Who should choose this system?
A: Homeowners or installers looking for a high-efficiency, ducted central HVAC solution with flexible installation and dependable performance.
Maintenance Tips
-
Replace/clean filters monthly to keep airflow strong and efficiency high.
-
Clean evaporator and condenser coils twice a year to maintain optimal heat transfer and performance.
-
Inspect and clear condensate drains regularly to prevent clogs, leaks, and moisture damage.
-
Keep indoor and outdoor units free of debris (dust, leaves) for proper airflow and heat exchange.
-
Check fan blades and outdoor fins periodically; clean and straighten as needed to support airflow.
-
Monitor for odd noises, odors, or weak airflow and address issues promptly.
-
Annual professional service: Have a technician check refrigerant, electrical connections, airflow, and overall system health.
