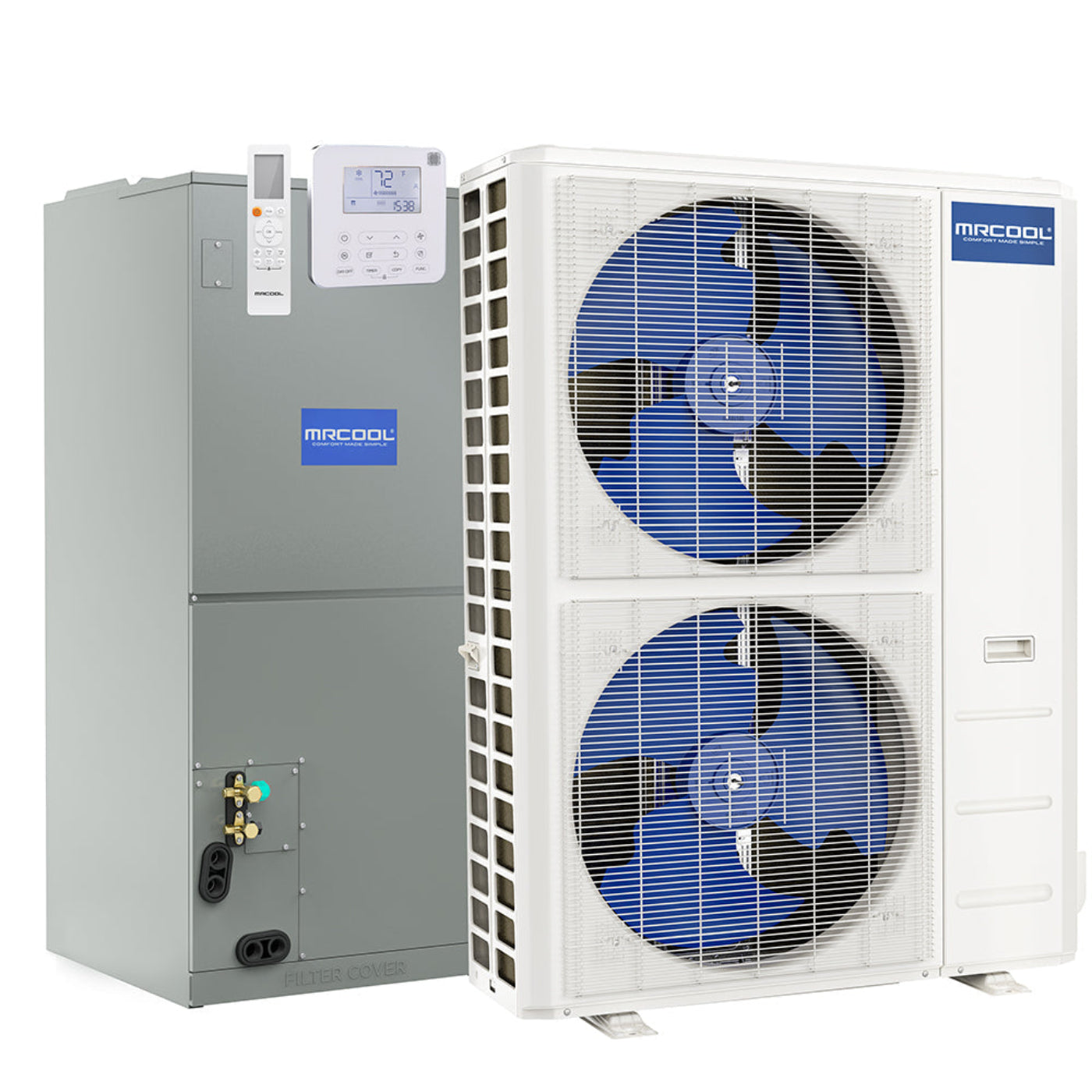

MRCOOL 60K BTU 18 SEER Ducted Air Handler and Condenser, - CENTRAL-60-HP-230-00
Choose the affordable MRCOOL 60k BTU up to 18 SEER Central Ducted DC Inverter Heat Pump System for the most efficient, consistent, and complete comfort you could experience. This system can heat and cool up to 2500 square feet, so your entire home can be covered in the precise temperature that you deserve. This system is able to accommodate any installation requirements you might have, because it is a multi-position unit that can operate in an upflow, downflow, horizontal left or right configuration. You’ll save money as this system provides you comfort, because the variable speed condenser works hard to provide the temperature you want and save energy.
This system is compatible with the MrCool No-Vac Quick Connect line set. The panel on the handler as well as the thermostat allow you to identify any error codes. You won’t have to worry if something goes wrong, because this system is covered by a 10 year parts warranty and a 10 year service warranty. If you want to feel true comfort without sacrificing your savings, get the MRCOOL 60k BTU 18 SEER Central Ducted DC Inverter Heat Pump System.
Features
-
High Static. The Central Ducted Air Handler is made to accommodate high static requirements for manufactured and modular homes.
-
Multi-Positional. The unit is compatible with upflow, counterflow and horizontal configurations.
-

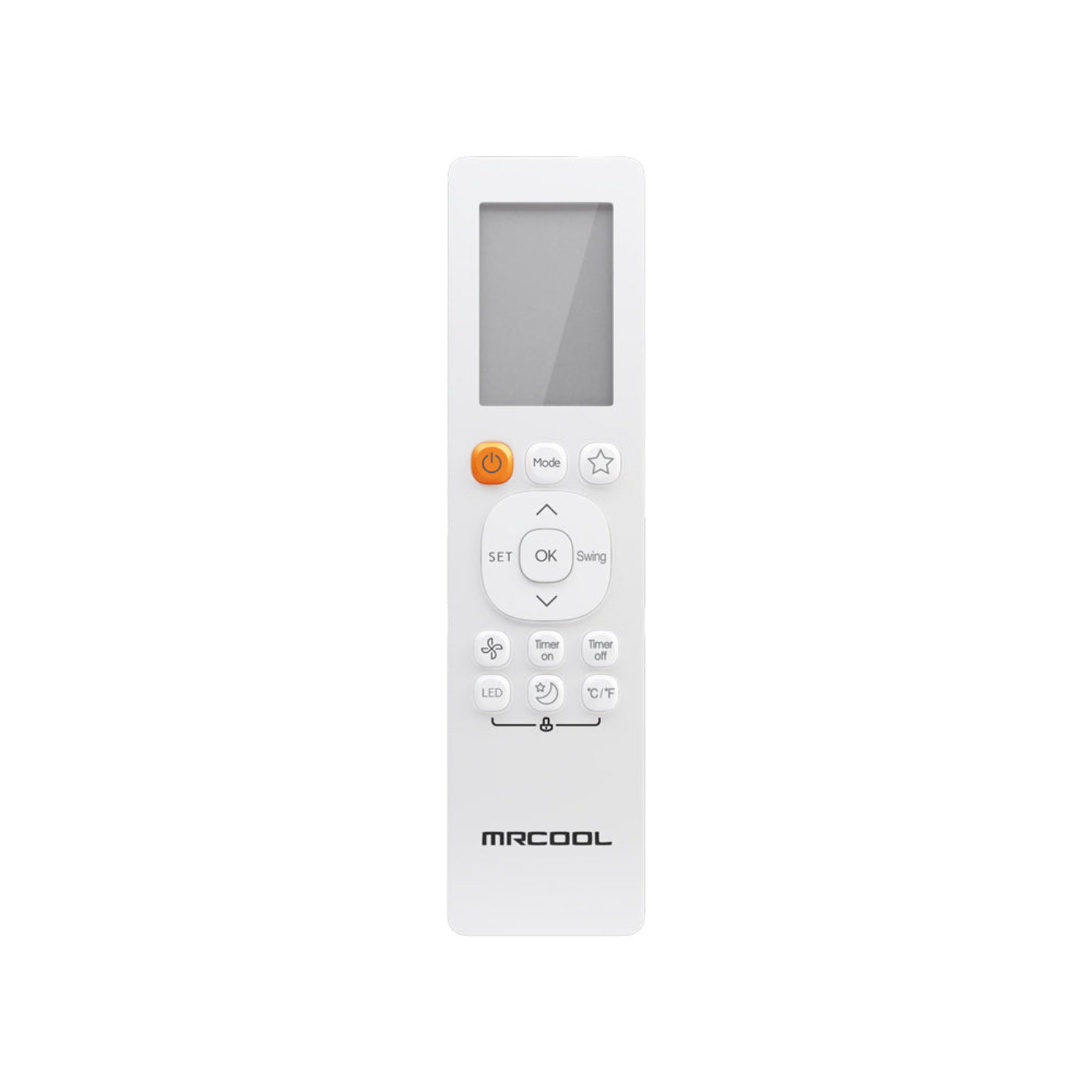

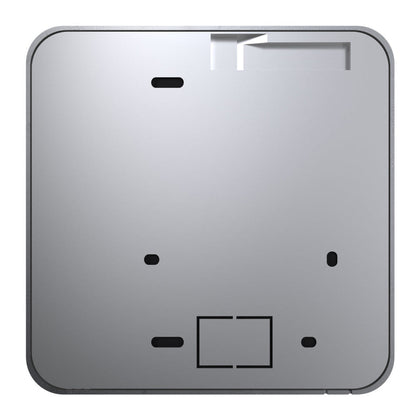

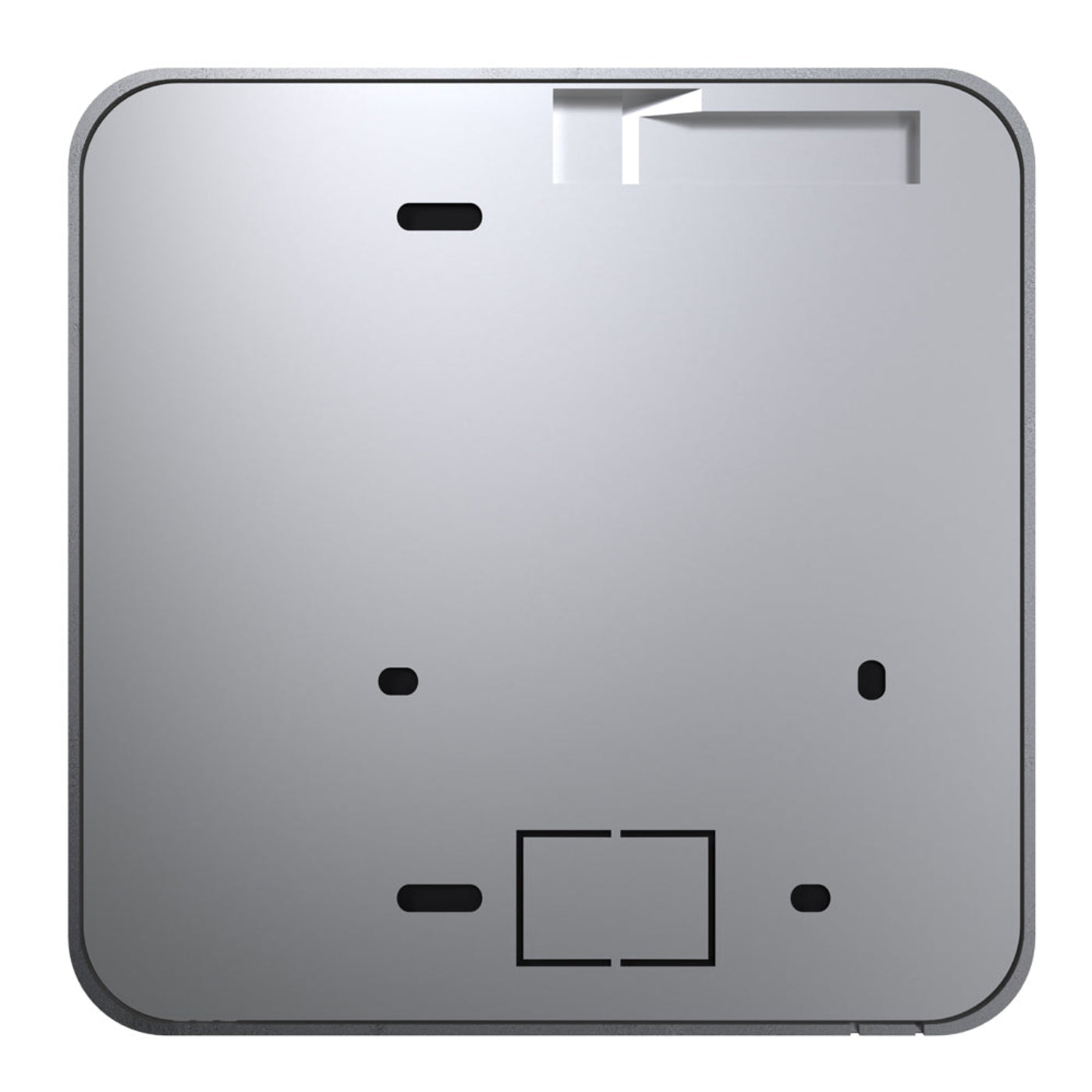

Thermostat and Remote Included. Wired thermostat (.78 in x 4.72 in x 4.72in) has a variety of options to keep your home the temperature you want!
-
Follow Me Function. The Central Ducted Unit will track the air temperature around you using the remote to ensure you receive maximum comfort.
- Optional heating kit available
- R-410A environmentally friendly refrigerant
Specifications

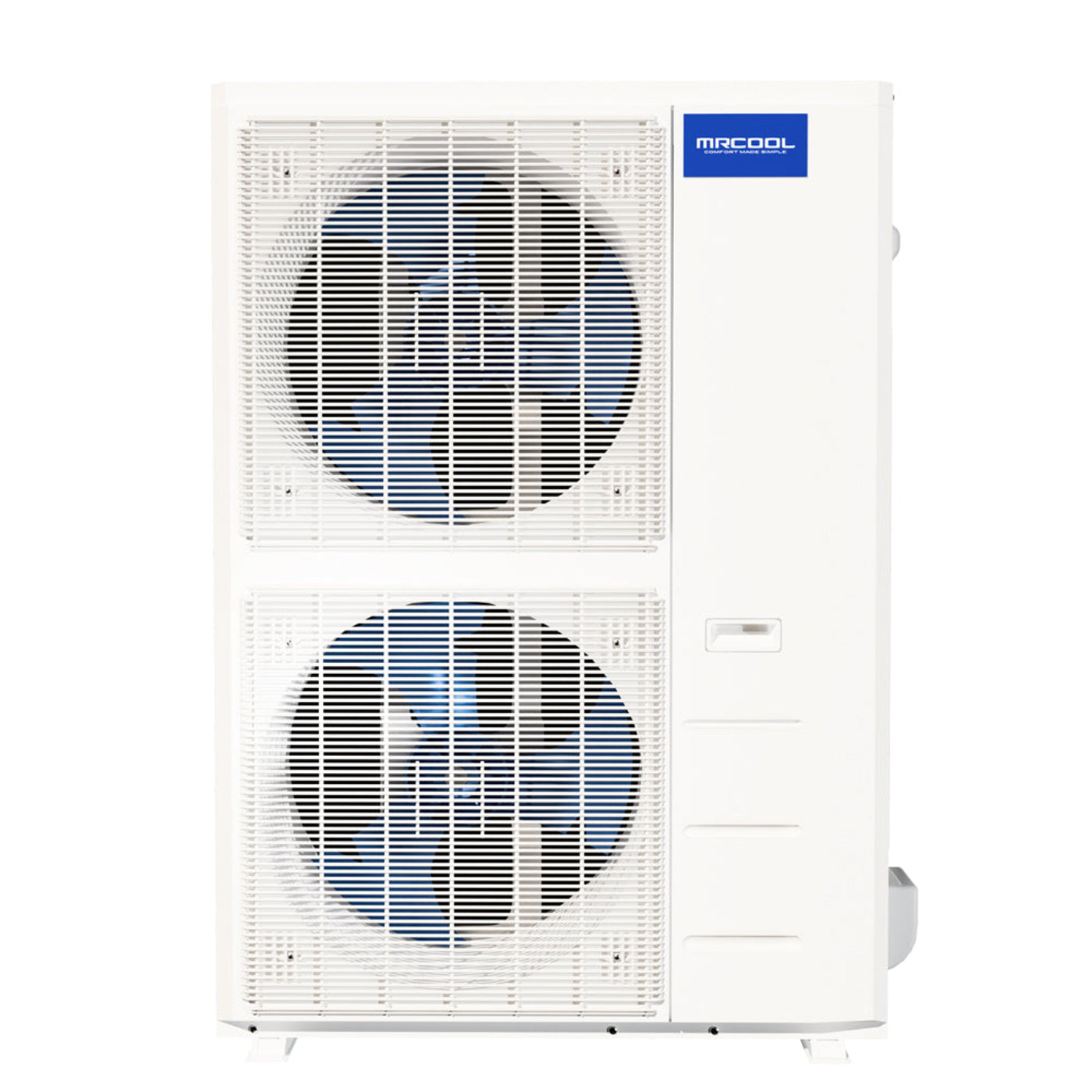

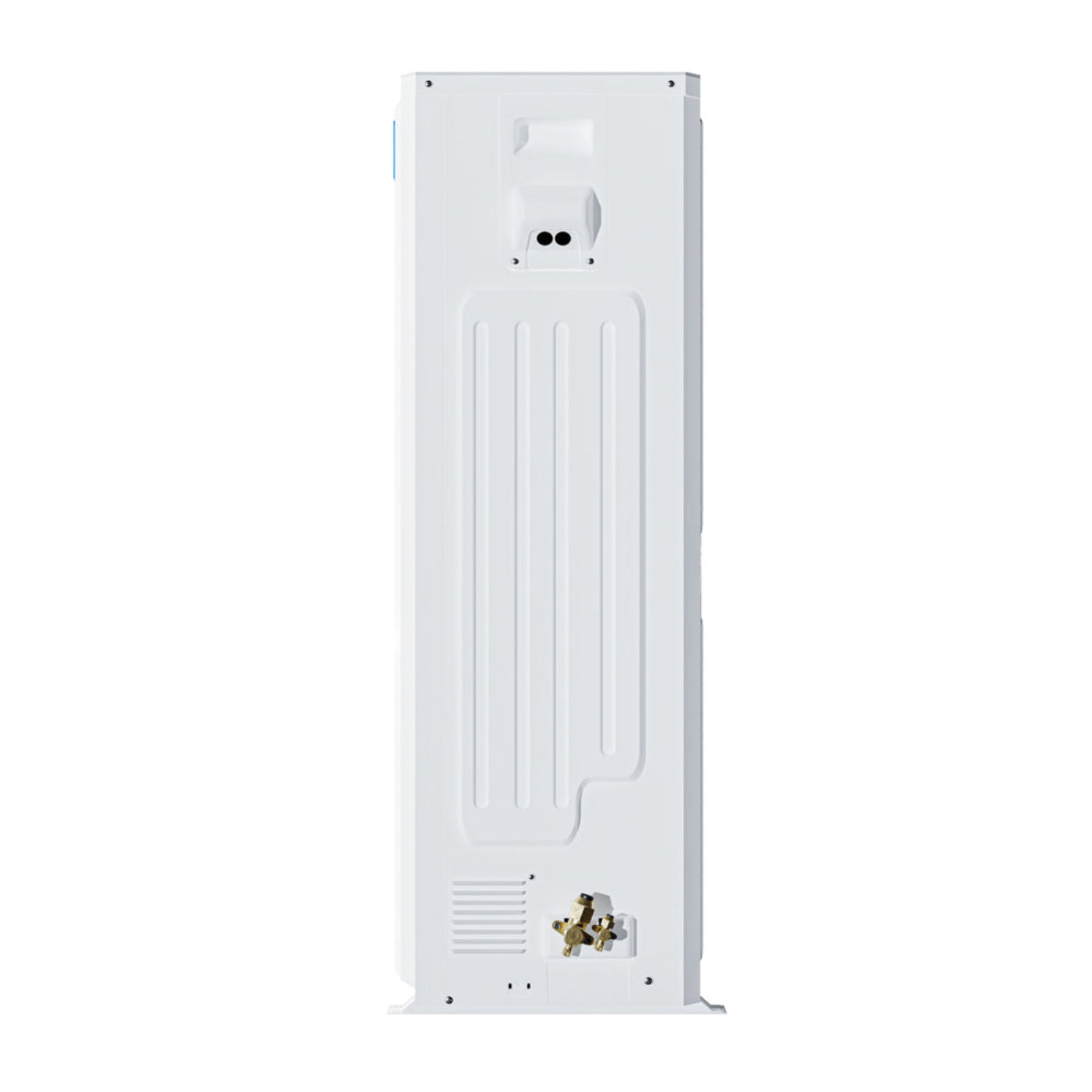

| Condenser Dimensions |
37.48"W x 16.34"D x
52.48"H |
| Condenser Weight |
217.15 lbs |

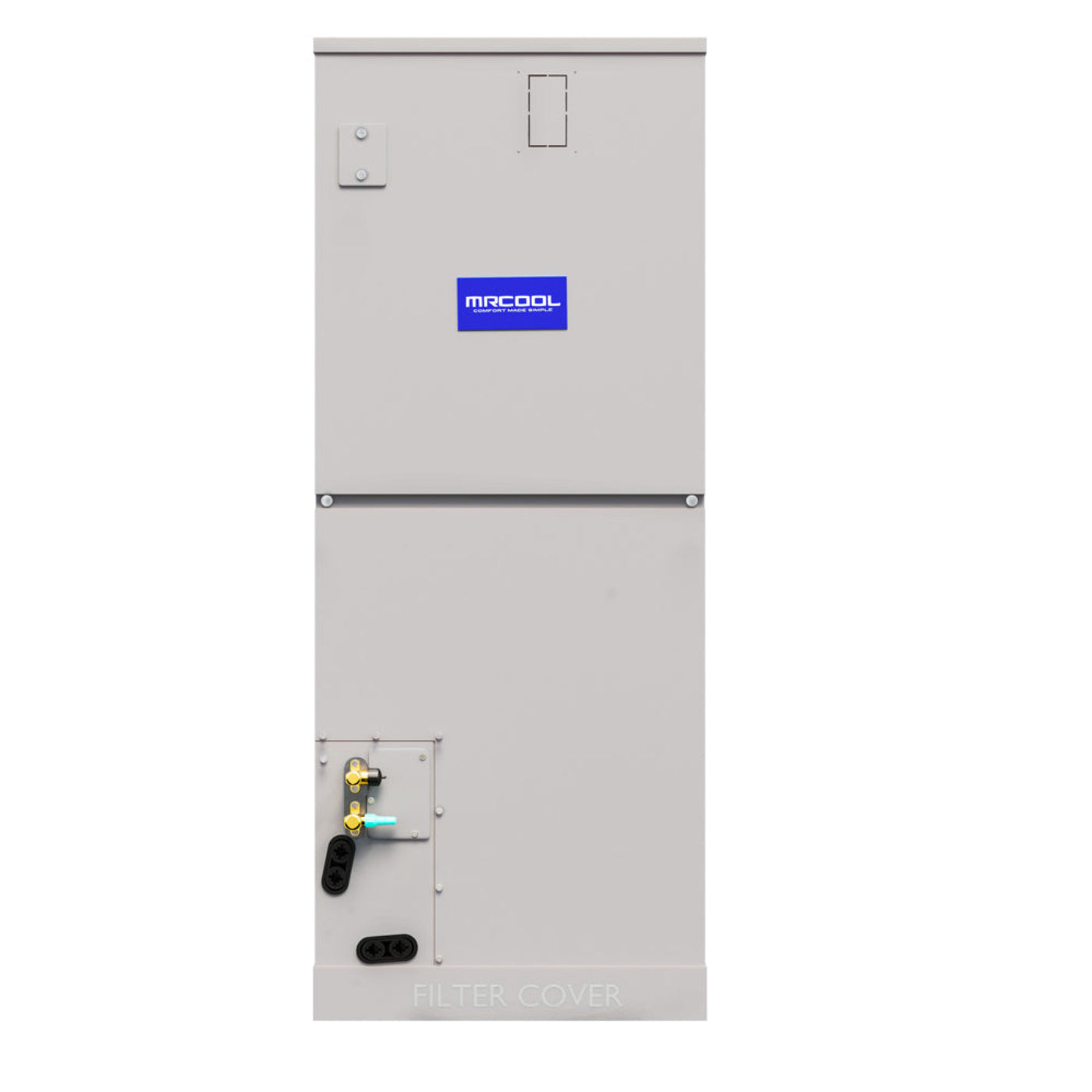

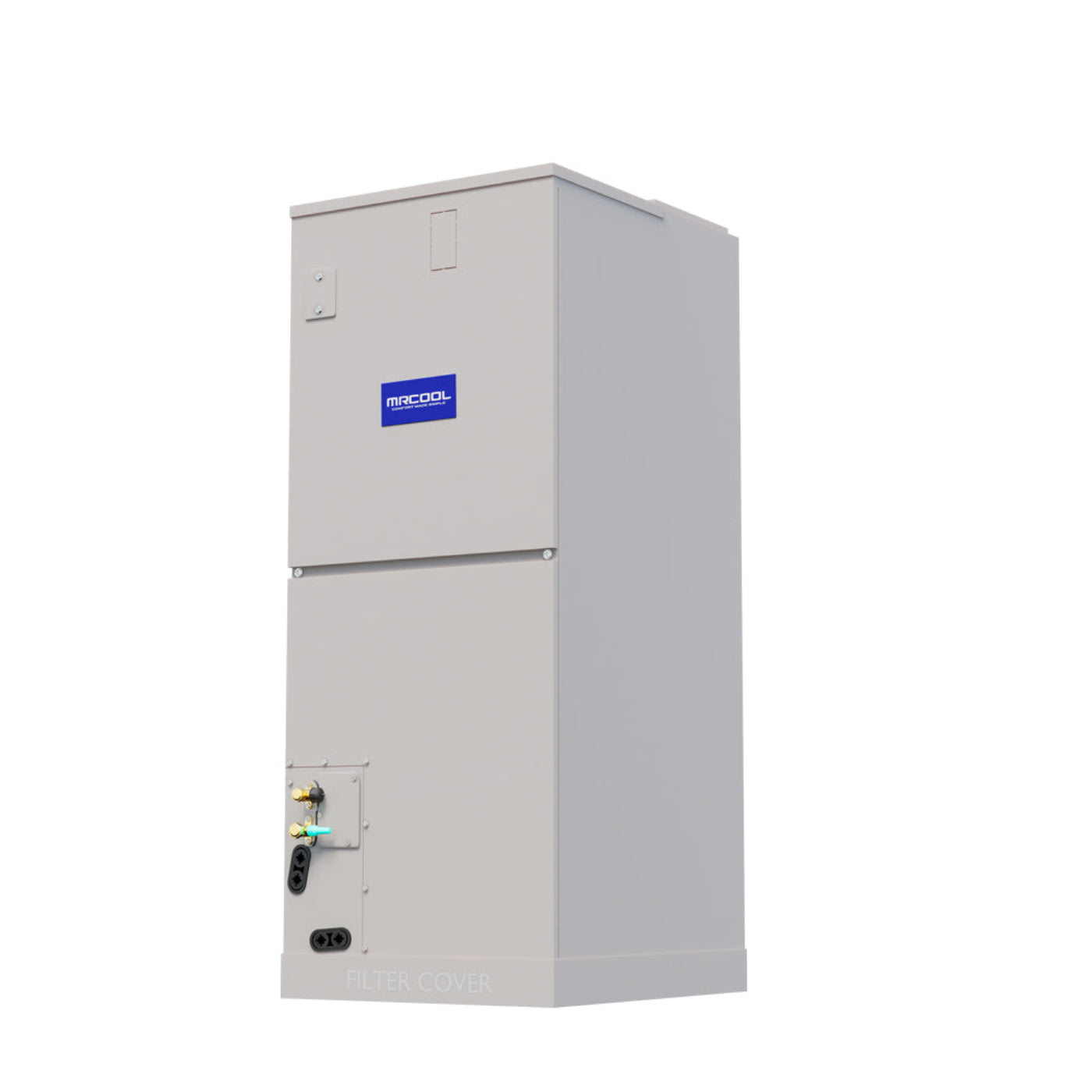

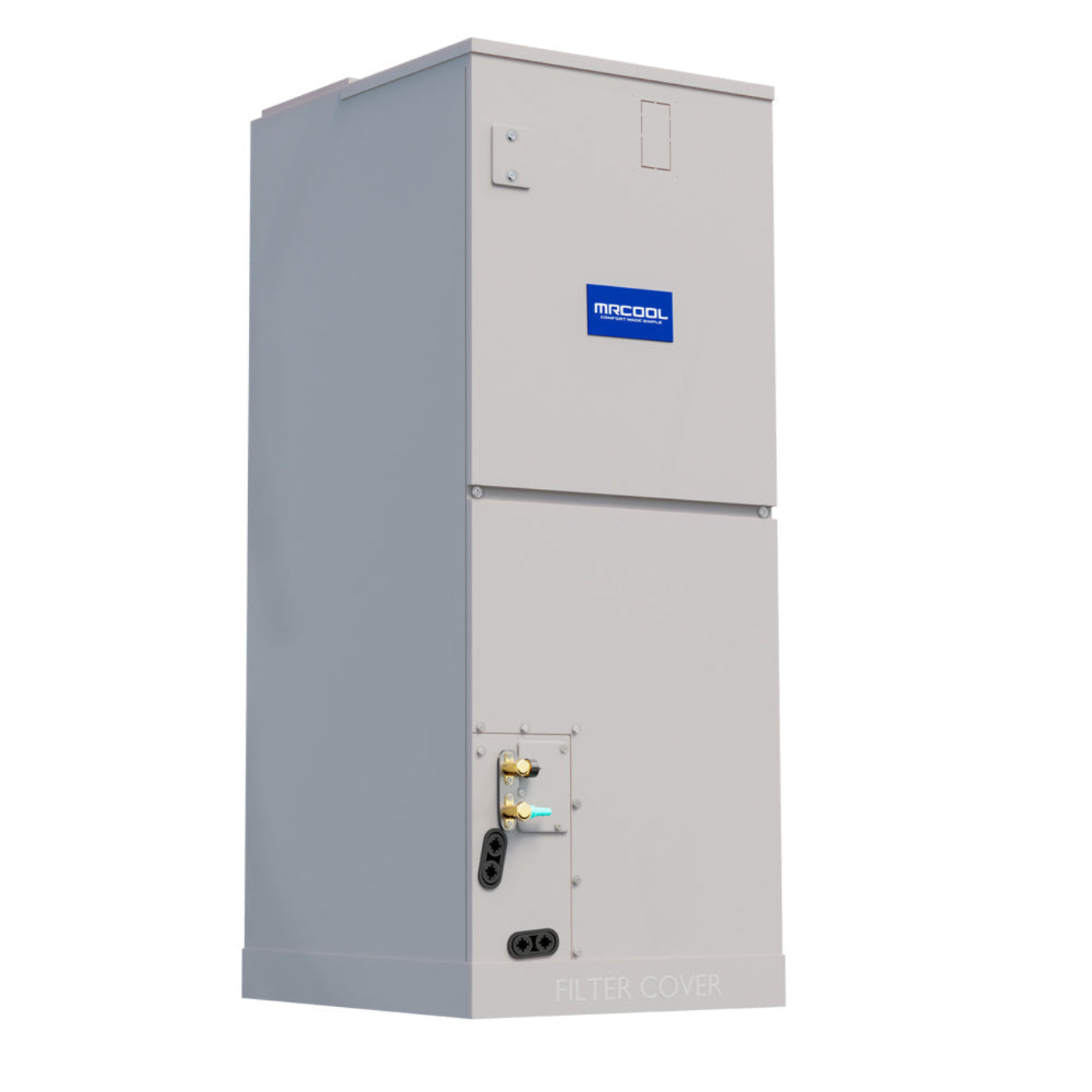

| Air Handler Dimensions |
21.02"W x
24.49"D x
52.99"H |
| Air Handler Weight |
164.02
lbs |
| SEER |
18 |
| EER |
10.3 |
| HSPF |
hspf4/hspf5: 9.2/7.6 |
| CFM |
1582.35 / 1358.82 / 1135.29 |
| Cooling Capacity |
57,000 BTU |
| Heating Capacity |
60,000 BTU |
| Voltage |
Requires a minimum of
208-230V/60HZ/60A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
60 |
| Min Circuit Ampacity |
34 |
| Color |
Gray |
| Rate Load |
2.4 |
| Zone Capacity |
1 |
| Coverage Area |
2,500 square footage |
| Refrigerant Type |
R410A |
| Refrigerant Volume |
172.84 oz |
| Decibel Rating |
52.5/49/44 |
| Decibel Rating Low |
44 |
| Decibel Rating High |
52.5 |
| Air Flow Direction |
Multi-position |
| Min Ambient Cool |
5~122F |
| Min Ambient Heat |
5~75.2F |
| Lineset Included |
No |
| Liquid Line Size |
3/8 in
|
| Suction Line Size |
7/8 in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
900/850/650 |
| Filter Type |
Replaceable |
| Auxiliary Heater Included |
No |
| Auxiliary Heater Available |
Yes |
| Auxiliary Heater Sizes |
10kw,15kw, 20kw |
| Adjustable Thermostat |
Yes |
| Modes |
Fan
Sleep
Auto Cool
|
| Includes |
Remote
Battery |
| App Compatibility |
No |
What our Experts Think
-
Powerful whole-home comfort: 60,000 BTU capacity is ideal for large homes or light commercial spaces needing consistent heating & cooling.
-
Energy-smart performance: 18 SEER efficiency helps reduce energy costs while meeting modern efficiency expectations.
-
Reliable ducted solution: Designed for seamless integration with existing ductwork for even airflow and quiet operation.
-
Year-round versatility: Heat pump technology delivers efficient cooling in summer and dependable heating in winter.
-
Installer-approved build: Durable components and MRCOOL’s proven design make this a solid long-term investment.
Q&A
Q: What is the MRCOOL CENTRAL-60-HP-230-00 system?
A: A 60,000 BTU (5-ton) ducted heat pump system with air handler and condenser, designed for whole-home heating and cooling.
Q: How efficient is this system?
A: It delivers up to 18 SEER efficiency, helping reduce energy costs while maintaining consistent comfort.
Q: What size space does it cover?
A: Ideal for large homes or light commercial spaces, typically 2,500–3,000 sq. ft. (depending on insulation and climate).
Q: Is it compatible with existing ductwork?
A: Yes, it’s designed to work with standard ducted HVAC systems.
Q: What power does it require?
A: Operates on 230V, suitable for residential and commercial installations.
Q: Does it provide both heating and cooling?
A: Yes, it’s a central heat pump system for year-round comfort.
Q: Why choose MRCOOL?
A: MRCOOL systems are known for reliability, energy efficiency, and strong value, making them a popular choice for central HVAC upgrades.
Maintenance Tips
-
Change air filters every 1–3 months to maintain airflow, efficiency, and indoor air quality.
-
Keep outdoor condenser clear of debris, leaves, and vegetation (minimum 24" clearance).
-
Clean condenser coils annually to ensure optimal heat transfer and energy efficiency.
-
Inspect ductwork for leaks to prevent energy loss and maintain consistent comfort.
-
Check condensate drain line regularly to avoid clogs and water damage.
-
Schedule professional HVAC service yearly to verify refrigerant levels, electrical connections, and overall system performance.
-
Use a programmable thermostat to reduce wear, lower energy costs, and improve SEER efficiency.
