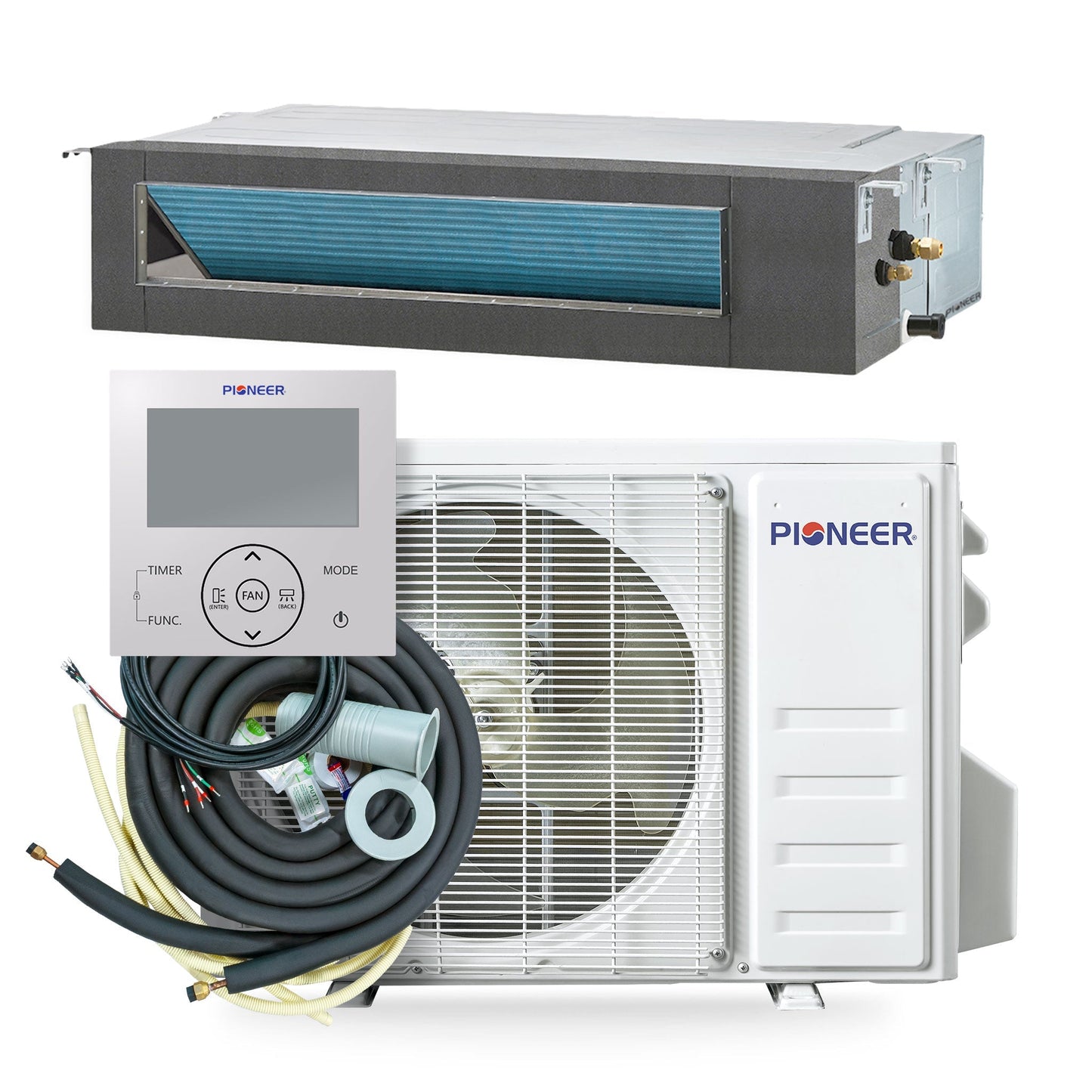

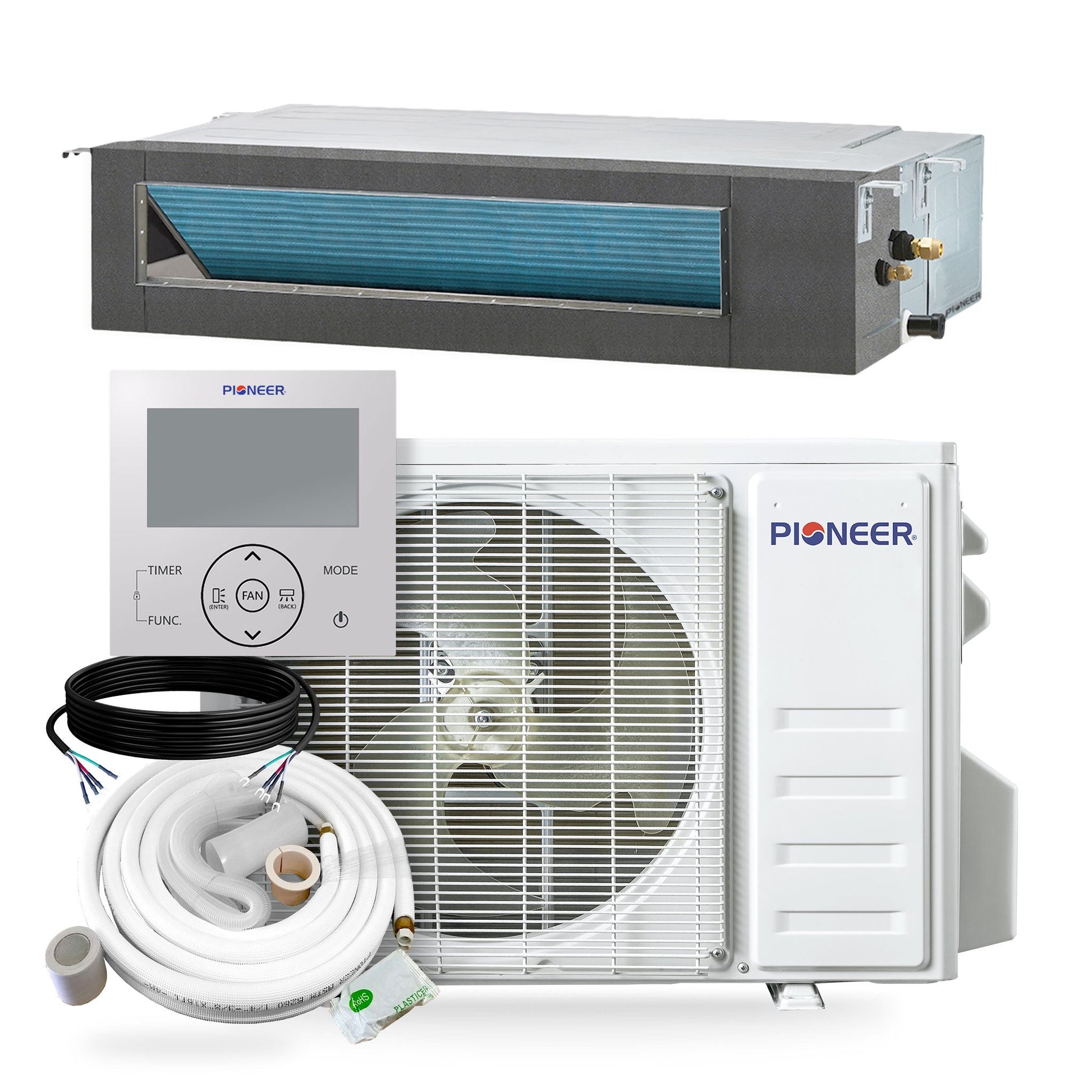

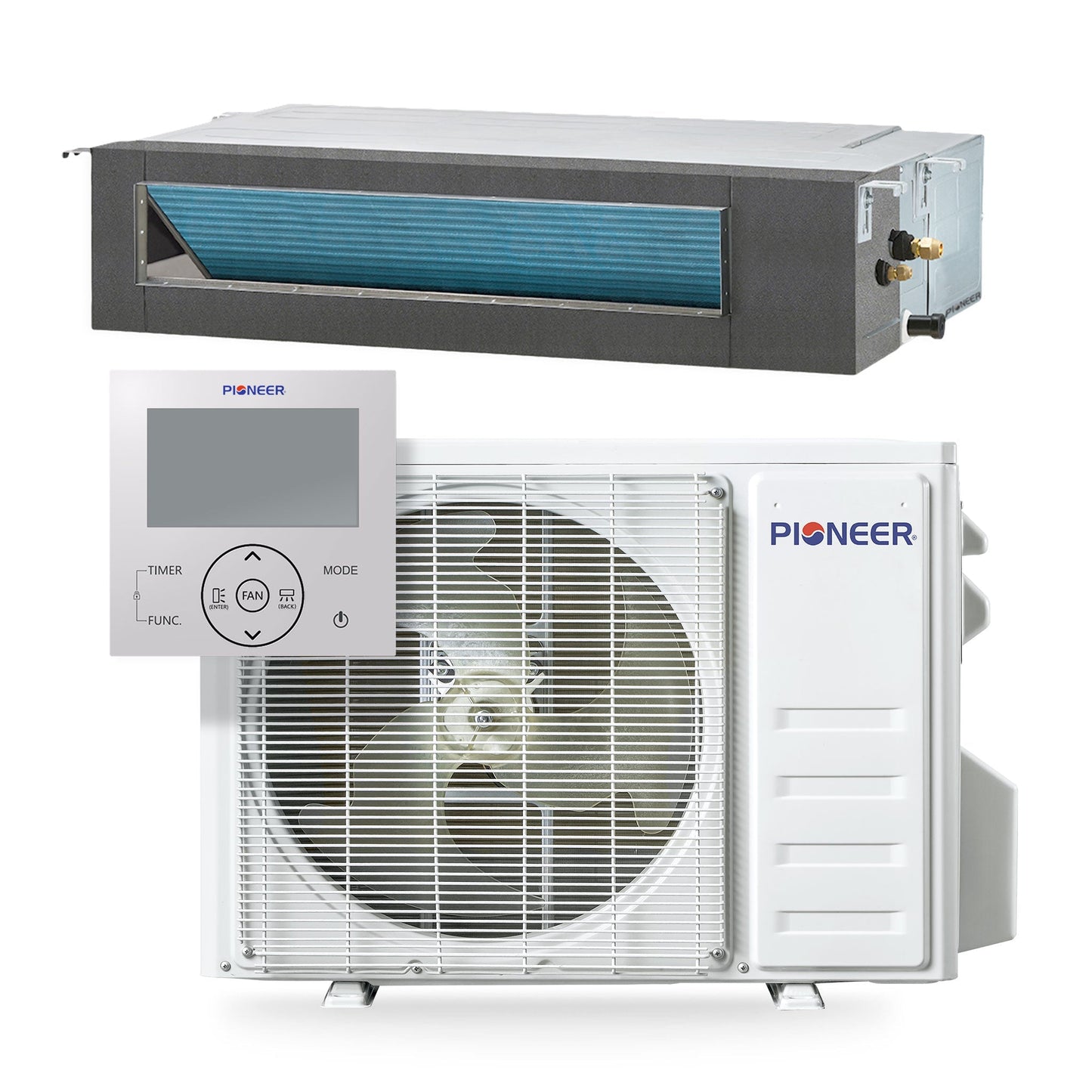

Pioneer Quantum Ultra 17,000 BTU 20.3 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set -RYT018GLSI24RL-10S

Pioneer Quantum Ultra 17,000 BTU 20.3 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set -RYT018GLSI24RL-10S

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 17,000 BTU/H with 20.3 SEER2 / 11 EER2 efficiency
• Heating capacity: 18,000 BTU/H with 10 HSPF2 / 2.8 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers
• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Ideal mid‑to‑large ducted performance (≈17,000 BTU)
  Designed for 600–850 sq ft concealed‑duct installations where hidden airflow meets dependable comfort.

• Solid efficiency (20.3 SEER2)
  Offers above‑average energy performance for ducted mini‑splits, helping to reduce electricity costs compared with older HVAC systems.

• Inverter heat pump precision
  DC inverter technology provides smooth temperature control, quieter cycling, and faster comfort recovery than fixed‑speed units.

• Clean, concealed installation
  Fits into attic, ceiling, or plenum space, delivering conditioned air through duct runs without visible equipment—great for modern interior aesthetics.

• All‑season comfort in one system
  Includes cooling, heating, dry, and ventilation modes for year‑round use without separate systems.

• Quiet, unobtrusive operation
  Hidden design keeps indoor noise low, making it suitable for living areas, bedrooms, or home offices.

• Smart control ready
  Compatible with optional Wi‑Fi control, enabling remote scheduling and temperature adjustments via app for added convenience.

Q&A

Q: What room size is this 17,000 BTU ducted mini split suitable for?
A: Ideal for medium to large rooms (approx. 600–850 sq. ft), such as offices, living rooms, or conference areas.

Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.

Q: What type of system is this?
A: Ceiling concealed ducted design, ideal for hidden installation with ducted airflow to multiple zones.

Q: How energy-efficient is the 20.3 SEER2 rating?
A: With 20.3 SEER2, it provides high efficiency, reducing energy consumption while maintaining comfort.

Q: What comes included in the full set?

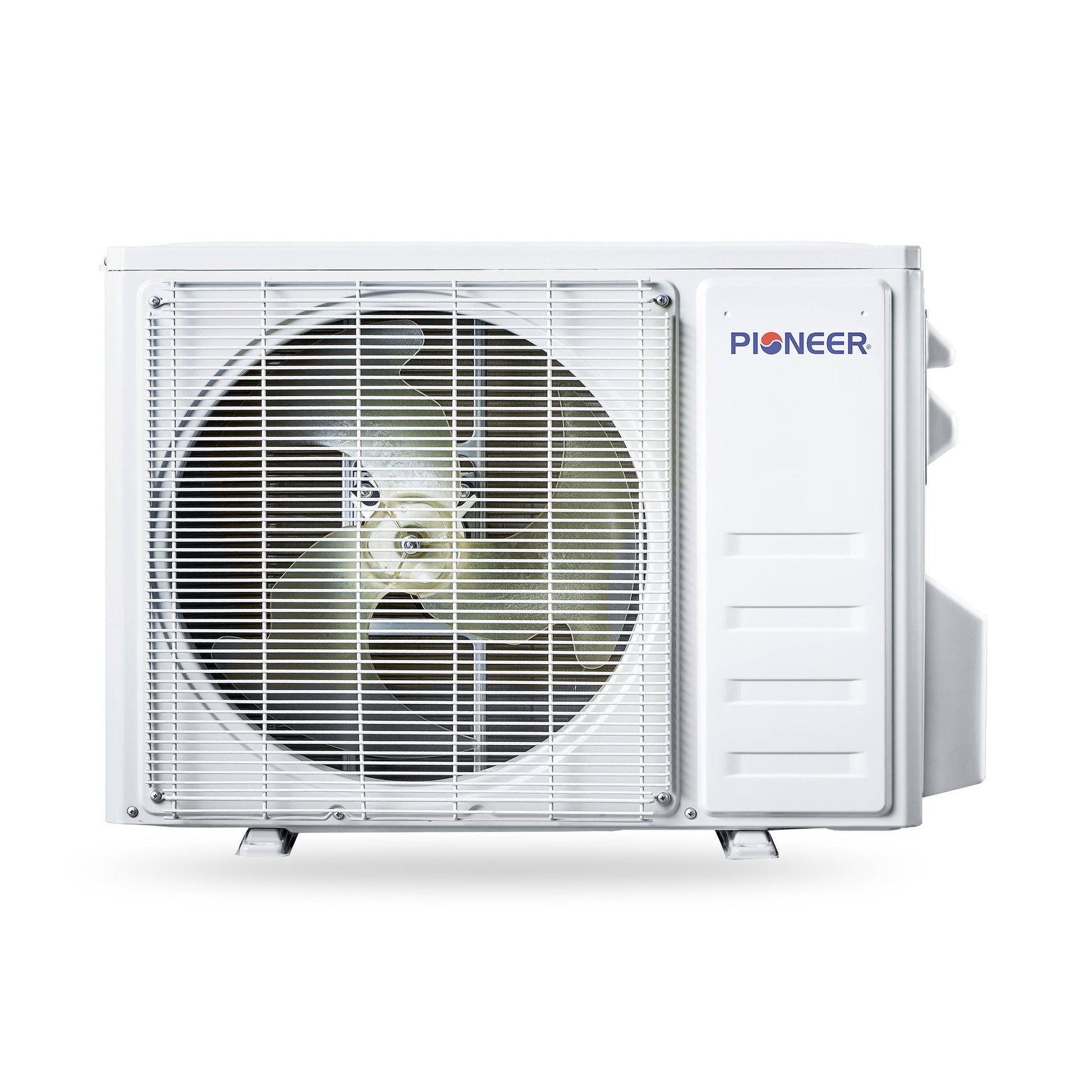

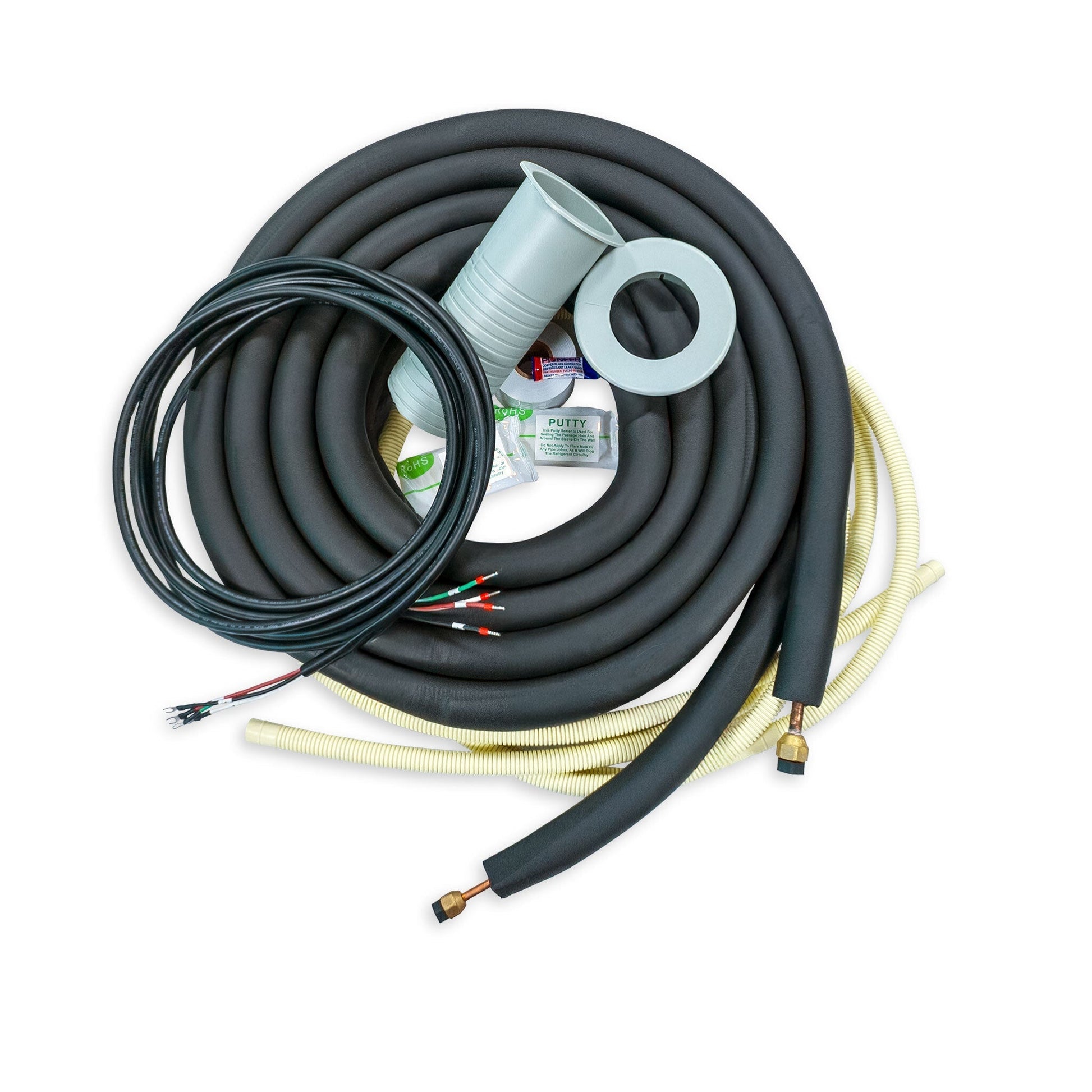

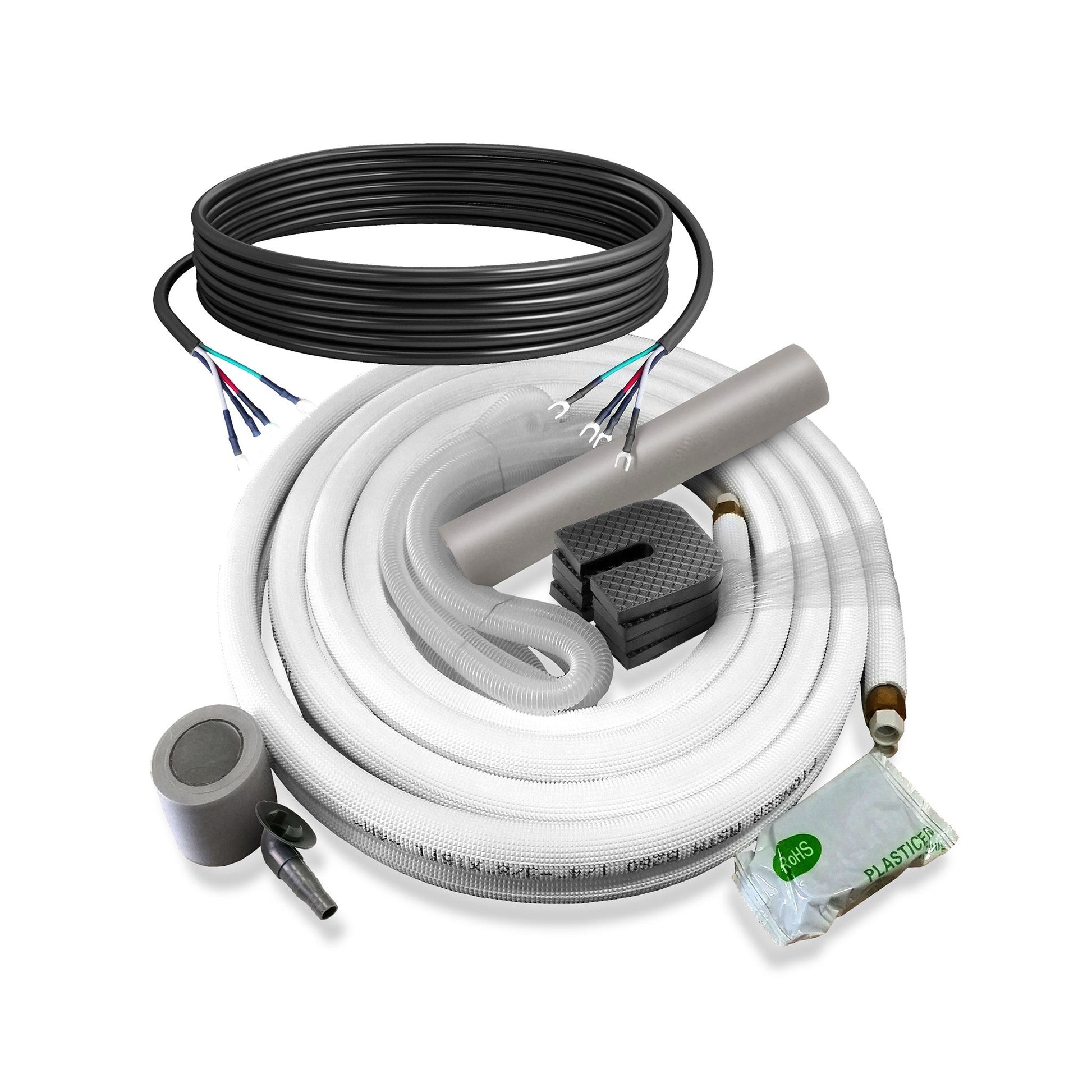

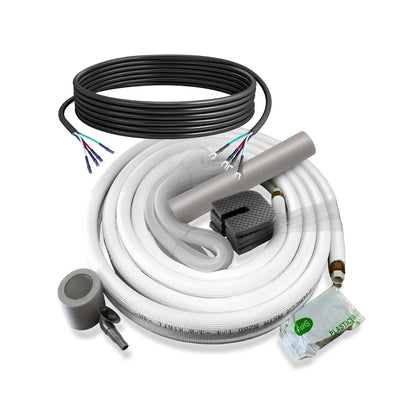

A: Includes indoor ducted unit, outdoor condenser, and pre-charged installation kit for easy setup.

Q: Does it support Wi-Fi or smart control?
A: Yes, compatible with Wi-Fi modules for remote operation, scheduling, and monitoring via smartphone.

Q: How quiet is the indoor unit?
A: Ultra-quiet operation, typically around 32–35 dB, suitable for bedrooms, offices, and living areas.

Q: What voltage does it require?
A: Designed for 208–230V single-phase power.

Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for even temperature distribution.

Q: Is it suitable for multi-room setups?
A: Yes, the ducted design allows connection to vents or multiple zones for flexible installations.

Maintenance Tips

• Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 20.3 SEER2 efficiency for 500–700 sq ft areas

• Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the ceiling-concealed unit

• Keep indoor & outdoor units free of dust and debris – Ensures consistent airflow and peak heat exchange

• Check and clear condensate drain line – Prevents leaks and ceiling damage

• Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance

• Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity

• Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption

• Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
