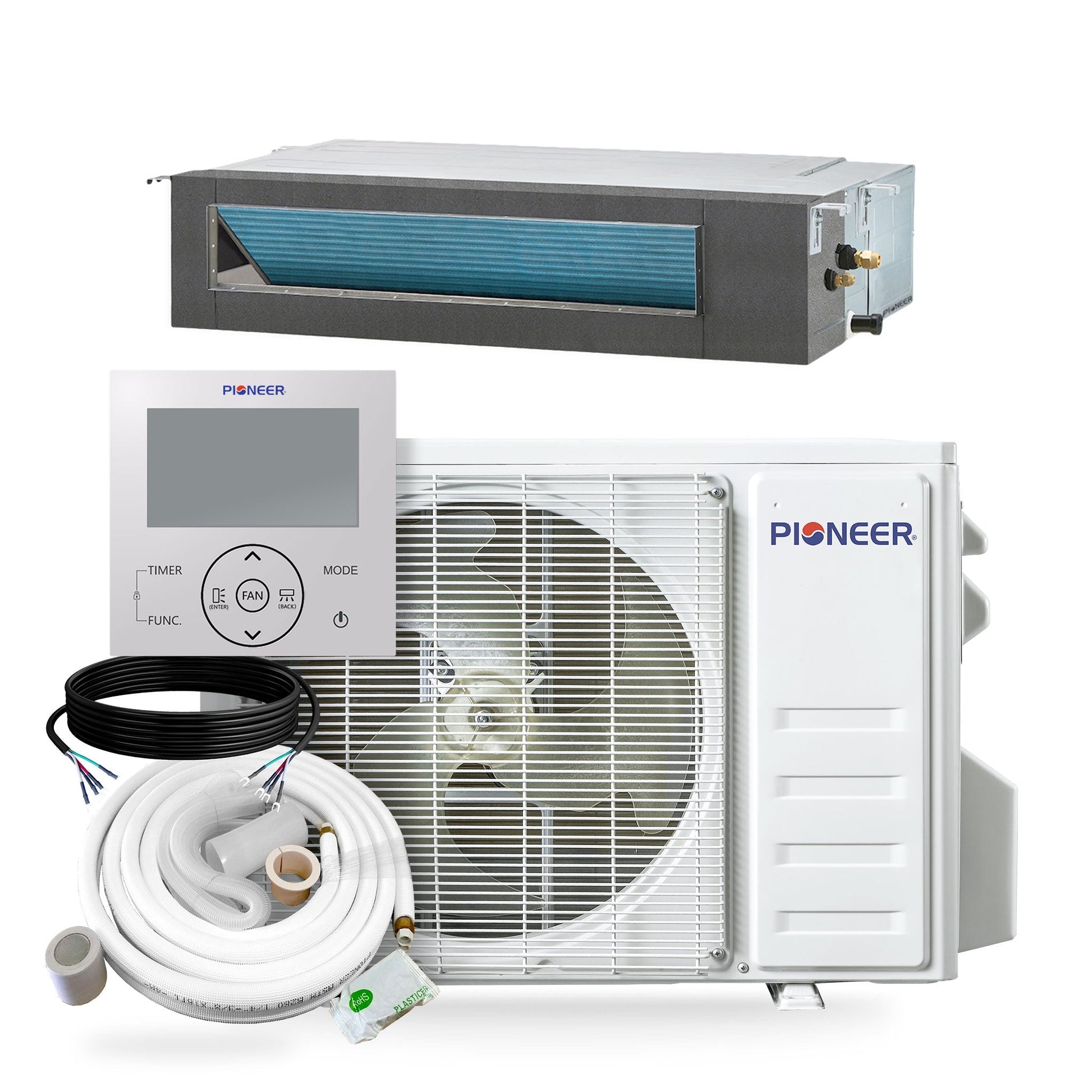

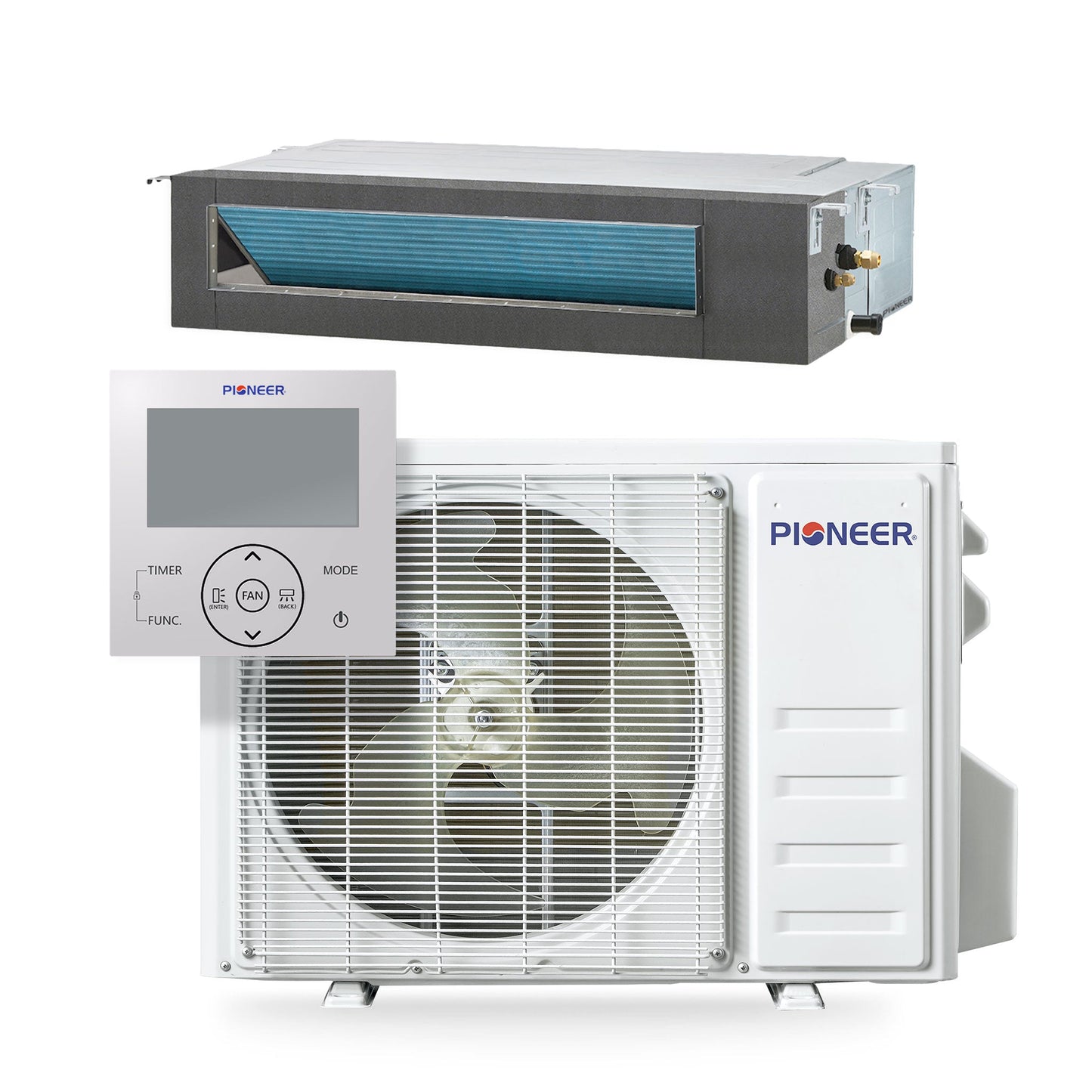

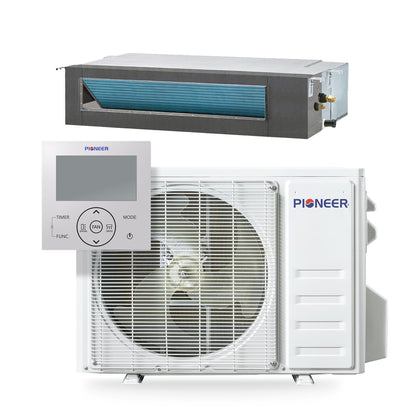

Pioneer Quantum Ultra 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT009GLSI24RL-10S

Pioneer Quantum Ultra 9,500 BTU 19.6 SEER2 230V Ceiling Concealed Ducted Mini-Split Air Conditioner Inverter Heat Pump Full Set - RYT009GLSI24RL-10S

• High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
• Cooling capacity: 9,500 BTU/H with 19.6 SEER2 / 12 EER2 efficiency
• Heating capacity: 9,500 BTU/H with 10 HSPF2 / 3.5 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

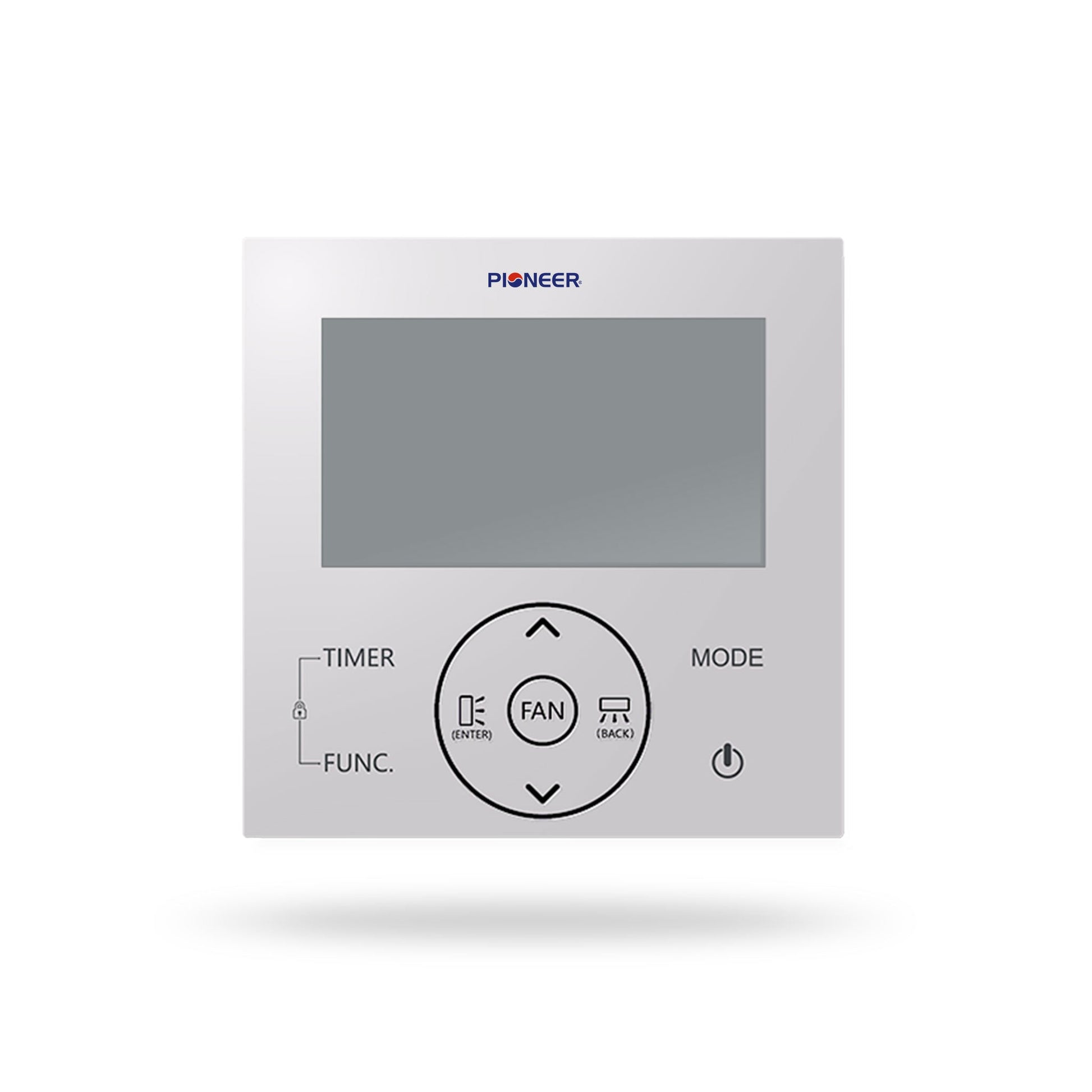

• Functional Remote with:
• ECO and SLEEP Modes, for Energy-Conservation
• Timer On/Off Control
• TURBO, for Times of High-Demand
• Self-Clean Cycle
• MEMORY, to Recall Favorite Settings
• IFEEL, to Detect and Adjust to Local Temperature

What our Experts Think

• Ideal for small to medium ducted spaces
  With 9,500 BTU cooling capacity, this concealed‐ducted mini‑split is perfect for rooms ~300–450 sq ft that require hidden ducted conditioning for clean aesthetics.

• Very good efficiency (19.6 SEER2)
  Offers above‑average seasonal efficiency, helping lower energy use and monthly utility costs compared with older or non‑inverter systems.

• Inverter heat pump for precise comfort
  DC inverter technology ensures smooth temperature control, quieter cycling, and faster comfort recovery than fixed‑speed units.

• Full ducted integration
  Designed for concealed ceiling/floor/attic duct runs, making it a solid choice where visible wall units aren’t wanted.

• All‑season performance
  Provides cooling, heating, dry, and ventilation modes, ensuring year‑round comfort without separate systems.

• Smart control ready
  Compatible with Wi‑Fi control (via optional Wi‑Fi kit) so you can schedule and adjust comfort from your smartphone.

• Quiet, unobtrusive operation
  Concealed design plus low‑noise performance keeps indoor living areas comfortable without fan noise disruptions.

Q&A

Q: What room size is this 9,500 BTU ducted mini split ideal for?
A: Best for small to medium rooms (approx. 250–350 sq. ft), including offices, bedrooms, or compact living areas.

Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating.

Q: What type of system is this?
A: Ceiling concealed ducted design, ideal for hidden installation with ducted airflow to multiple zones.

Q: How energy-efficient is the 19.6 SEER2 rating?
A: With 19.6 SEER2, it provides high efficiency, reducing energy costs while maintaining comfort.

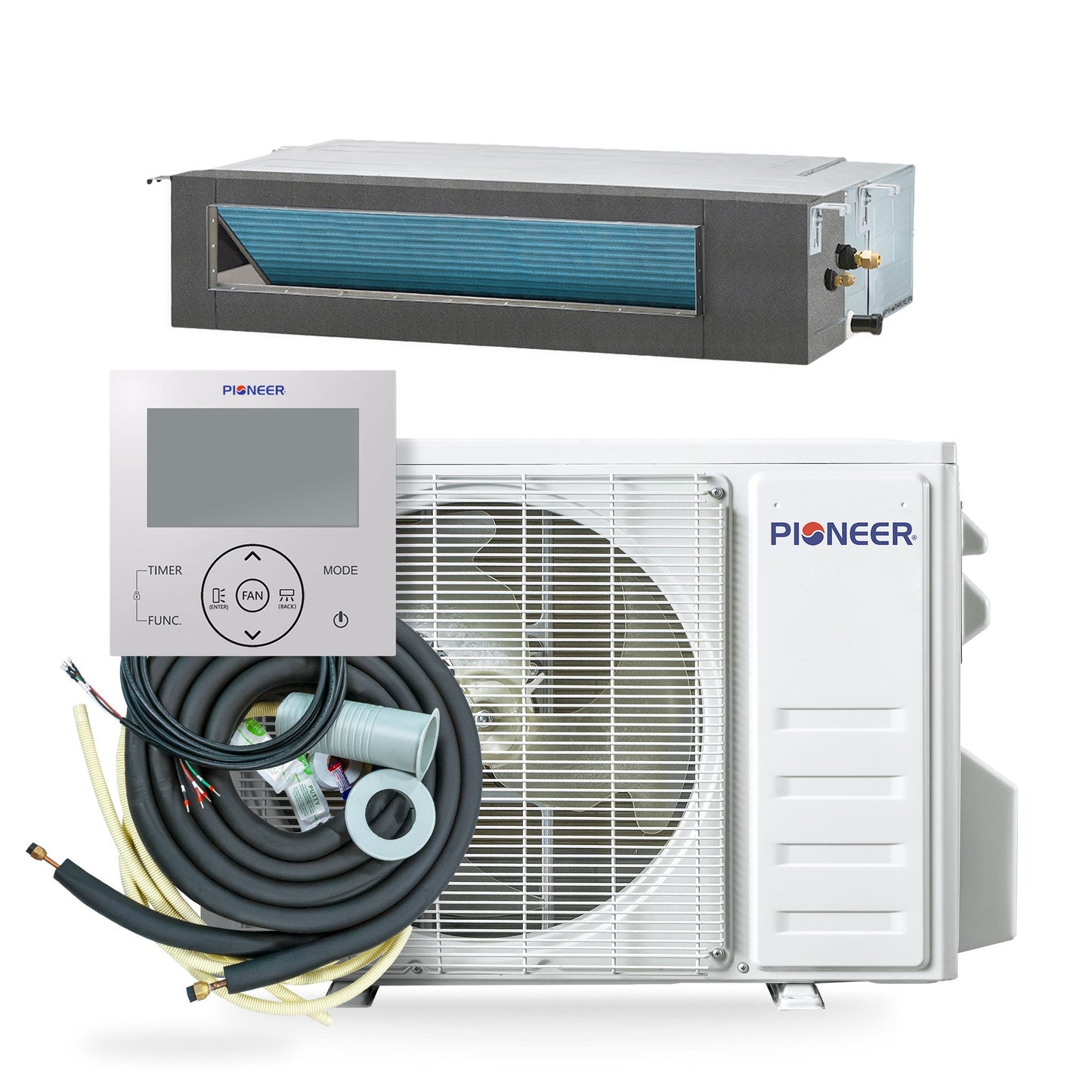

Q: What is included in the full set?

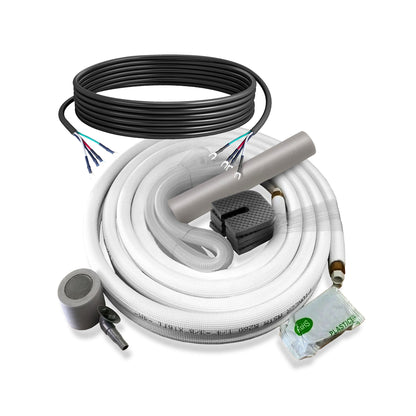

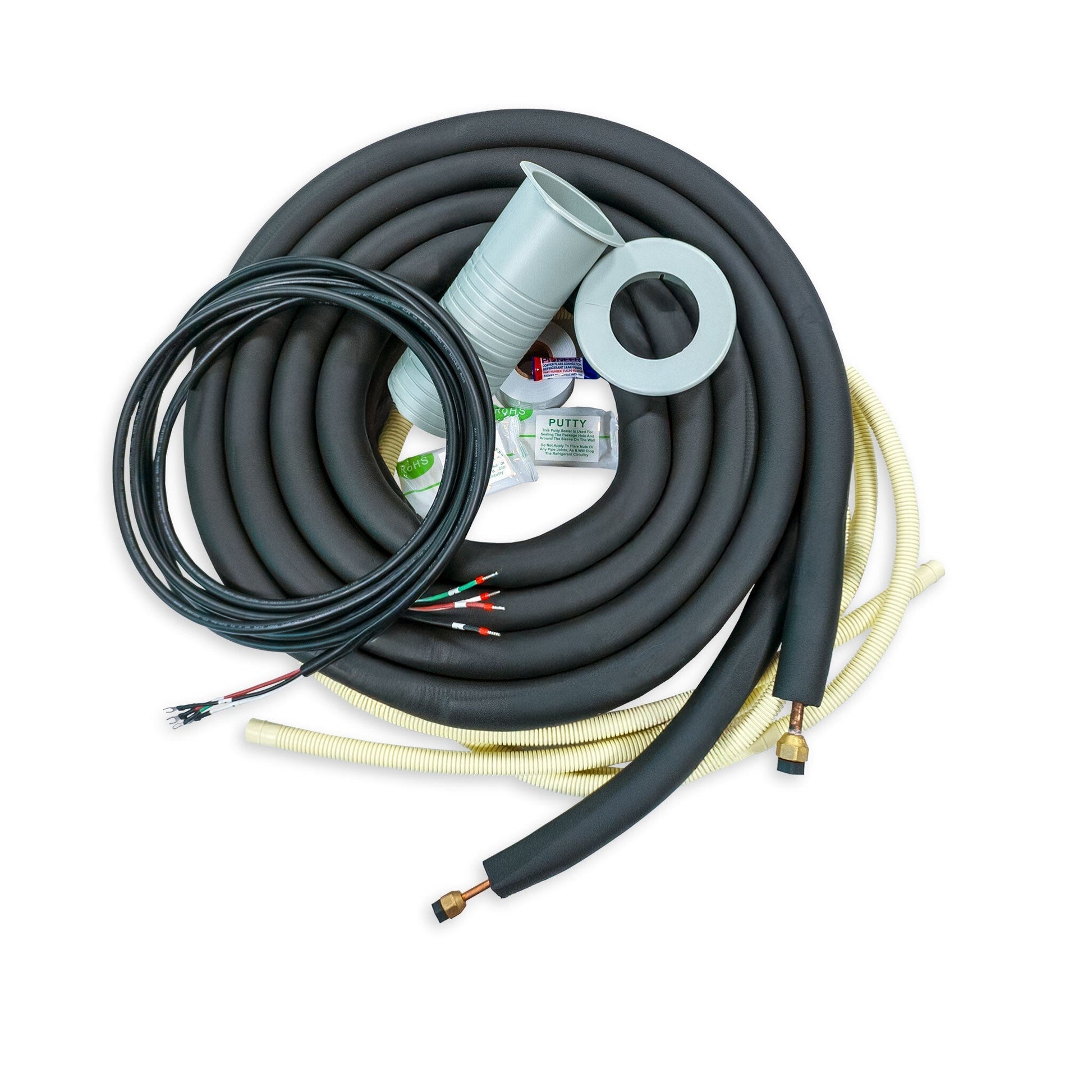

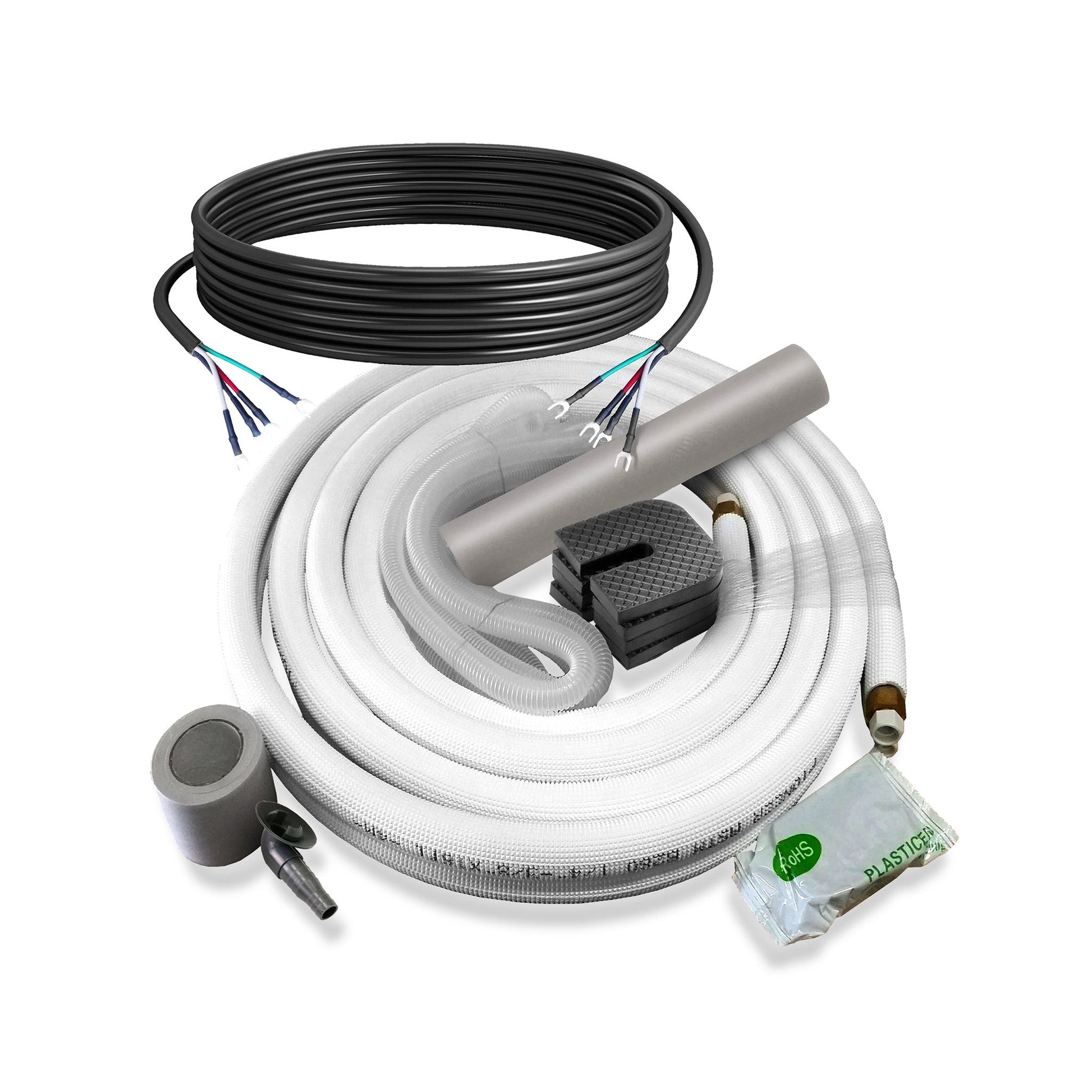

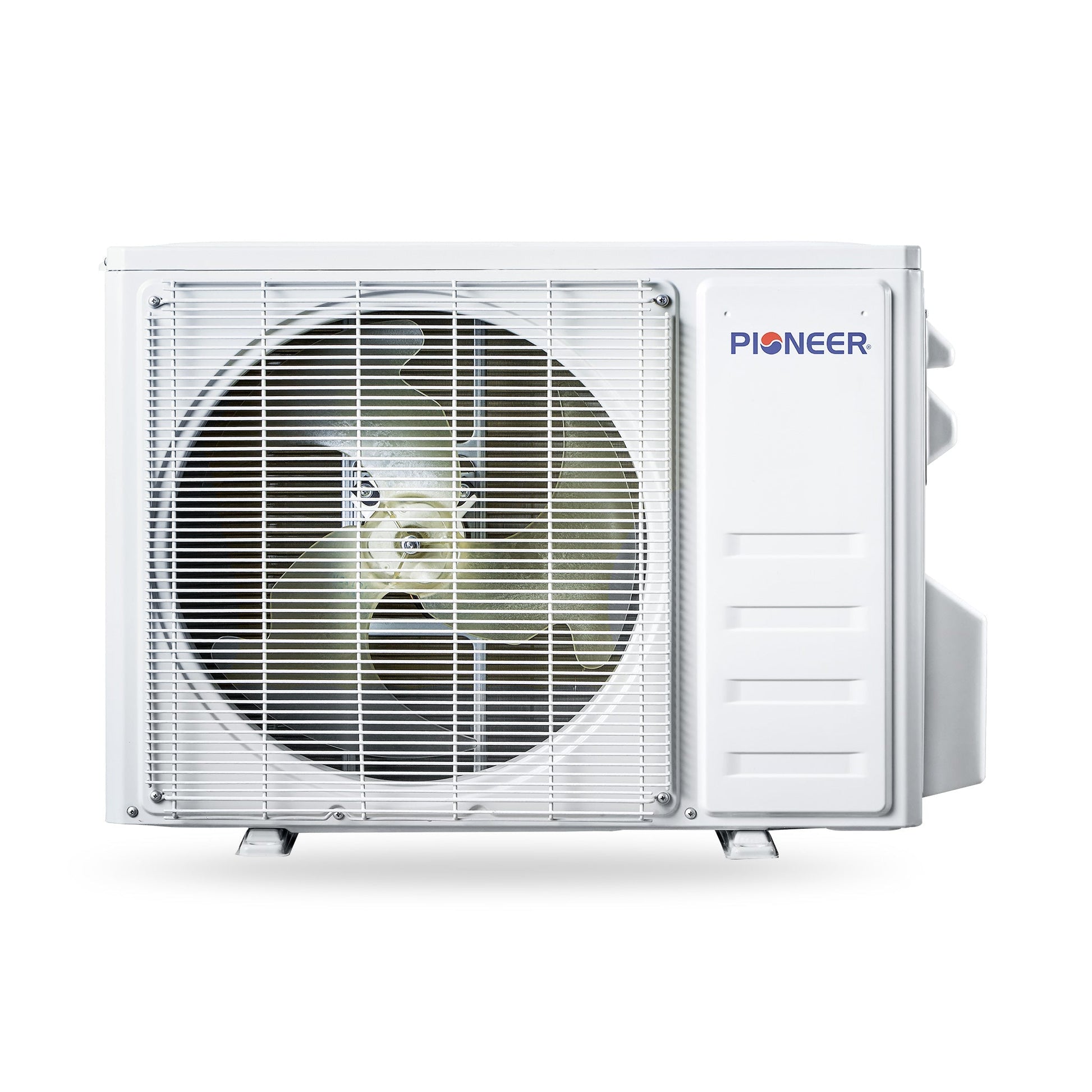

A: Includes indoor ducted unit, outdoor condenser, and pre-charged installation kit for easy setup.

Q: Does it support Wi-Fi or smart control?
A: Yes, compatible with Wi-Fi modules for remote operation, scheduling, and monitoring via smartphone.

Q: How quiet is the indoor unit?
A: Operates quietly, typically around 30–35 dB, suitable for offices, bedrooms, and living spaces.

Q: What voltage does it require?
A: Designed for 208–230V single-phase power.

Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for even temperature distribution.

Q: Is this unit suitable for multi-room setups?
A: Yes, the ducted design can supply conditioned air to multiple zones via ductwork, providing flexible installation options.

Maintenance Tips

• Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 19.6 SEER2 efficiency for 250–350 sq ft spaces

• Run self-clean function regularly – Prevents mold, bacteria, and odor buildup inside the ceiling-concealed unit

• Keep indoor & outdoor units dust- and debris-free – Ensures consistent airflow and peak heat exchange

• Check and clear condensate drain line – Prevents leaks and ceiling damage

• Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance

• Inspect refrigerant lines annually – Ensures leak-free operation and reliable capacity

• Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and energy consumption

• Schedule yearly professional servicing – Maximizes inverter efficiency and extends system lifespan
